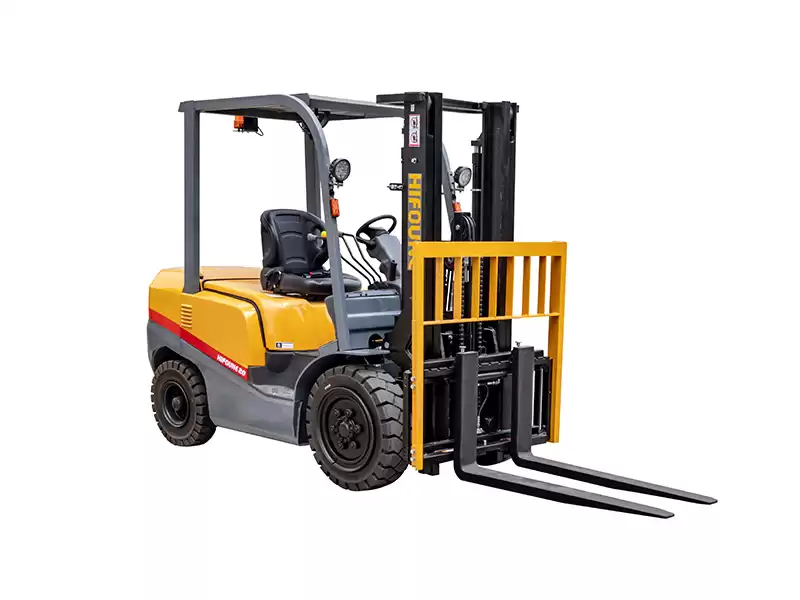

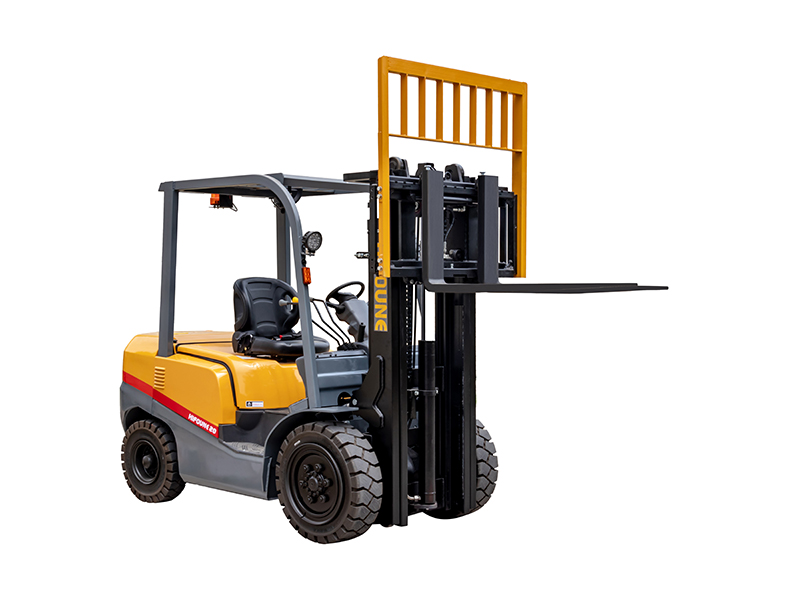

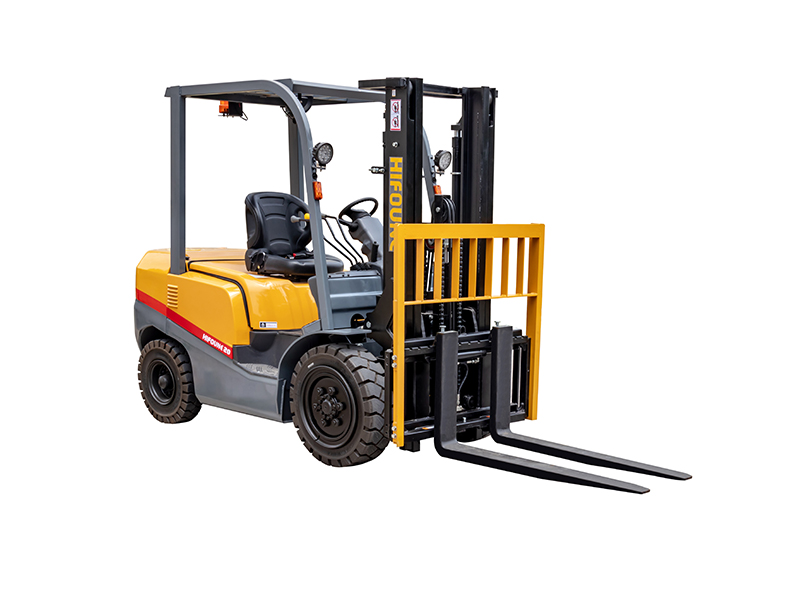

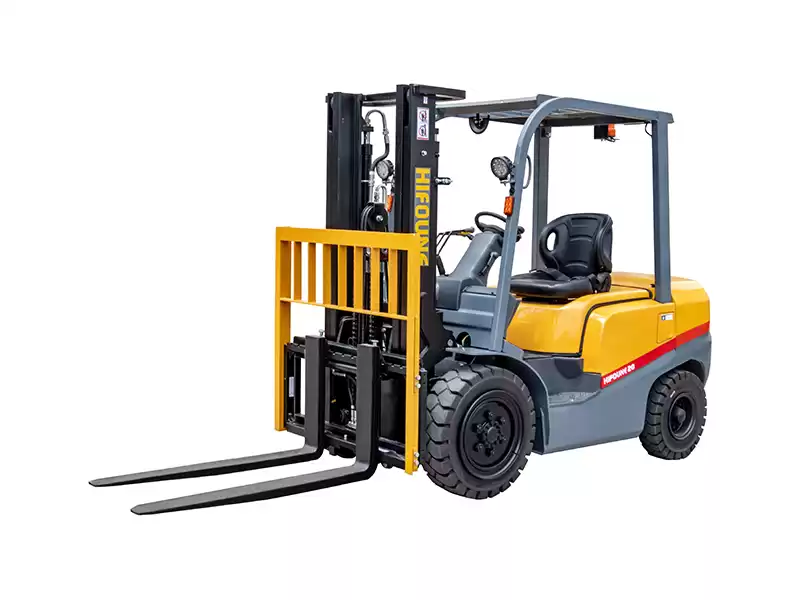

Diesel Forklift C-series 3.0 ton

Hifoune FD30T is a forklift at 3ton capacity which uses diesel engine, choosable engine such as xinchai isuzu,etc, color customizable, please contact us for more information.



3.0ton diesel forklift

Model UNIT FD25T FD30T
Specifications Power Unit Diesel Diesel
Operator Type Driver/seat
Transimission Bo× Type Electronic hydraulic transmission
Rated Capacity kg 2500 3000
Load Center mm 500 500
Ma×.Lifting Height mm 3000 3000
Tire Type Pneumatic Tyre Pneumatic Tyre
Tire Number  Front 2 2
Rear 2 2
Tire Size  Front 7.00-12-12PR 28×9-15-14PR
Rear 6.0-9-10PR 6.5-10-10PR
Performance Lifting
Speed
Loaded mm/s 500 500
Unloaded 550 550
Lowering
Speed
Loaded mm/s 480 480
Unloaded 450 450
Travelling
Speed
Loaded km/h 17 19
Unloaded 19 20
Ma×.Gradeability (Loaded) % 21 21
Ma×.Drawbar Pull (Loaded) kn 18 18
Mast Tilting Angle (Fwd/Bwd) deg 6/12 6/12
Free Lifting Height mm 150 150
Turning Radius mm 2240 2400
Dimensions Overall Length (without fork) mm 2605 2705
Overall Width mm 1150 1240
Overhead Guard Height mm 2090 2130
Fork Size (L×W×T) mm 1220×122×40 1220×125×45
Mast Height (Fork lowered) mm 2090 2140
Battery (Voltage/Capacity) V/Ah 12/90 12/90
Truck Weight kg 3680 4380
Fuel Tank Capacity L 70 70
Engine Brand  XINCHAI MITSUBISHI XINCHAI MITSUBISHI ISUZU
Model C490 S4S C490 S4S C240
Rated Power kw/rpm 40/2650 35.3/2250 40/2650 35.3/2250 35.4/2500
Rated torque n-m/rpm 160/1600-2000 177/1700 160/1600-2000 177/1700 137.7/1800
Number Of Cylinder 4 4 4 4 4
Displacement 2.67 3.331 2.67 3.331 2.37

3.0ton diesel forklift Product Features

High quality

--3tons diesel forklift truck Adopts gradeability improving style electronic hydraulic transmission,compare with other models:efficiency 5% improved,climbing torque 8% increased,noise 3~5dB reduced,thermal equilibrium temperature 8-10°decreased;
--The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle; -- Load sensing priority steering hydraulic system is adopted to reduce pressure loss of hydraulic system, save energy and improve operation comfort.
High security
--Introducing advances technology from Germany,the unique single chain has greatly enhanced he front view while working.
--All car LED lights, high brightness, long life, energy saving and environmental protection.
High comfort
--The new suspension system,adjustable seat,allowing the driver to feel more comfortable and reducing fatigue during long operations;
--The combined color instrument has strong human-machine interaction and timely and accurately feedback the running state of vehicles.
--Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two stage free lift mast, three stage free lift mast , widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.


Our Factory

    Our company. is located in the Xianganindustrial zone of Xiamen torch high tech Zone. It is dedicated to providing reliable and efficient material handling equipment and solutions for customers. It is a professional company integrating R & D, manufacturing, sales and service. The company's main products include a full range of internal combustion counterbalanced forklift trucks, electric counterbalance forklift trucks, and electric warehouse equipments.


    We not only aim to provide excellent products to customers in our full range of products, but also provide excellent service to customers in all links.

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

Certifications

3 ton diesel forklift 4 wheel small tonnage lifting truck xinchai isuzu engine

FAQ

Q. Why choose HIFOUNE?
A. We are a professional forklift manufacturer and supplier in Xiamen of china with more than 20 years exported experience.Most of our staff are from XGMA machinery.

Q.What are our advantages compared with other manufactures/factories?
A.Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves. Our C series forklift adopt TCM technology, most of parts are compitible with TCM forklift, but have cheaper price.


Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. HIFOUNE can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
