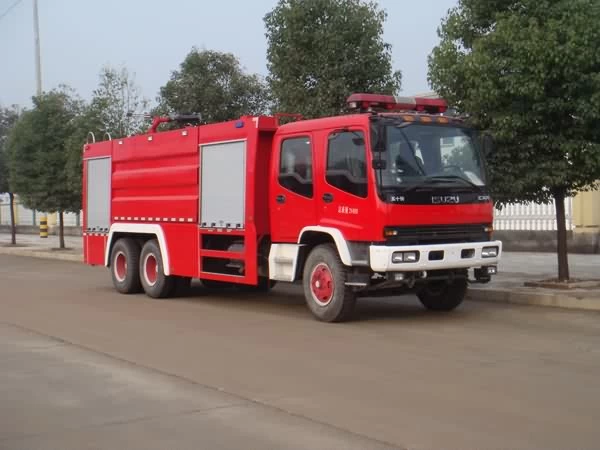

Dimension 9775x2490x3560mm Water Foam Industry Fire truck
| ISUZU： |
FVZ34Q（12T ISUZU），Double Cab，191kW，Wheelbase:4650 ＋1300mm |
| Tank Capacity： |
Water:6000L/6000kg，Foam:2655L/3000kg |
| Fire Pump： |
Pressure：Medium pressure:1.8Mpa Low pressure: 1.0Mpa ，Flow rate：Medium pressure:25L/s Low pressure:50L/s。Rear-mounted，Water Delivery time：≤50s |
| Cannon： |
Water rated pressure≤1.0Mpa，Flow rate：48.0L/s ，Throw range≥55m，Rotation angle：360°，Depression Elevation angle：-10°to +55° |
| Overall Dimension: |
9775x2490x3560mm |
