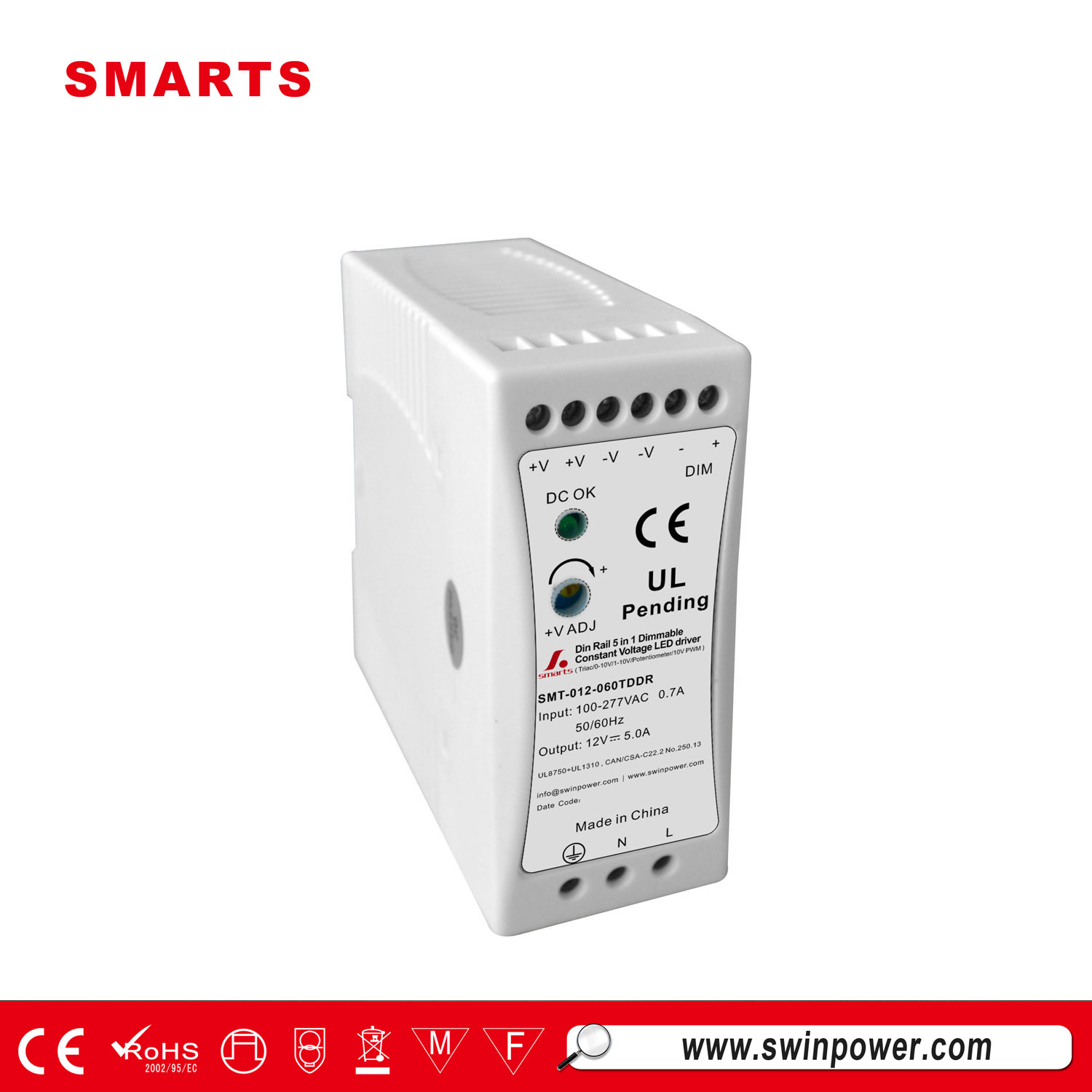

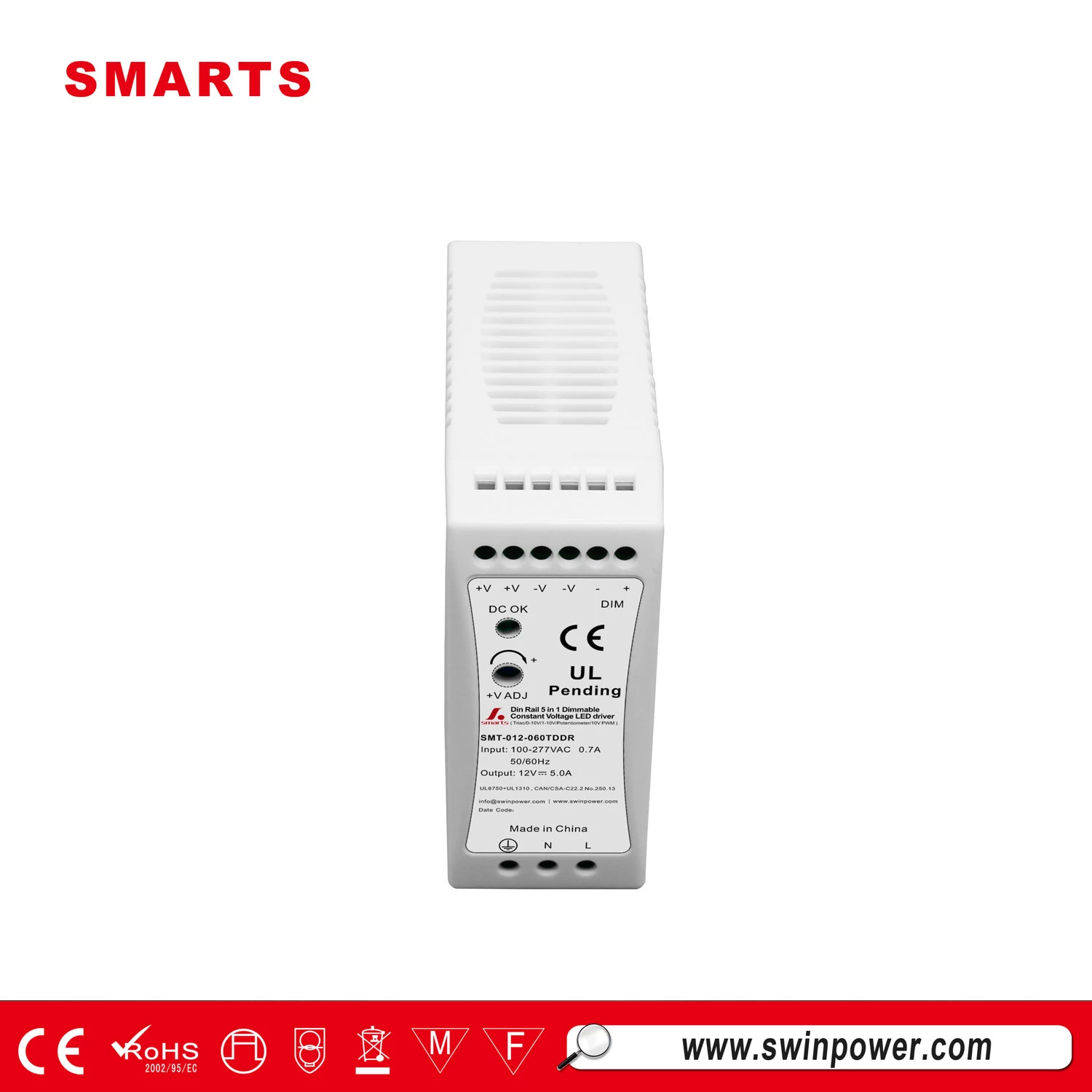

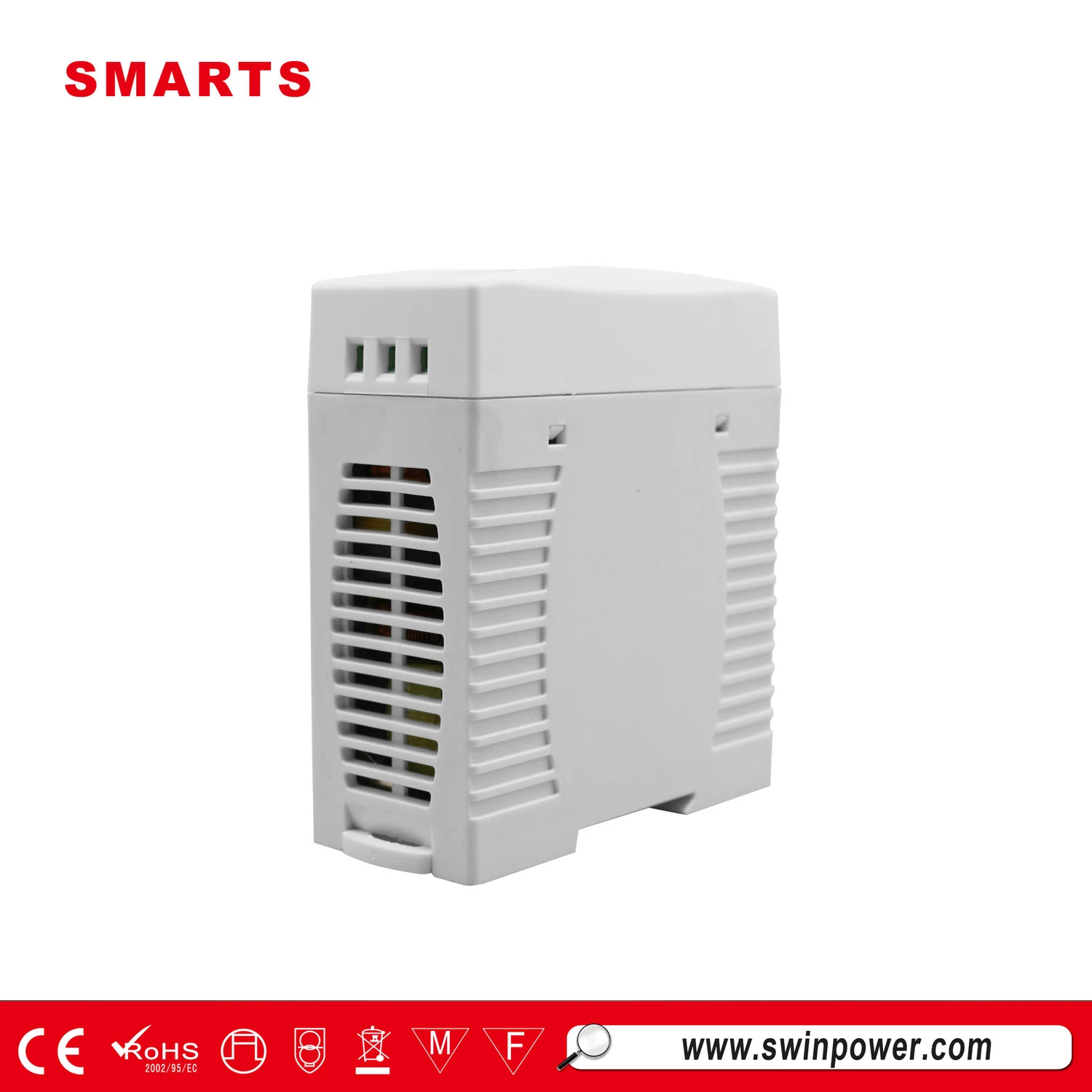

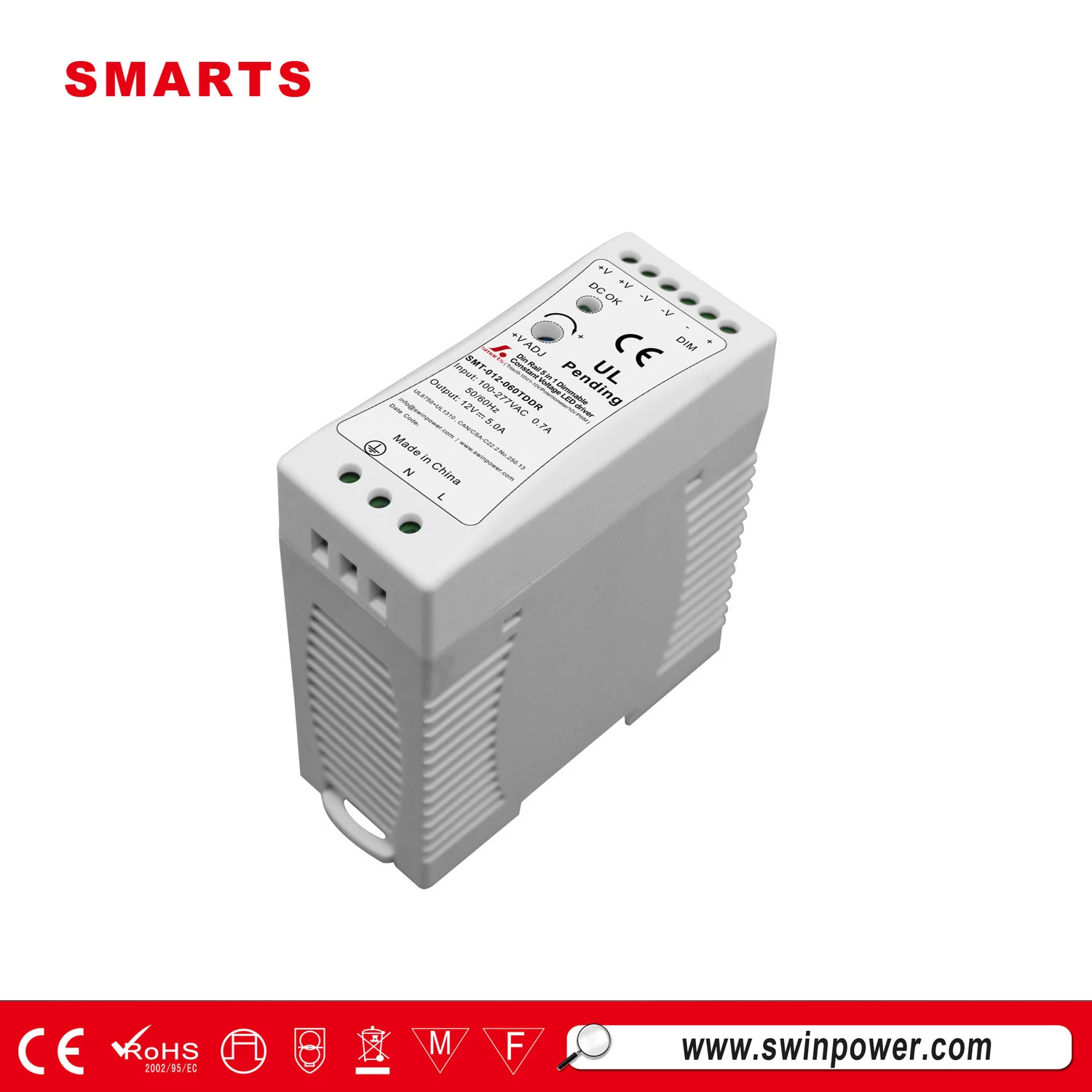

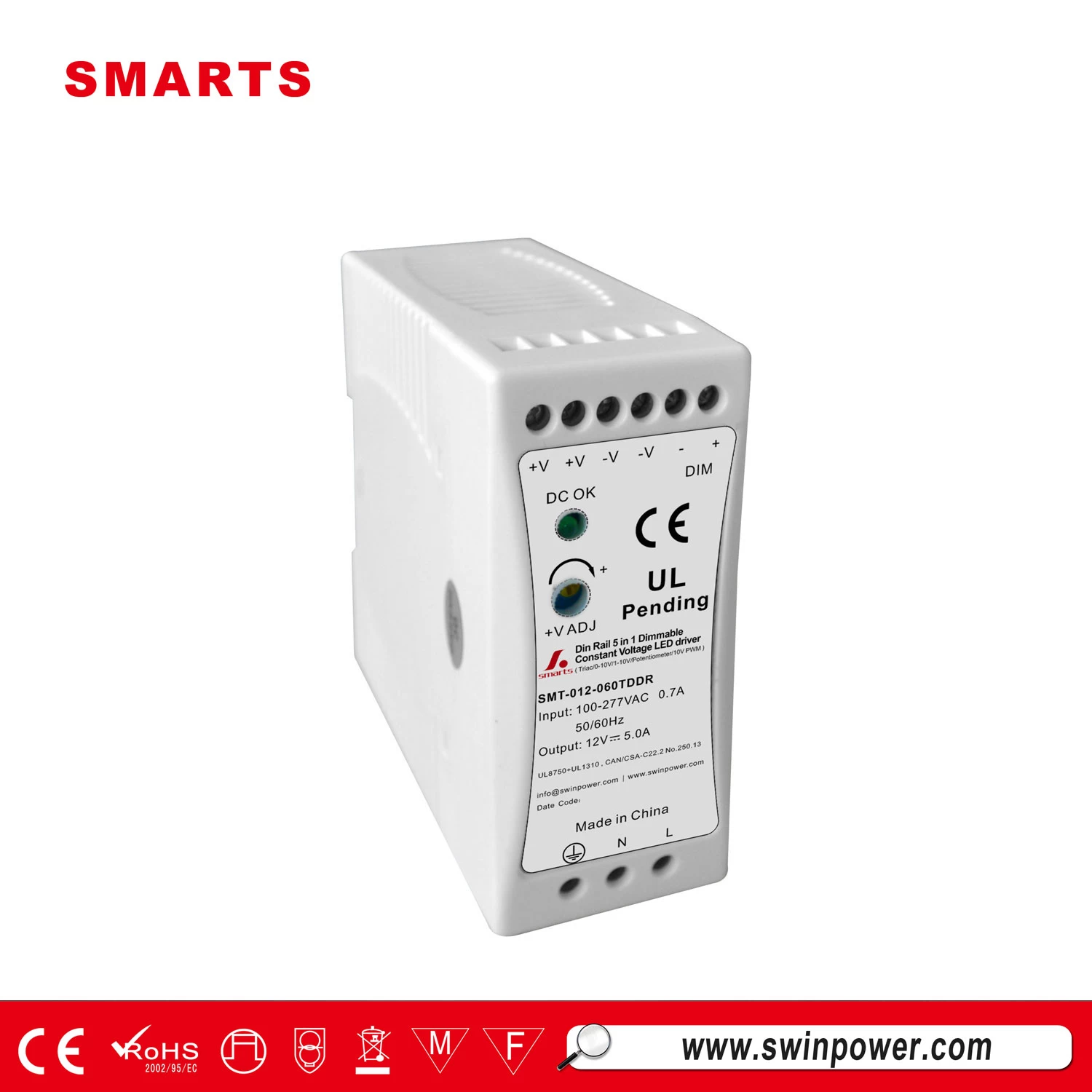

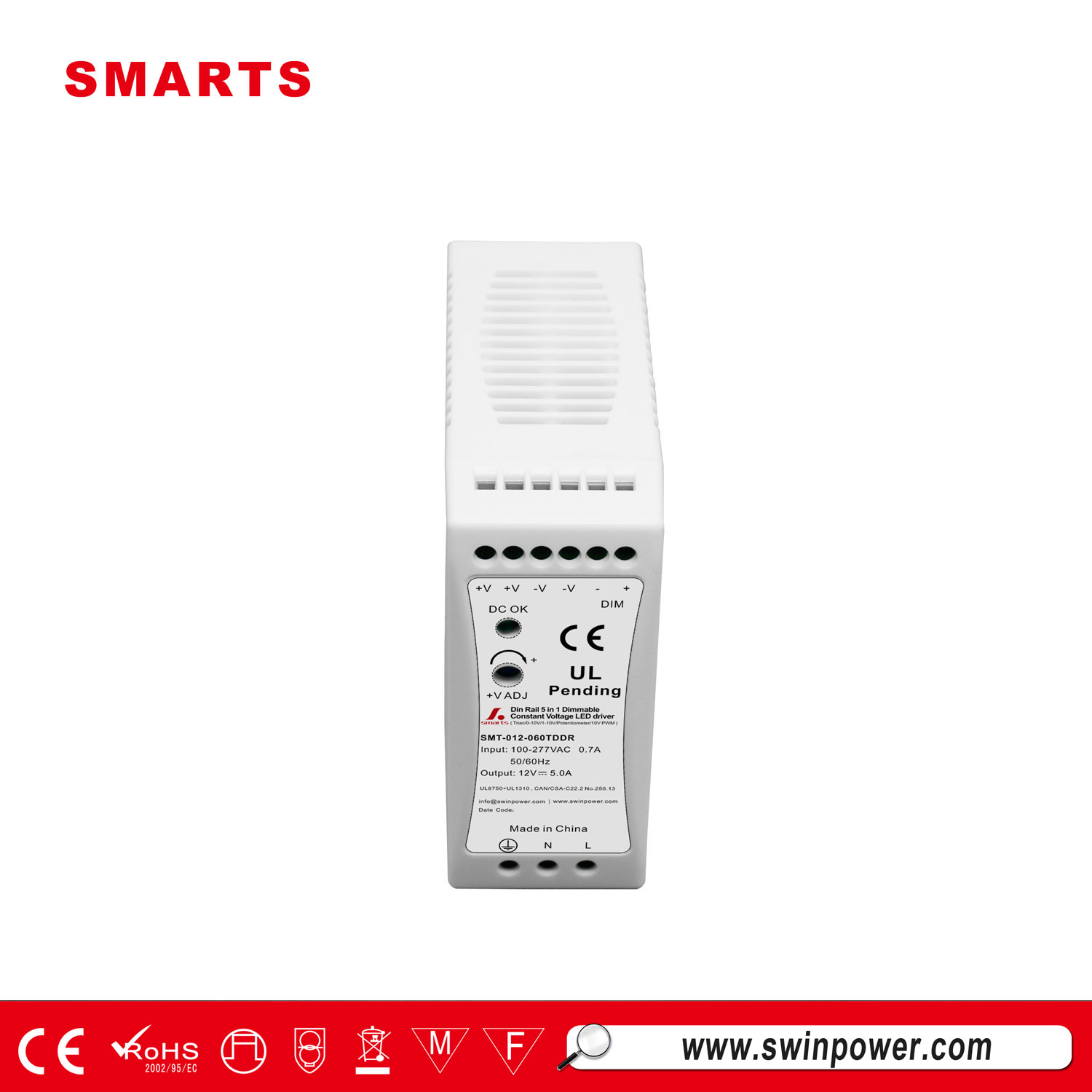

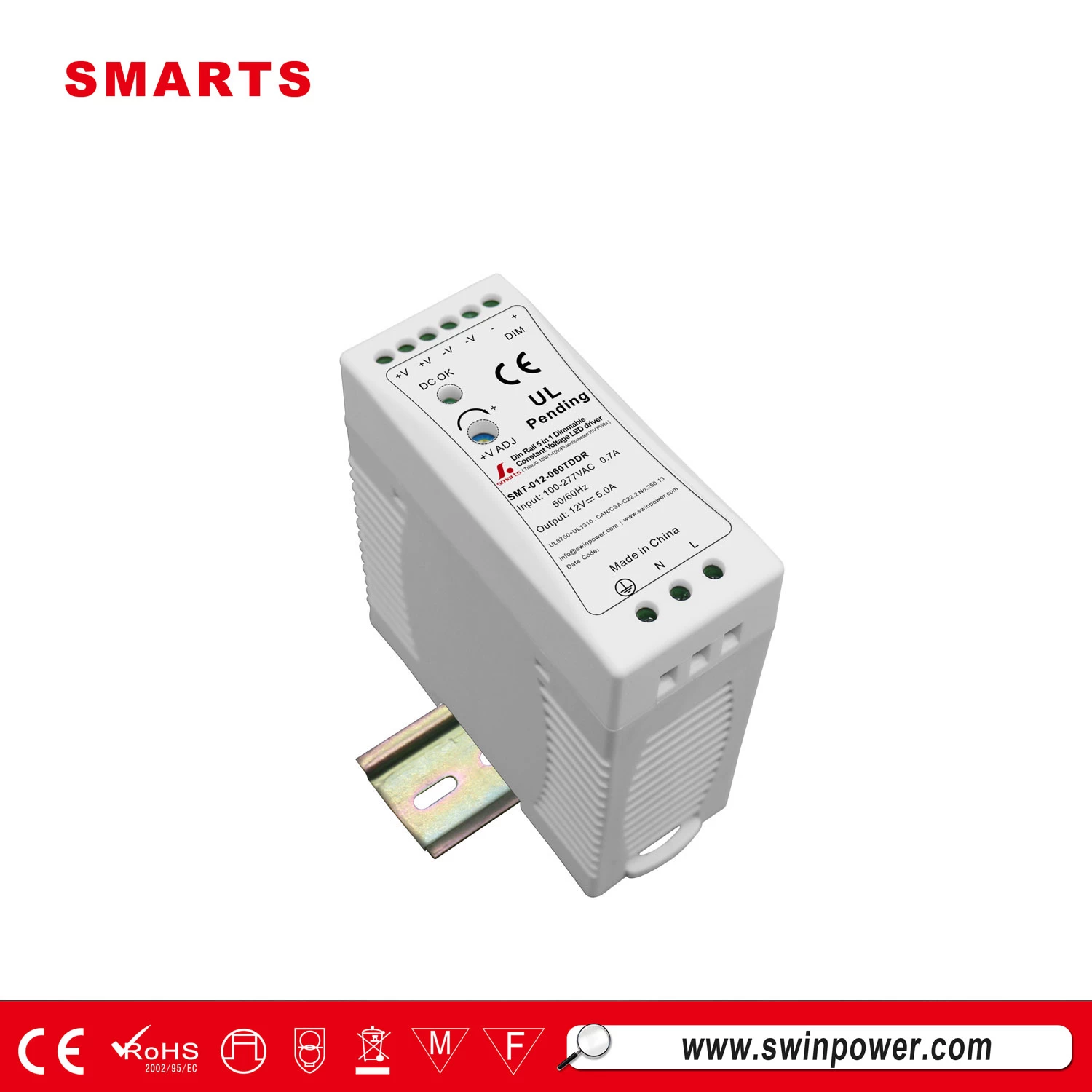

dimmable 60w led driver with UL listed
Smarts Electronics Research and developmentNEW SERIES SMT-012- 060TDDR which could suit for
Triac/0-10V/1-10V/Potentiometer/10V PWM dimmable 60w led driver. and we could provide you 5 years warranty.
Specification:
|
model
|
SMT-012-060TDDR
|
SMT-024-060TDDR
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
5.0Amp
|
2.5Amp
|
|
Rated power
|
60W
|
60W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.98@120VAC ,0.95@277VAC
|
0.98@120VAC ,0.95@277VAC
|
|
|
THD(Typ. ) @ full load
|
<20%@120VAC & 277VAC
|
|
Full Load Efficiency(Typ.)
|
83%@120VAC, 85%@277VAC
|
83%@120VAC, 84%@277VAC
|
|
AC Current(Typ.)
|
0.9A
|
|
Inrush Current(Typ.)
|
14A, 50%, 780us @120VAC; 15A, 50% , 660us @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
Others
|
Weight
|
0.3Kg
|
|
Size
|
40*90*100mm(L*W*H)
|
|
packing
|
50PCS/CTN , carton size:330*330*130mm
|
|
Notes
|
1.Do dimmable LED bulbs work in 3 way?
Answer: The 3-way fixture is plugged into a dimmer switch that is plugged into the outlet. It works just fine. In my slightly frightening experiences, No you can't put a regular Or dimmable LED bulb in a 3 way lamp socket. I've tried it with two different bulbs from Osram Sylvania that claim they are dimmable.
|
Using one dimming ---TRIAC/Phase cut dimming
Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Ø Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
Ø Min loading is about 10%
Ø Please try to use dimmers with power at least 1.5 times as the output power of the driver.
