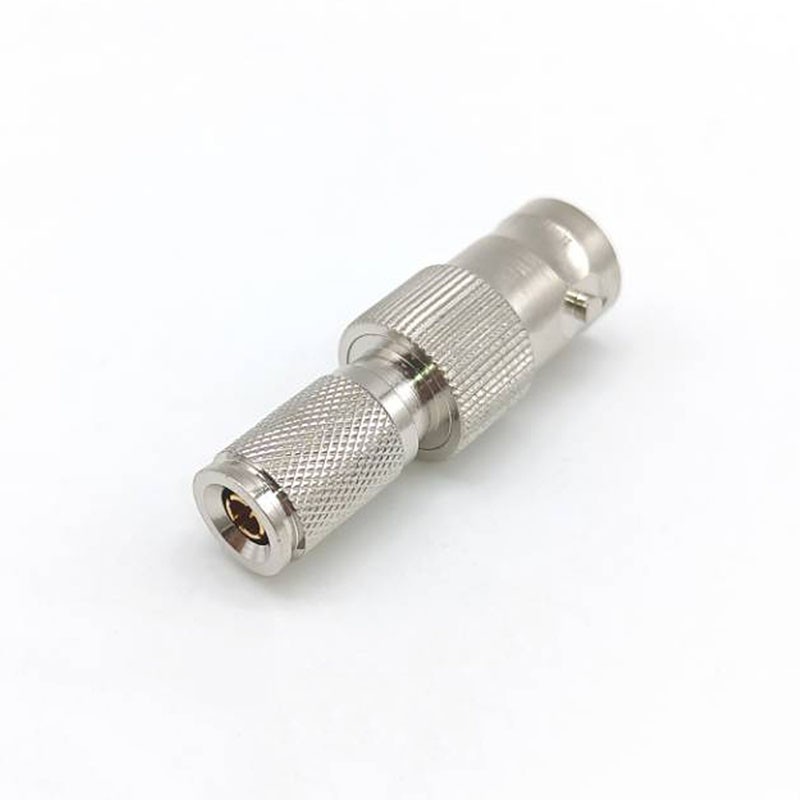

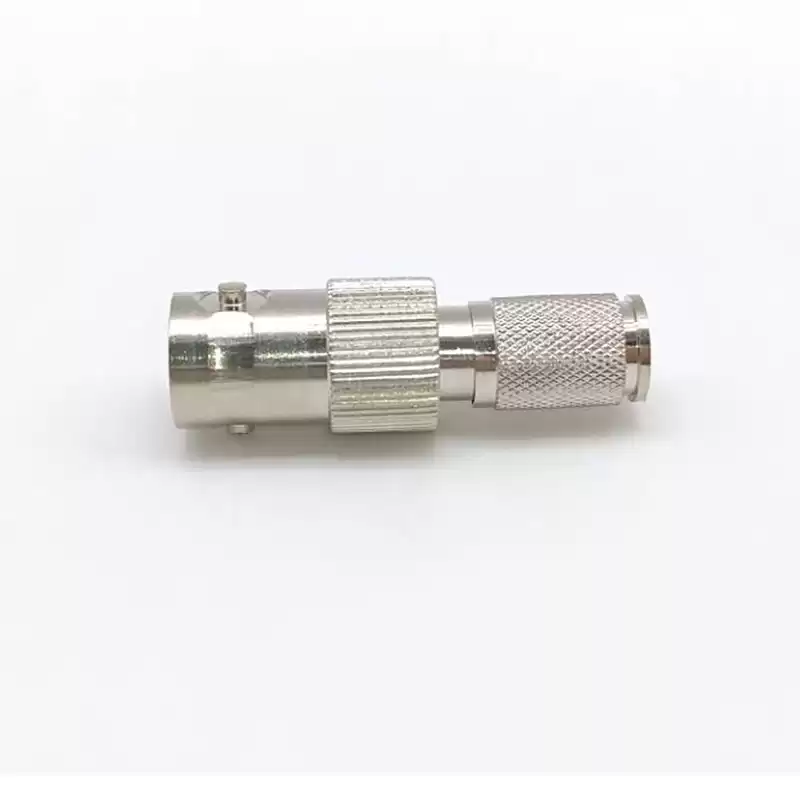

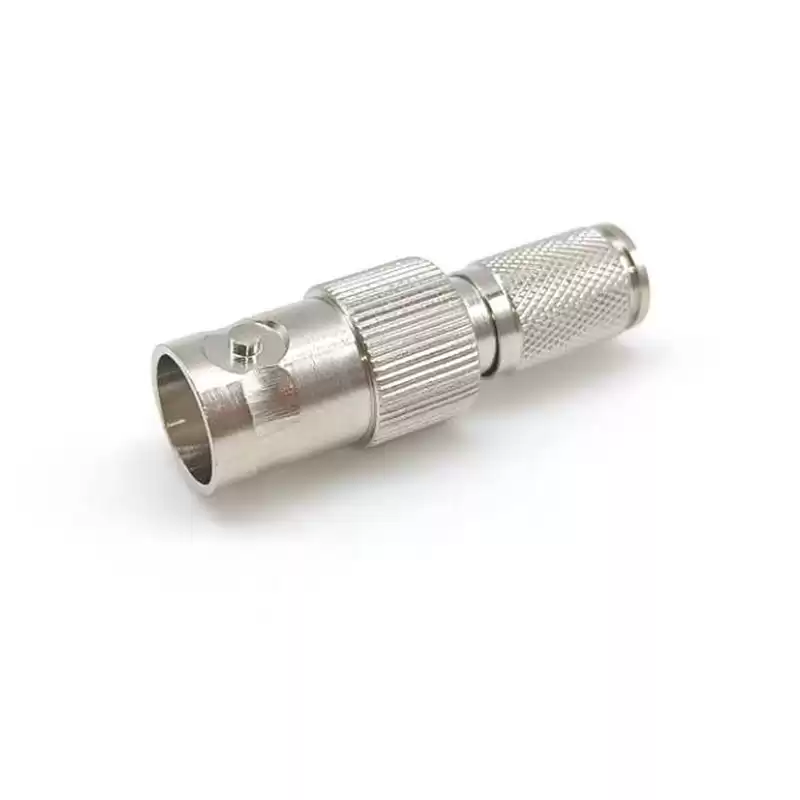

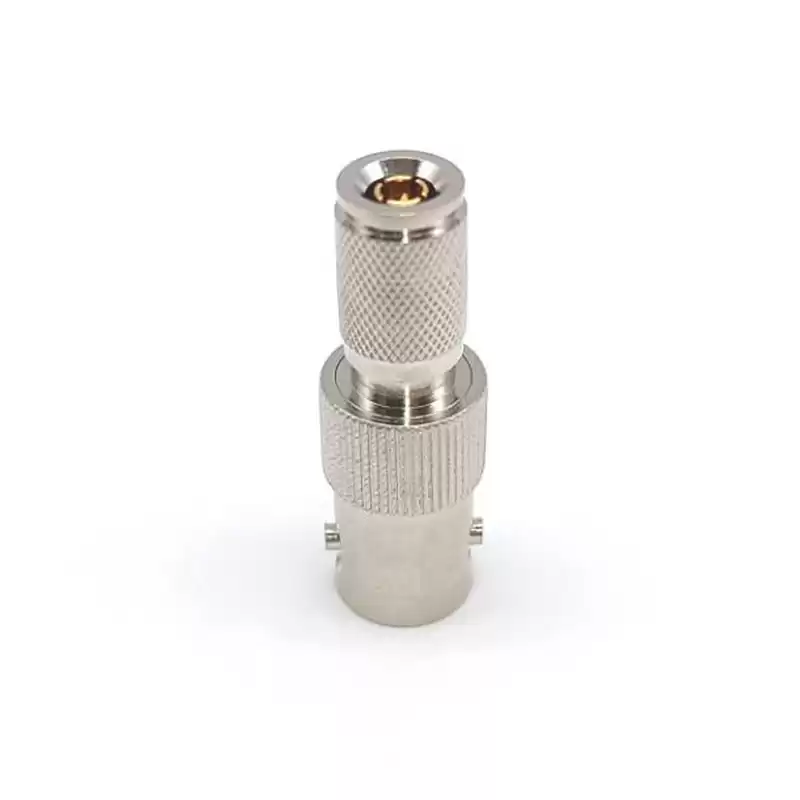

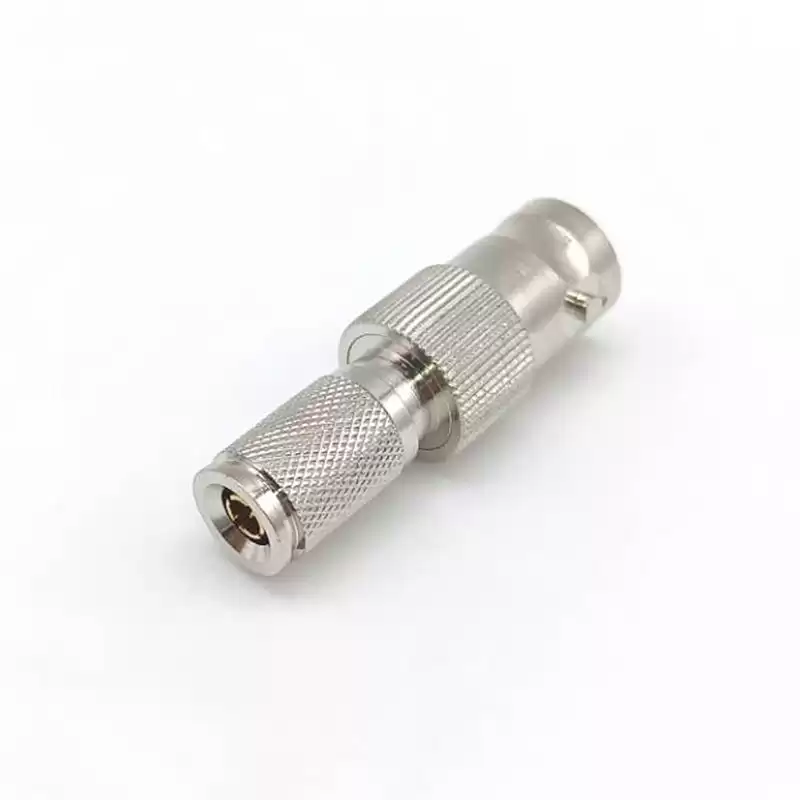

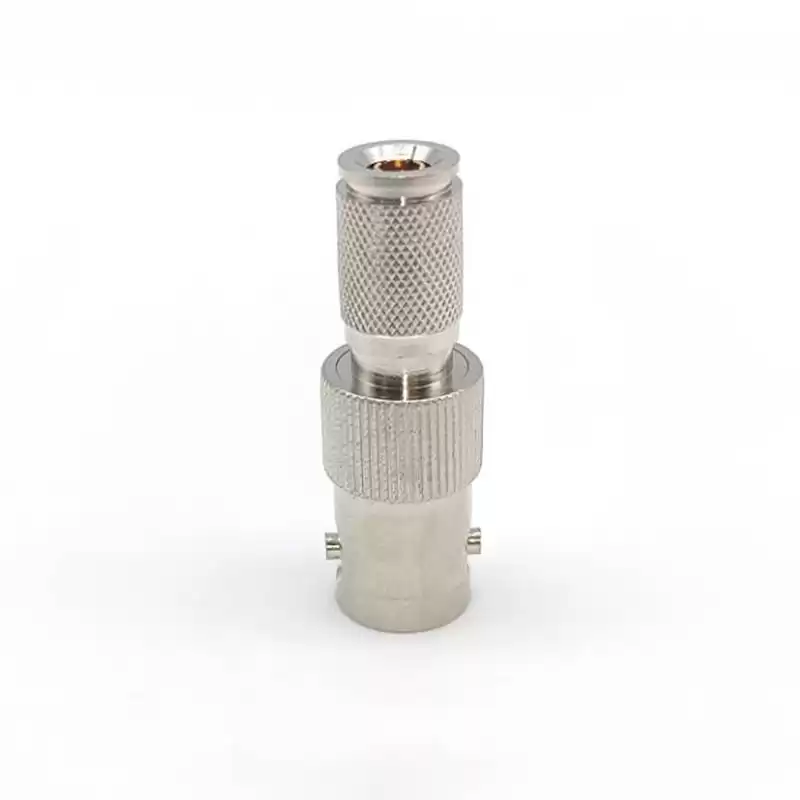

DIN 1.0-2.3 Female to BNC Female RF Coaxial Adaptor
The DIN 1.0-2.3 Adapter has different DIN 1.0-2.3 to BNC adapter gender, The DIN 1.0-2.3 to BNC adapters has female to female, female to male, male to female or male to male gender. This DIN 1.0-2.3 female to BNC female adapter has a maximum frequency of 300MHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
MIN DIN 1.0-2.3 |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
BNC |
| Adapter Side 2 Style |
Female |
| Frequency (Max GHz) |
10 |
| Impedance (Ohms) |
50 |
| Low PIM |
NO |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- high data rates for AES Audio
- SD video
- HD video
- 3Gb/s video
- high density digital broadcast formats
