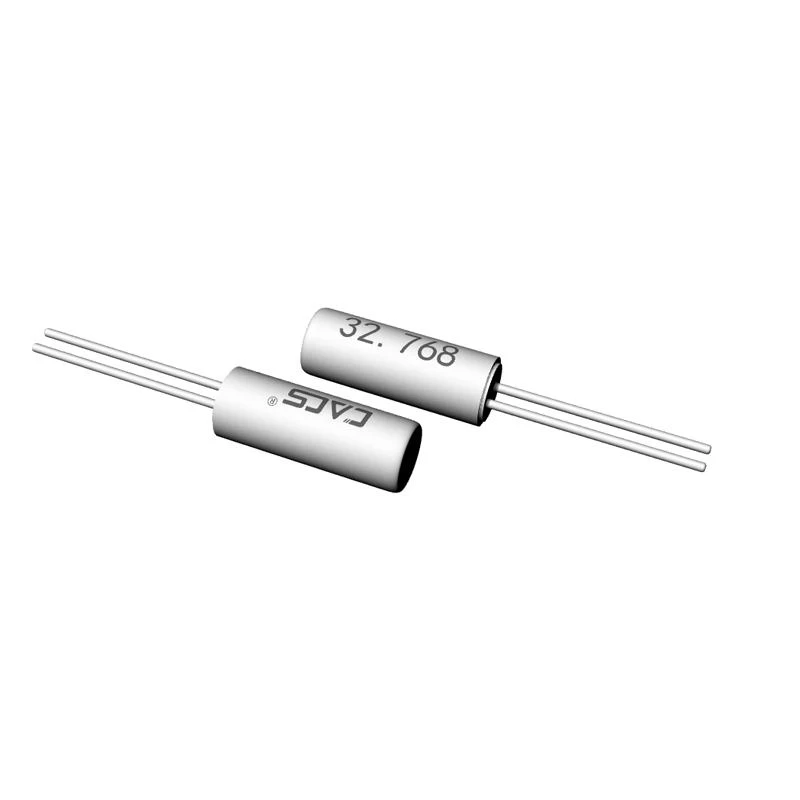

DIP Tuning Fork Crystal DT206

Features:

  • A Cylindrical Type Tuning Fork Crystal Resonator
  • Low Power Consuming Tuning Fork Crystal Resonators Are Suitable Not Only For Wristwatches But Also For A Wide Range Of Other Applications From Industrial Equipment To Other The Clock Functions In Consumer And Household Electronics.

Applications:

  • Mobile Communications And Consumer Devices, Etc.
  • Smart Card And Wearable Devices



2060 size 32.768kHz Watch Crystal
Highly competitive price for watch crystal with 2.0 x 6.0mm. DT206 also with excellent reliability performance. And is available in a choice of circuit conditions at 32.768kHz which suitable for surface mount technology and IR reflow process.

Electrical Specifications

Parameter Value
Frequency Range 32.768KHz
Frequency Tolerance ±20ppm
Temperature Coefficient -0.034±0.006 ppm/()2
Turnover temperature 25±5℃
Operating Temperature Range -40 to 85
Storage Temperature Range -55 to 125
Quality factory 60000Typ
Series resistance 35 KΩ
Shunt Capacitance 1.8PF Typ
Load Capacitance 12.5pF
Insulator Resistance 500 MΩ
Drive Level W
Capacitance ratio 450Typ
Aging ±5ppm

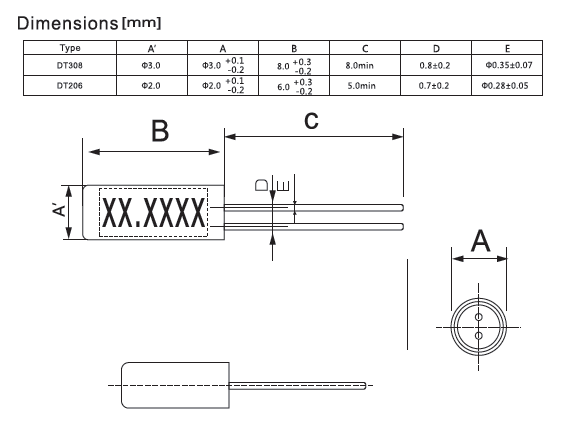

Dimension

DIP Tuning Fork Crystal 32.768KHz
