CX027-D

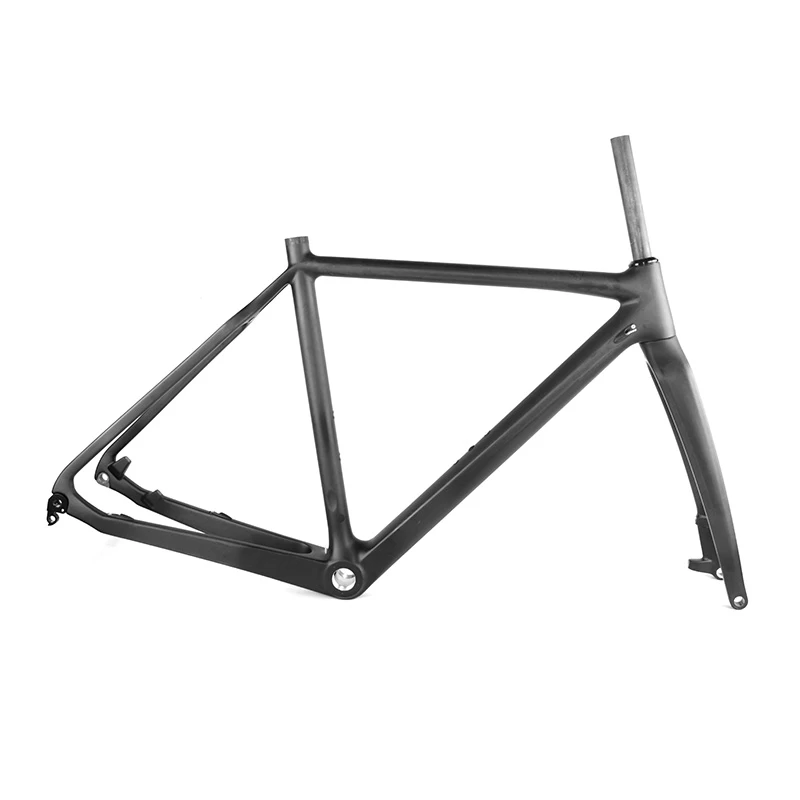

700C Full Carbon Disc Brake Cyclocross Frame
|
CX027-D
|

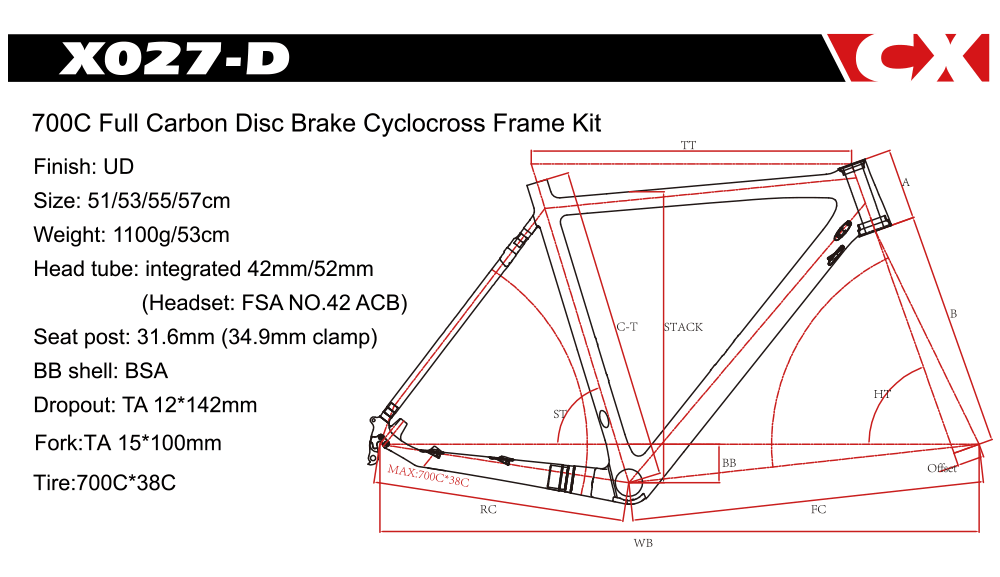

SIZE
|
C-T
|
A
|
B
|
Offset
|
TT
|
HT
|
ST
|
BB
|
RC
|
WB
|
FC
|
RD
|
FD
|
POST
|
STACK
|
REACH
|
H/T INSERT
|
BB INSERT
|
|
51
|
510
|
110
|
397.5
|
45
|
520
|
70°
|
74°
|
65
|
425
|
1004.9
|
588.5
|
Inner
|
Inner
|
Special
|
526.5
|
369
|
FSA
NO:42
ACB
|
BSA
|
|
53
|
530
|
120
|
397.5
|
45
|
540
|
70.5°
|
73°
|
65
|
425
|
1010.7
|
594.3
|
537.8
|
375.6
|
|
55
|
550
|
140
|
397.5
|
45
|
560
|
71°
|
72.5°
|
65
|
425
|
1021.4
|
604.9
|
558.6
|
604.9
|
|
57
|
570
|
160
|
397.5
|
45
|
580
|
71.5°
|
70°
|
65
|
425
|
1031.3
|
614.8
|
579.4
|
614.8
|

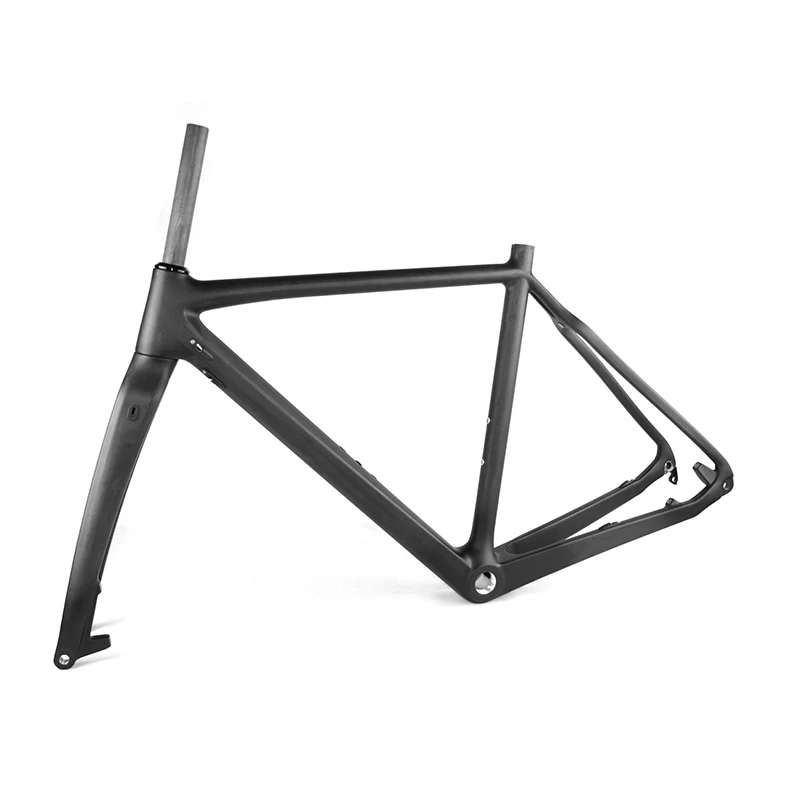

Disc Brake Carbon Cyclocross Frame
|
Frame
|
Cyclocross frameset with disc brake bike frame
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
51, 53, 55, 57
|
|
Fork
|
Specify carbon fork
|
|
Headtube
|
Tapered 1 1/8''- 1 1/2'' head tube(upper 42mm lower 52mm)
|
|
Weight
|
1100g/53cm
|
|
Seatpost
|
31.6mm diameter round
|
|
Bottom bracket
|
BSA
|
|
Max tire clearance
|
700*38c
|
|
Brake mount type
|
Disc brake
|
Dropout
|
Front 15*100mm TA Rear 12*142mm TA
|
|
Groupset
|
Machanical and Di2 compatible
|
|
Test Standard
|
ISO4210
|
|
Warranty
|
2 years
|
