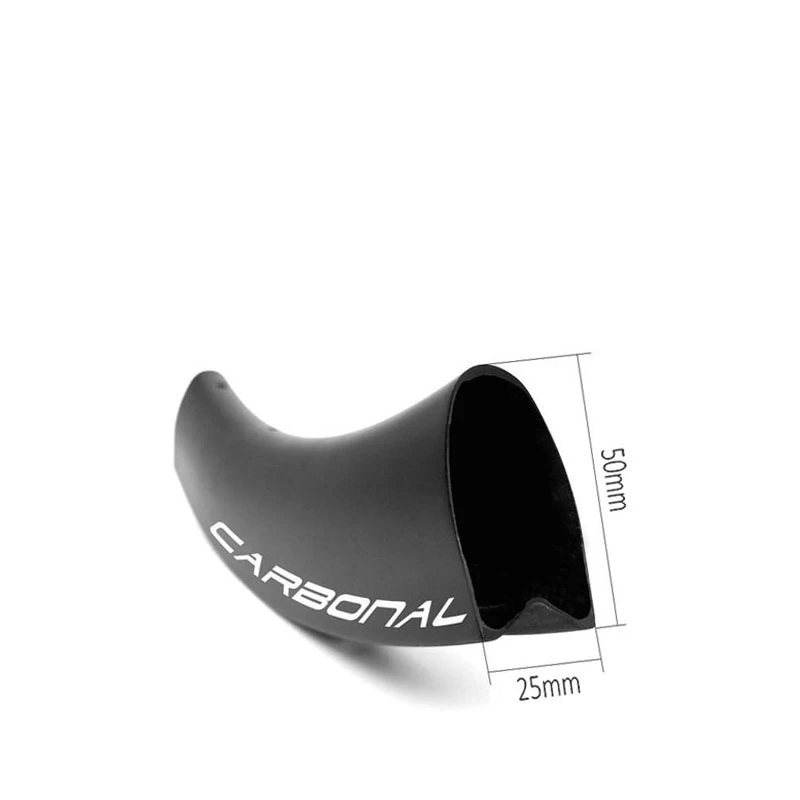

Disc road bike 50mm depth U shape 700C road carbon tubular rim

Item DT50S, weight 360g, ERD 545mm. Constructed with premium Toray T700 & T800 carbon fiber, makes this 700C disc rim 50mm deep tubular stiff, lightweight and durable, perfect for racing and still strong enough to train on too.


  • Max weight limit125kg
  • Max spoke tension140kgf
  • Materialfull carbon Toray T700 & T800
  • Typetubular
  • Brakedisc brake
  • Depth50mm
  • Width25mm
  • ERD545mm
  • Weight360g±15
  • Size700C

Product Item: Disc road bike 50mm depth U shape 700C road carbon tubular rim

50mm tubular disc rim

Constructed with premium Toray T700 & T800 carbon fiber, makes this 700C disc rim 50mm deep tubular stiff, lightweight and durable, perfect for racing and still strong enough to train on too.

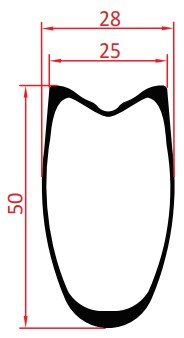

Specification:

 Item:
 DT50S
 Use:
 road
 Rim type:
 700C tubular - disc brake
 Material:
 Toray T700 & T800 carbon fiber
 Width:
 25mm
 Weight:
 360g±15
 Depth:
 50mm
 ERD*:
 545mm
 Weave:
 UD, 3k, 6k, 3k twill, marble  see different carbon weaves
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max tire pressure:
 160psi - read more
 Decal:
 Customized
 Weight limit:
 125kgs
 TG resin temperature:
 130°C
 Standard:
 EN standard


* ERD: we calculate effective rim diameter from the top point of the nipple, learn more here.


Features:

  • This 700C disc rims 50mm deep tubular is aerodynamic U rim shape, better handling in crosswinds condition and faster riding.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.


Unique Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


1.3 Million Liability Insurance Worldwide:

liability insurance for road disc tubular carbon rims


5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim. Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
