Displacement Positive Pumps for Paper Coatings

As an excellent pump manufacturer, our hard technical barriers have become a powerful help for our Bonve pumps reform and innovation. So far, Bonve pumps have developed to the fourth generation and are mature. Below are the pump main features.



Displacement Positive Pumps for Paper Coatings


Paper Coatings Pumps


Displacement Positive Pump



Application for Paper Coatings Industry


Bonve pumps are to be found in numerous processes, where their reliable low shear flow characteristics are ideally suited to the transfer of paper coatings. We select the pump according to the characteristics of paper coatings and condition of the technological requirements, bring you the best pump for your critical process. Bonve conducts analysis and research on coatings and has developed Paper Coatings Pumps.


Typically pumped media: Calcium Carbonate(up to 70% solid content), Coatings (Pre-Coating, Intermediate Coating, Top Coating, Back Coating).

Applications: Up loading, Transfer.



Bonve offers the broadest range of its Rotary Lobe Pumps for paper industry. As an excellent pump manufacturer, our hard technical barriers have become a powerful help for our Bonve pumps reform and innovation. So far, Bonve pumps have developed to the fourth generation and are mature.


Interchangeable


  • Interchangeable rotors, one pump multi-purpose.
  • Targeted seal for specific application, ensure zero leakage.


Easy maintenance


  • Compact structure, easy assembling and disassembling
  • Few wearing parts, low maintenance.


Long life


  • All main parts proceed by CNC, high precision fabrication.
  • No contact between the rotors, rotors and pump chamber.
  • Six bearings with separate arrangement, high balance.
  • Adjustable seal ring extends the shaft life.
  • Axis key synchronous adjustment, no rotor collision  problem.



Working Principle



Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.


Bi-wing rotor diagram

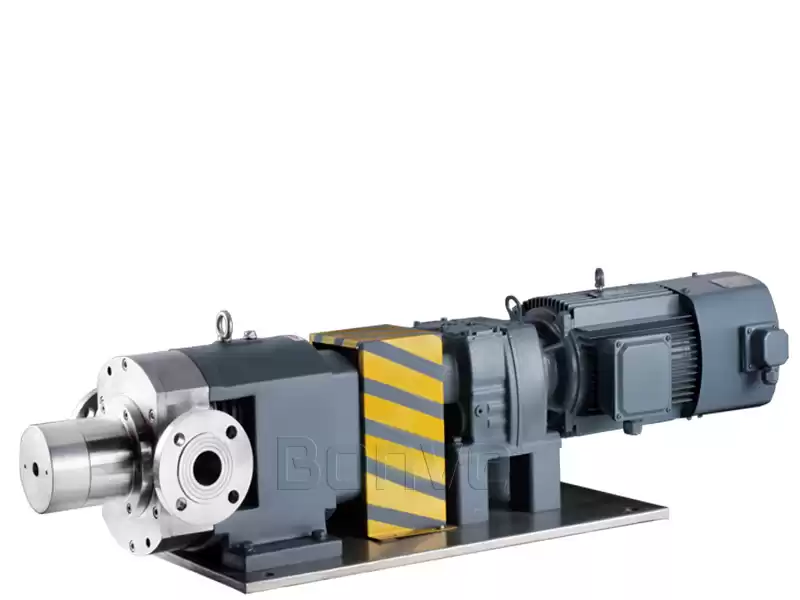

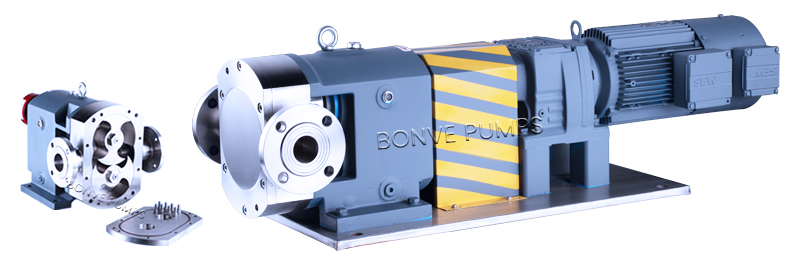

Main Parts of the Complete Pump


Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.


Pumps for Paper Industry



Bare Shaft Pump Structure


Based on the port direction, we have the pump with horizontal port and vertical port to meet your site installation.




Structure Details




Complete Pump Types




Technical Parameters


Model

Displace

-ment

RPM

Flow

Dis. Pre.

Power

Vacuum

Port size

Max

viscosity

(L/r)

(r/min)

(m³/h)

(Mpa)

(kW)

(Mpa)

(mm)

(cp)

25BV12-05

0.06

10-1000

0-0.5

0-1.2

0.37-1.1

-0.080

25

1,500,000

40BV12-2

0.15

10-1000

0-2

0-1.2

0.75-2.2

-0.080

40

1,500,000

50BV12-5

0.32

10-800

0-5

0-1.2

1.5-4

-0.085

50

1,500,000

65BV12-10

0.65

10-600

0-10

0-1.2

2.2-7.5

-0.085

65

1,500,000

80BV12-20

1.74

10-500

0-20

0-1.2

4-15

-0.095

80

1,500,000

90BV12-30

2.60

10-500

0-30

0-1.2

5.5-22

-0.095

100

1,500,000

100BV12-40

3.65

10-500

0-40

0-1.2

7.5-30

-0.095

100

1,500,000

125BV12-50

4.60

10-500

0-50

0-1.2

7.5-37

-0.095

125

1,500,000

140BV12-70

6.10

10-500

0-70

0-1.2

11-45

-0.095

150

1,500,000

150BV12-80

7.63

10-500

0-80

0-1.2

11-55

-0.095

150

1,500,000

200BV12-120

11.56

10-400

0-120

0-1.2

15-75

-0.095

200

1,500,000

250BV12-150

14.22

10-400

0-150

0-1.2

18.5-90

-0.095

250

1,500,000

300BV12-200

20.80

10-300

0-200

0-1.2

22-110

-0.095

300

1,500,000

350BV12-300

32.60

10-250

0-300

0-1.2

45-160

-0.095

350

1,500,000

400BV12-400

50.40

10-250

0-400

0-1.2

55-200

-0.095

400

1,500,000

Note:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.



Selection Guidelines


Your Industry

About pump medium

Name:

Density (g/m³):

Viscosity (mPa.s):

Temperature (℃):

PH value:

Solid content (%):

Solid size (mm):

Suction side

Pressure: Positive (    ) bar; Negtive (    ) bar

How high (m):

Suction pipe length (m):

Diameter (mm):

Bends (Pcs):

T-piece (Pcs):

Valves (Pcs):

Discharge side

Pressure (Mpa):

Vertical delivery pipe length (m):

Total delivery pipe length (m):

Diameter (mm):

Bends (Pcs):

T-piece (Pcs):

Valves (Pcs):

Required flow rate (L/H)

Operating flow:

Max. flow:

Pump material required

SS304 (    )  SS316 (    )  SS316L (    )  Duplex stainless steel (    )

Motor required

Phase: Single (    )

Three (    )

Voltage (V):

Frequency (Hz):

IP grade:

Energy efficiency:

Anti-explosive:

Installation type

Fixed (    )

Movable (    )

Fixed with adjusting feet (    )

Others
