General Introduction:

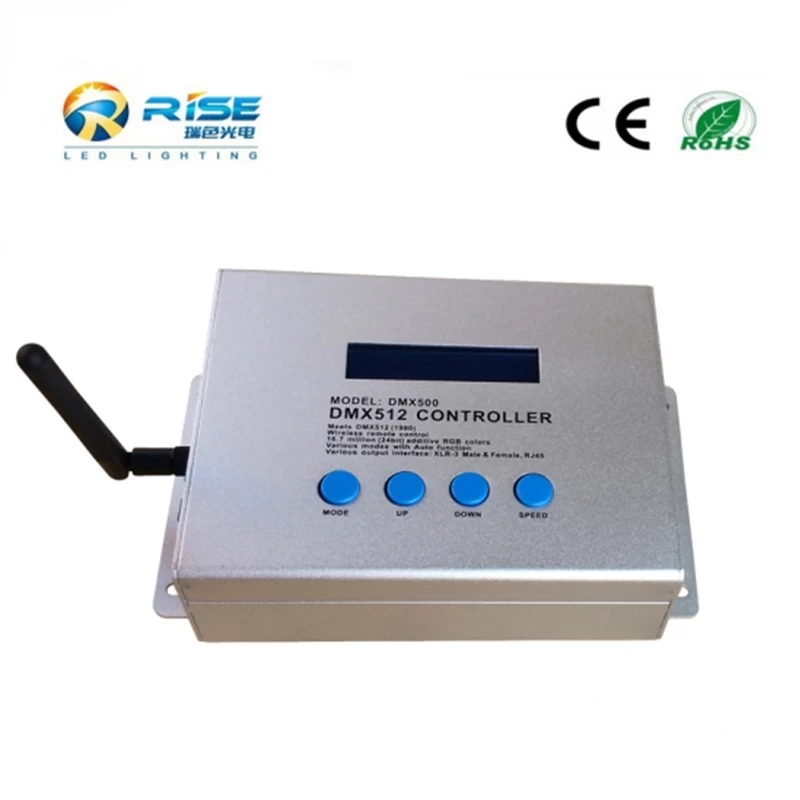

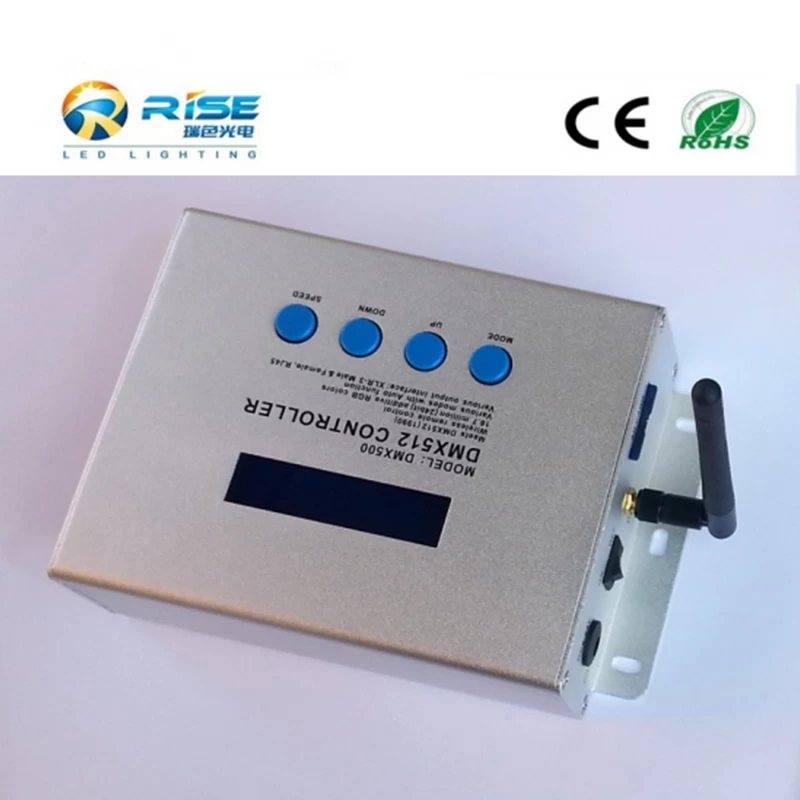

DMX500 is a full-color LED control  system which fouses on indoor and outdoor decorative lighting (Including LED underwater lights, LED water fountain lights, LED Inground lights, LED wall washer lights, LED underwater lights).

It comprises scene-edit software and  CTL controller. You can edit various lighting effects by downloading the programme which edit according to your special requirement from your PC.This control system can fulfill 256 grey levels for each R,G,B color,totally 16.77 million real full-color. With the wireless remote controller, you can achieve the mode change and speed adjustment very

conveniently.There are 30 modes  and 9 levels of speed you can choose, and with the pause function,you can keep the fixed color optionally.

Features:

Meets DMX512(1990)

Digital screen shows current status

Wireless remote controller

256 levels of grey, totally 16.77 million colors, really full color

Various modes with Pause function

Nine different speed level

Automatic parameter memory

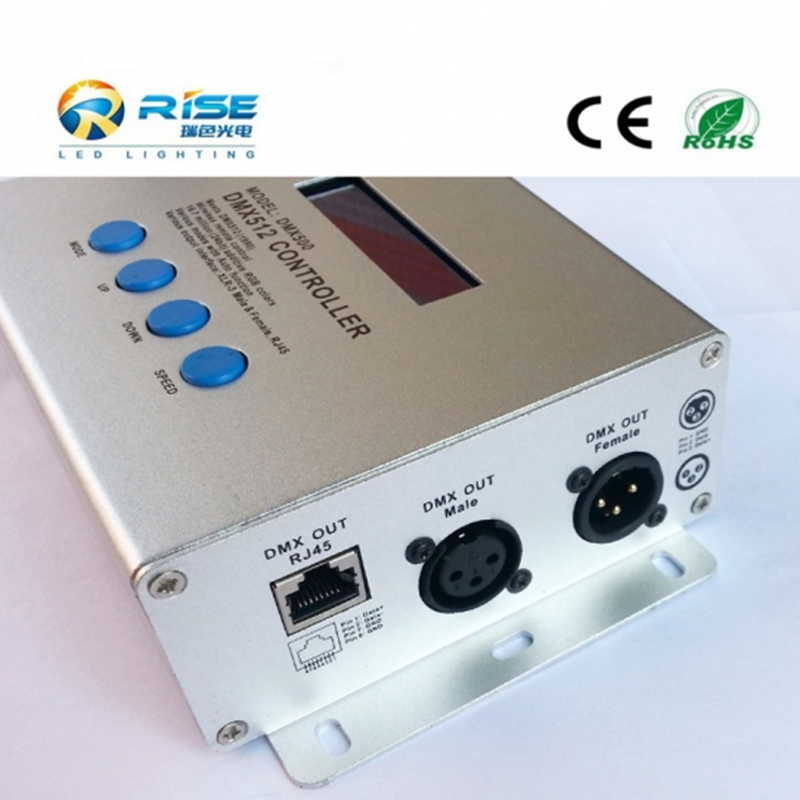

Various output interface, XLR-3 Male & Female, RJ45

Convenient for wiring and installation

Good function at anti-jamming and auto-resumption.

SD card built-in software, easy to programming

Technical Parameter

Input Voltage:                            12VDC (Include 220/110VAC adaptor)

Power Consumption:                  <5W

Memory:                                      32KB

Output interface:                         1 x RJ45, 2 x XLR-3

Transmission interface:                 DMX512 (1990)

Transmition speed:                       250Kbps

Pixels:                                          50 pixels, 170 pixels max.

Lamp type can be:                       Wallwashing light, Tube light, LED under water lights, LED fountain lights, LED Inground lights

Controlled:                                   Cube light, Underground

Control mode:                              Asynchronous full-color control

Remote distance:                         50M

Description:                                  Fixed 30 modes, such as flash,

                                                   Fade,streamy,chase, etc.

Package

Size:             152(mm)*120(mm)*52(mm)

G.W.:            0.65 KG

N.W.:           0.8 KG

Mode 1: Fixed Red LED underwater lights                     Mode 2: Fixed Green LED underwater lights                  Mode 3: Fixed Blue LED underwater lights   Mode 4: Fixed Yellow LED underwater lights                 Mode 5: Fixed Light Blue  LED underwater lights Mode 6: Fixed Purple LED underwater lights

Mode 7: Fixed White LED underwater lights                  Mode 8: Seven color fade  LED underwater lights          Mode 9: Full color fade LED underwater lights

Mode 10: Rainbow changing  LED underwater lights       Mode 11: Water flowing   LED underwater lights           Mode 12: Tail Chase LED underwater lights

Mode 13: Color stack LED underwater lights                  Mode 14: Chase(yellow,pink) LED underwater lights      Mode 15: White flash LED underwater lights
