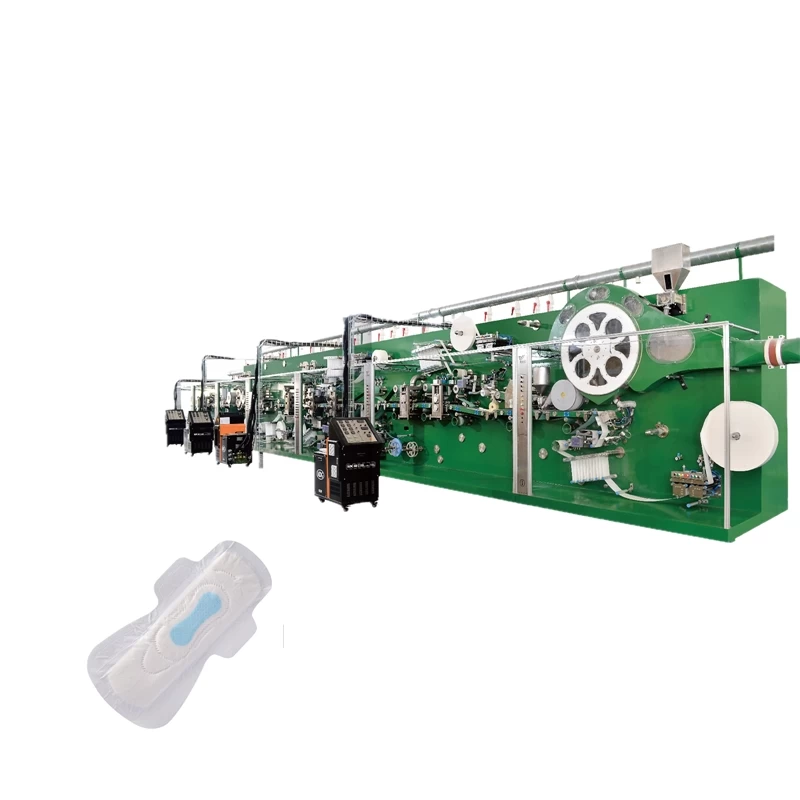

DNW-04 High speed full servo sanitary napkin machine

Drive system:

Full servo drive. Using import conveyor and timing belt. Important part using import bearing.

Product size: Daytime use: 240mm   Night use: 285mm(Customized)

Control system:

PLC programming control,HMI operation.


  • Price Range$295000-$525000/set

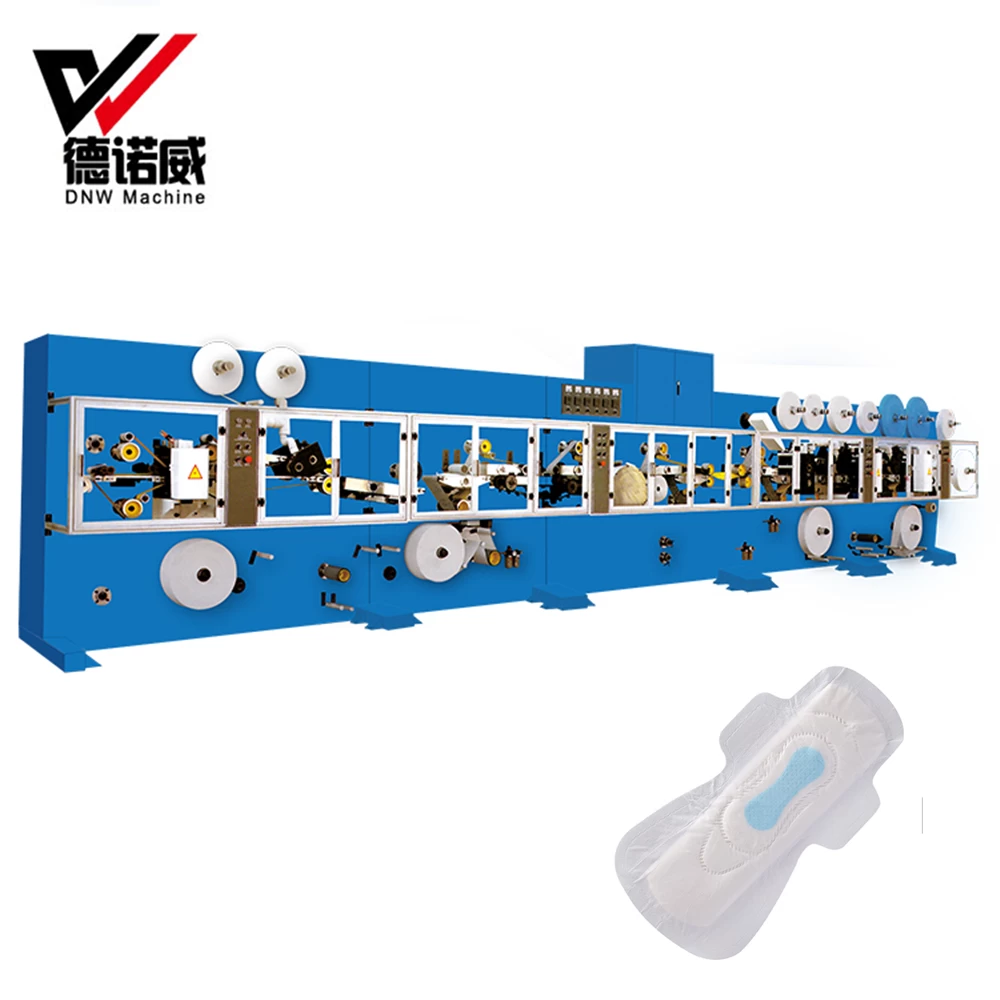

DNW-04 Full Servo drive sanitary napkin machine

Subject Parameter
Overall size(L*W*H) 30M*6M*3M(For reference only)
Machine size(L*W*H)
22m*2m*2.5m,based on the product provided by client
Design speed 800pcs/min
Stable speed 650pcs/min
Pass precentage 98%
Work efficiency 90%
Power source 380V,50HZ,(3phase,4lines+ground wire)
Machine capacity about 220KW
Air pressure 0.6-0.8Mpa
Machine weight  About 50T
Machine color Customized

Configuration:
1. Product structure:
Carrier Tissue,Fluff core( Mix with SAP),Topsheet(3-pcs structure),ADL,Backsheet,Back release paper,Wings release paper,Pouch film.

2. Product size:
Daytime use: 240mm   Night use: 285mm(Customized)

3. Control system:
PLC programming control,HMI operation.

4.Tension system:
Carrier tissue,absorbent paper,topshee NW,leg cuffs NW,ADL,PE film,back release paper,Wings release paper,pouch fillm

A&B shaft active unwinding by inverter motor.

5.Drive system:
Full servo drive,using imprt conveyor and timing belt.Important part using omport bearing.

6.Safety system:
Safty guard installed at the operating side,equipped with emergency stop switch,security identifier.Driven side is equipped with sadety pull wire.

7.Materials corrective system:
Germany BST automatic web guide system(optional)

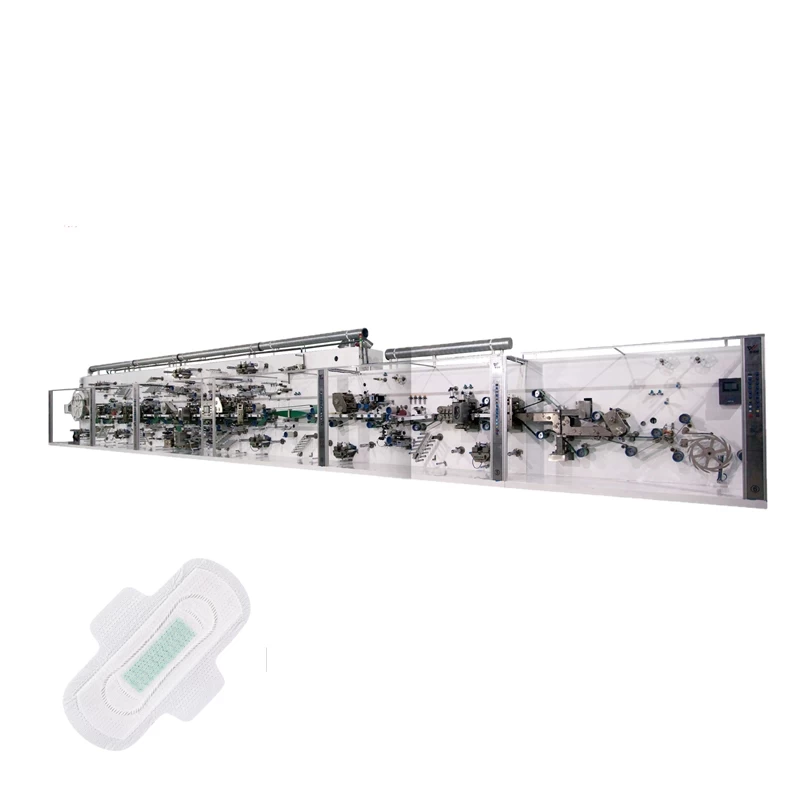

Full servo sanitary napkin machine

Main Product:

1. Baby diaper Production Line( Include:I & T shape diaper,Baby pants,Full Elastic waistband diaper)
2. Adult diaper Production Line(Include:Adult diaper,Adult pants)
3. Sanitary Napkin & Panty Liner Production Line
4. Menstruation Panty Production Line
5. Under Pad Production Line
6. Disposable Breast Pad Production Line

Brief Introduction
Quanzhou DNW Machinery Manufacture Co.,Ltd has consistebtly insist on the "quality is fundamental,develop with innovation" mangement concept,with a strong design and development team,equipped with advanced CNC Longmen center.Keep studying new products to meet the needs of different customers,and summarize the experience of cooperation with large comnpanies in local and abroad,continue to test and improve the existing machines,ensure the high quality and stability of the equipment,achieve better economic benefits,and win a good Reputation.
