Donfeng 6x4 Dump Truck 20m3

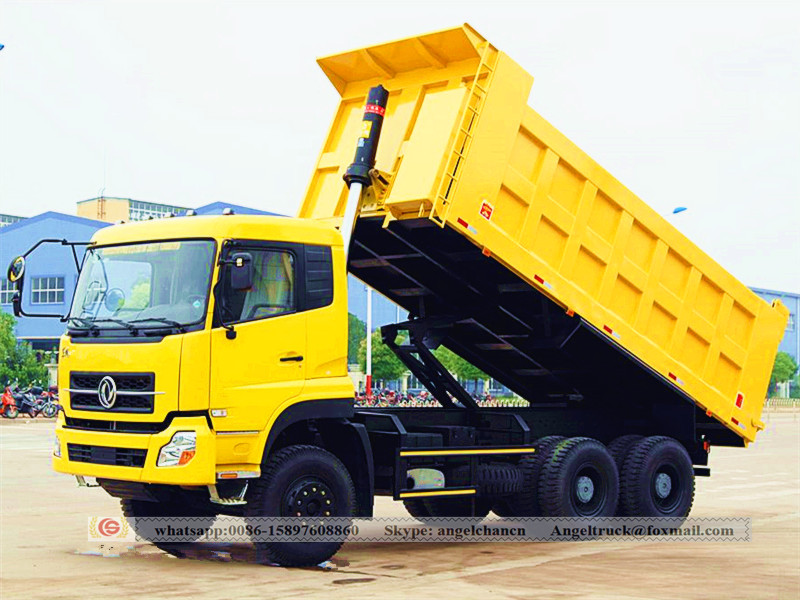

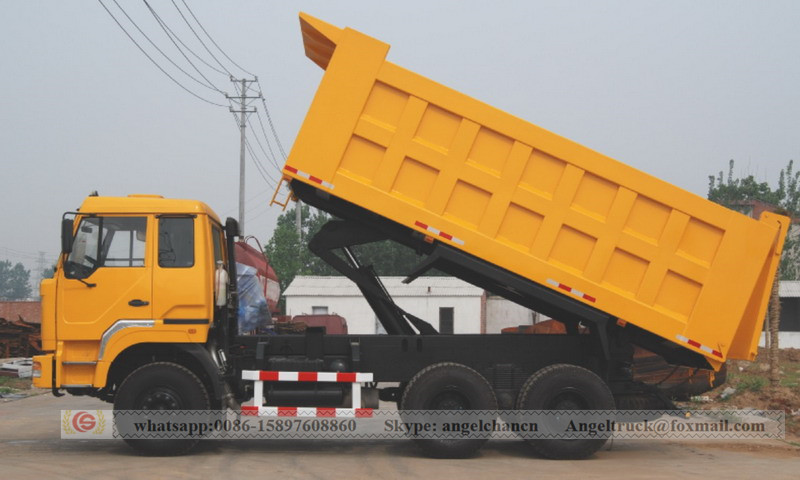

Dump truck is divided into two types: backward overturning and lateral overturning. The movement of piston rod is controlled by the control system. The backward tilting is more common, and the piston rod is pushed to make the car overturn and a few of them are bidirectional overturned.




Truck description:

CNCSC dump truck (include dump tipper truck,tipper lorry,dumper,tipper truck, , dump tipper,tip truck,dumper) is suitable for mining and rock excavation and construction site to transport sand ,stone,bulk material,coal,wood,and etc.



Advantage:

  1. High quality carbon steel plate,durable and strong cargo box.

  2. Different cargo box shape, “U” type,Grid shape,or as request.

  3. Box dioxide protected welding ensure good appearance and reliable quality.

  4. China famous brand cylinder.

  5. Emission standard: Eruo II, Eruo III, Eruo IV,Eruo V

  6. Drive type:Left hand drive,Right hand drive



Technical Specification:

We are able to custom manufacture Dumper truck in a wide range of sizes and capacities as per customers' requirement.

Donfeng Dump Truck ( 20-25 m3)

Truck Description

Type

6X4 dump truck

GVW (kg)

25000

Kerb weight (kg)

11910

Overall

dimension (mm)

Length

8300

Width

2490

Height

3250

Box dimension (mm)

Length

5800

Width

2300

Height

1500

Chassis

Chassis brand

Dongfeng

Number of axles

3

Air conditioner

For option

Type of fuel

Diesel

Engine brand

Dongfeng Cummins

Tire specification

12.00-20,12.00R20 for option

Tire quantity

10+1 (with spare tyre)

Cargo box

Material

Q235 carbon steel

Thickness

Side (mm)

8 or changed as request

Bottom(mm)

10 or changed as request

Other remark

Above specification is just for reference,please send us your request details.
