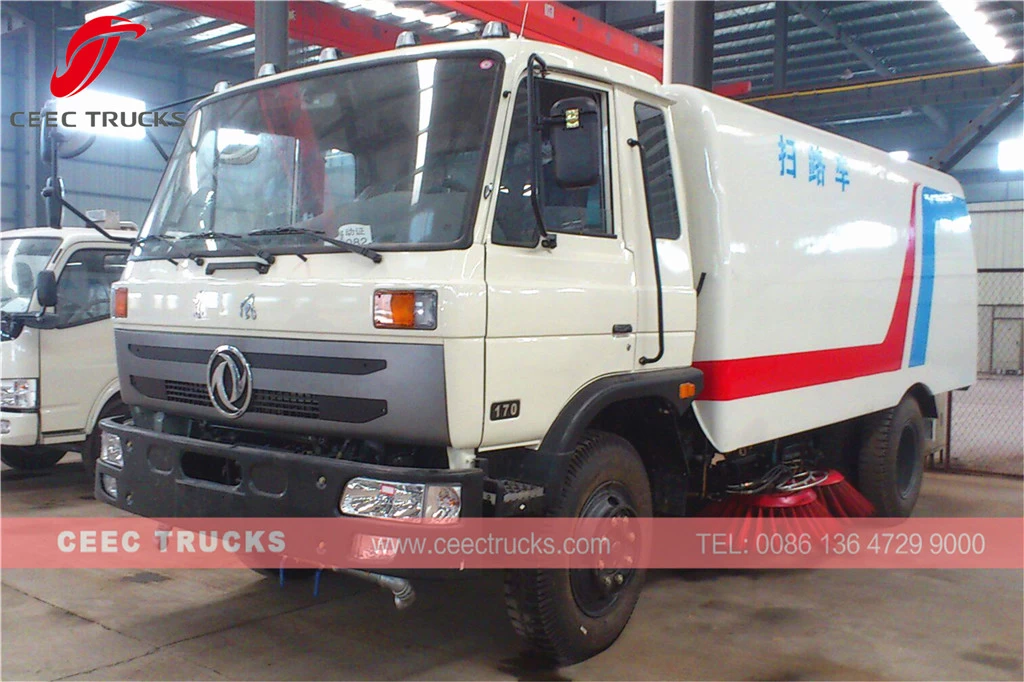

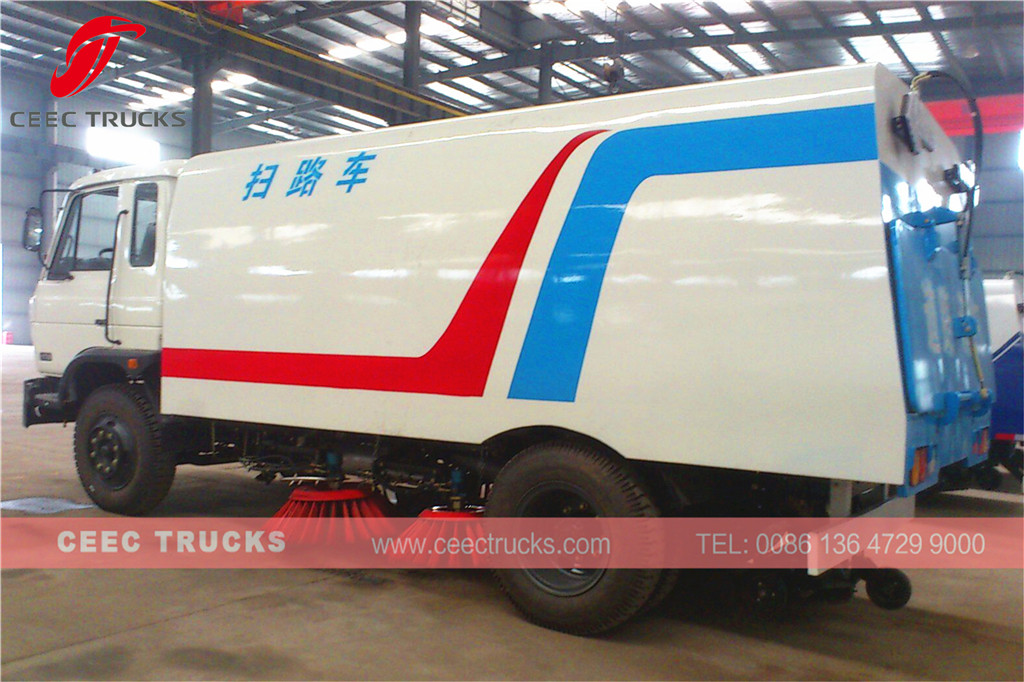

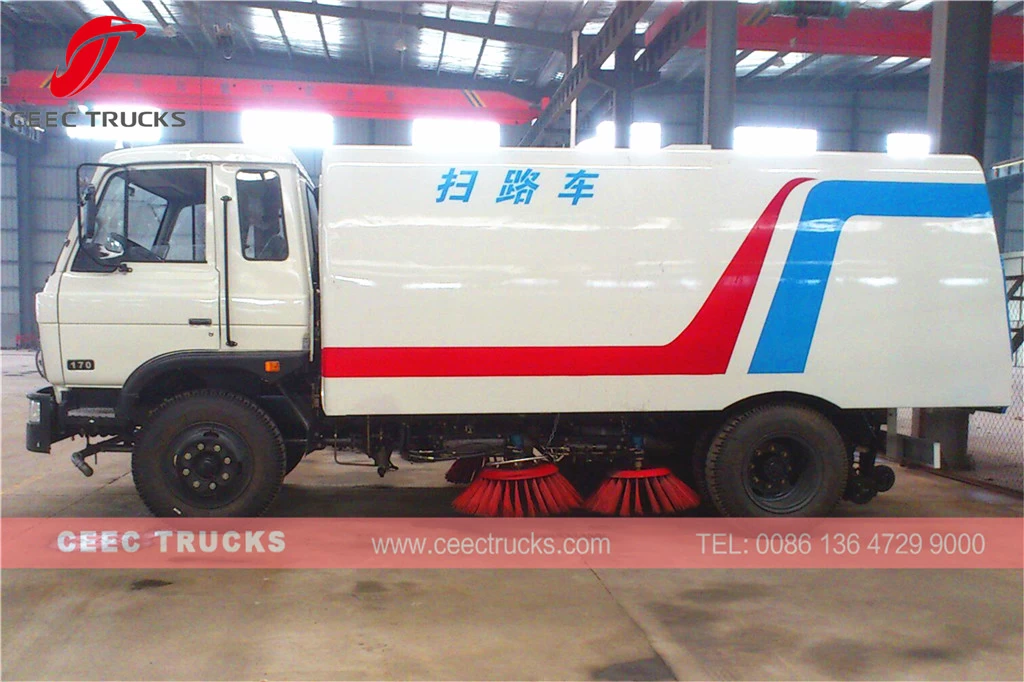

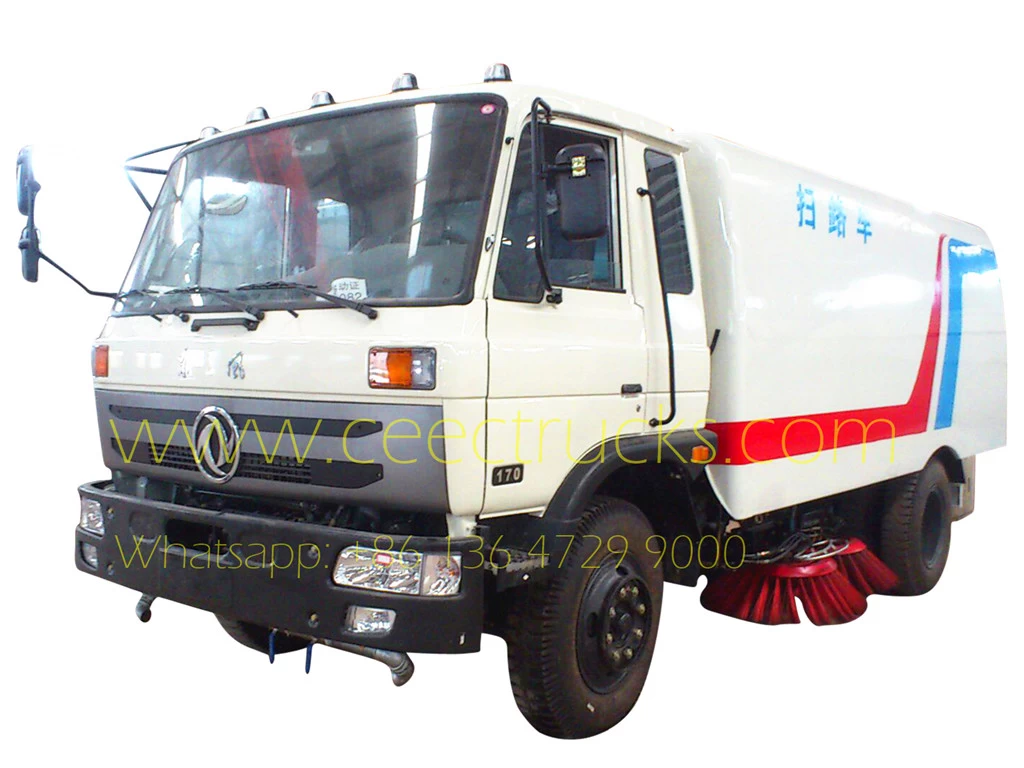

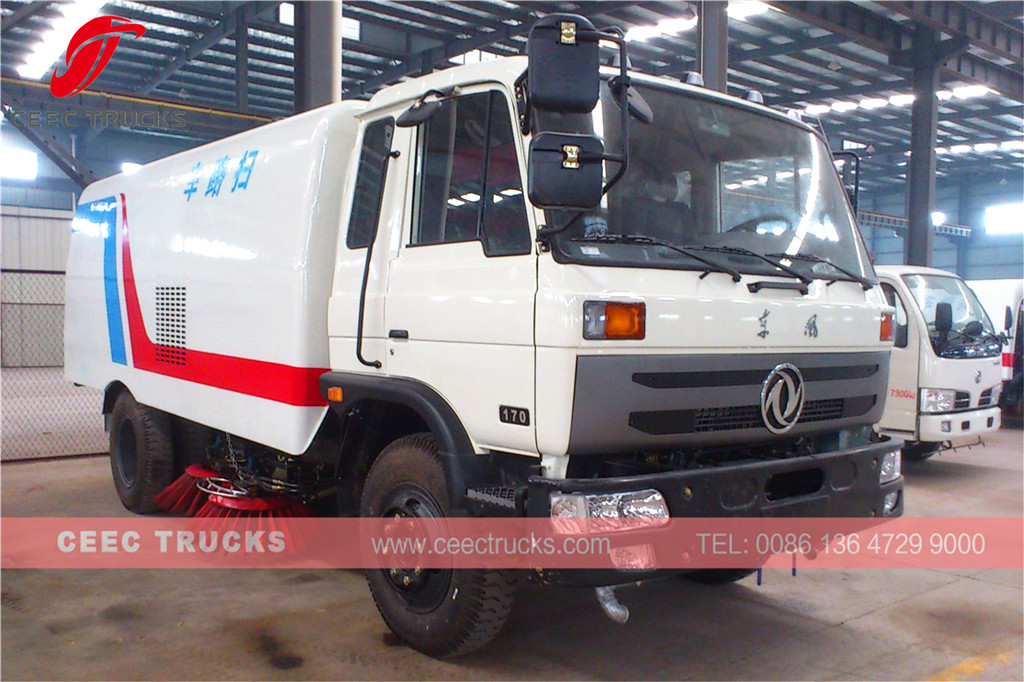

Dongfeng 10,000L road sweeping truck

Dongfeng bottom price 10cbm road sweeper, DFAC 3950 mm wheelbase chassis, LHD & RHD optional, YUCHAI 160HP diesel engine, 5-shift manual gearbox, equipped with 10cbm stainless steel material tanker including 8cbm dust tank & 2cbm water tank. All kinds of painting & logos depend on request

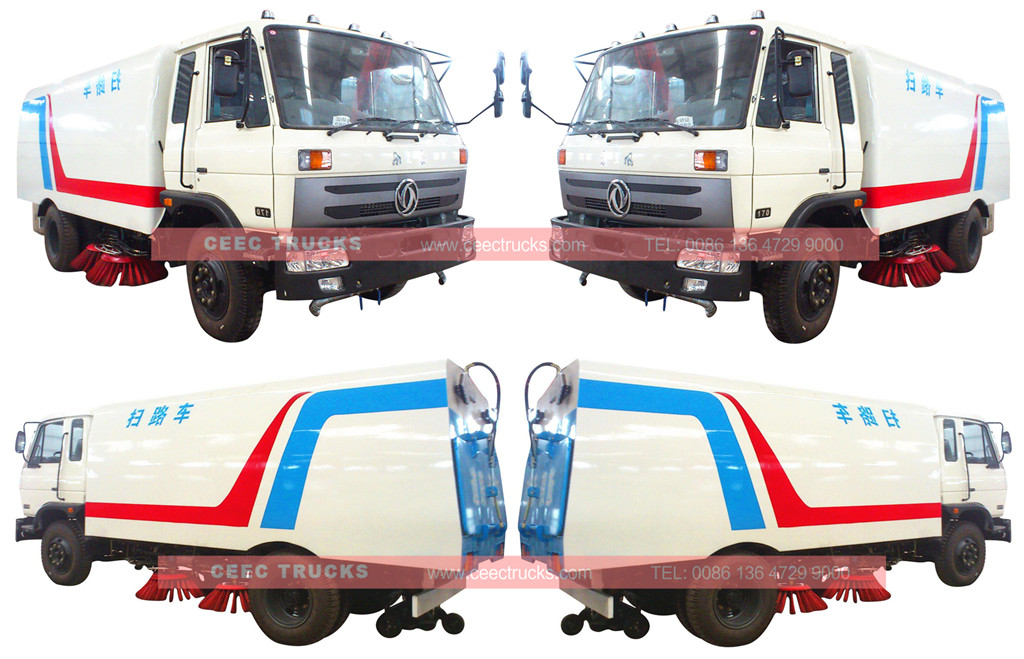

CEEC road sweeper truck overview



 Applications:



Road Sweeper truck Dongfeng (also called road sweeper, vacuum road sweeping truck, trash collection truck, road cleaning vehicle, vacuum road sweeper, DFAC road sweeper) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.



CEEC TRUCKS produced DFAC 10000L road sweeper is best selling model, which use whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU or JMC 57KW auxiliary engine, efficiently avoiding secondary pollution.



The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.



 Key Features:



---- DONGFENG chassis, perfect performance

---- YUCHAI diesel engine, super powerful, no overhaul within 100,000 km.

---- Road Sweeper body capacity from 1 to 16 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



DONGFENG Road sweeper truck (10,000L)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

DONGFENG

Overall Dimension

7980*2480*3000 mm

GVW / Kerb Weight

16,000kg / 8,900 kg

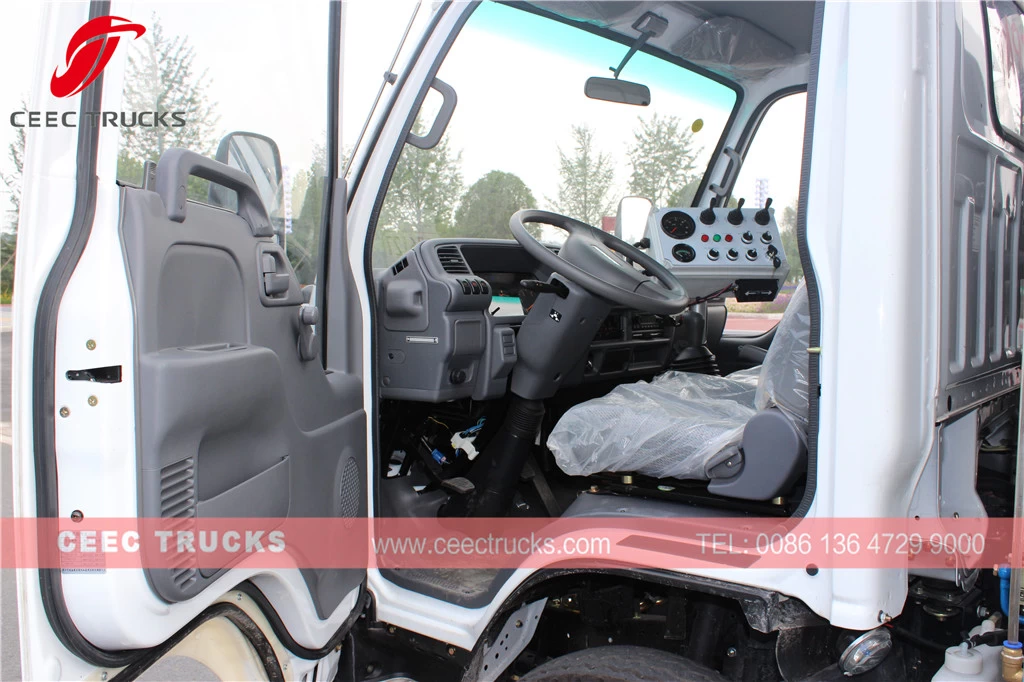

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUCHAI

Power

160 HP (118 KW)

Displacement

4257 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

4X2, (left hand drive)

Transmission

5 speed levers with 1 reverse

Wheelbase/No. of axle

3950 mm / 2

Tire Specification

9.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

8 cbm dust tank & 2 cbm water tank

Tanker material

Stainless steel

Sweeping capacity

42,000 cbm/h

Sweeping speed

3-15 km/h

Max. sweeping width

3200 mm

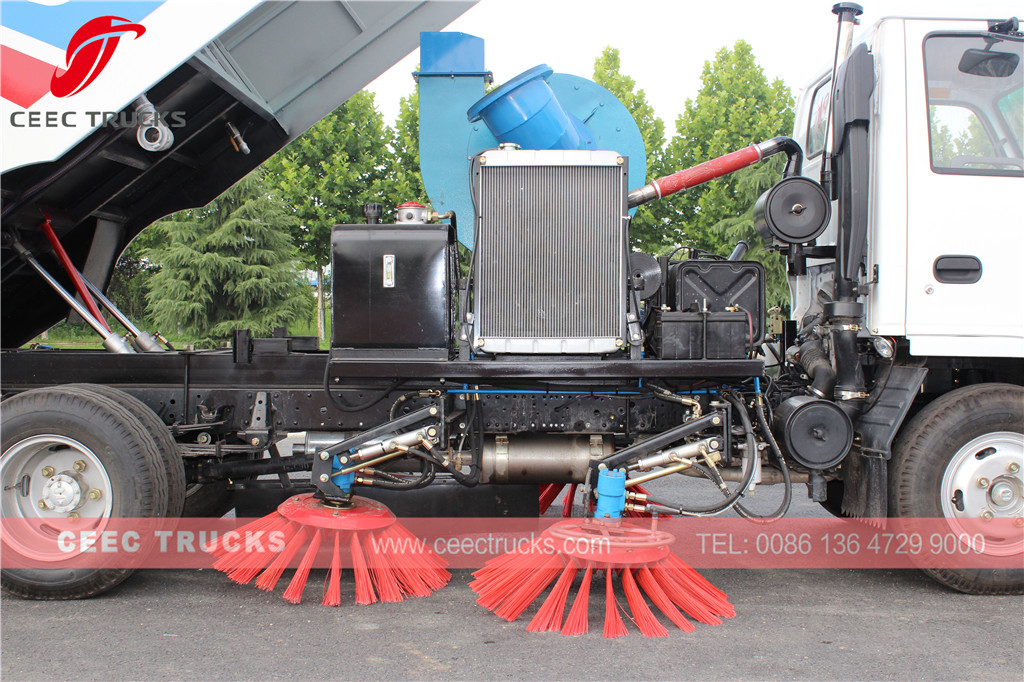

Brooms

2 set at each side, at diameter 800 mm

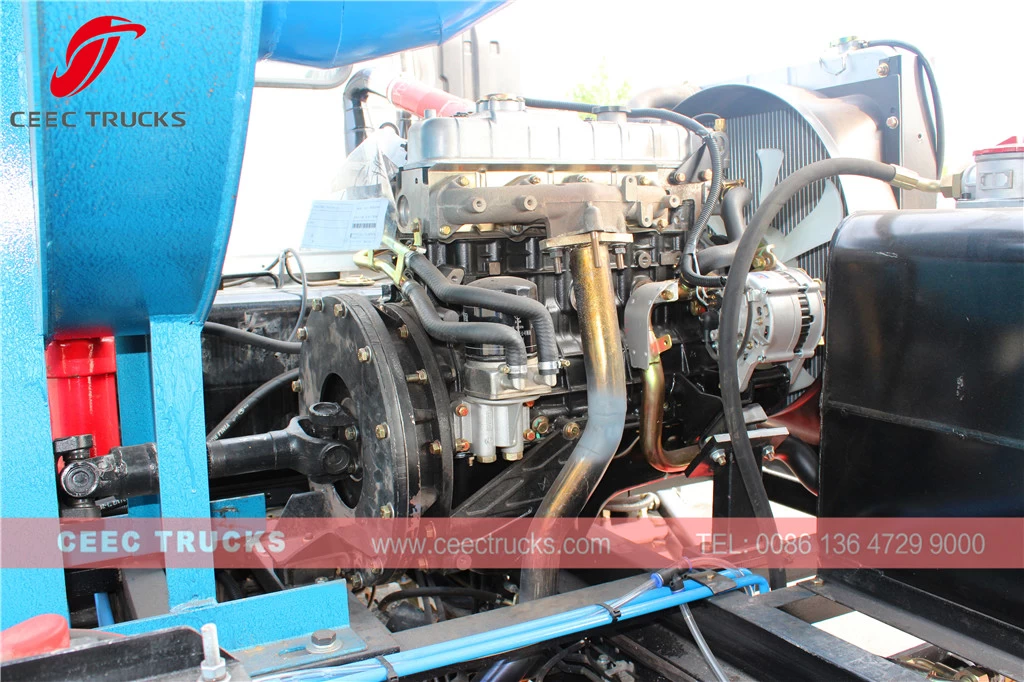

Auxiliary engine

ISUZU engine, 77HP (57kw), super powerful

JMC engine, 77HP (57kw), super powerful

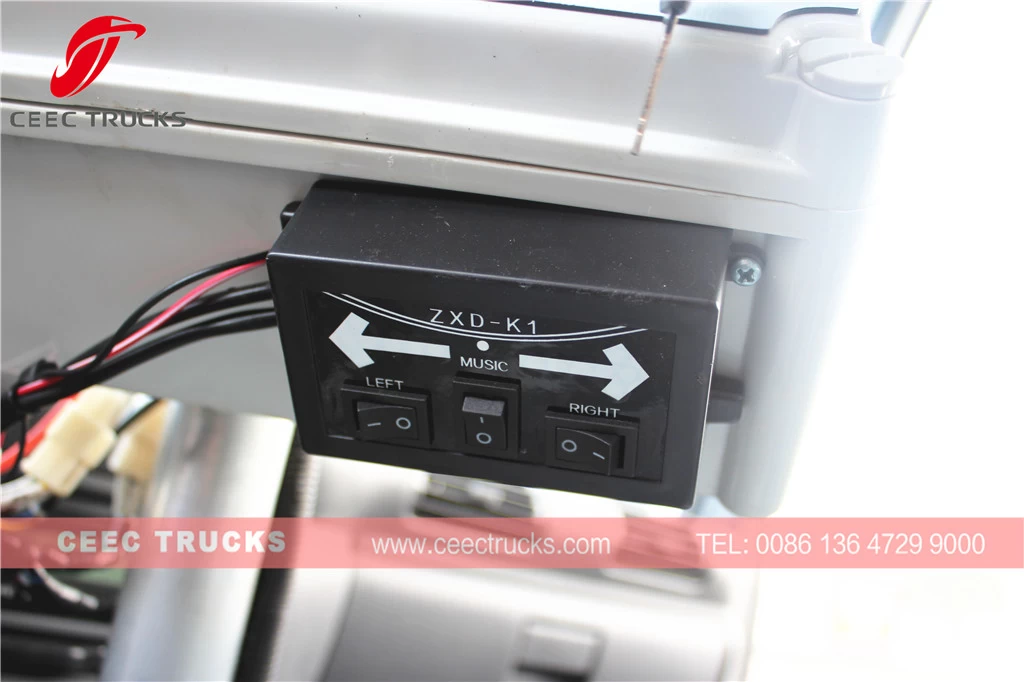

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Italy Brevini motor can be optional.

** Air blower can be of stainless steel

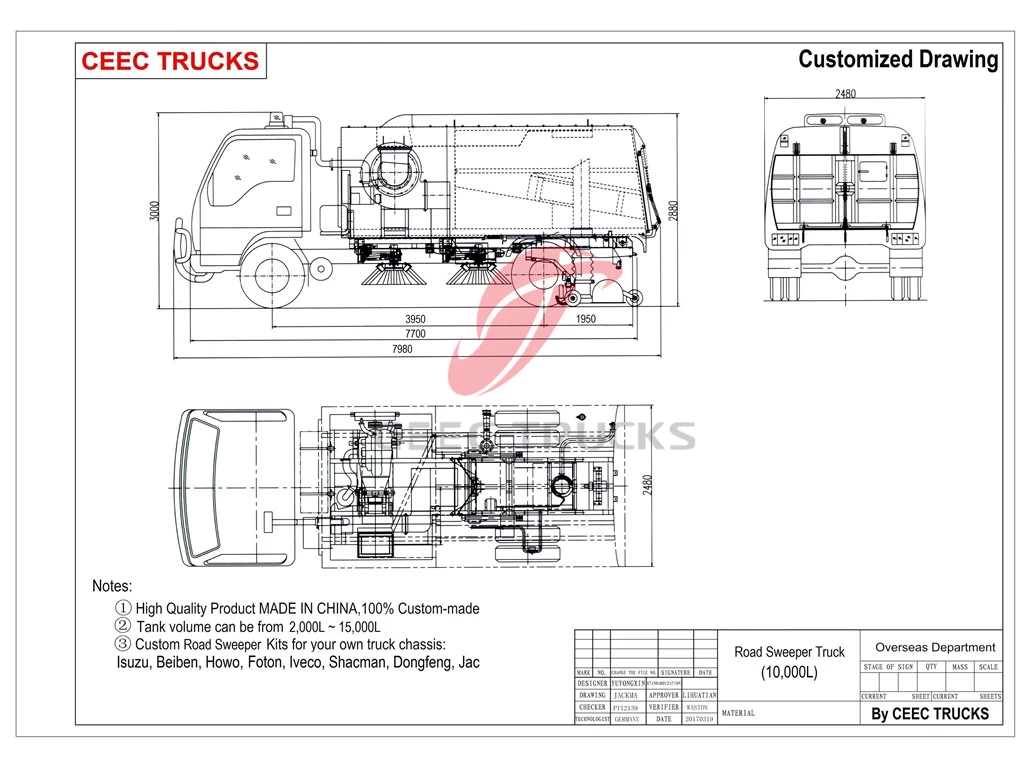

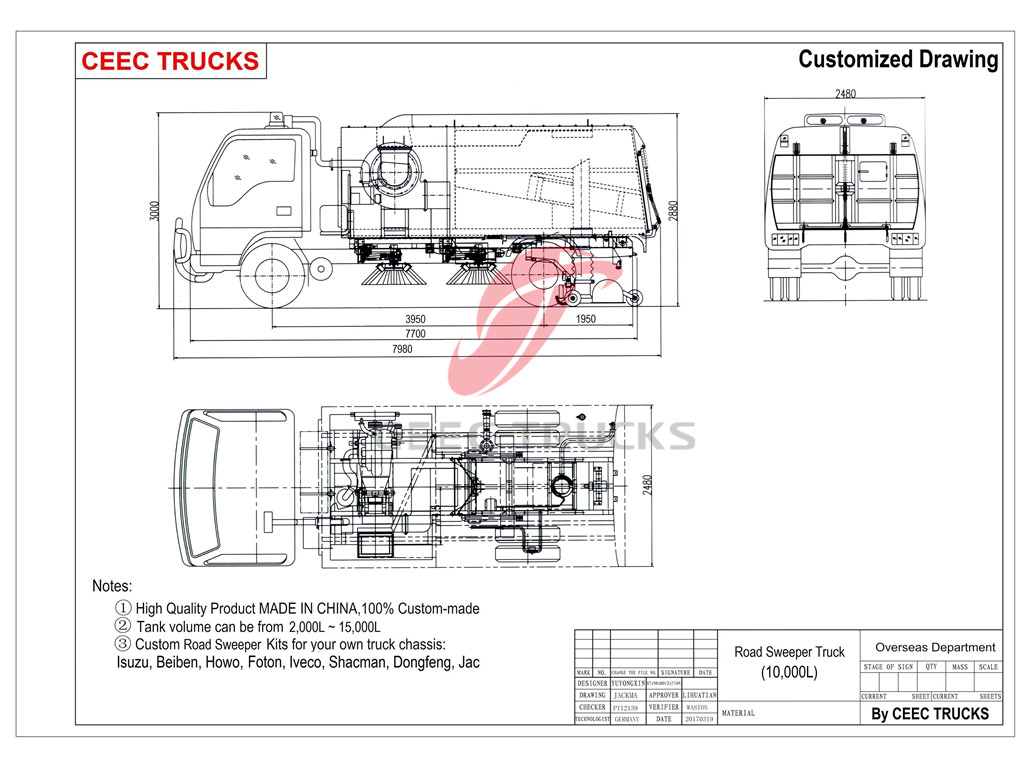

 CEEC road sweeper truck drawing
