Applications:
Off-Road Water Bowser DONGFENG (also called Water bowser, Water spray truck, Water tanker truck, Water tank lorry, Portable water tanker, water sprinkler truck) is used for the road flushing, tree and lawn greening, high building
cleaning, construction of road and factories. It has the functions of
flushing, watering, transporting water and fire fighting.
CHUSHENG TRUCKS water truck is mainly composed of chassis, tanks, pumps, valves, and
the water pipe, sprinkler and other parts. Water truck is made of high
quality carbon steel sheet.
Key Features:
---- DONGFENG chassis, perfect performance
---- CUMMINS / YUCHAI / CHAOCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
Specifications:
|

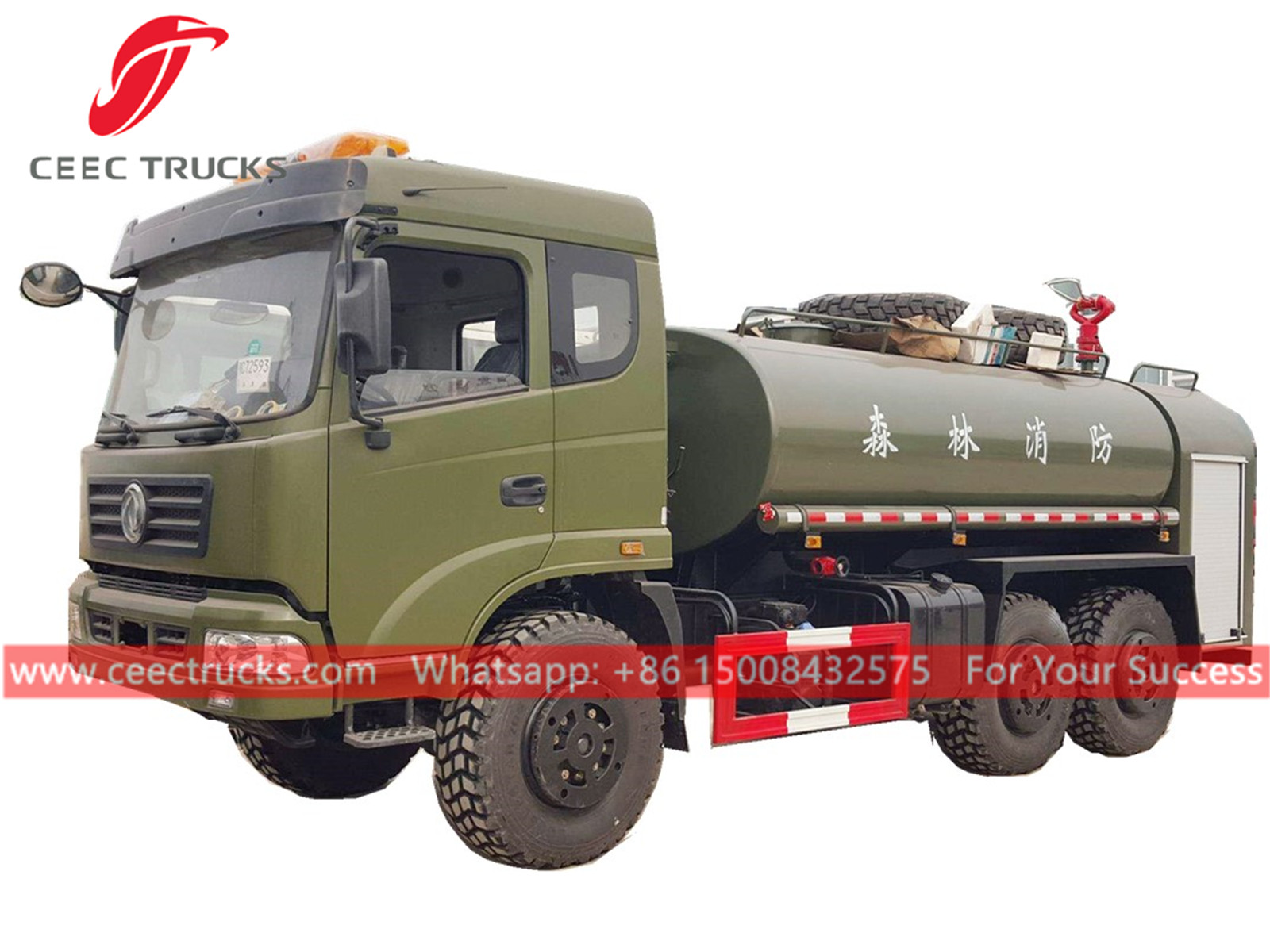

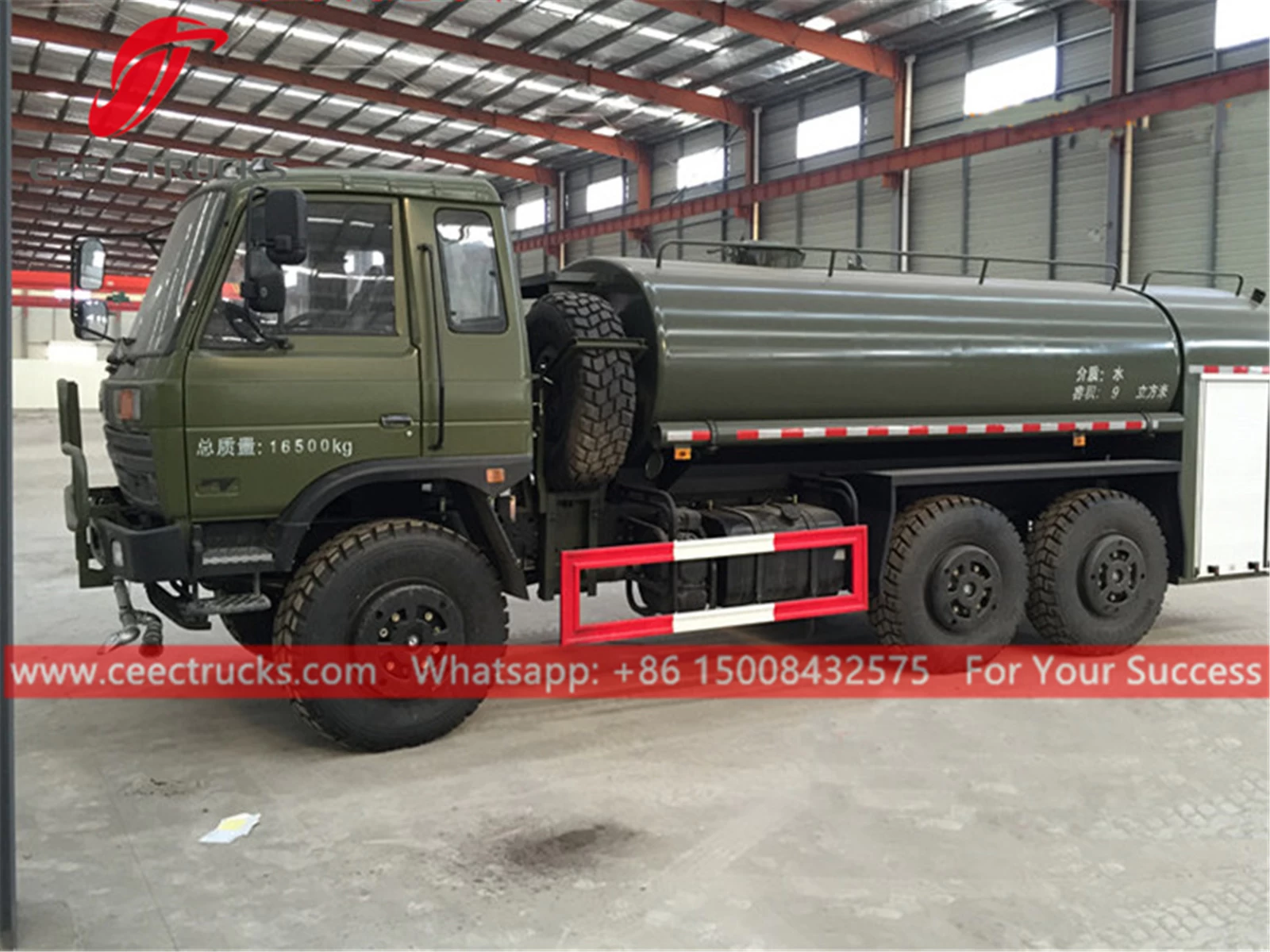

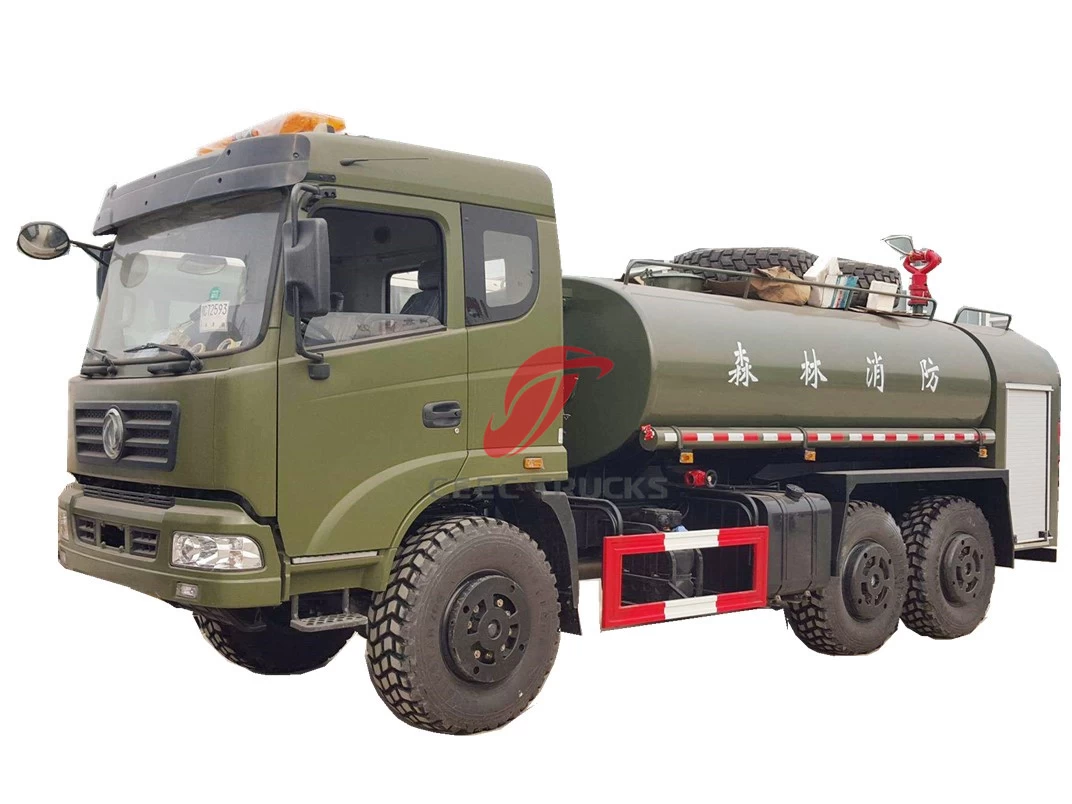

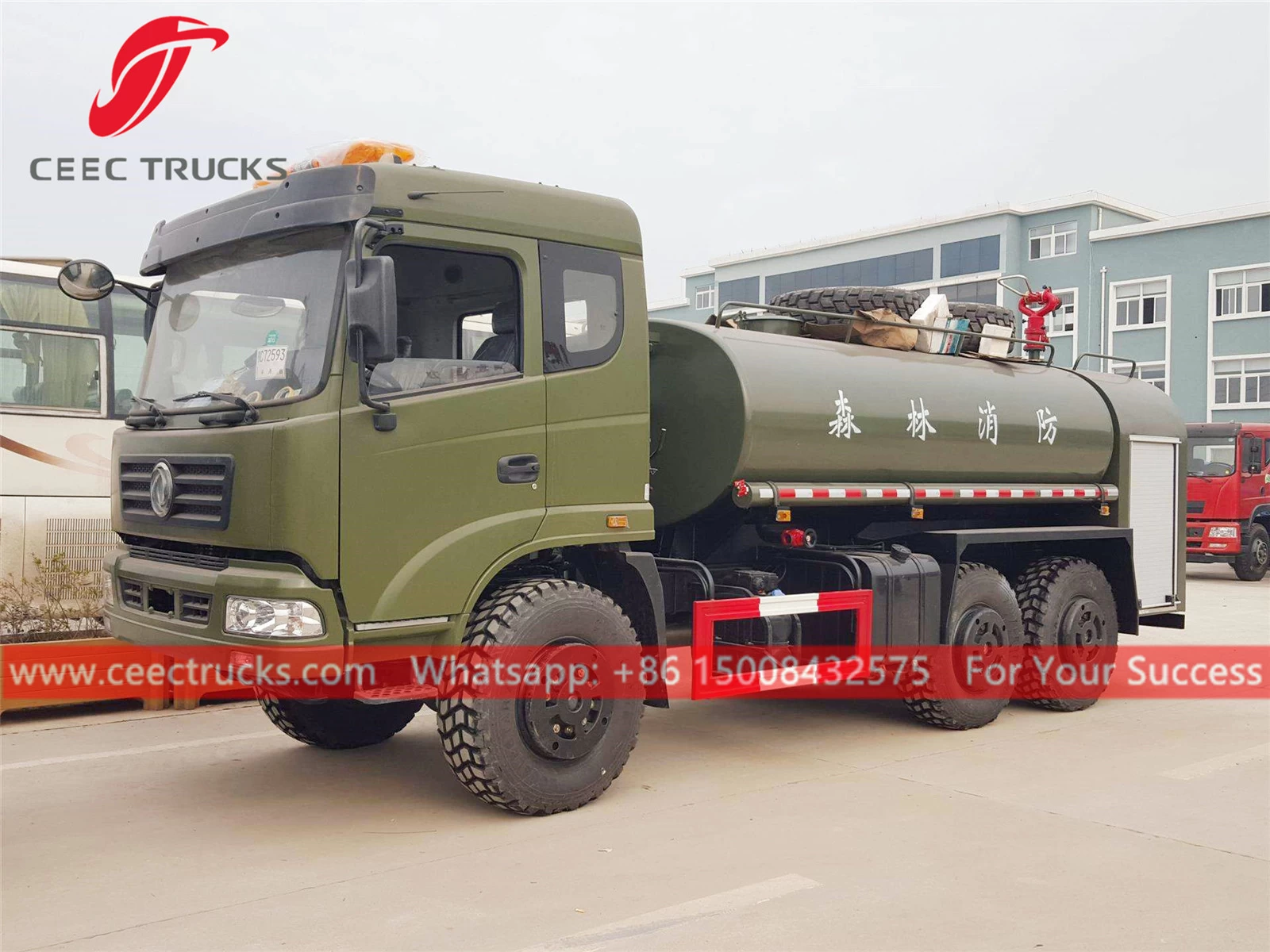

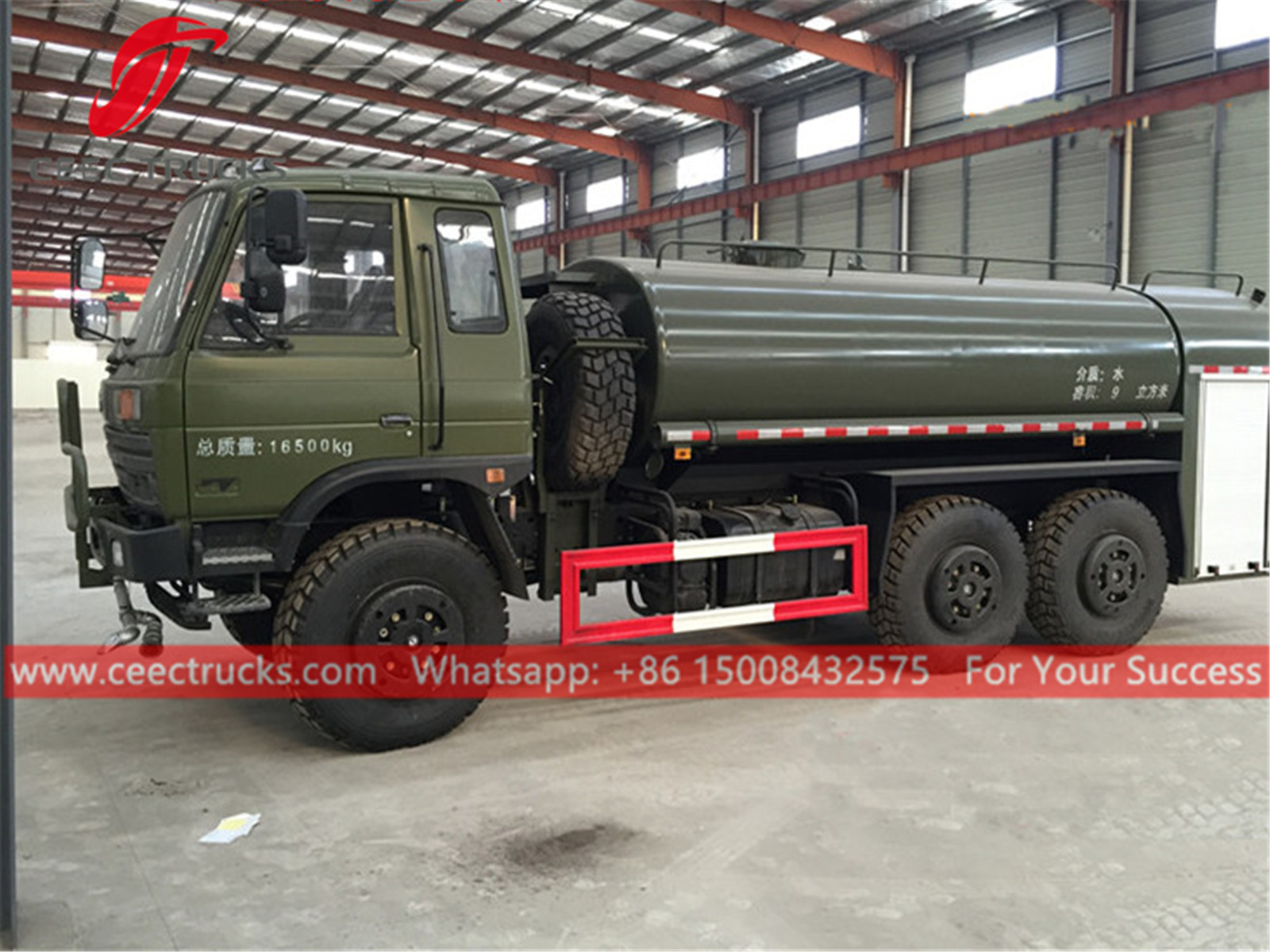

Military Water Sprinkler Truck DONGFENG
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
DONGFENG
|
|
Overall Dimension
|
7950 * 2480 * 3450 mm
|
|
GVW / Kerb Weight
|
16,050kg / 8040kg
|
|
Cab
|
Cab Capacity
|
2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
CUMMINS
|
|
Power
|
210 HP (155 KW)
|
|
Displacement
|
6700 ml
|
|
Emission Standard
|
Euro 3 or 4
|
|
Chassis
|
Drive Type
|
6X6 (left hand drive)
|
|
Transmission
|
Manual 6 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
3500+1250 mm / 3
|
|
Tire Specification
|
12.5R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
95 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Tank Capacity
|
9,000 Liters
|
|
Tank shape
|
Ellipse
|
|
Material
|
Carbon steel, 4mm
|
|
Body Material
|
Whether resisting steel
|
|
Water pump
|
China famous brand
|
|
Loading type
|
Self loading
|
|
Front spray bar
|
YES
|
|
Rear spray bar
|
YES
|
|
Water Canon
|
28 meters
|
|
Fire pump & Monitor
|
CB10/40 Fire Pump & PS40 Monitor
|
|
Control
|
Manual (Optional air operated)
|
|
Control panel
|
English or Your language
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
|
Optional
|
** Backup alarm can be equipped.
** Camera can be equipped.
** Operation language can be English or Appointed language.
|
