Applications:
Hook Lift Truck Dongfeng (also called roll
on roll off waste collection truck, hook lift rubbish truck, hook arm garbage vehicle, hot sale hook loader, hook loader with detachable bin, refuse collector truck, hook lifting garbage collection truck ) is designed
to collect and transport municipal solid waste, widely used in
residence community, hospital, municipal environmental section, garbage
collection and transportation station, etc.
CEEC TRUCKS roll on roll off trucks loading capacity can ranges from 1tons, 2tons,
3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.
The hook loader with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- Dongfeng chassis, perfect performance
---- CUMMINS diesel engine (Japanese brand), super powerful, no overhaul within 100,000 km.
---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.

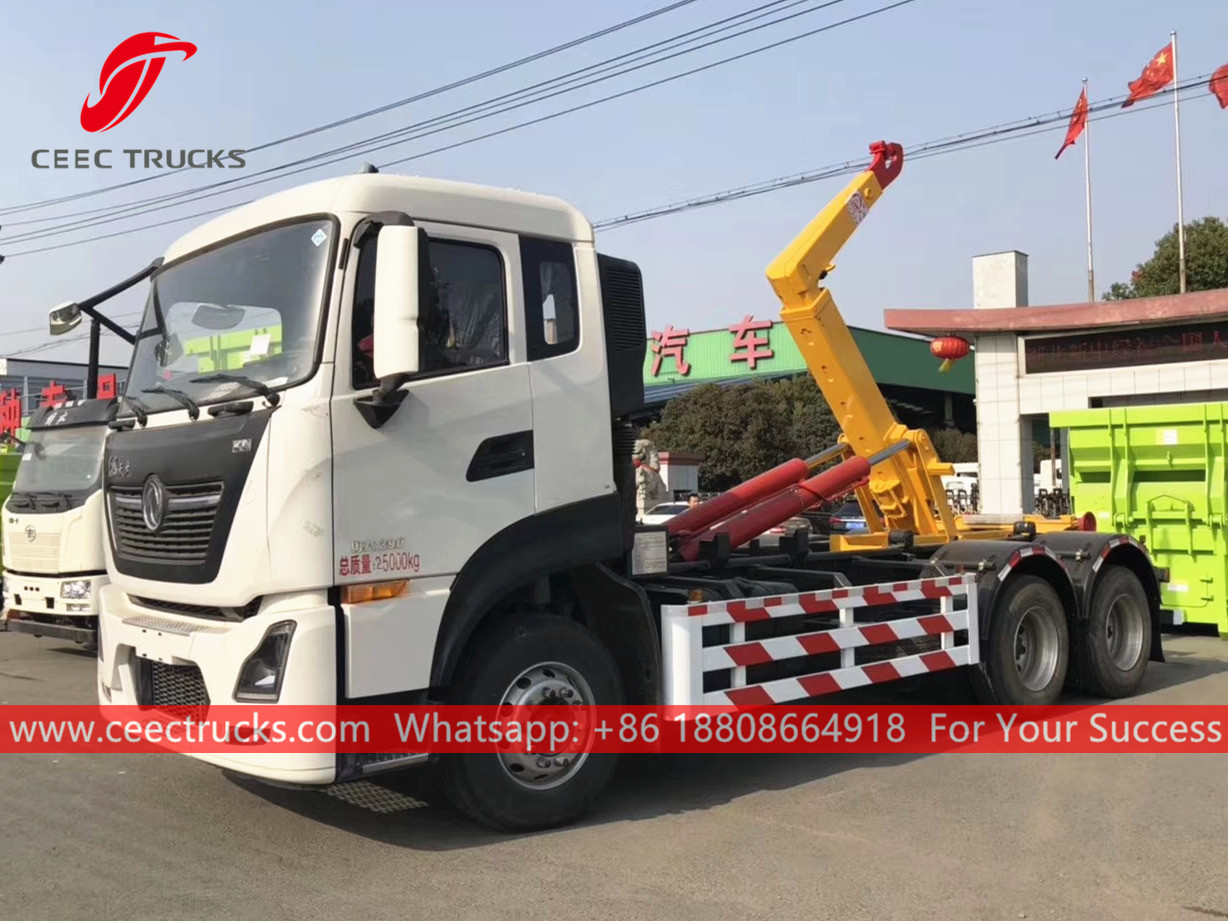

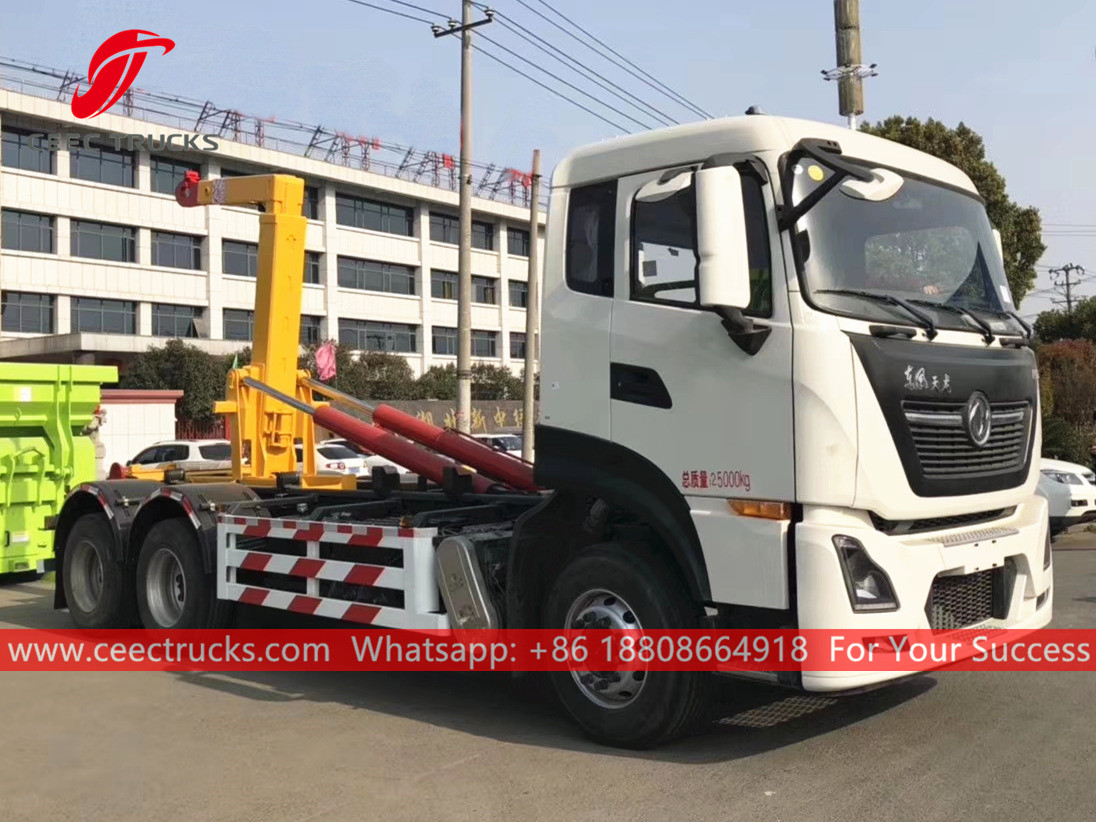

---- Rational design of hook and locking structure, and truck more reliable.
---- Optional Electrical Control in cabin, easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
|

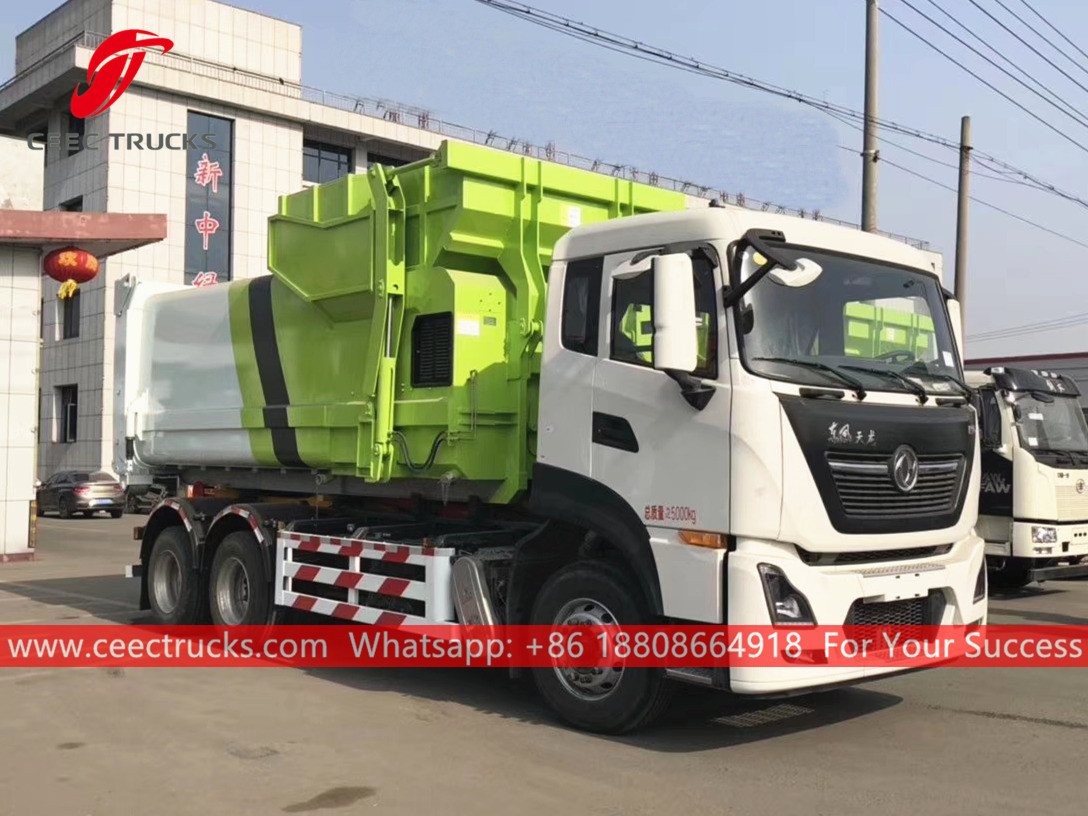

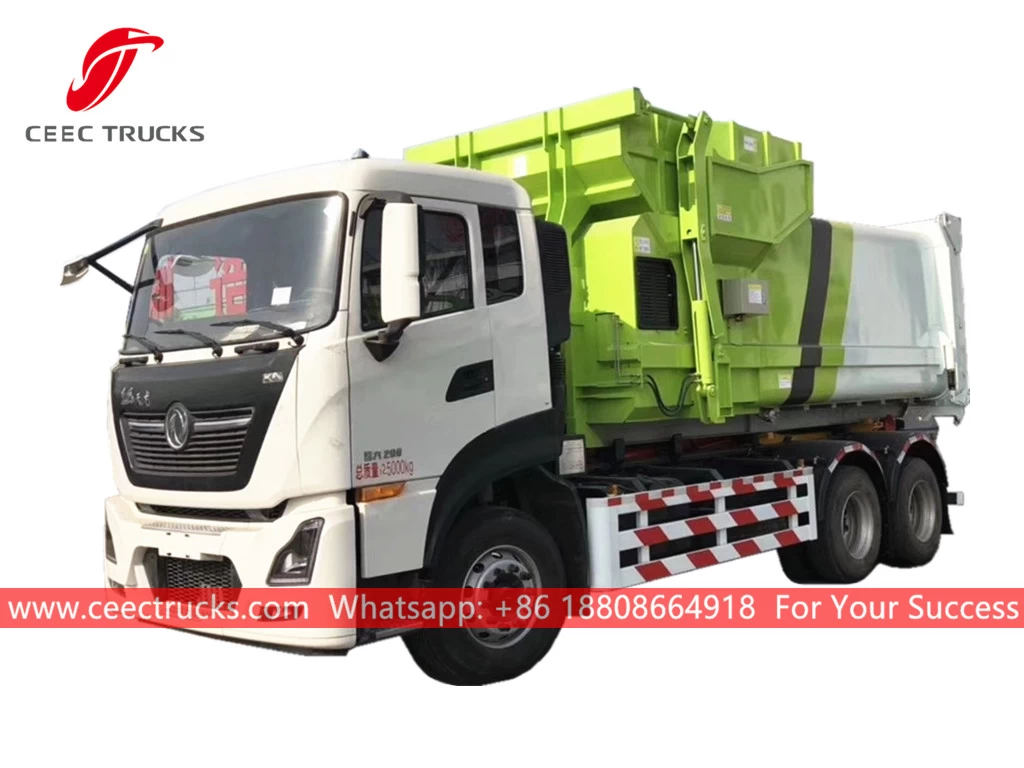

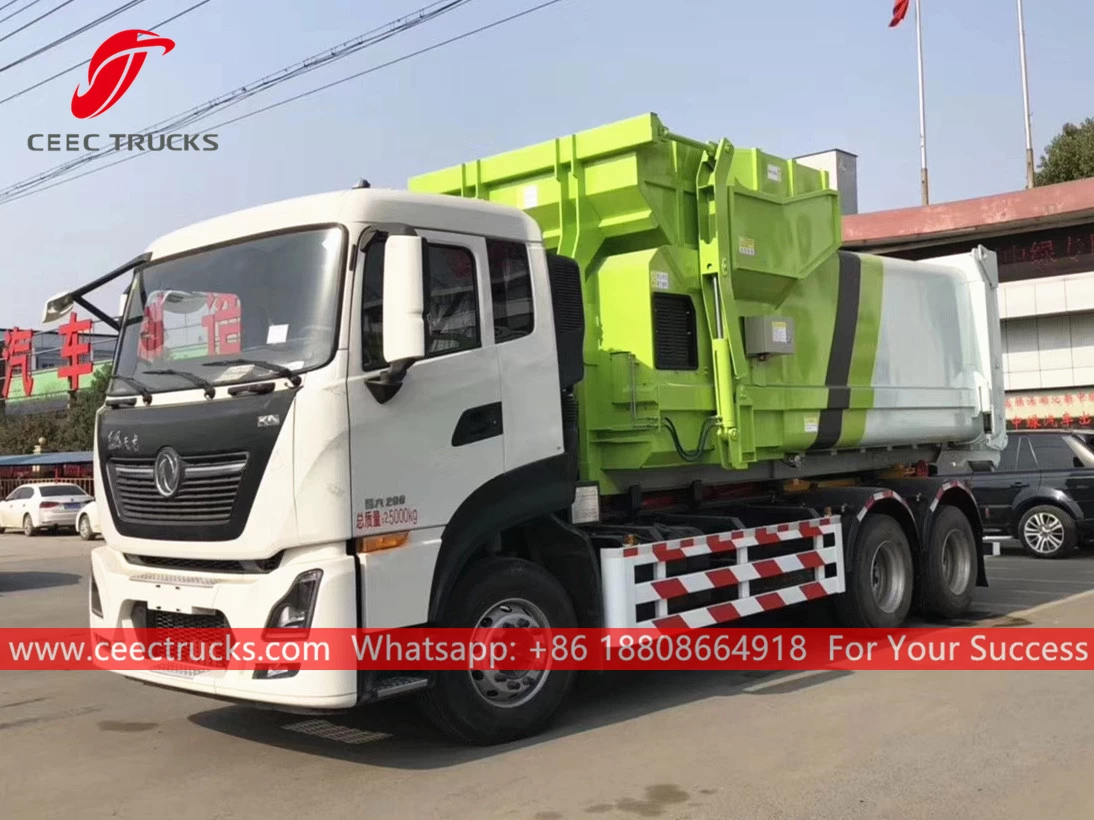

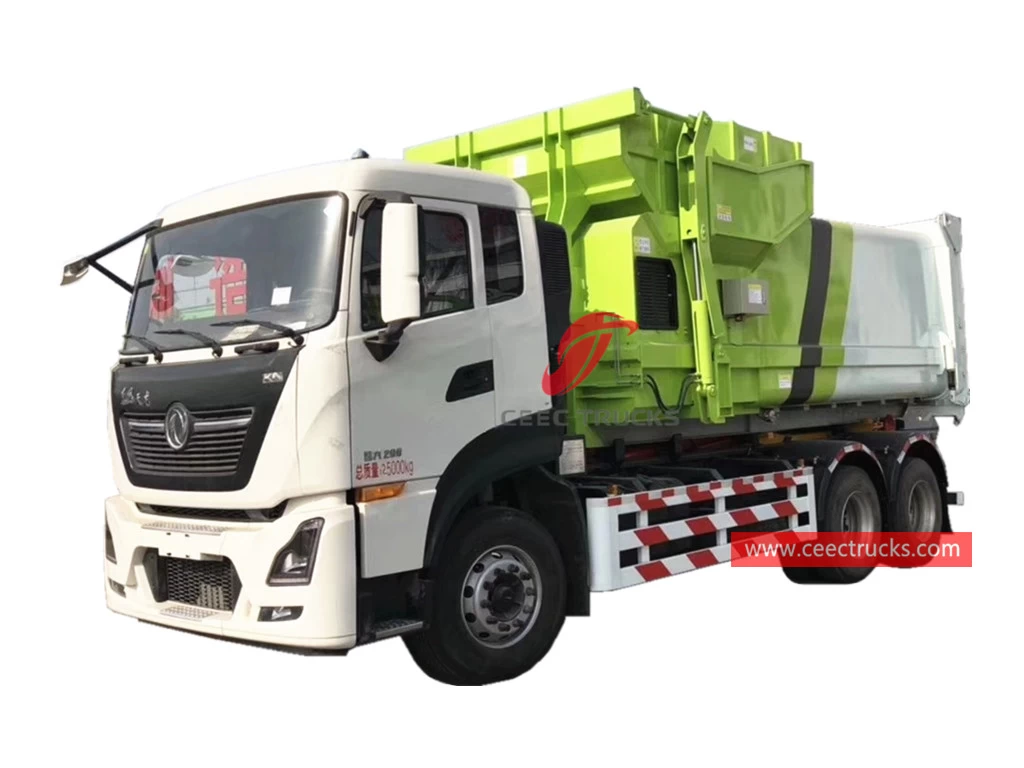

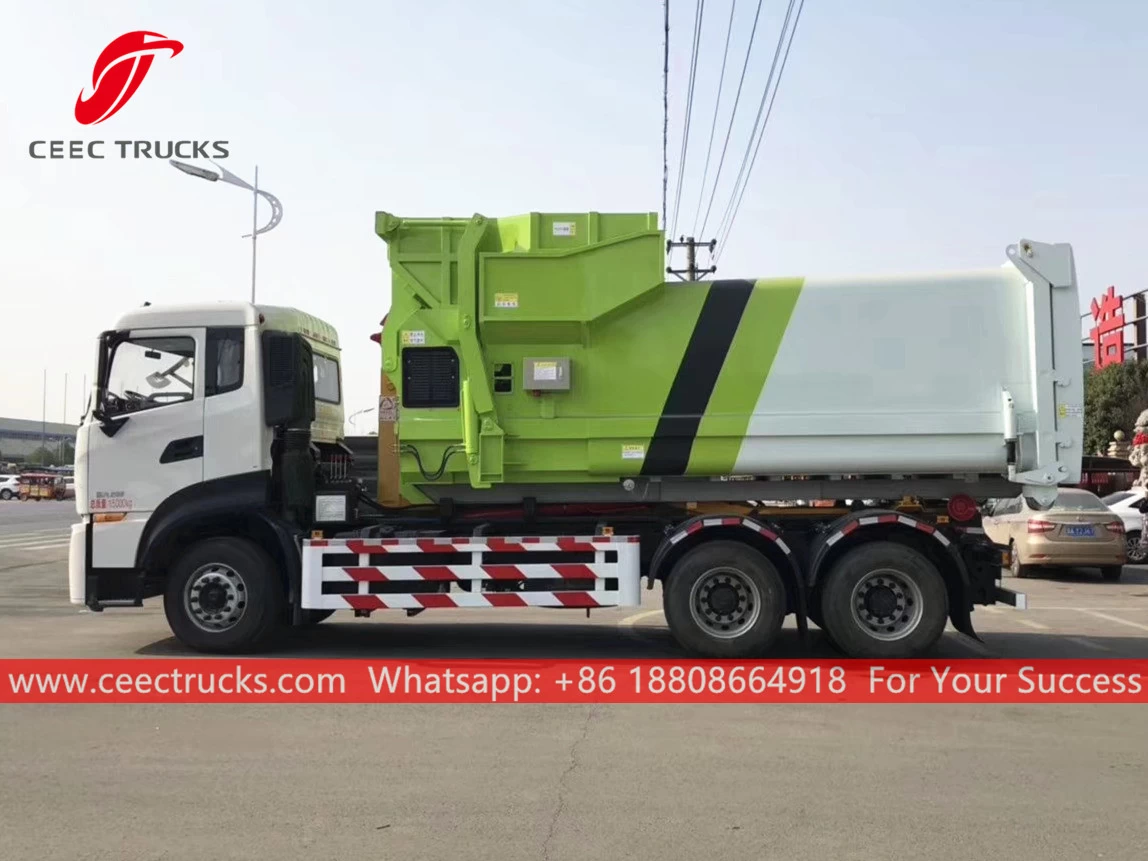

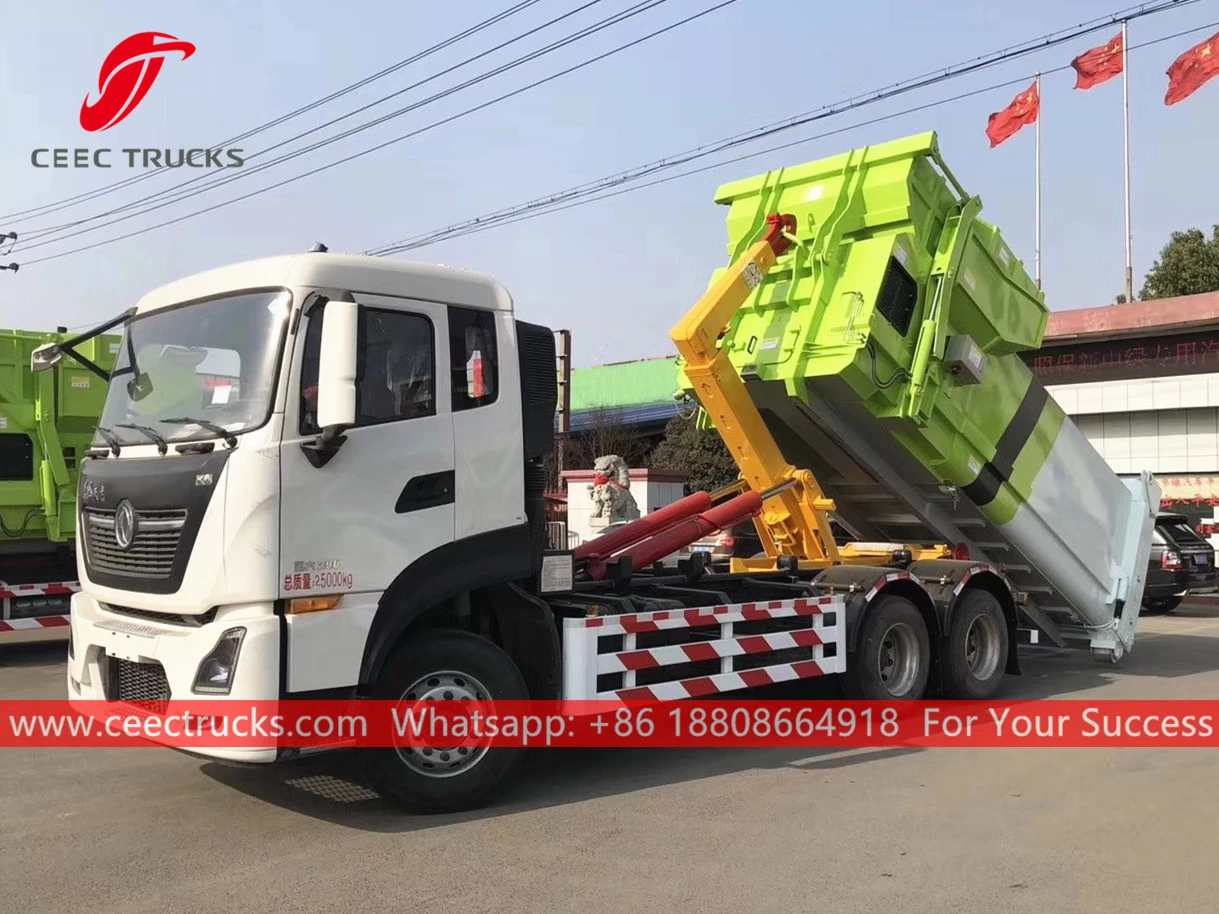

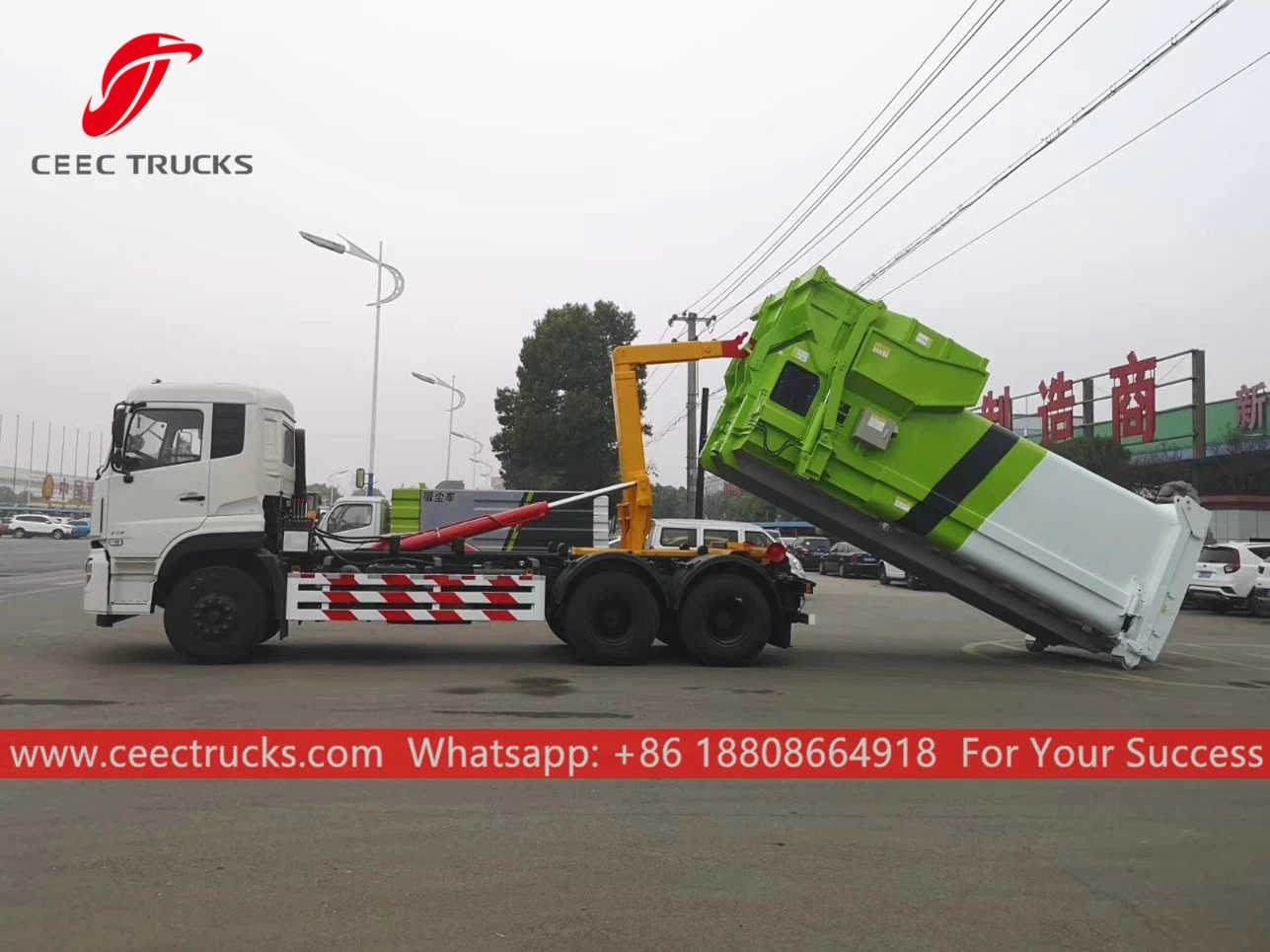

Dongfeng Hook arm garbage truck (10 cbm)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Dongfeng
|
|
Overall Dimension
|
8500 * 2500 * 3100 mm
|
|
GVW / Kerb Weight
|
25,000kg / 11,820kg
|
|
Cab
|
Cab Capacity
|
2,3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
CUMMINS
|
|
Power
|
270 HP (198 KW)
|
|
Displacement
|
6700 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
Manual 5 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4350+1350 mm / 3
|
|
Tire Specification
|
11.00R20
|
|
Tire Number
|
10 tires and 1 spare tire
|
|
Max Speed
|
90 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Body capacity
|
10CBM capacity detachable compactor container
|
|
Container material
|
Anti-corrosive steel
|
|
Hydraulic system
|
Chinese top brand cylinders and matched valves
|
|
Control Box
|
1. Electric Control Box in Cabin
2. Hydraulic control valve at rear
|
|

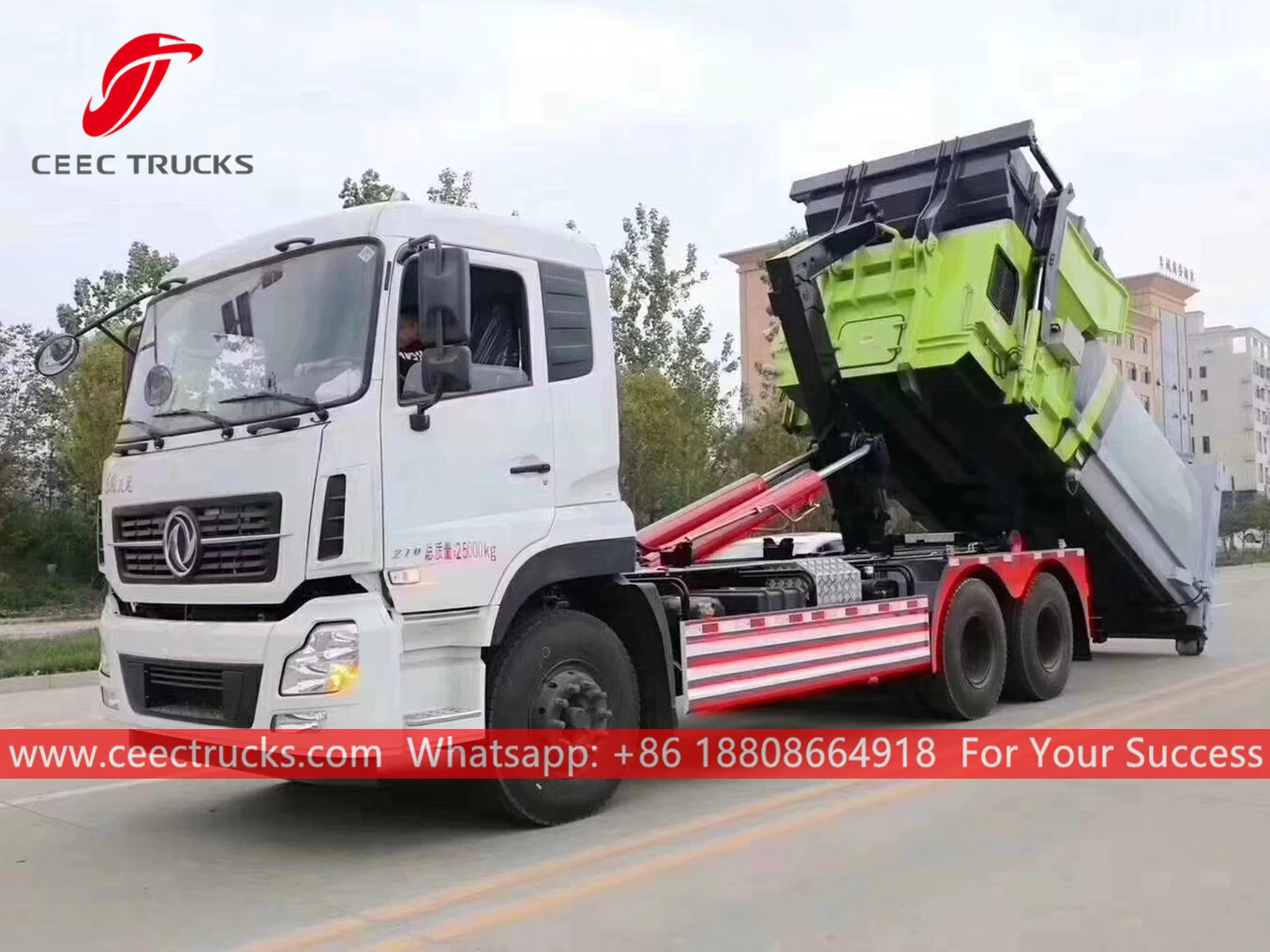

Self-discharge angle
|
≥45 °
|
|
Discharging time
|
≤45 s
|
|
Lifting time
|
≤45 s
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Remote Control Box can be optional.
** Garbage container can be of stainless steel
|
