Applications:

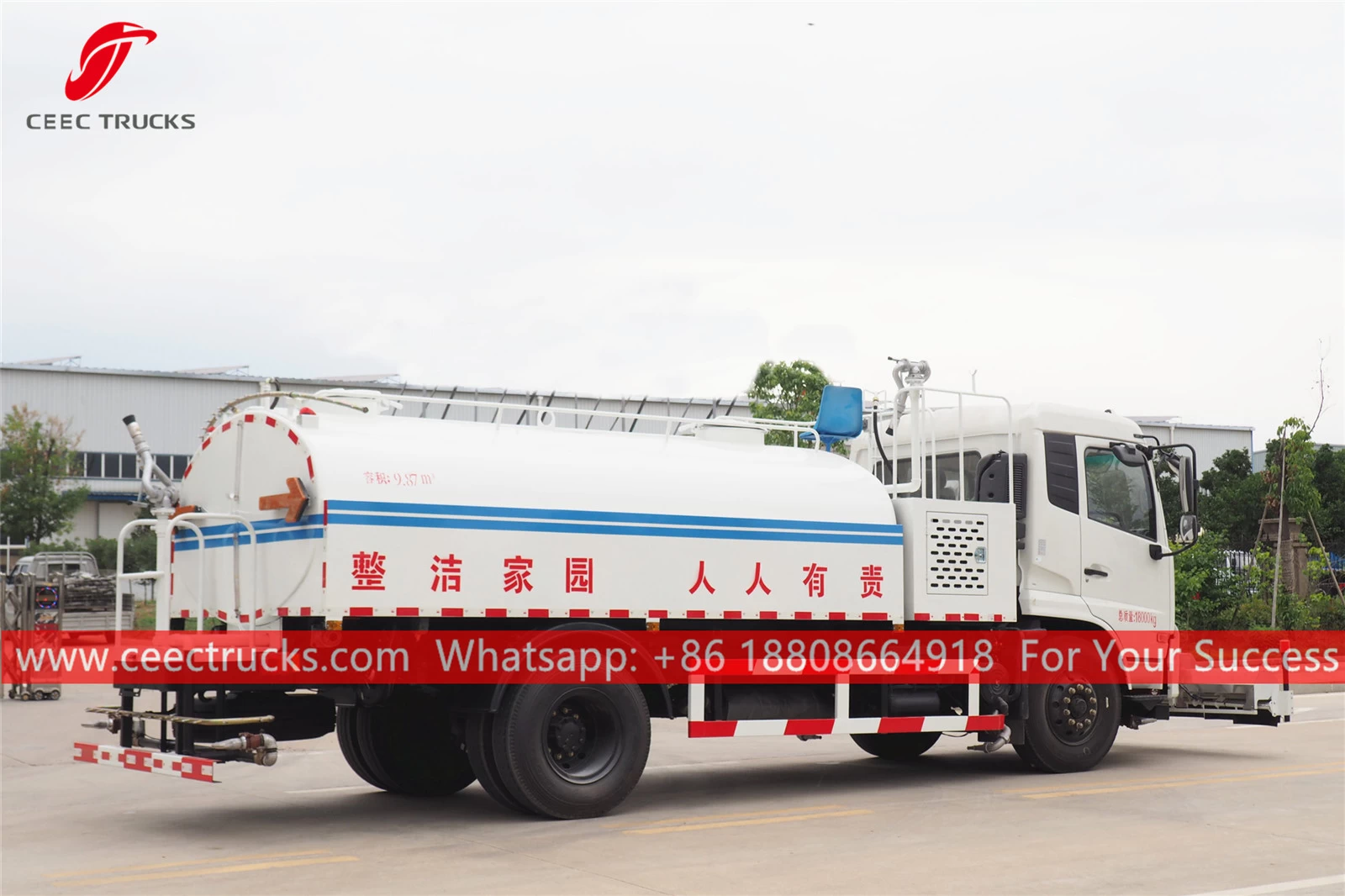

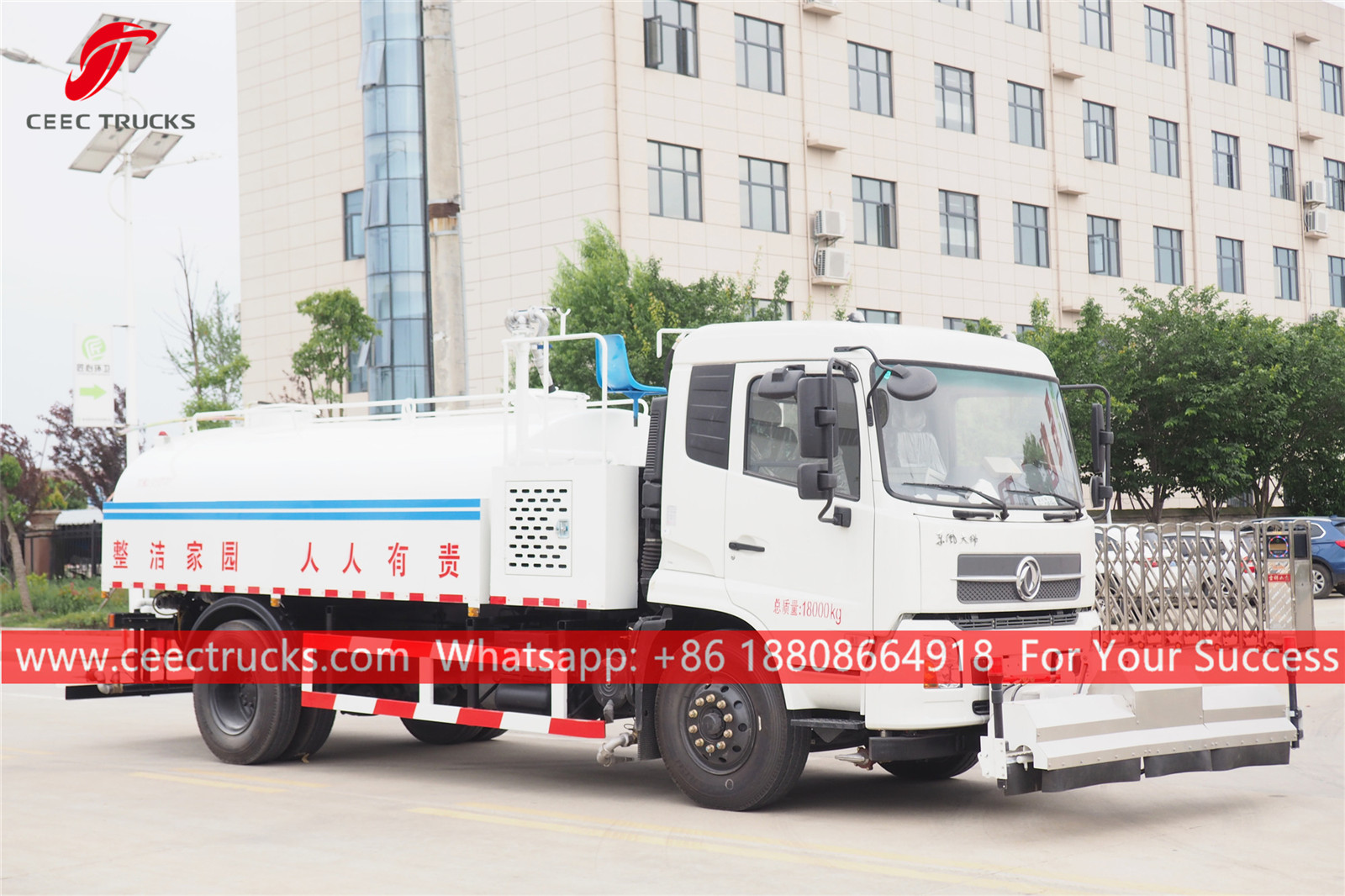

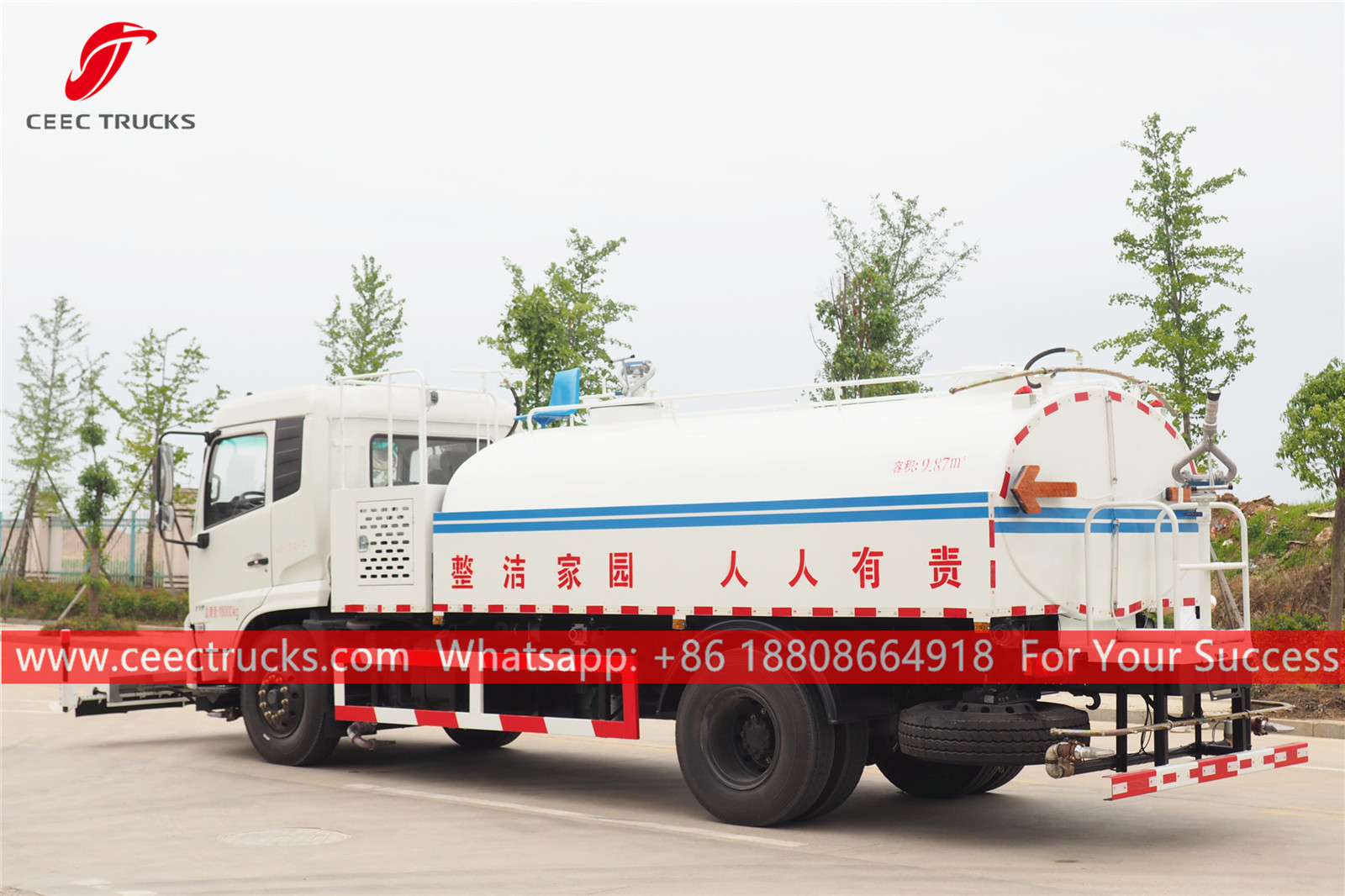

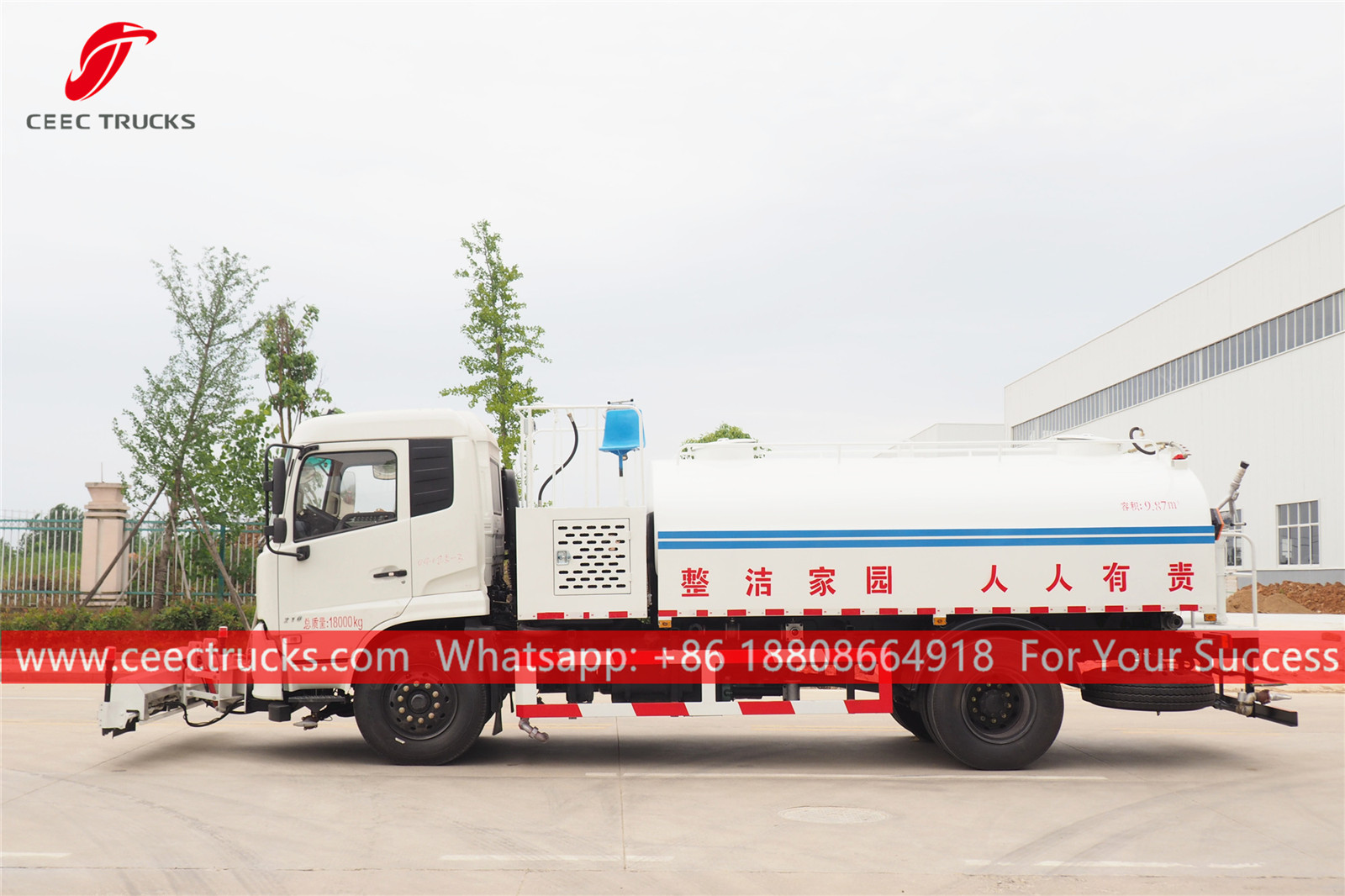

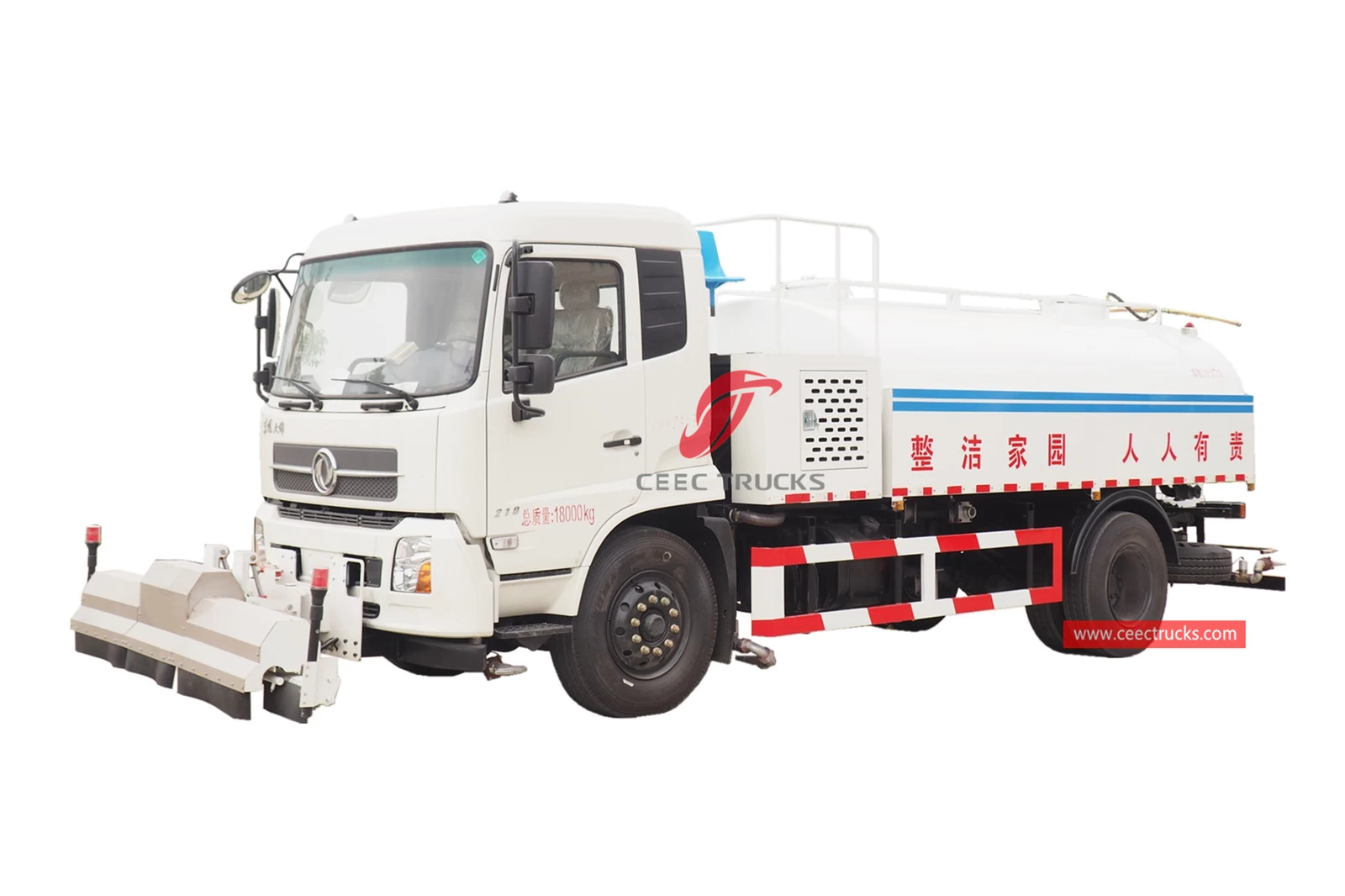

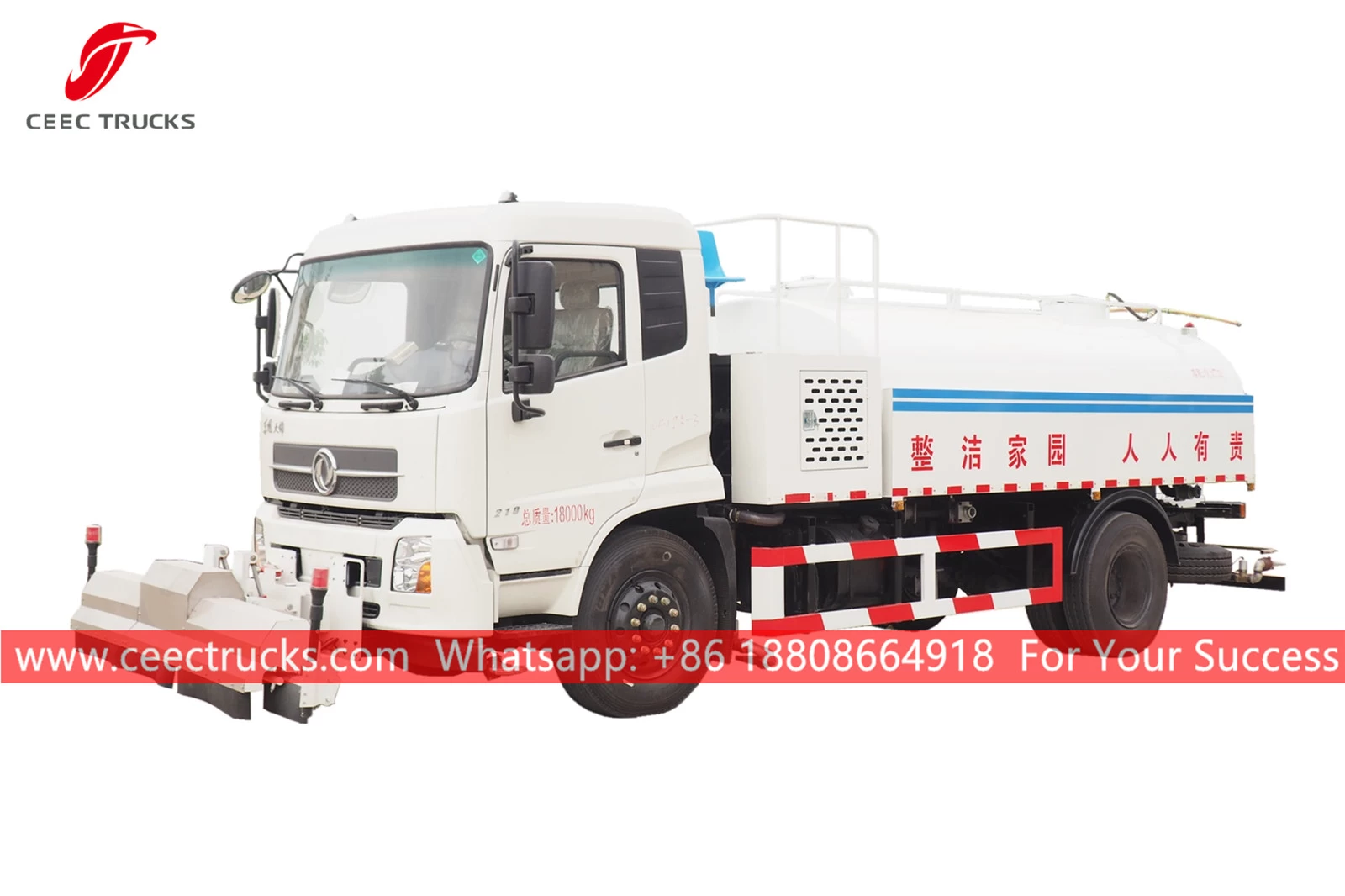

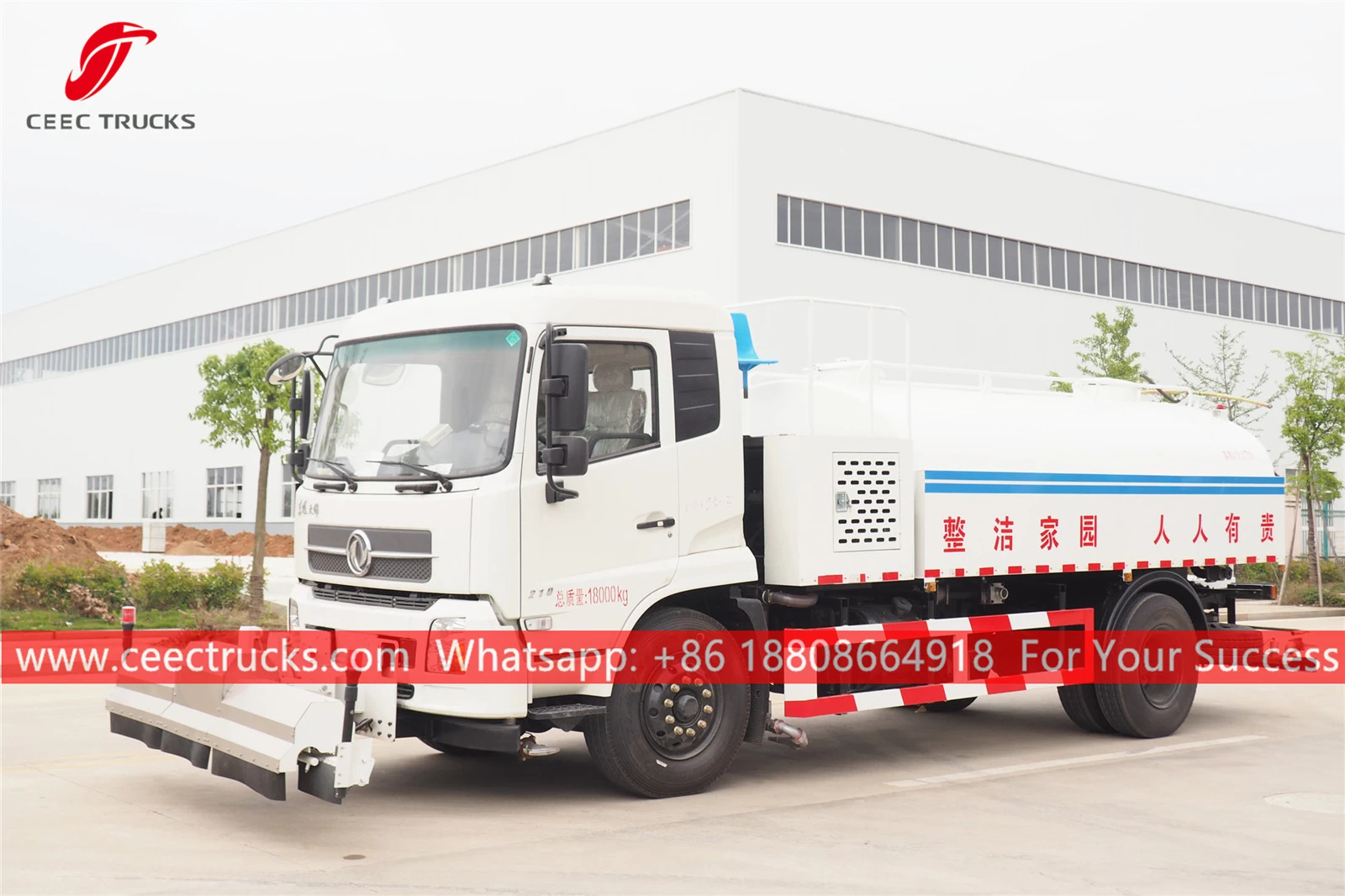

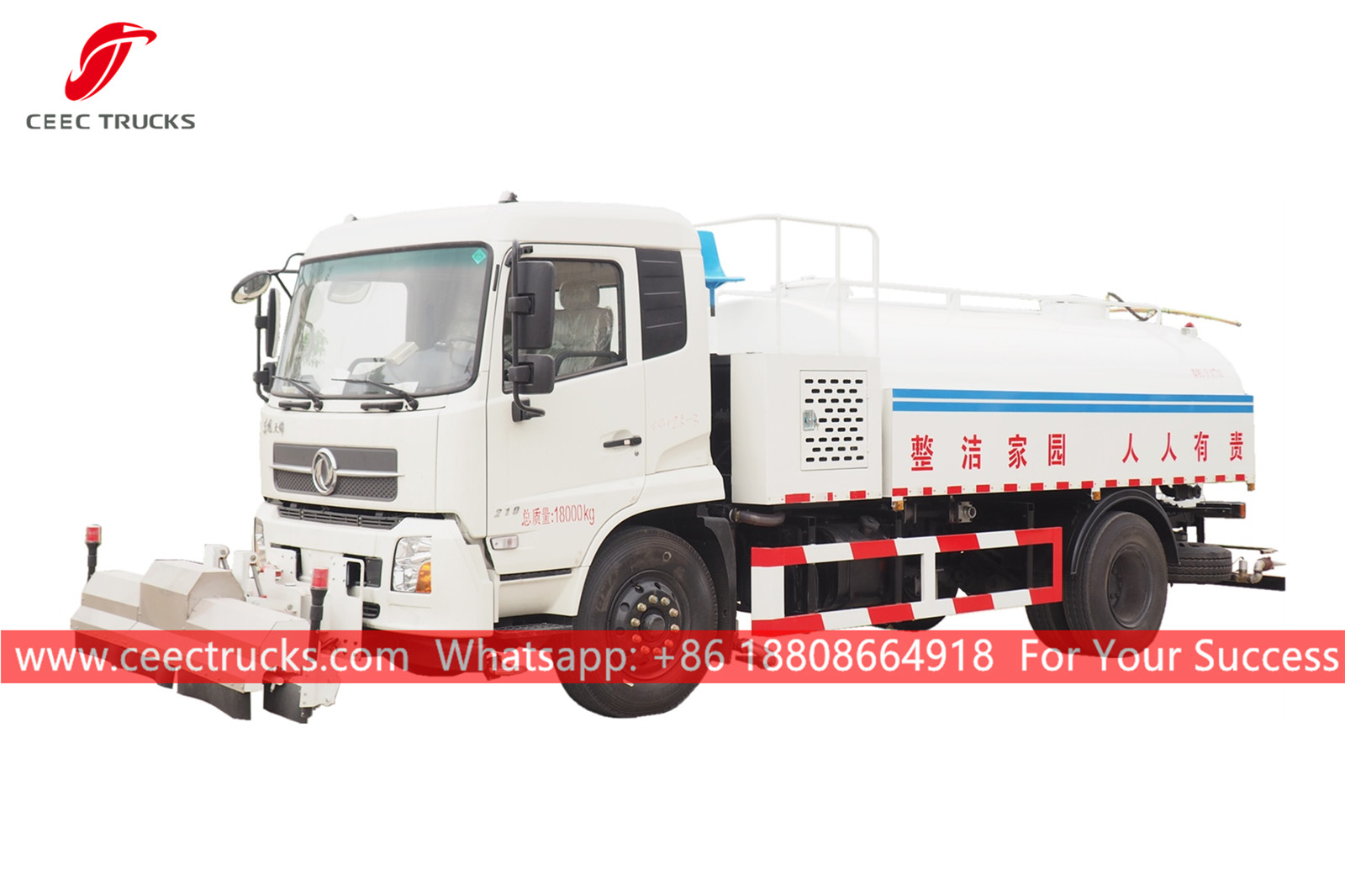

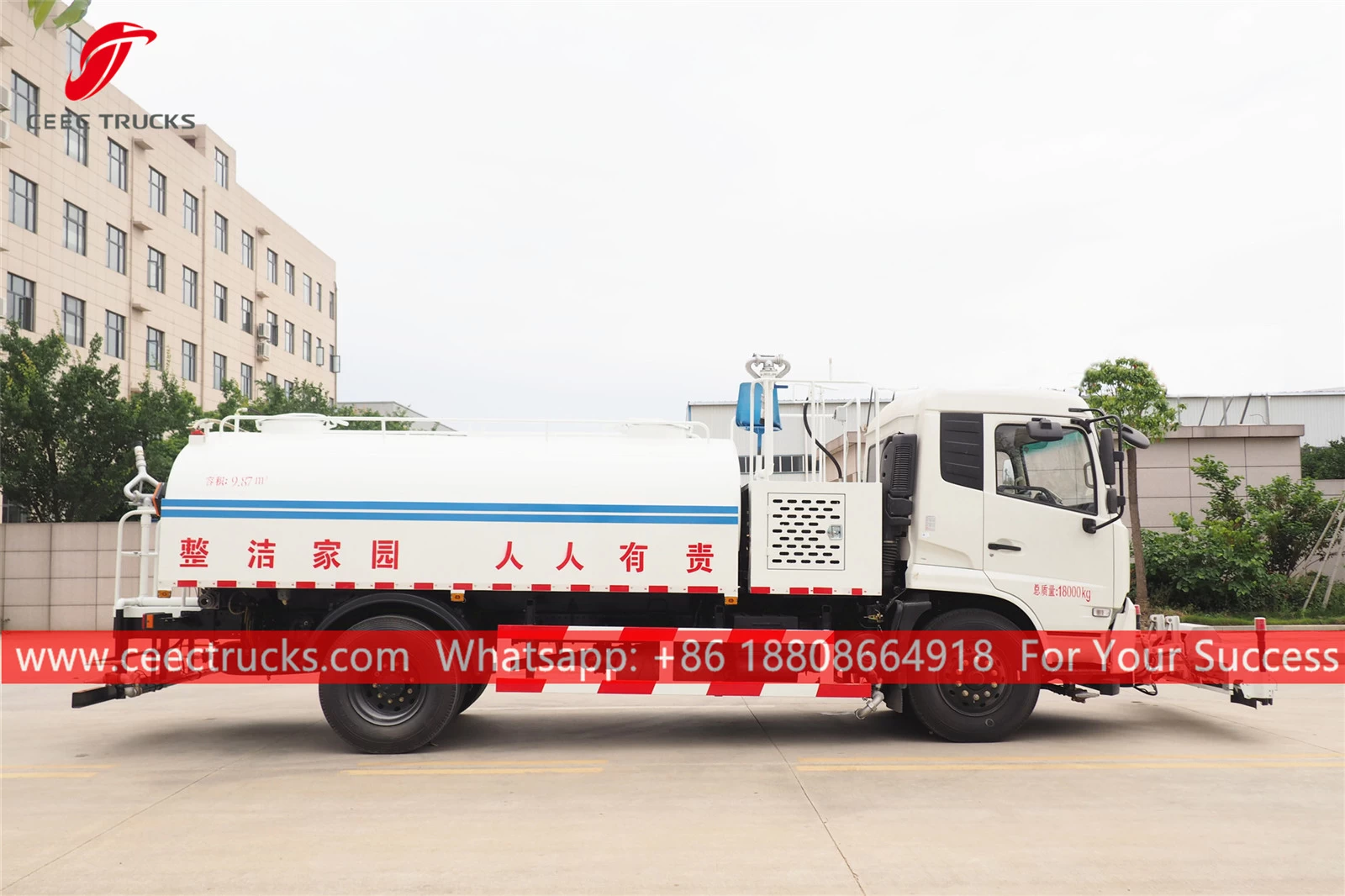

Road wahsing truck Dongfeng (also called Dongfeng road washer truck, road flushing truck, street cleaning truck, street washer vehicle) is used
for high pressure washing and sanitation of roads. It's able to remove the stubborn stuff and reduce dust on the road.

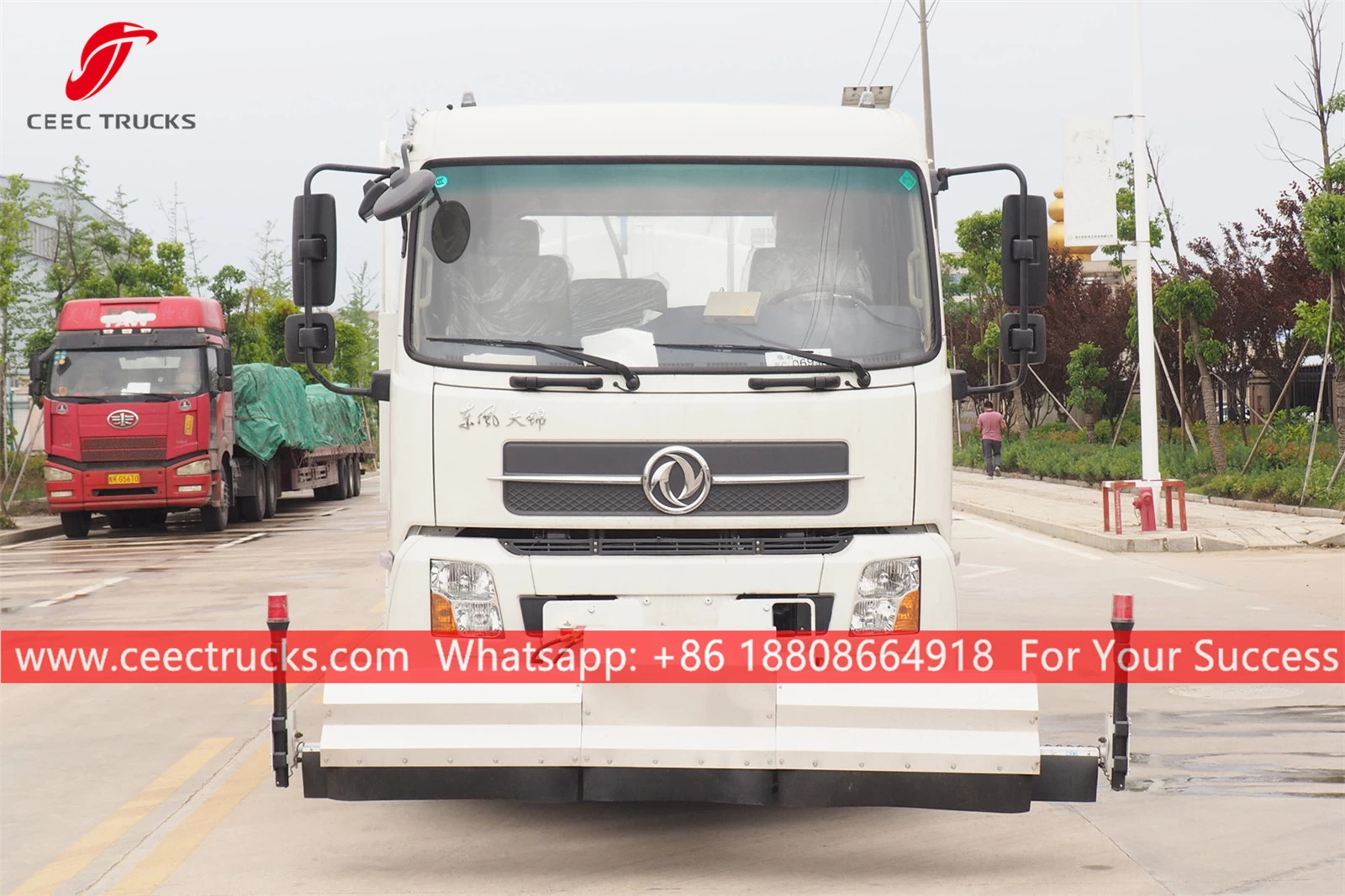

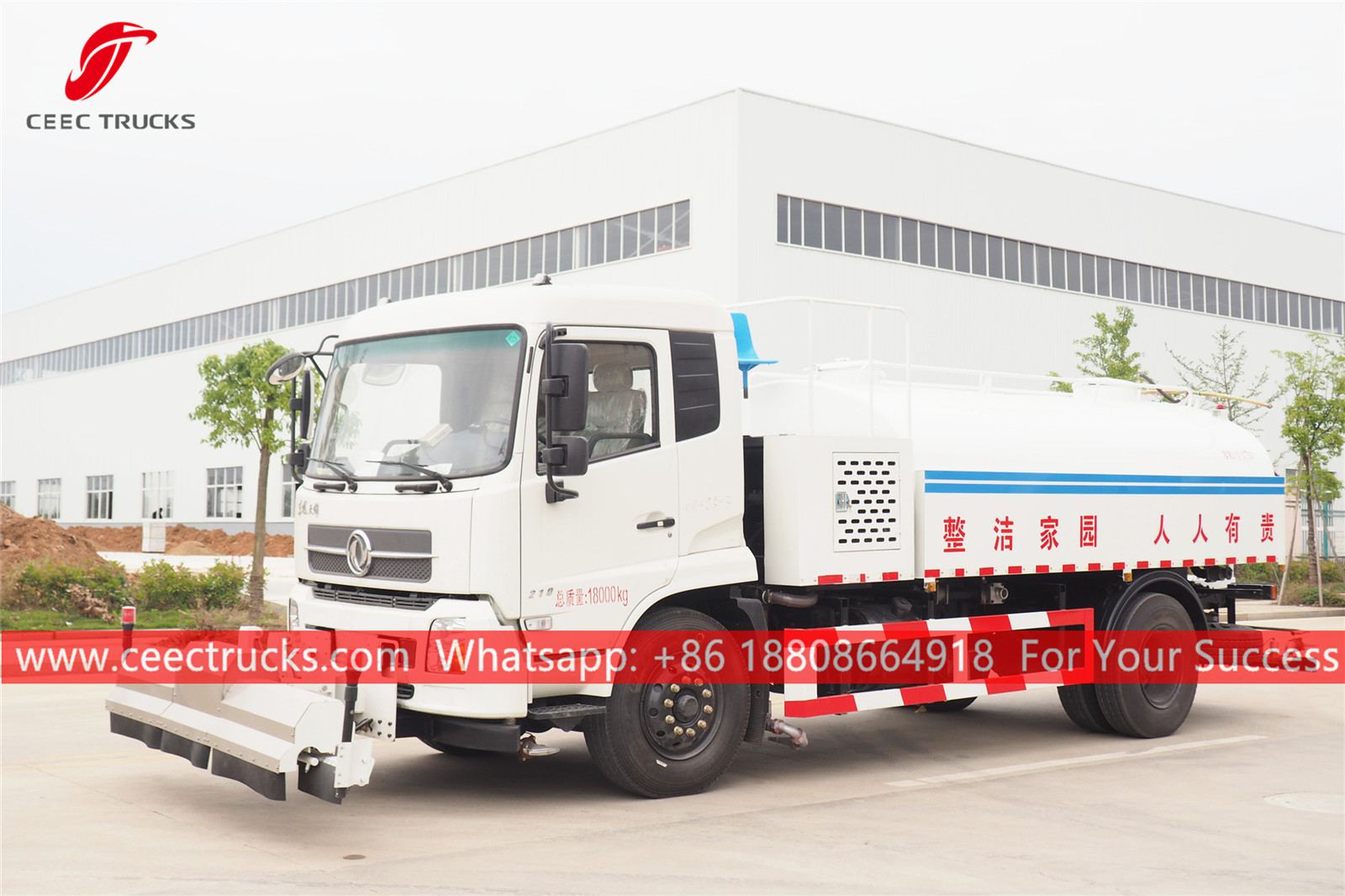

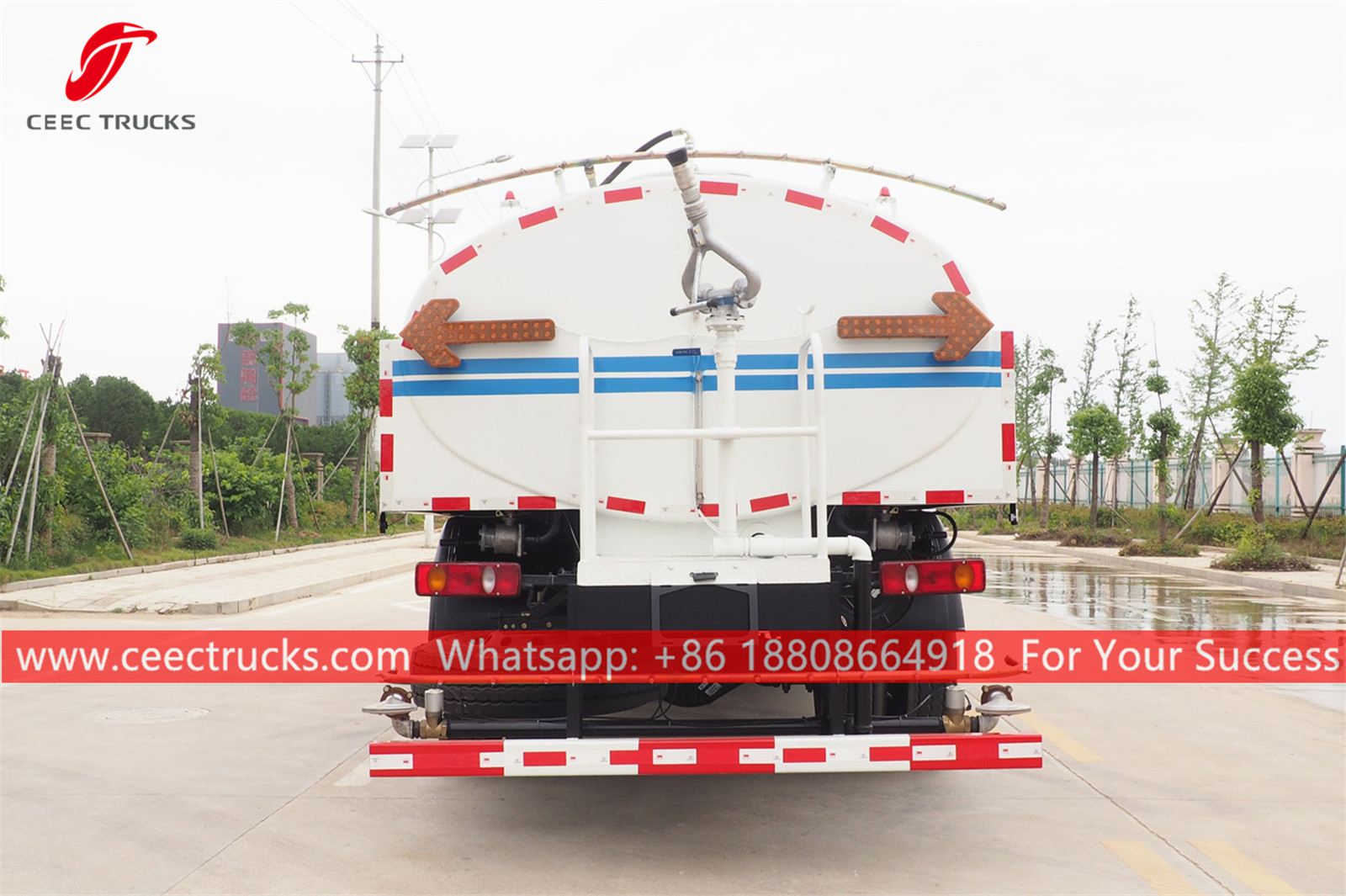

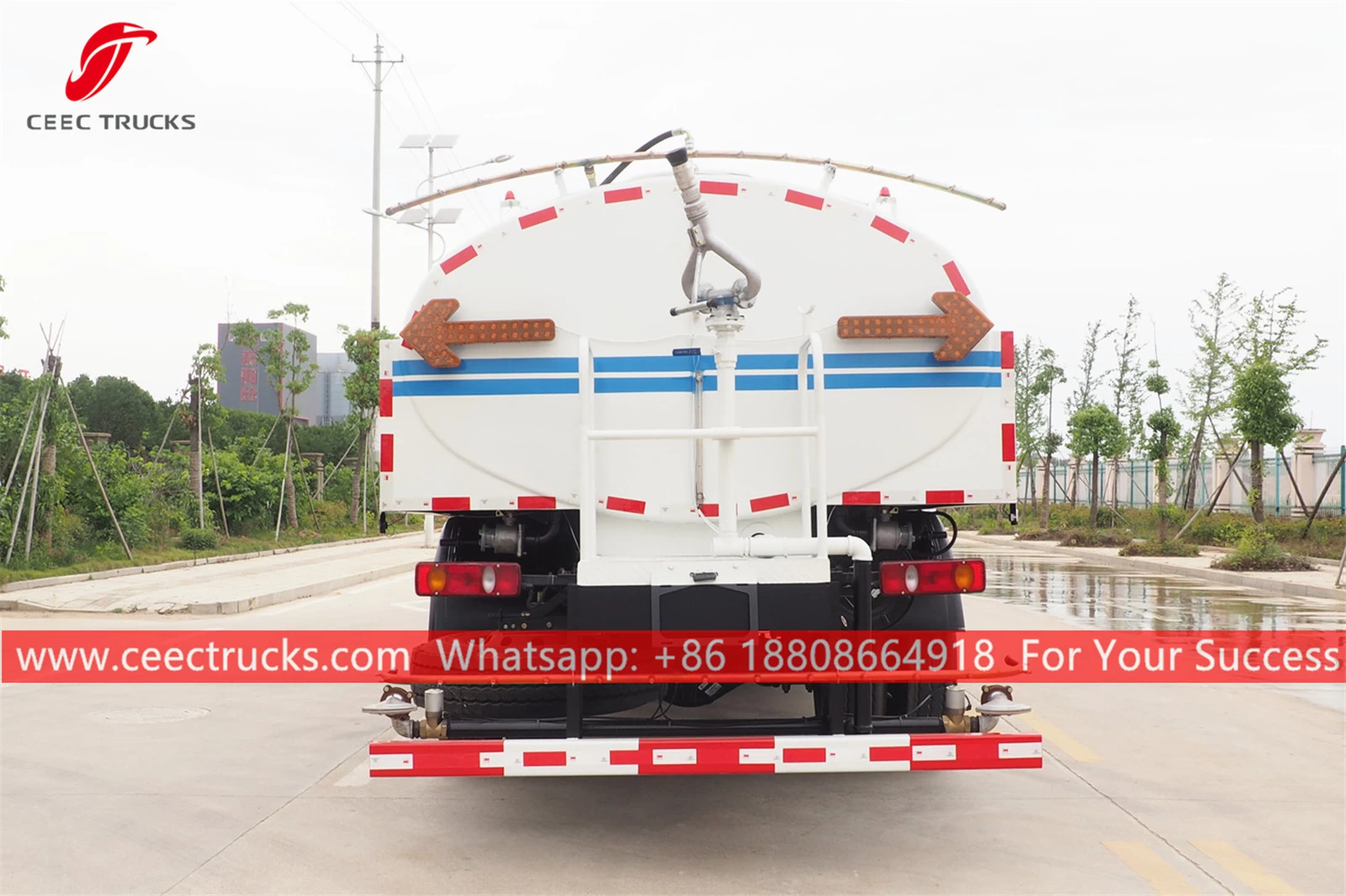

CEEC TRUCKS road washer trucks are equiped with front stainless steel high pressure washing beam, rear sprinkling nuzzles bar, sprayer, etc.
The road cleaning vehicle with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- Dongfeng chassis, perfect performance
---- CUMMINS diesel engine, super powerful, no overhaul within 100,000 km.
---- Road Sweeper body capacity from 1 to 16 Cublic Meter.
---- Easy operation and easy maintenance.
---- Virious types of refuse container lifter are available.
Specifications:
|
Dongfeng road cleaning truck
|
|
General
|
Vehicle Brand
|
CEEC
|
|
Chassis Brand
|
Dongfeng
|
|
Overall Dimension
|
8790 * 2475 *305 0 mm
|
|
GVW / Kerb Weight
|
16,000kg / 11,050kg
|
|
Cab
|
Cab Capacity
|
3, 2 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
COMMINS
|
|
Power
|
210 HP (154 KW)
|
|
Displacement
|
6700 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
6 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4500 mm / 2
|
|
Tire Specification
|
10.00R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
100 km/h
|
|
Paint
|
Metallic paint
|
|
Superstructure
|
Water tank
|
8,000Litres
|
|
High pressure pump
|
Chinese famous brand
|
|
Water flow speed
|
500-800 L/min
|
|
Cleaning speed
|
3-20 km/h
|
|
Cleaning width
|
2500-3500 mm
|
|
Deflection Angle
|
30° (left and right)
|
|
Auxiliary engine
|
ISUZU engine, 77HP (57kw), super powerful
JMC engine, 77HP (57kw), super powerful
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Italy Brevini motor can be optional.
** Air blower can be of stainless steel
|
