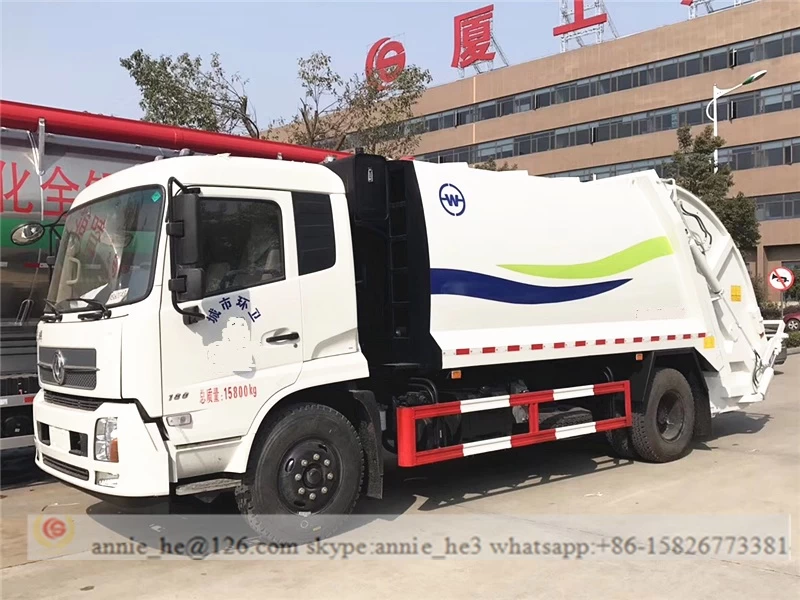

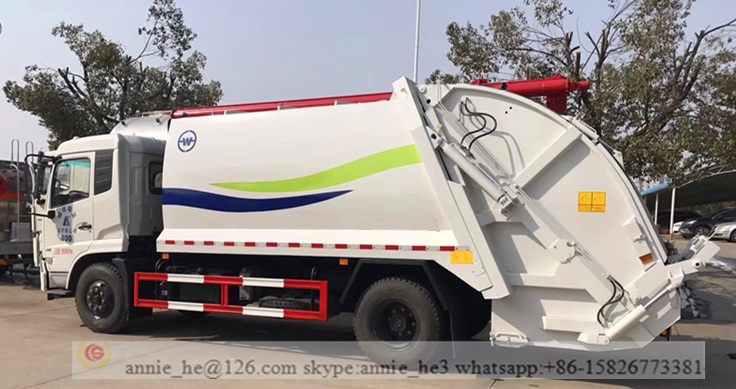

DongFeng Self-dumping Garbage Compactor Truck 14m³

Waste collector truck we produce from 4,000L to 20,000L, Optional different turnover mechanism to adapt to different bins (120L, 240L, 660L etc.). Garbage compactor truck has the advantages of high pressure, good sealing, easy operation and safety.



Truck description:

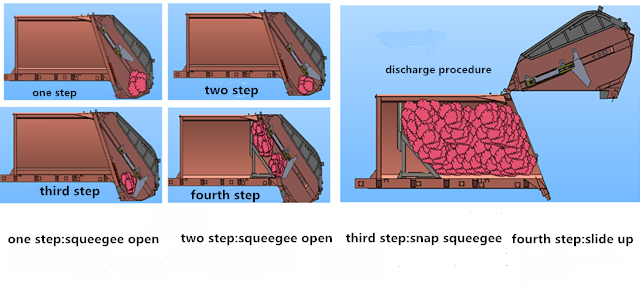

Solid Waste Compactor Truck compacts the waste using a hydraulically powered mechanism that employs a moving plate or shovel to scoop the waste out from the loading hopper and compress it against a moving wall.


Advantages:

1. Our Refuse Collection Truck adopts circular arc section.

2. The hydraulic system adopts a combined control valve set, and the tubing is arranged orderly, beautiful, and the layout is reasonable.

3. The side and top surface of the garbage container is circular arc, with light weight, rigid strength and beautiful appearance.




Technical Specification:

We are able to custom manufacture Garbage Compacting Truck in a wide range of sizes and capacities as per customers' requirement.



14,000 Litres garbage compactor truck

Truck description

GVW (kg)

18000

Kerb weight (kg)

10900

Overall

dimension (mm)

Length

9230

Width

2480

Height

3250

Chassis

Number of axles

2

Allowable Passengers in cab

2

Air conditioner

For option

Wheel base(mm)

4700

Type of fuel

Diesel

Exhaust/output

6700ml/155kw

Tire specification

10.00R20 for option

Tank description

Material

Q345 manganese steel

Thickness

Side plate (mm)

3 or changed as request

Bottom plate(mm)

4 or changed as request

compression

 parameter

garbage density after compression

0.5-0.8t/m3

full filling one time

less than 30S

one time unloading

less than 40S

compression ratio

more than 1:2.5

Other remark

Above specification is just for reference, please send us your request details.
