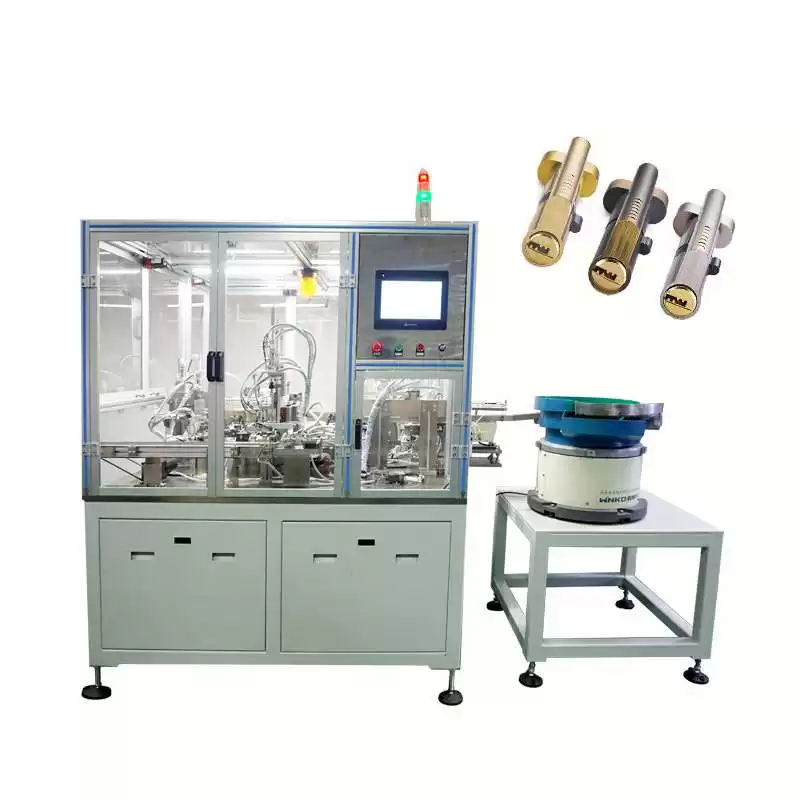

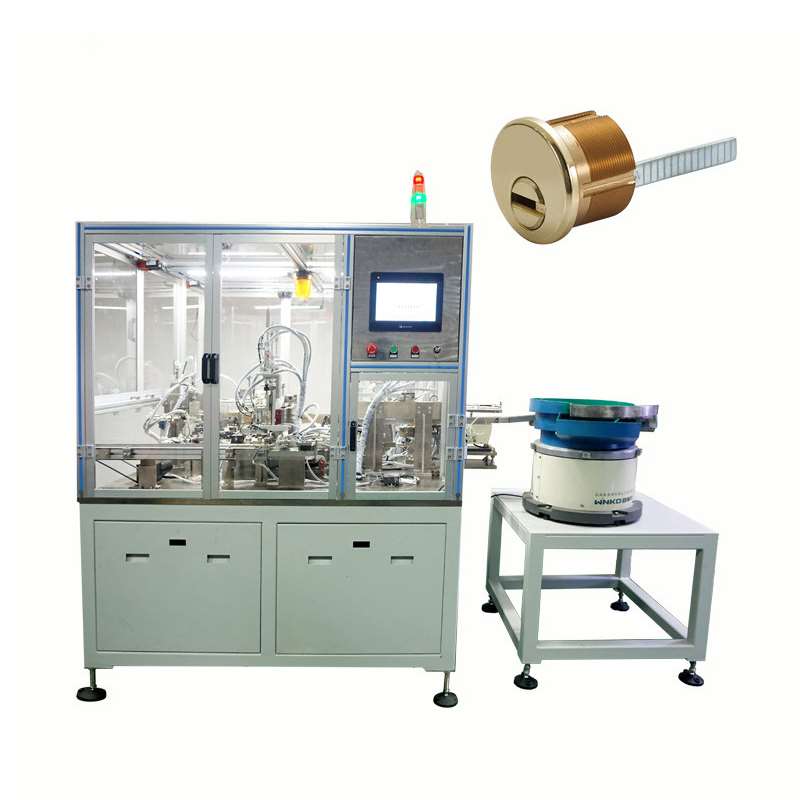

Automatic Lockset Assembly Line

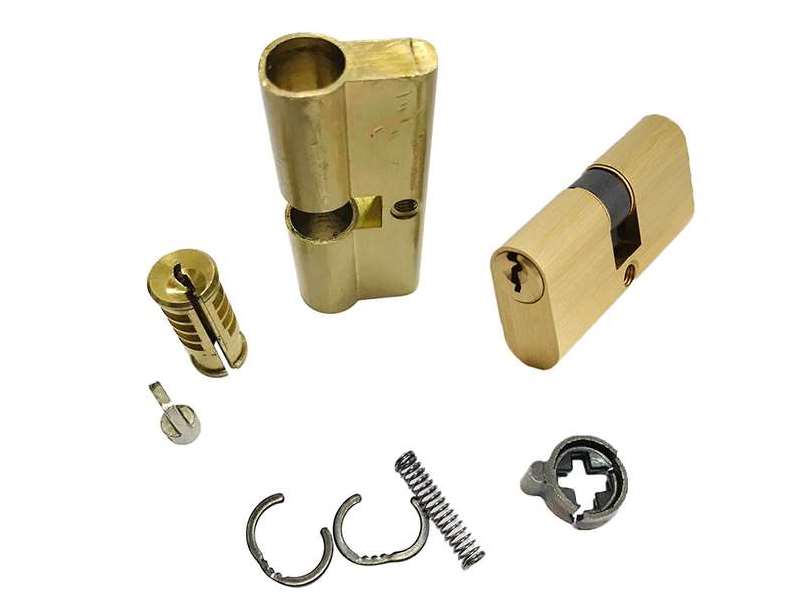

Automatic Lockset Assembly Machine realizes the automatic assembly and performance testing of each component of the household anti-theft door lock bolt head assembly. All parts adopt vibrating hopper (hoist) for automatic feeding, automatic loading, automatic detection after completion, automatic sorting and unloading.
Products Features：
1. The linear structure is simple and easy to install and maintain.
2. Operating parts adopt parts of world famous brands.
3. Highly automated and intelligent operation, no pollution
Technical Parameters:
|
Work efficiency
|
1000-1200 pcs/hour
|
|
Applicable power supply
|
220VAC, 50HZ
|
|
Equipment power
|
1800W
|
|
Applicable air source
|
0.50～0.80Mpa (0.50Mpa is the best)
|
|
Equipment length
|
1500mm (Excluding hoist)
|
|
Equipment width
|
1600mm (Excluding hoist)
|
|
Equipment height
|
1800mm
|
|
Warranty period
|
One year
|
|
Additional services
|
Professional English technology training
|
|
Brand of Main Parts
|
SMC Japan, SIEMENS Germany, Panasonic Japan,Keyence Japan, Schneider France, BASLER Germany, HIWIN Taiwan.
|
Application:
