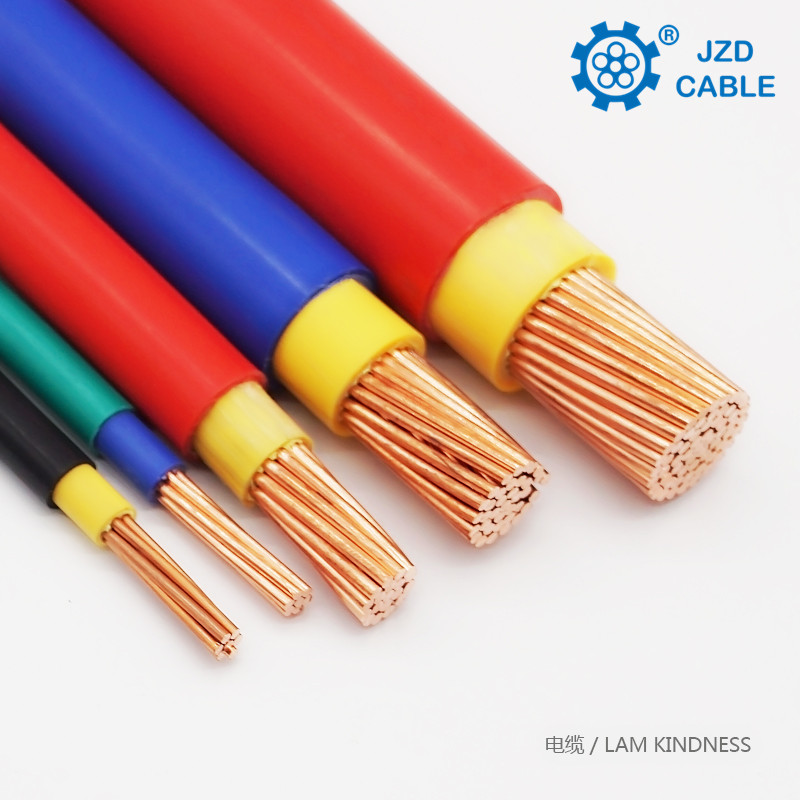

BVV cable is one of General purpose insulated wire ， name is copper core PVC insulated PVC sheathed round sheathed wire, also known as light PVC sheathed cable, commonly known as hard sheathed wire. Copper core (hard) cloth wire, single core is round, double core is flat. Often used for surface mounted wires.
Double PVC Sheath 10mm Electric Wire BVV Cable
-
Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012
-
Main of cables features:
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, household electrical applance,insurment and telecommunication equipment.
|
Nominal
section
(mm²)
|
Number of
conductors
|
Toplimit of
overall diameter
(mm)
|
Maximum DC
resistance(20℃)(Ω/km)
|
Minimum insulation
resistance(70℃)(MΩ.km)
|
Recommended
valueof carrying
capacity(A)
|
Reference
weight(kg/kmm)
|
|
0.75
|
1
|
4.4
|
24.5
|
0.012
|
17
|
22
|
|
1
|
2
|
4.5
|
18.1
|
0.011
|
20
|
25
|
|
1.5
|
1
|
5.0
|
12.1
|
0.011
|
25
|
33
|
|
1.5
|
2
|
5.2
|
12.1
|
0.010
|
25
|
35
|
|
2.5
|
1
|
5.7
|
7.41
|
0.010
|
34
|
47
|
|
2.5
|
2
|
5.9
|
7.41
|
0.009
|
34
|
51
|
|
4
|
1
|
6.5
|
4.61
|
0.0085
|
44
|
66
|
|
4
|
2
|
6.8
|
4.61
|
0.0077
|
44
|
71
|
|
6
|
1
|
7.1
|
3.08
|
0.0070
|
58
|
88
|
|
6
|
2
|
7.3
|
3.08
|
0.0065
|
58
|
94
|
|
10
|
2
|
8.8
|
1.83
|
0.0065
|
79
|
146
|
|
16
|
2
|
9.5
|
1.15
|
0.0059
|
65
|
203
|
|
25
|
2
|
12.3
|
0.727
|
0.0057
|
89
|
312
|
|
35
|
2
|
14.1
|
0.542
|
0.0049
|
110
|
417
|
|
50
|
2
|
17.5
|
0.387
|
0.0048
|
135
|
569
|
|
70
|
2
|
19.8
|
0.268
|
0.0042
|
175
|
781
|
|
95
|
2
|
24.2
|
0.193
|
0.0041
|
220
|
1057
|
|
120
|
2
|
26.6
|
0.153
|
0.0037
|
255
|
1309
|
|
150
|
2
|
31.0
|
0.124
|
0.0037
|
295
|
1606
|
|
185
|
2
|
35.8
|
0.0991
|
0.0037
|
345
|
2003
|
