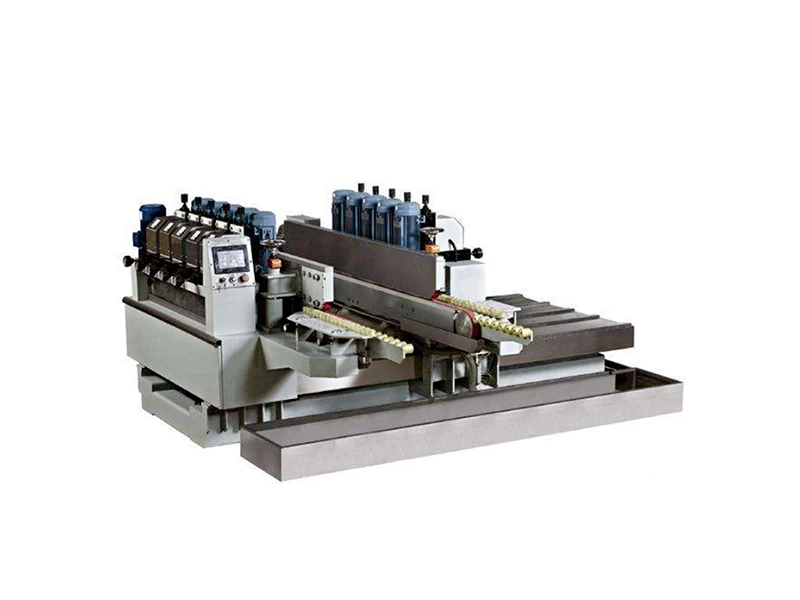

Double sides glass edging machine is used for two side edge of flat glass for rough grinding, fine grinding, top chamfering, bottom chamfering, upper chamfer polishing, bottom chamfer polishing, flat edge three-channel polishing. The grinding head motor seat sliding adopts double linear guide rail, double ball wire rod transmission, to achieve stable movement speed, eliminate movement clearance, reduce resistance and wear, ensure repeated positioning, set the processing parameters once completed.
The equipment has a solid structure, accurate and smooth transmission system, advanced control system and powerful processing ability, suitable for handicraft glass, furniture glass, shower room frameless door glass, building hollow glass, glassware glass.
The equipment has a solid structure, accurate and smooth transmission system, advanced control system and powerful processing ability, suitable for handicraft glass, furniture glass, shower room frameless door glass, building hollow glass, glassware glass.
The whole machine grinding glass adopts PLC touch screen control, frequency conversion speed regulation, position correction configuration to ensure the grinding glass parallelism, diagonal accuracy.
The main drive adopts frequency conversion motor plus reducer configuration.
Main configurations:
Linear guide rail (Taiwan)
Ball wire rod (Taiwan)
Synchronous drive (Italy)
Low voltage electrical apparatus (Schneider)
Controller (Domestic)
Touch screen (Taiwan)
Grinding head motor(Xindongya)
Grinding head motor sink:stainless steel material.
With a glass transition bracket set.
The whole machine base, fixed slide, moving slide, after heat treatment, good stability and solid structure.
Technical Parameter
Processing glass width 200-4000mm, glass thickness 3-25mm
Grinding minimum glass size: 250*250mm
Maximum grinding depth 5mm
Chamfering angle: 45 degree (士3°)
Paralelism: 土0.3mm
Speed scope: 0.5-5.5m/min
Diagonal error: 0.5mm
Working table height: 800-850mm
Voltage: 380V/50HZ
