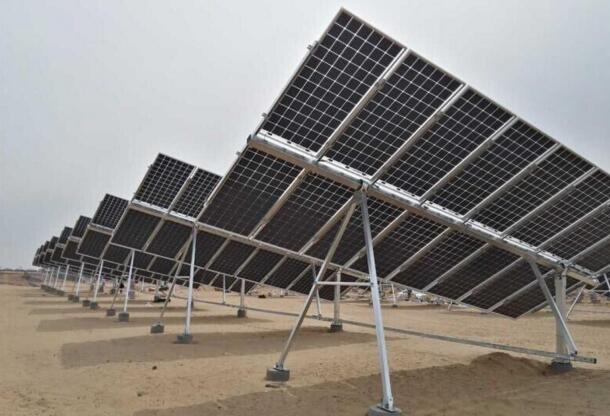

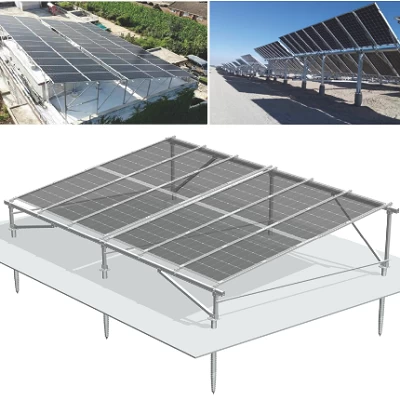

Double Sided Power Panels Solar Mounting System
Overview
Many projects will make it difficult to secure land; solar panels that can generate power on both the front and back have gradually penetrated the market; double sided power panels are also glass on the back. Both the front and back can generate light by capturing light. The power generation effect on the back side is added, and it can generate 5-20% more electricity than a normal panel. You will be able make effective use of it even on narrow land.
Parameter
Parameters under STC conditions
|
Peak power
|
Wp
|
320
|
|
Open circuit voltage（Voc）
|
V
|
40.7
|
|
Short-circuit current（Isc）
|
A
|
10.05
|
|
Operating Voltage（Vmppt）
|
V
|
33.2
|
|
Operating Current（Imppt）
|
A
|
9.64
|
|
Back power
|
Wp
|
220
|
|
Range of working temperature
|
℃
|
-40~+85
|
|
Nominal working temperature（NOCT）
|
℃
|
45±2
|
Performance under NOCT
|
Peak power
|
Wp
|
237
|
|
Open circuit voltage（Voc）
|
V
|
37
|
|
Short-circuit current（Isc）
|
A
|
8.11
|
|
Operating Voltage（Vmppt）
|
V
|
30.5
|
|
Operating Current（Imppt）
|
A
|
7.75
|
Frame material, size, specifications
|
Panel material and thickness
|
|
Coated Glass，2.5mm
|
|
Back material and thickness
|
|
Glass，2.5mm
|
|
EVA peel strength (panel / back)
|
N/cm2
|
≥60
|
|
Component outlet cable type specifications
|
|
PV1-F 1×4.0mm2
|
|
Matching connector model specifications
|
|
PV-JM601/PV-ZH202
|
|
Does the battery module require grounding
|
|
YES
|
Project
Why Huge Energy
Reliability
Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years.
Quality Control
With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system.
Quality Assurance
Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer.
We have a 15 year quality guarantee on Huge products.
After-sales Service
Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.
Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.
