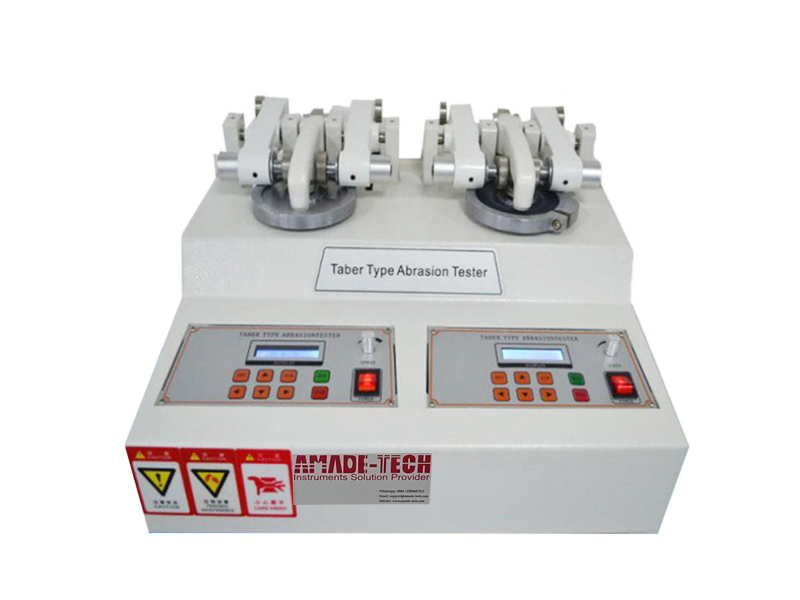

Double-station Taber Abrader

Double-station Taber Abrader is used to determine the resistance to abrasion of different specimens such as leather, cloth, paint,glass, etc.

Test Standards

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, DIN 52347, DIN 53109, DIN 53754, DIN 53799, ISO 17076-1, EN 438-2, DIN 68861-2, ISO 4586-2, etc.

Parameters

Model AT-L9001A
Abrading Wheel’s Dimension Outer dia.: 51.9 mm (Max.: 52 mm), Thickness: 12.7 mm
Center hole’s Diameter 6.35 mm
Rotating Speed 60 rpm / 72 rpm / adjustable
Distance Between the Inside Faces of Each Pair of Abrasive Wheels 52.4 mm
Additional Loads 250 g × 4 pcs
500 g × 4 pcs
750 g × 4 pcs
Counter 0 ~ 999,999 cycles
Dimension 90 cm × 70 cm × 42 cm
Weight About 36 kg
Power Supply 1∮, AC 220 V, 50Hz / AC 110V, 60 Hz

If you are looking for more lab testing equipment, please feel free to contact .
