Downdraft Design Car Spray Paint Booth with CE Certificate GL3000-A1
Guangli Spray Booth Description:
Main room & basement:
Wall panel: sandwich style, δ=50mm, rock wool,polystyrene is available as required.
Basement: steel structure, full grids. ramp: 2 pcs of grids.
Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
Fans & ducts:
One 7.5kw intake fan and one 7.5kw exhaust fan.
4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
1 manual VCD exhaust damper, electrical VCD as optional. One pressure meter.
Spraying/baking transition damper, automatically air controlled.
Heating & filter system:
Heat exchanger: stainless steel. Riello G20 burner.
Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
5 pcs of floor filter and 2 pcs of air mouth filter.
Light & control box:
Upper light: 10 sets, 4*18w per set. Side lights: 8sets, 4*18w. LED
Control box: imported components, overload, overheat, phase-lacking, phase-locking protection,
engine Y/△ start.
Automatically stop when preset time is up.constant temperature spraying.
Environmental filter: the equipment can be adopted M style activated carbon or drawer style activated
carbon as optional.
|
Technical Specifications
|
GL3000-A1-CE
|
|
External size(m) (LxWxH)
|
7.0×5.3×3.5
|
|
Internal size(m) (LxWxH)
|
6.9×3.9×2.7
|
|
Door width(m)
|
3.0
|
|
Door height(m)
|
2.66
|
|
Air flow ( m3/h)
|
24000
|
|
Inside no-load air speed(m/s)
|
0.25-0.35
|
|
Water-based Device
|
As option
|
|
Temperature(℃)
|
20-80
|
|
Power (Kw)
|
13.5
|
|
Color
|
Orange,Blue,Red,White
|
|
Vehicle suited
|
Saloon car
|
|
Exhaust type
|
Full-undershot,Bilateral,Semi-down,Unilaternal
|

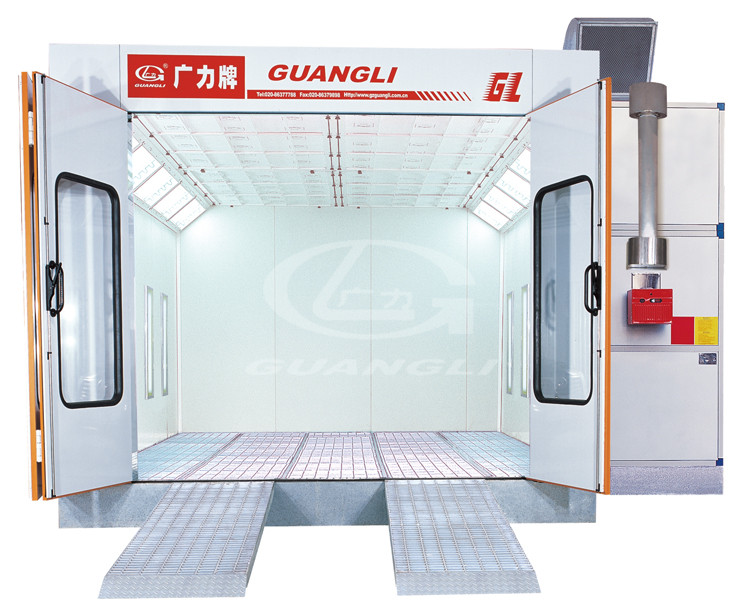

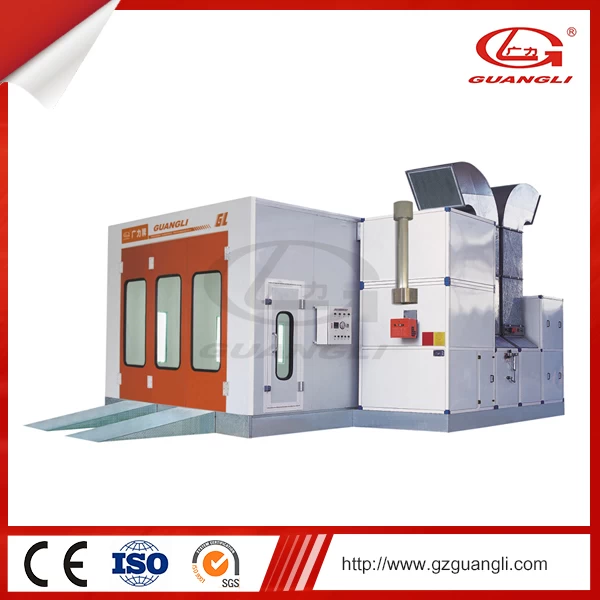

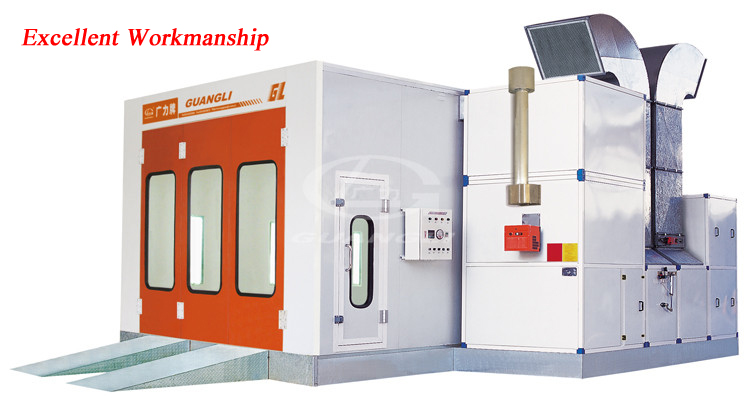

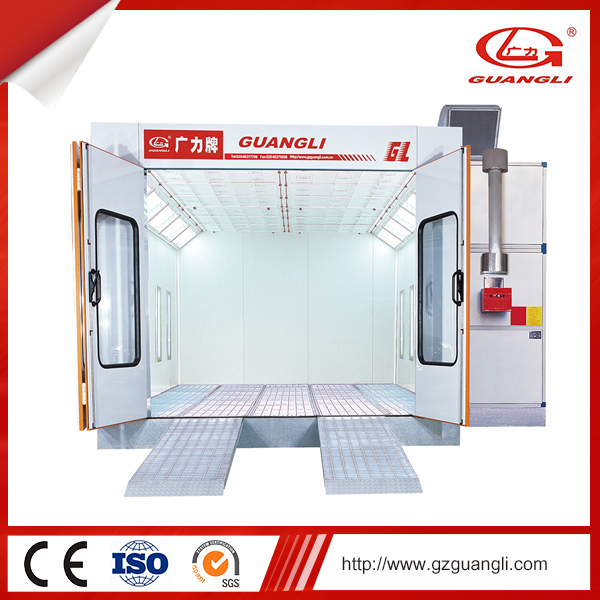

Guangli Spray Booth Show
