Downpipe roll forming machine can be devided into square pipe roll forming machine and round pipe roll forming machine according the the shape of down pipe.

Downpipe Roll Forming Machine

It is used to make down pipes.

Steel Square Downpipe  Round Steel Downpipe Square Steel Down Pipe


Downpipe roll forming machine parameters:

Feeding material: galvanized sheet

Thickness of the plate:0.35-0.4mm

Machine size: 11000mmX1400mmX1200mm

Diameter of the axle :Φ80mm

Rolling material: Forging Steel 45#

Rolling galvanization thickness:0.05 mm

Rolling stages:25 stages

Productivity:10-12m/min

Total power:5.5 kw +3kw

Voltage:380V 60Hz 3phase or as requirement

Weight:about 8T


Consist of the Downpipe production line

(1)Manual Decoiler:

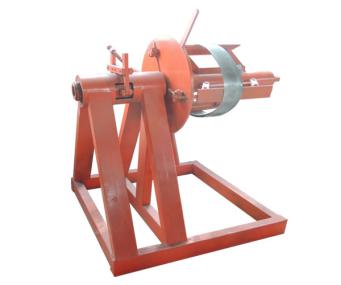

Decoiler

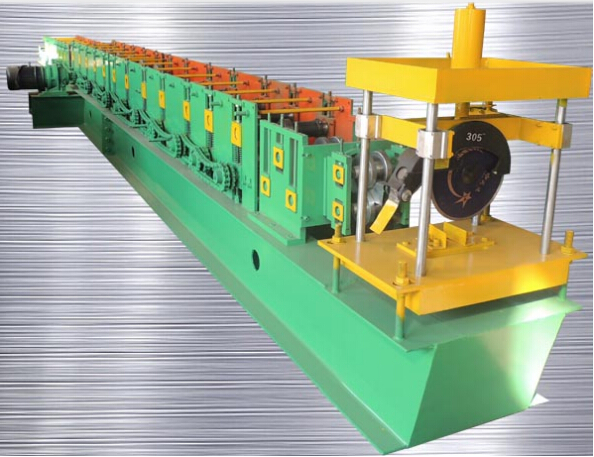

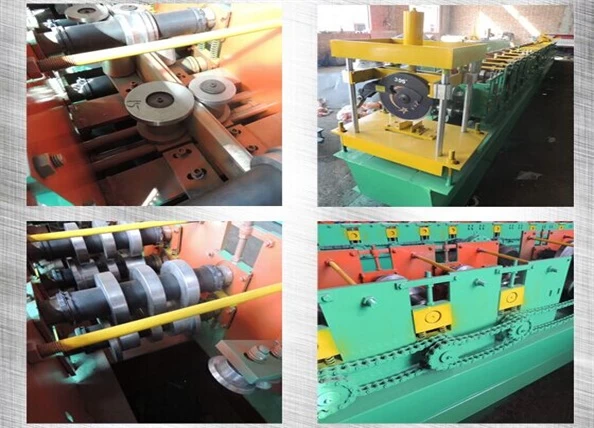

(2)Roll-Forming M/C:

Steps:25rows

Roll Material: Forging Steel 45#

Voltage: 3phase/380V/50Hz

line speed :10-12m/min

Rolling chromium thinckness:0.05mm


(3)Computer control cabinet

Computer Control Cabinet

It adopts PLC to control. The target piece length is adjustable and digit of it can be adjusted.

It provide Chinese and English language screen.

Computer mode has one mode: automatic and manual one.


(4)Counter:

One counter gauges length, pulses, and decides length.


(5)Hydraulic System

Match equipment: hydraulic motor, a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.

Power:3kw

Hydraulic oil:46#


(6)Cutting Mechanism

It adopts hydraulic motor drive and automatic location to decide the dimention and cut the target products.

Match equipment:one set of Saw blade,one hydraulic tank,one cutter machine.

Stop to cut,Post cut  cutting length tolerance: ±2mm


(7)Cutting tool material:Cr12 with quenched treatment 60-62℃

(8)Packing method:Main body of the machine is naked, covered with plastic film.

(9)Transportation: All machines need one 40 feet container to hold

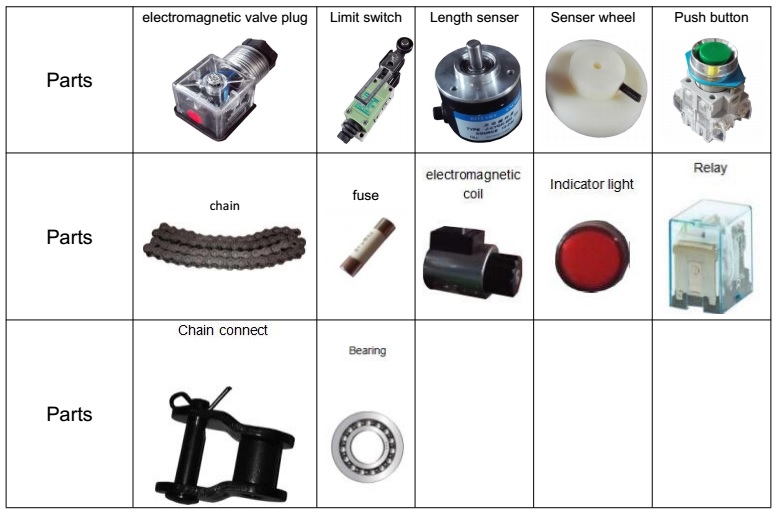

Space parts free for pipe machine

Spare parts for roll forming machine
