Printing performance

model

DP-EH900

Printing method

Thermal printing (black and white)

Color

Black/White

Printing speed

60mm/s

Resolution

8 dots/mm (203dpi) 384 dots per line

Operating Voltage

5-9V/8.4~24V

Working current

Normal Working current0.8-1.5，Peak current 2A

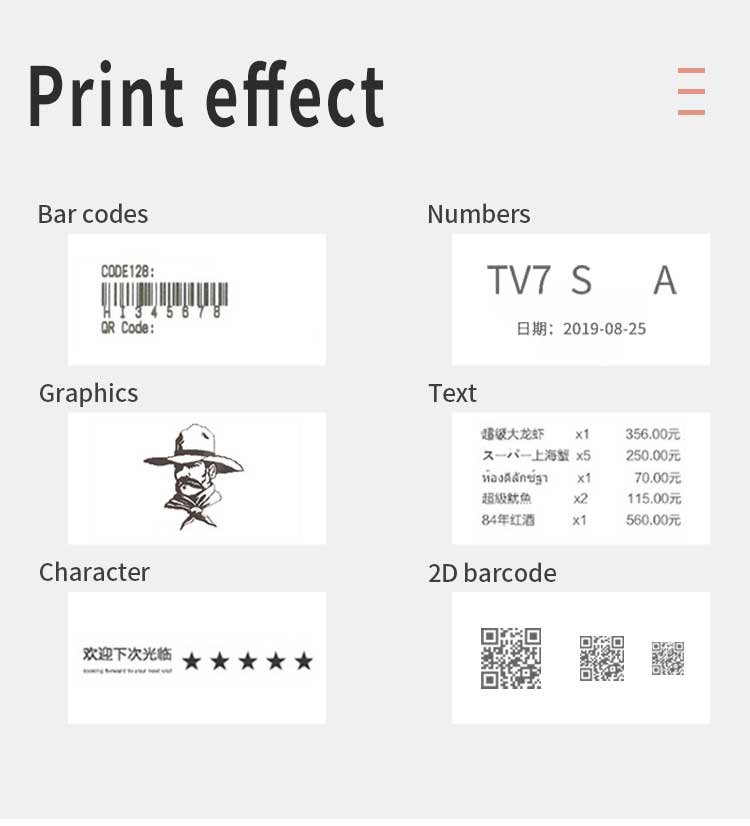

print content

Support GBK encoded Chinese characters, ASCII characters, barcodes, QR codes, graphics.

paper parameters

paper cutting method

Manual tear off

Roll Specifications

58mm（±0.5mm）

Print width

48mm

Paper roll diameter

≤50mm

paper thickness

0.05~0.1mm

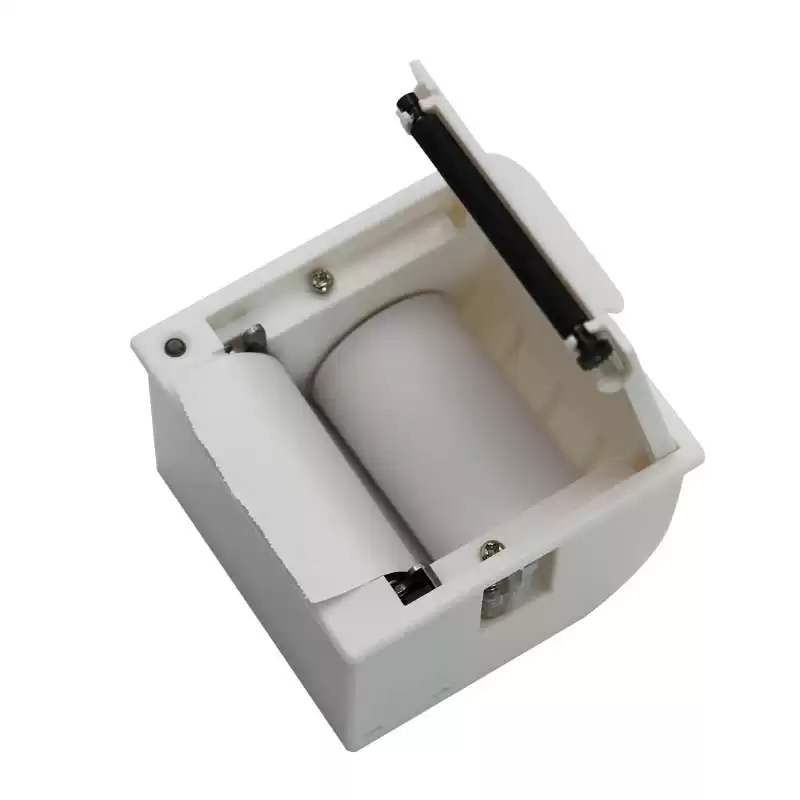

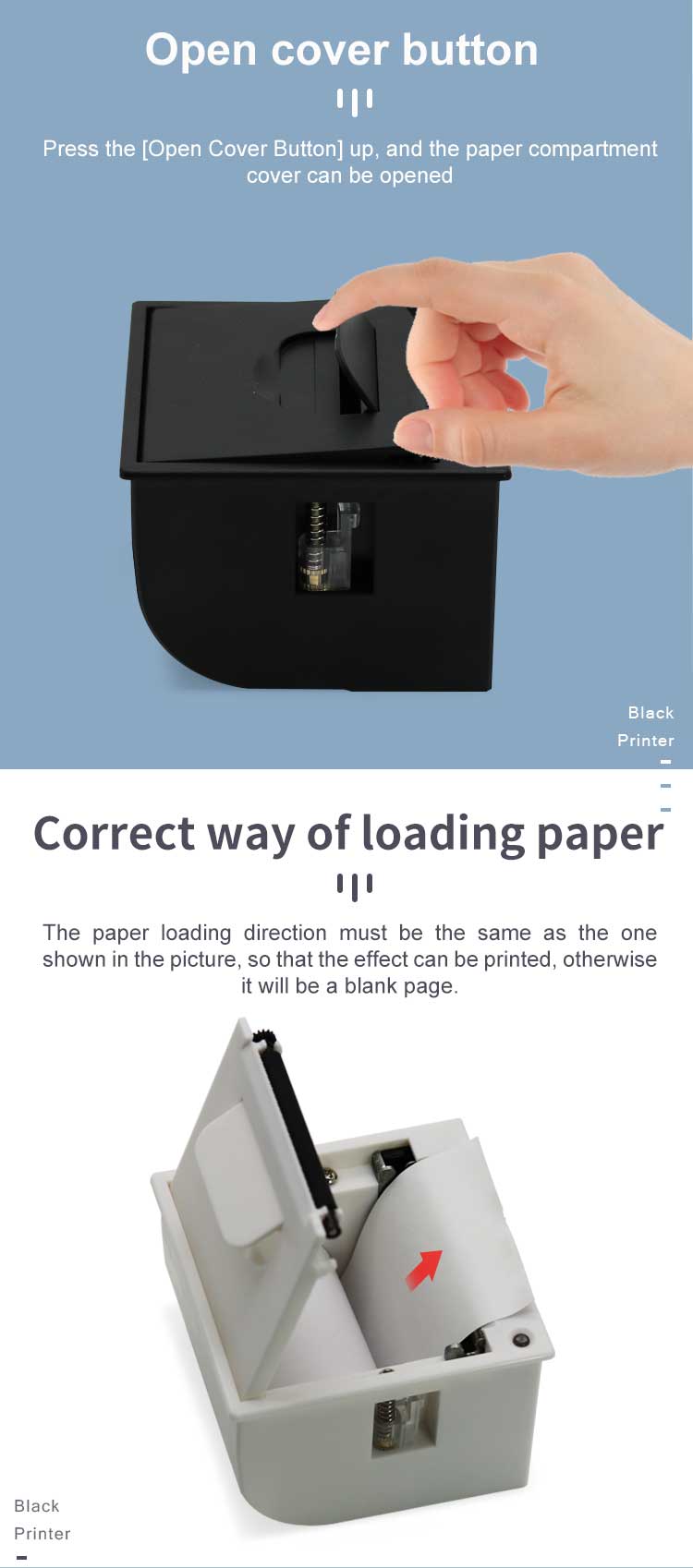

Loading method

Shell-loaded paper

Communication Interface

Optional USB interface, TTL interface/RS232 interface/485 interface

Environmental parameters

Operating temperature

-10℃~50℃

Working humidity

20％~50％

stored temperature

-15℃~50℃

Storage humidity

5％~75％

support system

windows

USB driver，Serial communication

Android

USB、Serial

physical parameters

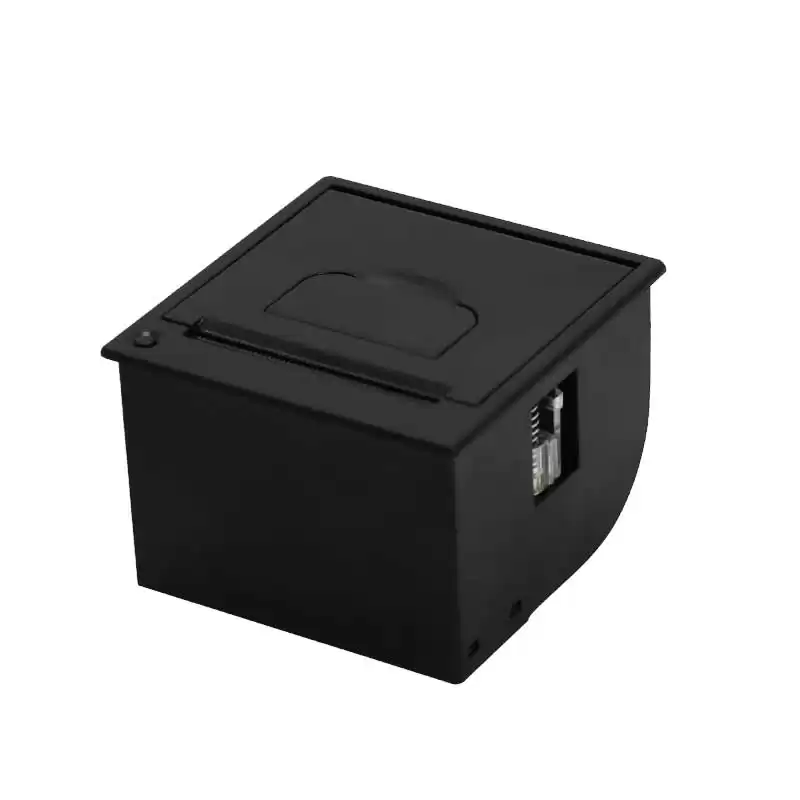

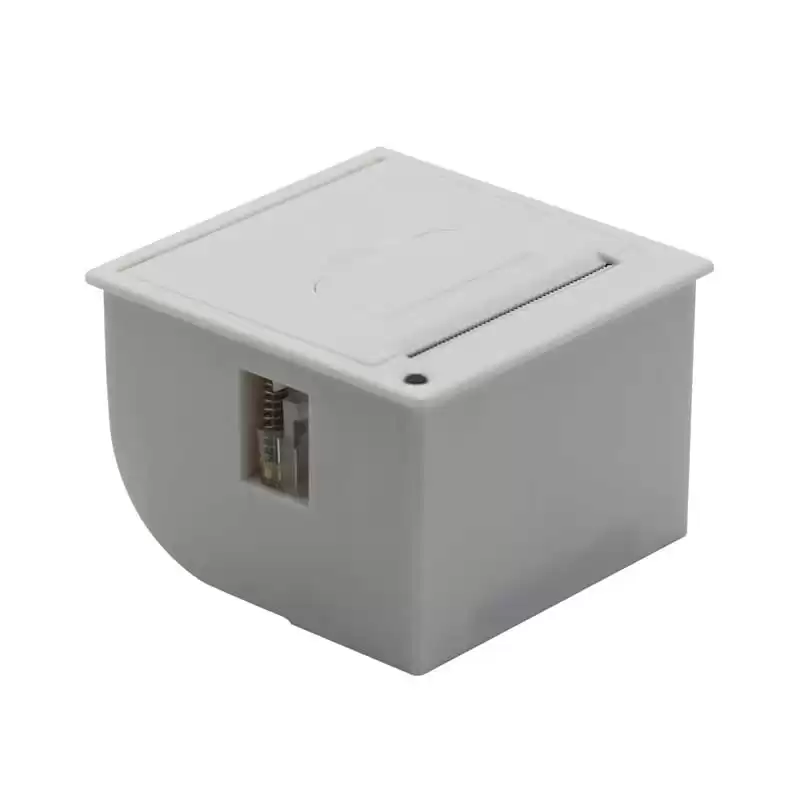

Product Color

Black/ White

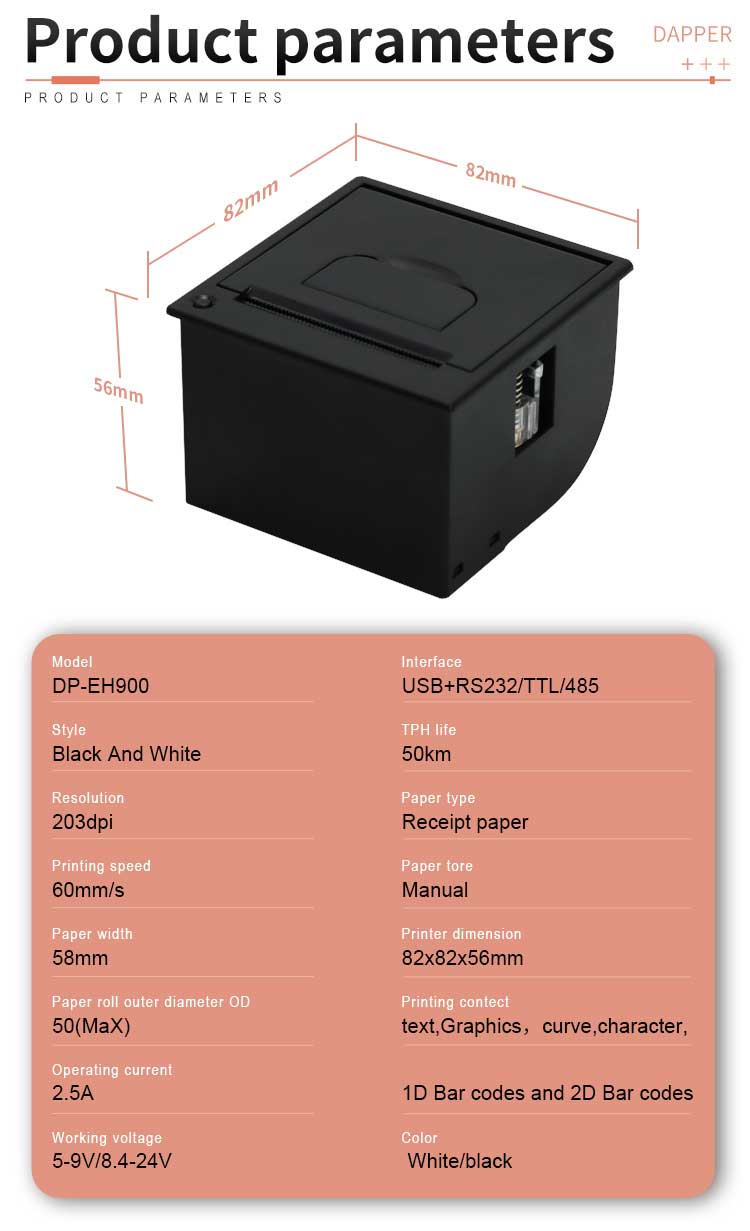

physical dimension

L*W*H（82*82*56）mm

Installation size

L*W*H（77*77*53）mm
