Product number
|
Q585C
|
|

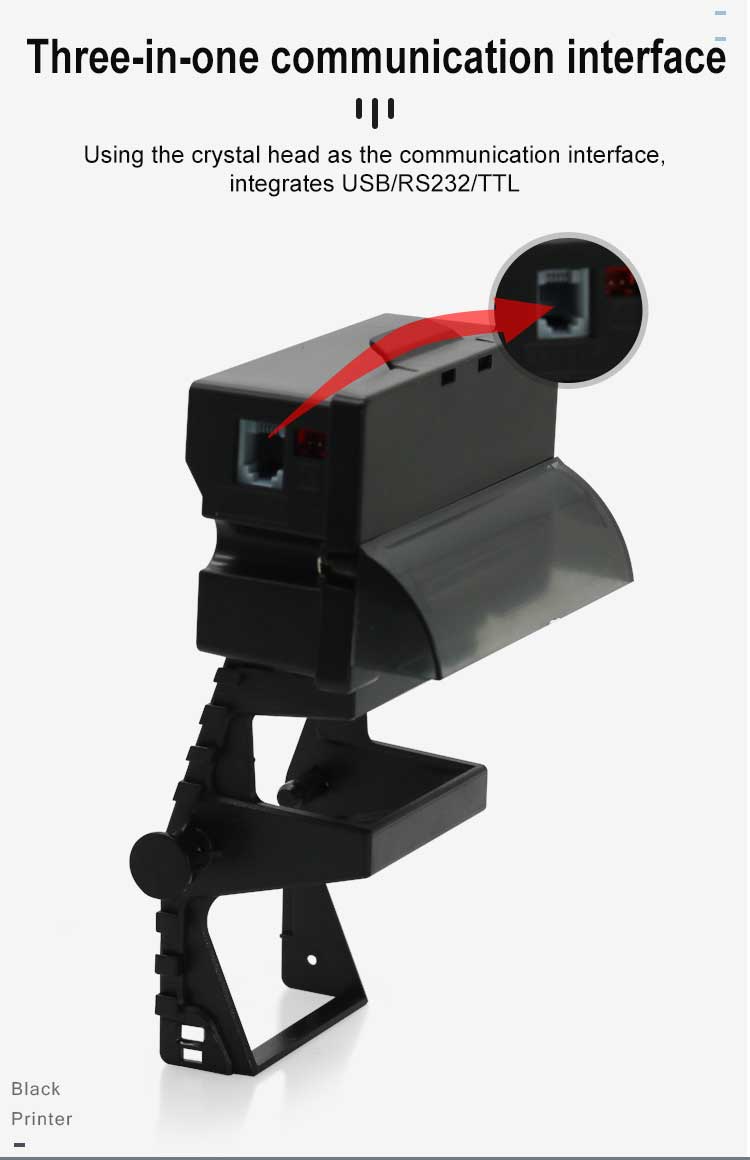

Communication Interface
|
RS232+TTL+USB
|
|
Baud rate
|
Default 115200
|
|
Operating Voltage
|
12V/24V
|
|
Working current
|
Normal Working current1.8-2.2A Peak current 3A
|
|

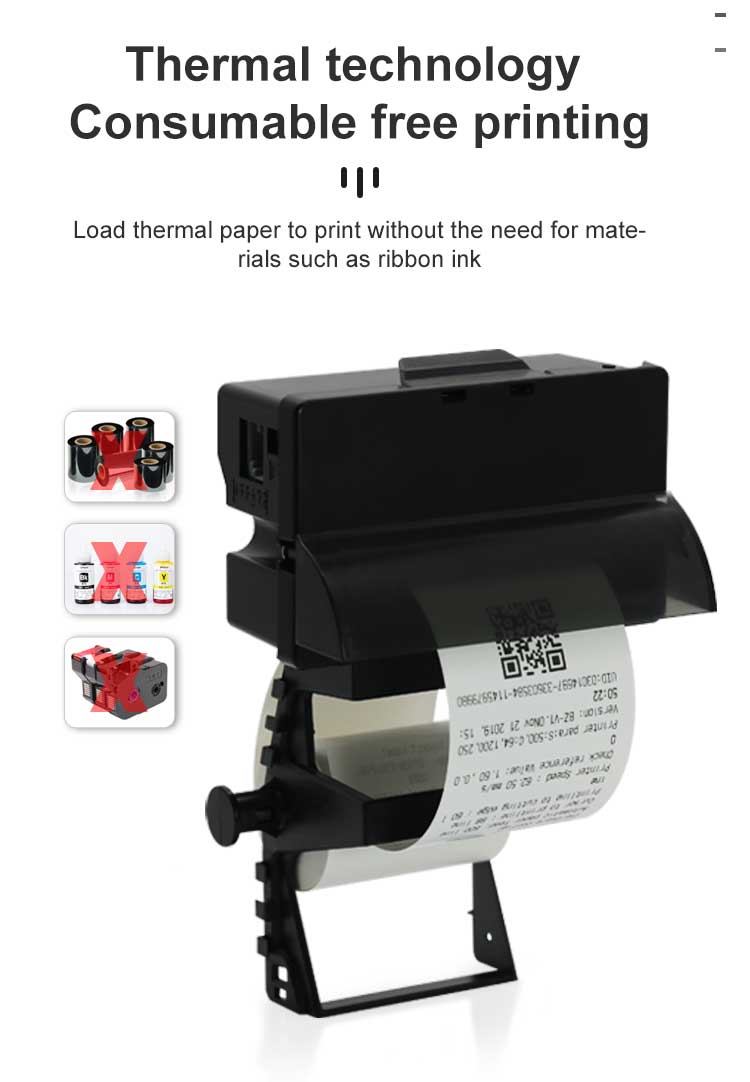

Printing method
|
Thermal printing
|
|
Print color
|
black and white output
|
|
Resolution
|
203dpi 384 dots per line, each dot is 0.125mm
384*0.125=48mm, that is, the effective maximum printing width of the movement is 48mm
|
|
Printing speed
|
90mm/s
|
|
Roll type
|
Thermal Paper
|
|
Roll Specifications
|
58mm±0.05mm（Width）0.05~0.1mm（Thickness）
|
|
Paper roll diameter
|
≤100mm
|
|

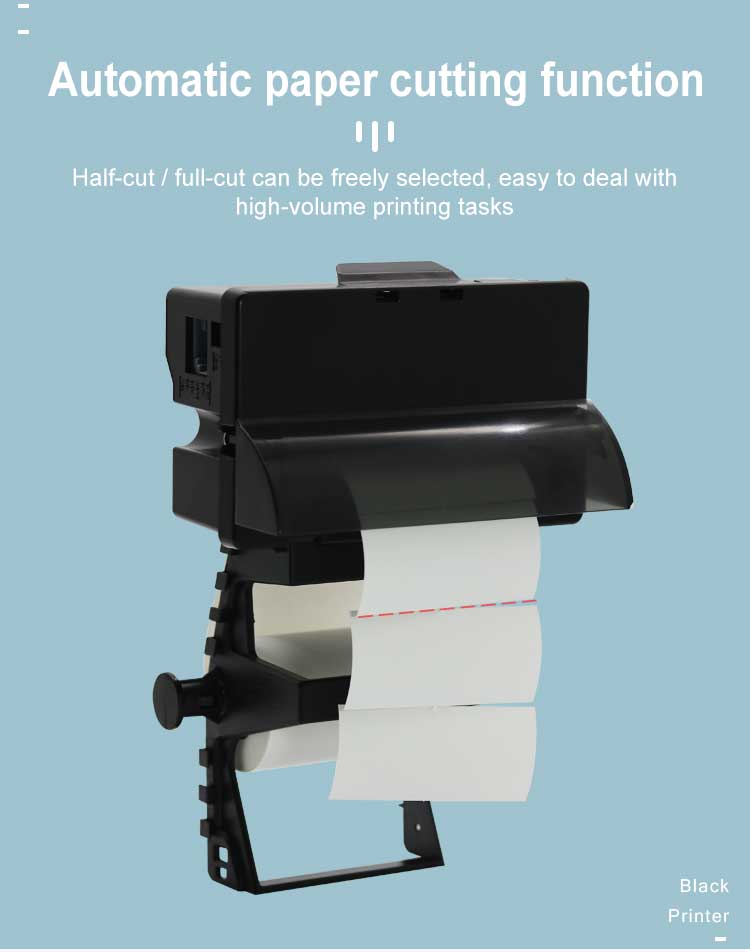

Paper cutting method
|
Automatic paper cutting support full cut half cut
|
|
Service life
|
100KM
|
|
Product color
|
Black
|
|

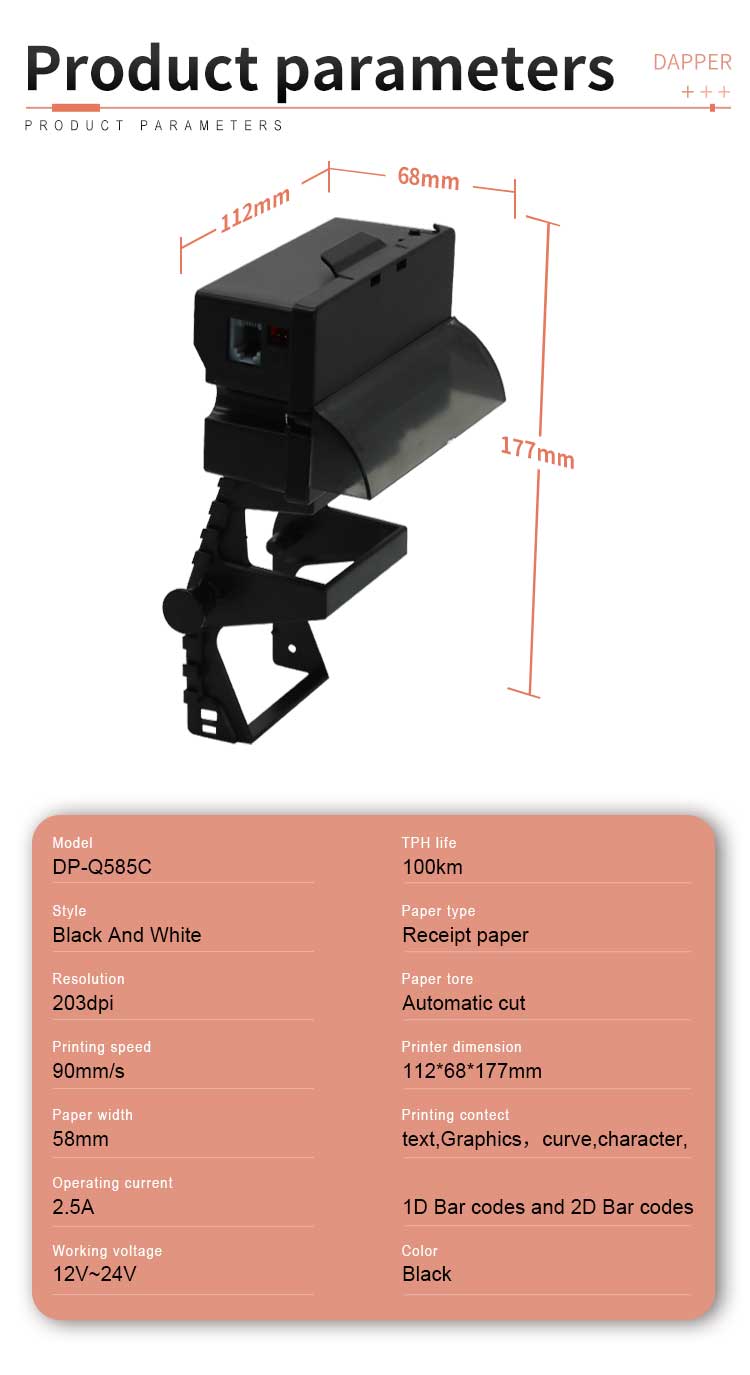

Dimensions
|
112x70x177mm(L*W*H）
|
|

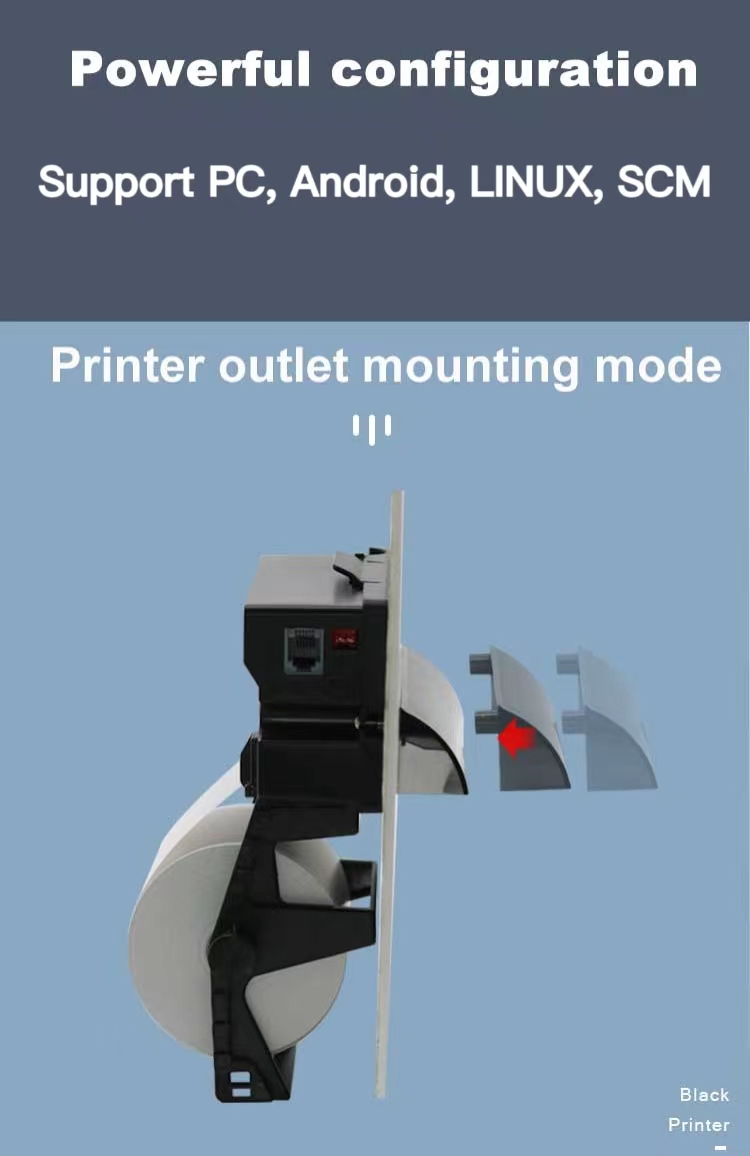

Platform support
|
Windows、Linux、And Android terminal, single chip microcomputer
|
|
Print content
|
Text, graphics, characters, barcodes, QR codes, curves
|
|
Remark
|
The USB interface supports the computer system such as XP/Win7/Win8, which can use the driver to print, and the USB/serial communication can be connected to the Android tablet for printing. It provides the Android development kit and provides technical support guidance.
|
