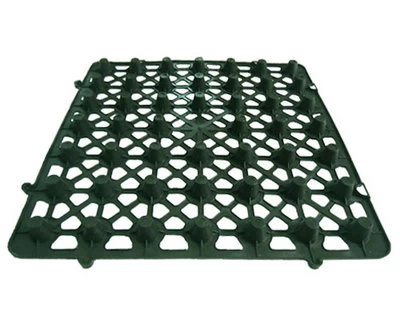

Drainage Solutions Plastic Drainage Sheet

Our technicist innovate in traditional sheet machinery, made it is suitable for production of HDPE honeycomb Plastic Drainage Sheet. HDPE waterproof and Drainage Sheet is easy installation, no degradation, and it has good flexibility, resistance to plant root puncture, accord with environmental protection requirement, ensure that underground water safety and ecological balance.


  • Press Strength565KN
  • Total Volume0.06m3/bundle
  • Size410x410x25mm
  • ColorDark Green
  • MaterialHDPE

Drainage Solutions Plastic Drainage Sheet Specifications:

 Item No.  MP-B25A  MP-B25B  MP-B25C
 Color  Light green  Dark green  Black
 Picture  Drainage Solutions Plastic Drainage Sheet  Drainage Solutions Plastic Drainage Sheet  Drainage Solutions Plastic Drainage Sheet
 Size(mm)  410x410x25  410x410x25  410x410x25
 Unit weight(g/m2)  1900g/m2  1900g/m2  1900g/m2
 Material  HDPE  HDPE  HDPE
 Pressure strength(Kpa)  695KN  565KN  325KN
 Hardness  86  86  84
 Water Drainage  85%  85%  85%
 Vertical Circulating  Capacity(cm3/s)  25cm3/S  25cm3/S  25cm3/S
 Water retention(L/m2)  2.6L/m2  2.6L/m2  2.6L/m2
 Loading Capacity

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 3200SQM=1x20FT CONTAINER

 6700SQM=1x40FT CONTAINER

 8450SQM=1x40FT CONTAINER

 Package  30pcs/bundle,0.06m3/bundle  30pcs/bundle,0.06m3/bundle

 30pcs/bundle,0.06m3/bundle

 MOQ  1x20FT CONTAINER  1x20FT CONTAINER  1x20FT CONTAINER

Drainage Plate

LEIYUAN Drainage Solutions to replace the drainage layer pebbles treatment not only save time,effort and energy, saving investment, but also reduce the load of the building. Good Drainage system for normal use and life cycle of civil construction and the building has an important role. Long and short cylindrical Green Roof Drainage Plate and geotextiles to form a drainage system, to form a water seepage, water and drainage systems.



Plastic Drainage Sheet light of its own weight, the roof structure will not increase the load. 100% recycled, not cause secondary pollution to the environment. Loading capacity per square can reach 80 tons weight, suitable for create a variety of landscape.

Drainage Plate

Strength Drainage Plate Application:

Roof greening

Bridge abutments

Underground

Road

Tunnels

Play ground

Retaining walls

Golf courses water drainage

Fire truck access paths

Fire lanes

Golf buggy

Trolley paths

Modern factory building

Noble living communities

Emergency vehicle access roads through fields

Drainage Plate

Features and Benefits:

Lightweight

High compression strength

Seepage proof

Available in different sizes

Cost save

Water drainage and storage

Easy installation

No surface drains required

Reduces surface temperature around building

High load bearing 148.58t/m2 unconfined

Replenishes water supply to landscaped areas

Unique and easy to use interlocking system

Promotes fast and excellent plant growth

Strong structure can support heavy loads

Retains a minimum of approximately 76L/m2 of perched water above the cells

Drainage Plate

Strength Drainage Plate Construction:

HDPE Drainage Sheet


Drainage Plate

Strength Drainage Plate Projects View:

Rooftop Drainage Solutions

Leiyuan Strength Drainage Plate: Good water feature, Long life service!
