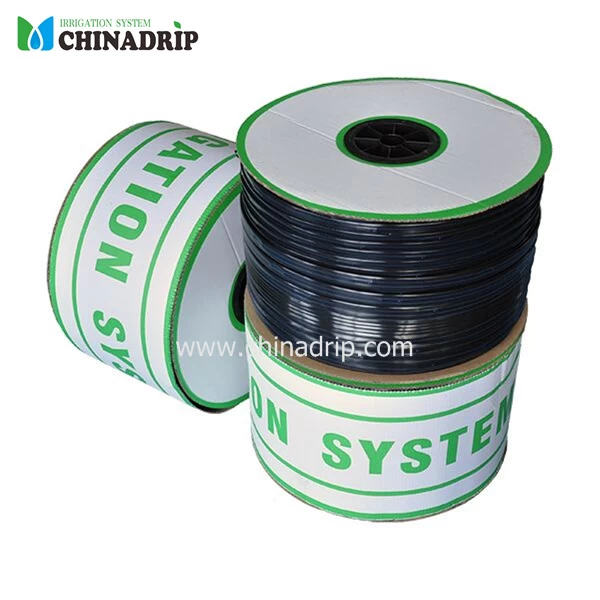

Drip Tape with Integral Emitter Diameter 16mm 0.30mm thickness 20cm spacing

Chinadrip drip tape with flat emitters inside, 16mm diameter, thickness from 0.2mm to 0.6mm, spacing from 10cm to 90cm, with flow rate 1.4L/H, 2.0L/H and 3.0L/H, made by high quality material and advanced technology, better for anti-corrosion and anti-aging, superior CV and excellent uniformity. With new type of labyrinth passages ,excellent clogging resistance. Excellent pressure-reducing, longer for laying length. Extruded with Emitter inside,,light weight and packed by roll,good for transportation. The emitter is engineered to resist plugging with large flow path size having the largest cross section in the industry worldwide.

Facebook Twitter Pinterest LinkedIn 分享

Item no. & Specification for Selection:

Item No.

Diameter (mm)

Thickness

Emitter Spacing (cm)

Flowing (L/h)

Package (m/roll)

G.W/Roll (Kg)

DT0116202014

Dn16

0.20mm (8mil)

20

1.4

2000

23

DT0116203020

30

2.0

22

DT0116204020

40

2.0

21

DT0116205030

50

3.0

21

DT0116252014

Dn16

0.25mm (10mil)

20

1.4

1800

24

DT0116252020

30

2.0

23

DT0116253020

40

2.0

22

DT0116253030

50

3.0

22

DT0116302014

Dn16

0.30mm (12mil)

20

1.4

1500

24

DT0116303020

30

2.0

23

DT0116303030

40

3.0

22

DT0116304020

50

2.0

22

DT0116403020

Dn16

0.40mm (16mil)

30

2.0

1000

18

DT0116403030

40

3.0

18

DT0116404020

50

2.0

17

DT0116404030

60

3.0

17





Note:

1.      All the holes of Emitters laying upward.

2.      120mesh Filtration is necessary.

3.      Lay in line and levelly.

4.      Avoid to damage by insect and mouse.

5.      When drip tape laying under the clarity film, there is risk that surface of tape may be damaged by sun light through water drop which is like a magnifying glass.



How to specify order

DT01

16

XX

XX

XX

Type

Diameter

Thickness

Spacing

Flow Rate

Drip tape with Integral Emitter

16mm

0.20mm

10cm

1.4L/h

0.25mm

15cm

2.0L/h

0.30mm

20cm

3.0L/h

0.40mm

30cm

　

　

10cm

　



Application

·Drip irrigation for vegetable, fruit, flower, Chinese herbal and green house & field crops.

Emitter Spacing

Applied for crops commonly

10cm

All Crops

20cm

Chili, Cut Flowers, Melon, Onion, Pepper, Potato, Strawberry, Tomato

30cm

Alfalfa, Asparagus, Banana, Broccoli, Cauliflower, Celery, Corn, Cotton, Cucumber, Eggplant, Garlic, Ginseng, Grape, Leafy, Vegetables, Lettuce, Onion, Pepper, Potato, Pumpkin, Rose, Spinach, Squash, Strawberry, Sugarcane, Tobacco, Tomato, Turnip, Watermelon

40cm

Alfalfa, Grape, Onion, Pepper, Potato, Sugarcane, Tobacco, Turnip, Watermelon

50cm

Alfalfa, Blueberry, Grape, Raspberry, Soybean, Sugarcane
