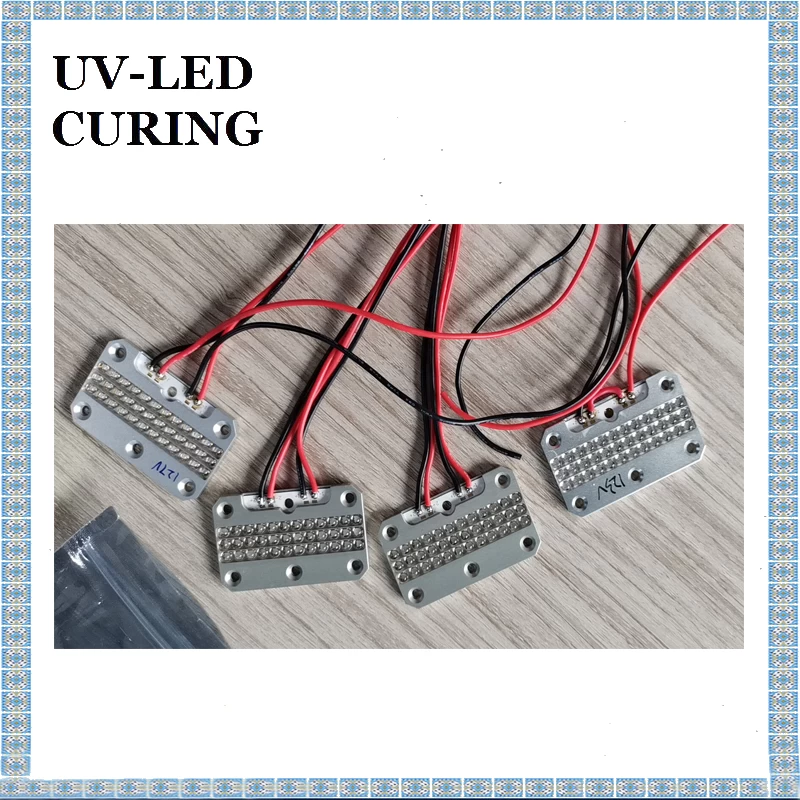

DSX-S03-UVLEDs 395nm UV LED Modules Curing Modules for UV Printing is the use of quartz glass lens, better reliable. Metal material, best weather resistance,waterproof light. Heat conductivity coefficient is >180W/M.K
With minimum power consumption per unit area of the maximumintensity.
The DSX-SO3-UVLEDS is ideal for all UV printing field and UV curing.
Table of High Quality 395nm UV LED Chip LED Module :
|
Products
|
Ordering Part Number
|
Description
|
|
DSX-SO3-UVLEDS
|
395nm
|

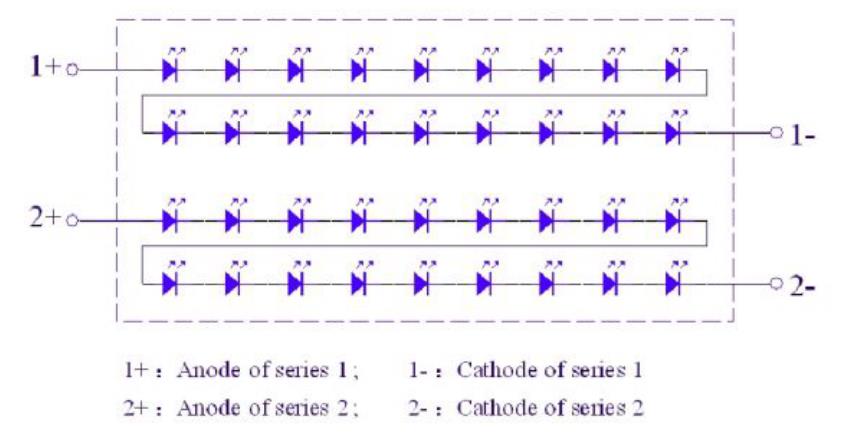

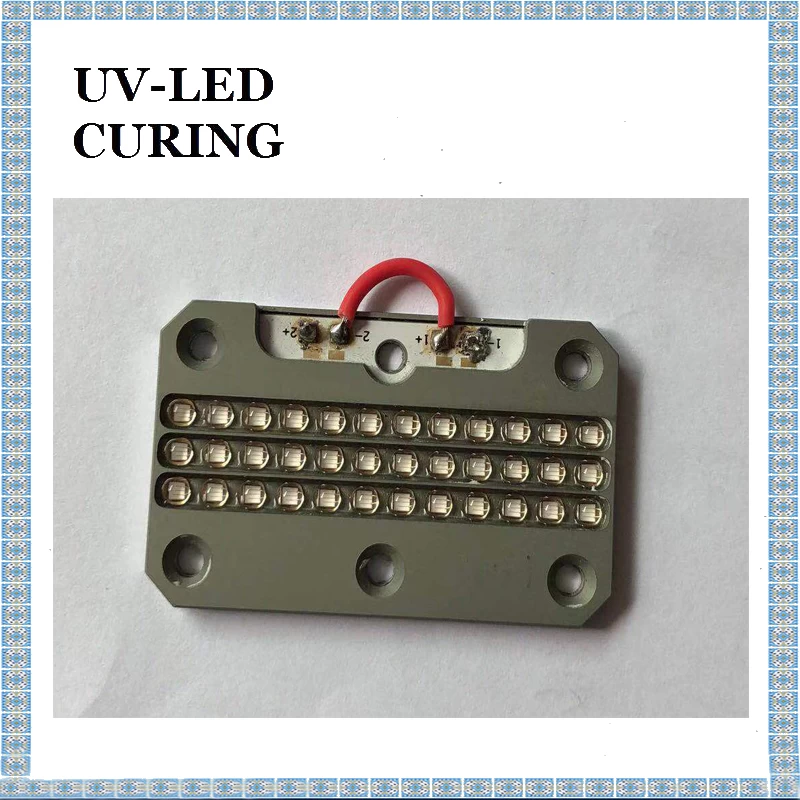

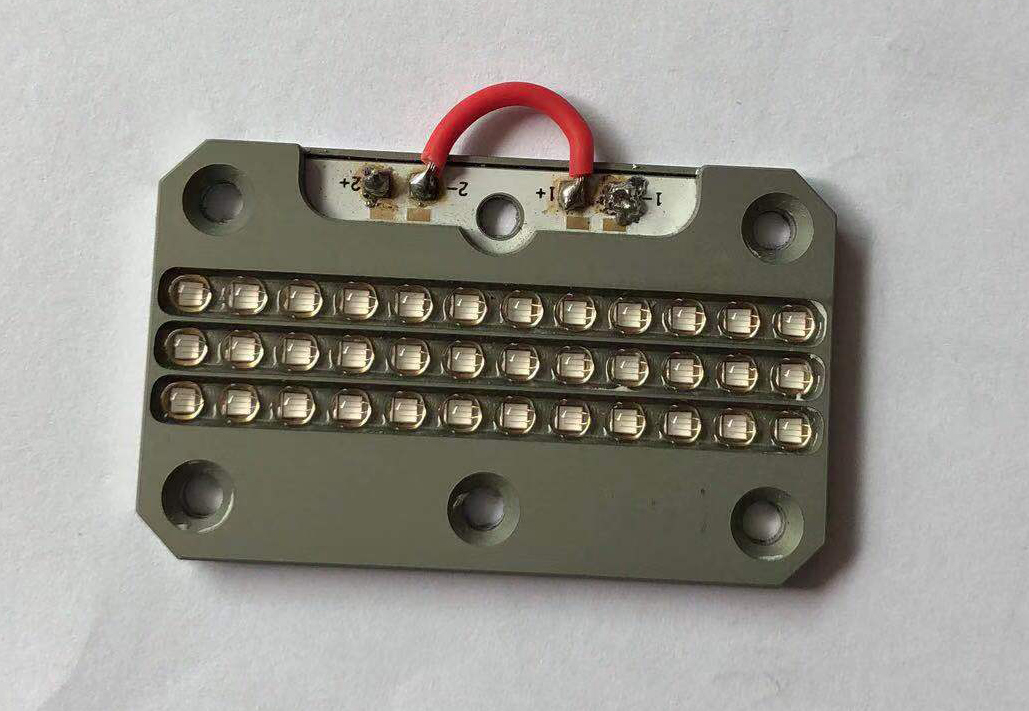

DSX-SO3-UVLEDS consist of 36 chips, a metal substrate
and a rectangle copper-core PCB.
|
Characteristics of High Performance LED UV Light Module for 3D Printing :
Absolute Maximum Ratings(Ta=25℃）
|
Parameter
|
Rating
|
|
DSX-SO3-UVLEDS Series
|
|
Dc Forward Current（mA)
|
700mA@36S,1.4A@18S2P
|
|
LED Junction Temperature
|
150℃
|
|
LED Operating Temperature
|
-40~85℃
|
|
Storage Temperature
|
-40~85℃
|
|
Soldering Temperature
|
Max.260℃/Max.10sec (JEDEC 020)
|
|
Reverse Voltage
|
Not designed to be driven in reverse bias（VR<5V)
|
|
ESD Sensitiveby
|
2，000V HBM(JESD-22A-114-B)
|
General Characteristics of Customized 395nm UV LED Light Module for UV Resin :
at 500mA (Ta=25℃）
|
Part
number
|
Wavelength
λp(Typical)
|
VF
|
Radiant intensity
|
View Angle
|
|
DSX-SO3-395
|
395nm
|
62-65V
|
10-12w/cm2
|
60°
|
Notes:
The Radiant intensity is measured with an accuracy of ±10%
If need higher levels of radiant flux performance,please contact Sales.

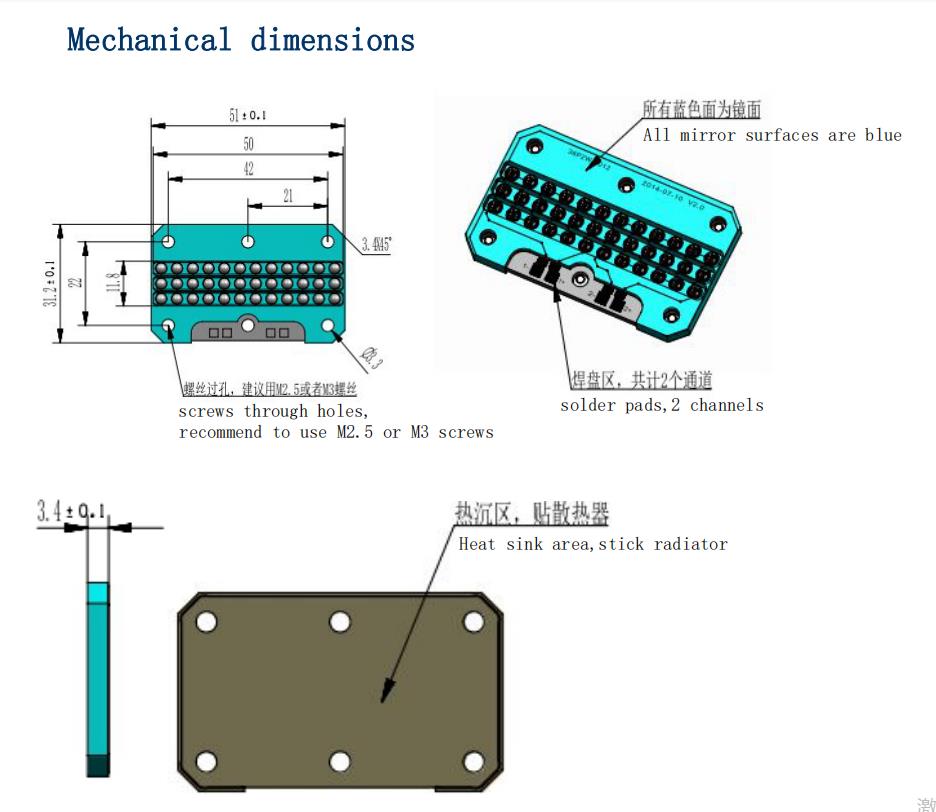

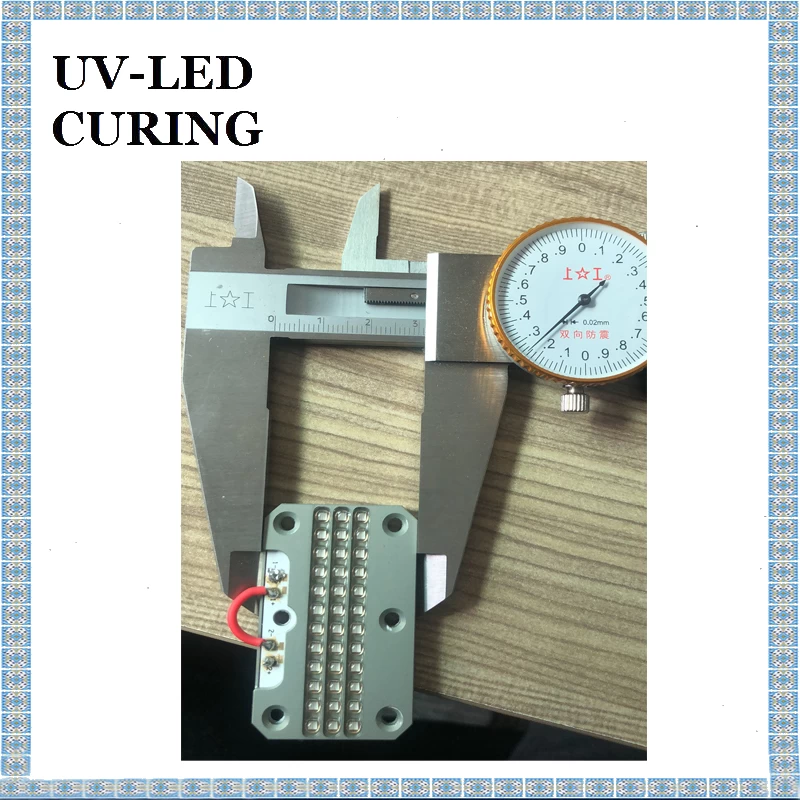

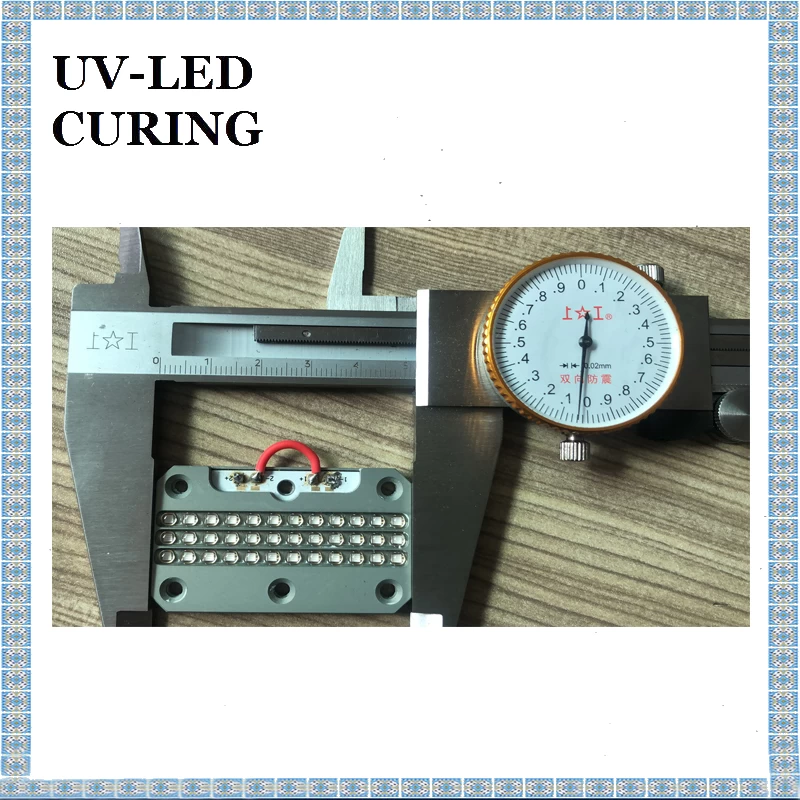

Notes：
1. Drawing is not to scale
2. All dimensions are in millimetre
3. Dimensions are ±0.15mm unless otherwise indicated
Cautions of Low Temperature 395nm Ultraviolet LED Module :
Users are requested to comply with the laws and public regulations conceming safety.
More any information, please click UV LED,UV Modules, or contact us : uvcure@uvspacelight.com (Jennifer)
