DT-7051A HDBaseT 4K HDMI Extender 100M
Feature:
1. Using standard HDBaseT2.0 technology, perfect transmission of high-definition uncompressed video signal, the use of a single Cat5e / 6e cable can be extended to 100 meters;
2. Support HDMI 1.4b version, support 3D video format;
3. Support YUV4: 2: 0 8bit maximum resolution of 3840 × 2160 @ 60Hz;
4. Support YUV4: 4: 4 8bit maximum resolution of 3840 × 2160 @ 30Hz;
5. The TMDS clock is 340MHz when the rate is 8G;
6. Support 8/10/12 bit dark;
7. Support IR return function;
8. SPDIF interface with the product, support SPDIF fiber return function;
9. With serial interface products, support RS232 remote transmission function;
10. Built-in ESD protection circuit, all-round protection system security.

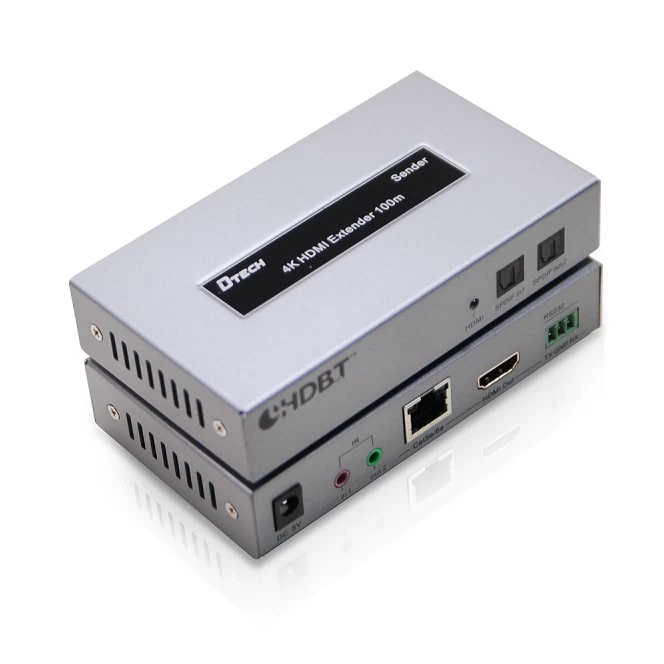

Product Show:

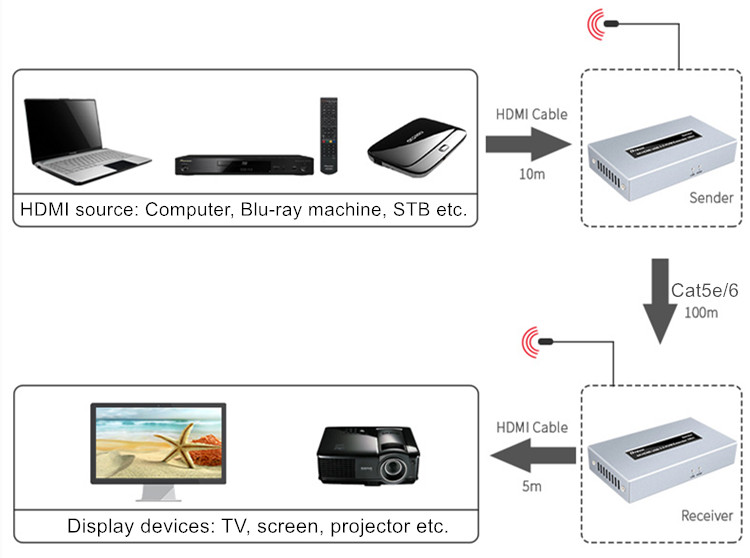

Connection:
Application:
