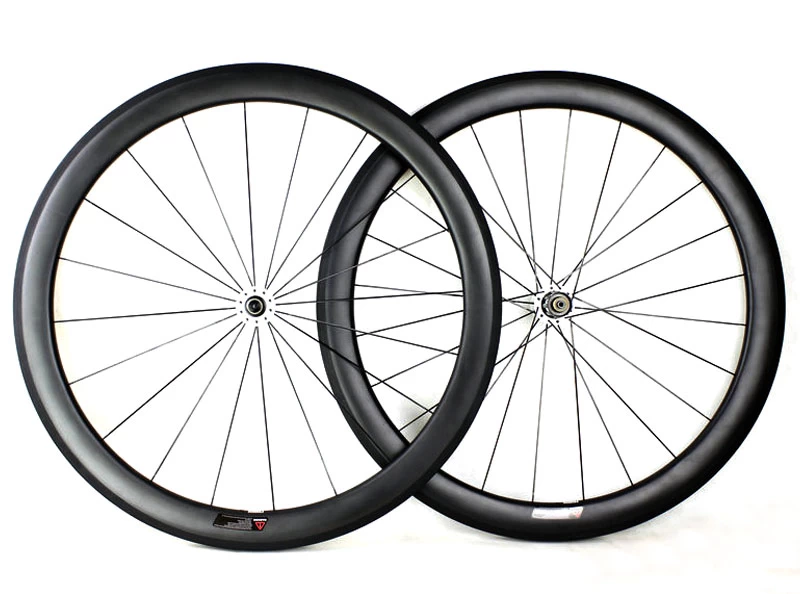

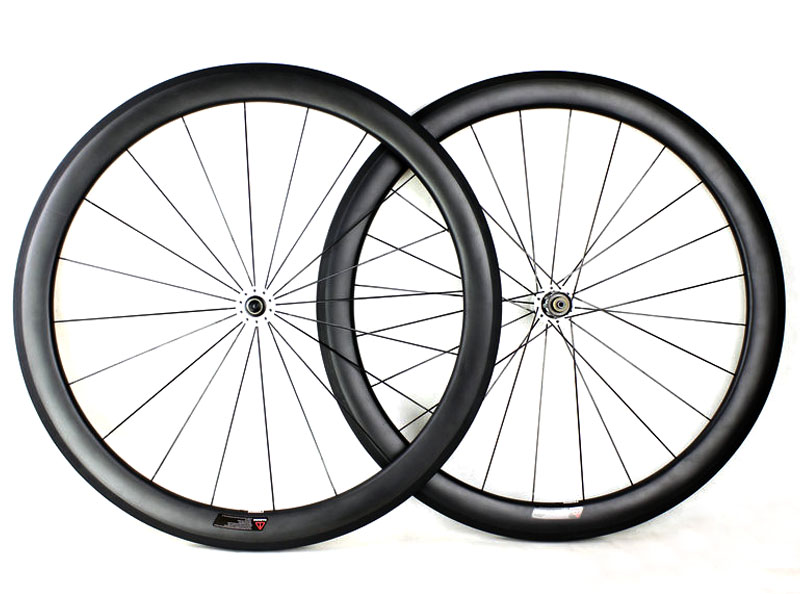

Product Item: DT Swiss 180 Classic hub + Sapim CX-Ray spoke custom road bike carbon wheels.
Rim:
Carbonal rim brake 700c road bike carbon rims tubular & clincher tubeless. Aerodynamics, lightweight, stiff and durable.
5 years warranty.
*Rim brake surface available: 3k twill brake track (recommended
) and basalt brake track.
Hub:

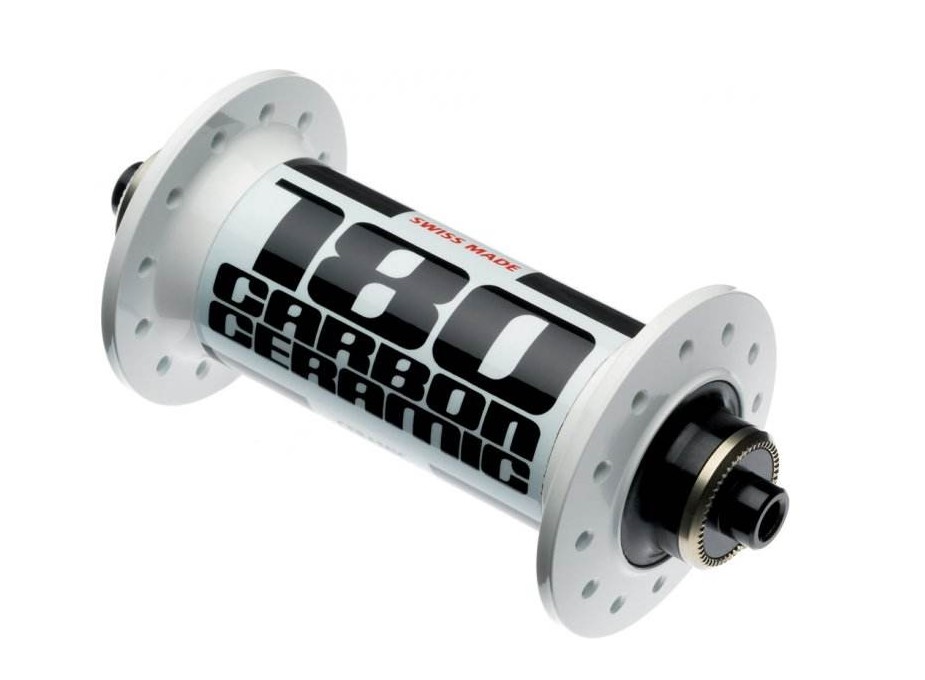

DT Swiss 180 classic ceramic carbon hub, J bend;
Axle-size: Front - 100x9mm QR, Rear - 130x10mm QR;
Cassette body: Shimano Road 11S / Sram XDR;
Brake system: non disc, rim brake;
Hole: Front 20, Rear 24;
Color: white / black.

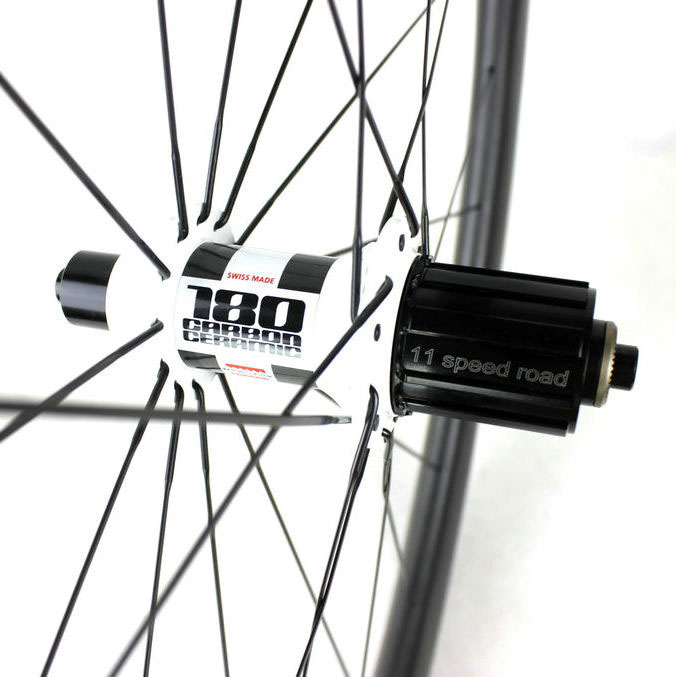

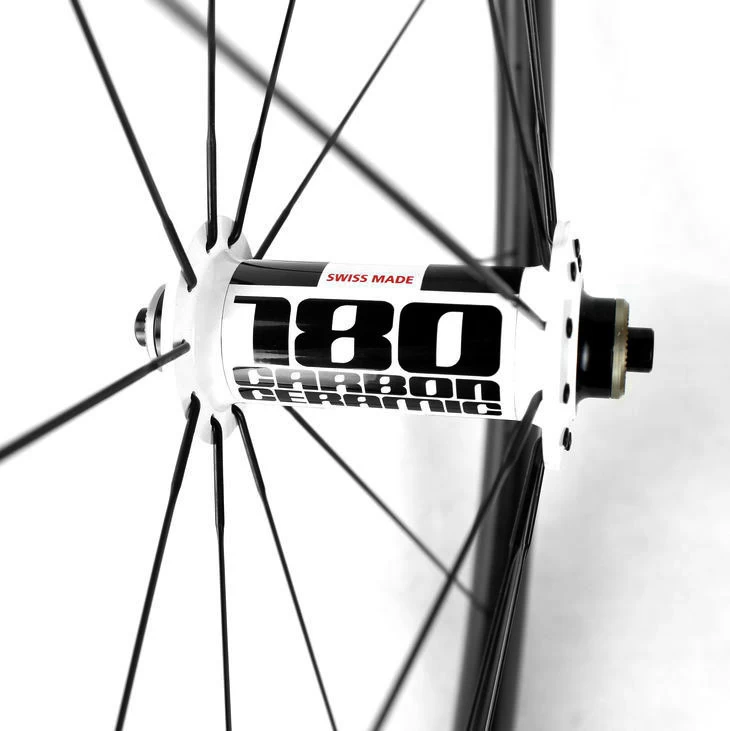

The
180 Carbon Ceramic hubs feature all of DT Swiss highest end
technologies, they are ready for the demands of the world's fastest
racers. Super-lightweight due to its carbon hubshell and the extensively
machined aluminum parts, super smooth with DT Swiss contactless seals
and SINC ceramic bearings.
Spoke:
Sapim CX-Ray spokes, J bend, black;
Nipple:
Sapim alloy nipples, external / internal, red / black.
Lacing:

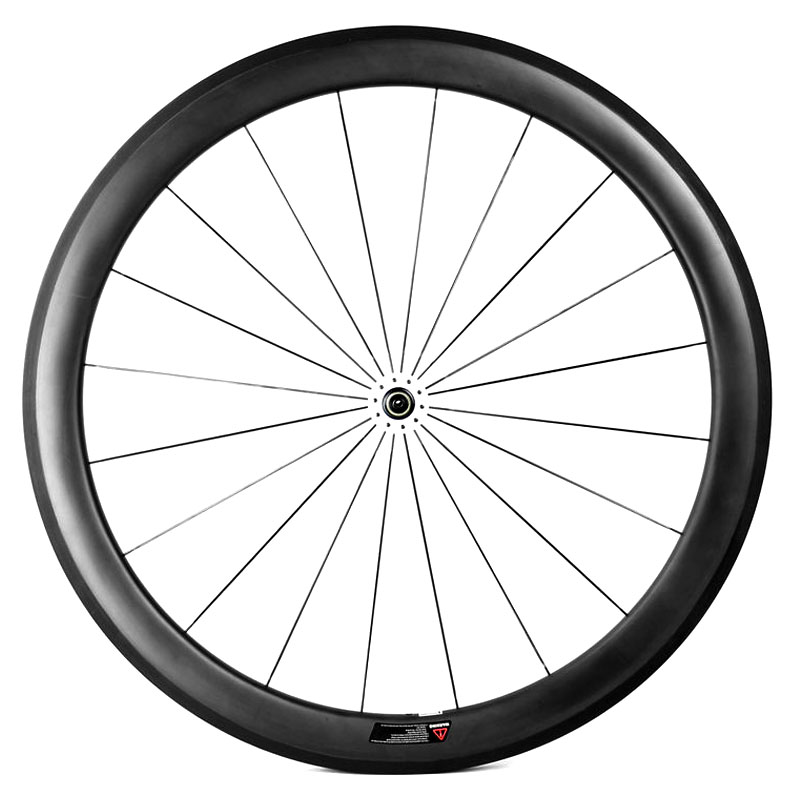

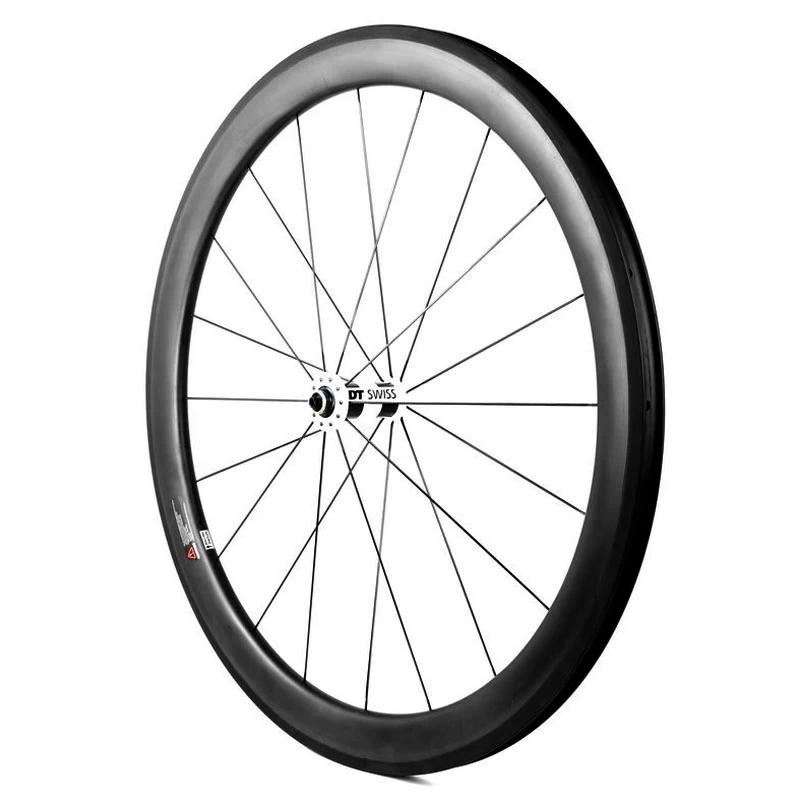

Front wheel - radial;

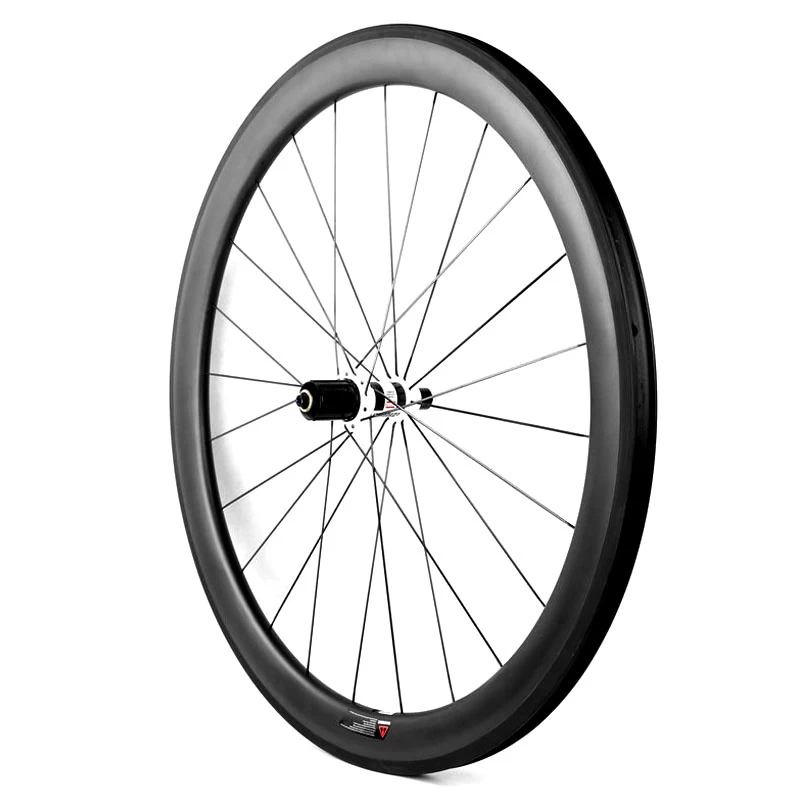

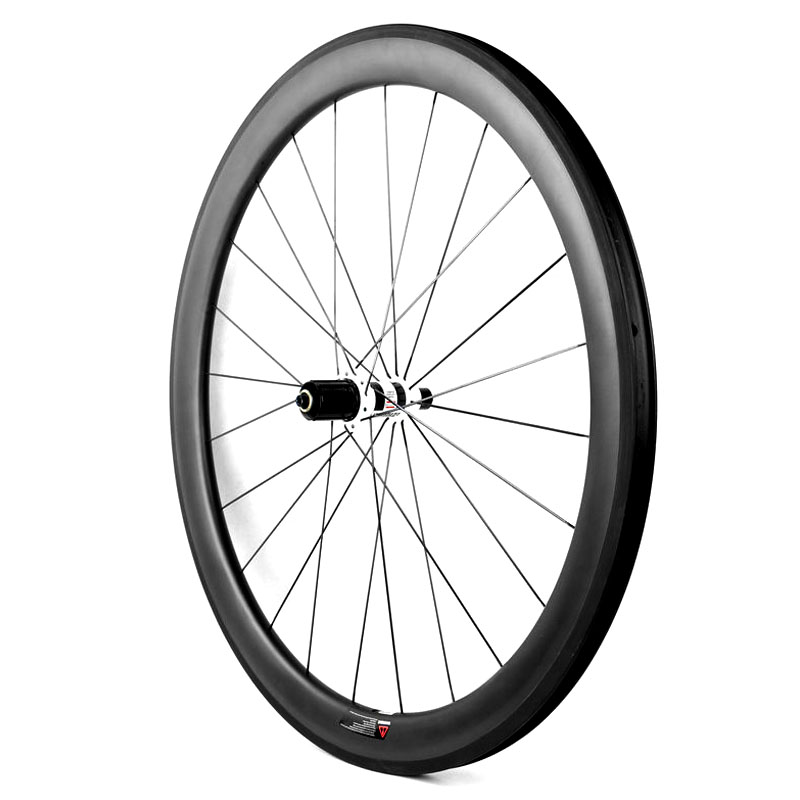

Rear wheel - drive side 2 cross, non drive side radial.
Weight:
Hub: 328g/set;
Spokes + nipples: 200g;
Weight without rims: 528g.
Rim model vs Complete wheel weight:
Model
|
Rim type
|
Rim weight / pc
|
Complete wheel weight (±5%) / set
|
Max weight limit
|
RX30SH
|
700c clincher 30x25mm
|
430g
|
1388g
|
115kgs
|
RX38SH
|
700c clincher 38x25mm
|
470g
|
1468g
|
120kgs
|
RX38DH
|
700c clincher 38x25mm- asymmetric
|
470g
|
1468g
|
120kgs
|
RX45SH
|
700c clincher 45x25mm
|
480g
|
1488g
|
125kgs
|
RX50SH
|
700c clincher 50x25mm
|
500g
|
1528g
|
125kgs
|
RX50DH
|
700c clincher 50x25mm - asymmetric
|
500g
|
1528g
|
125kgs
|
RX60SH
|
700c clincher 60x25mm
|
560g
|
1648g
|
130kgs
|
RX88SH
|
700c clincher 88x25mm
|
720g
|
1968g
|
135kgs
|
RX38L
|
700c clincher 38x28mm
|
480g
|
1488g
|
120kgs
|
RX50L
|
700c clincher 50x28mm
|
510g
|
1548g
|
125kgs
|
RT30S
|
700c tubular 30x25mm
|
310g
|
1148g
|
115kgs
|
RT38S
|
700c tubular 38x25mm
|
360g
|
1248g
|
120kgs
|
RT38D
|
700c tubular 38x25mm- asymmetric
|
360g
|
1248g
|
120kgs
|
RT50S
|
700c tubular 50x25mm
|
410g
|
1348g
|
125kgs
|
RT50D
|
700c tubular 50x25mm- asymmetric
|
410g
|
1348g
|
125kgs
|
RT60S
|
700c tubular 60x25mm
|
470g
|
1468g
|
130kgs
|
RT88S
|
700c tubular 88x25mm
|
530g
|
1588g
|
135kgs
|
* Complete wheel weights are subject to a ±5% variance.
* Each
wheelset will ship with: spare spokes, nipples; pair of quick-release
skewers; carbon-specific brake pads; freehub spacer for 10 speed
cassettes.
* All clincher rims are tubeless ready.
* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
