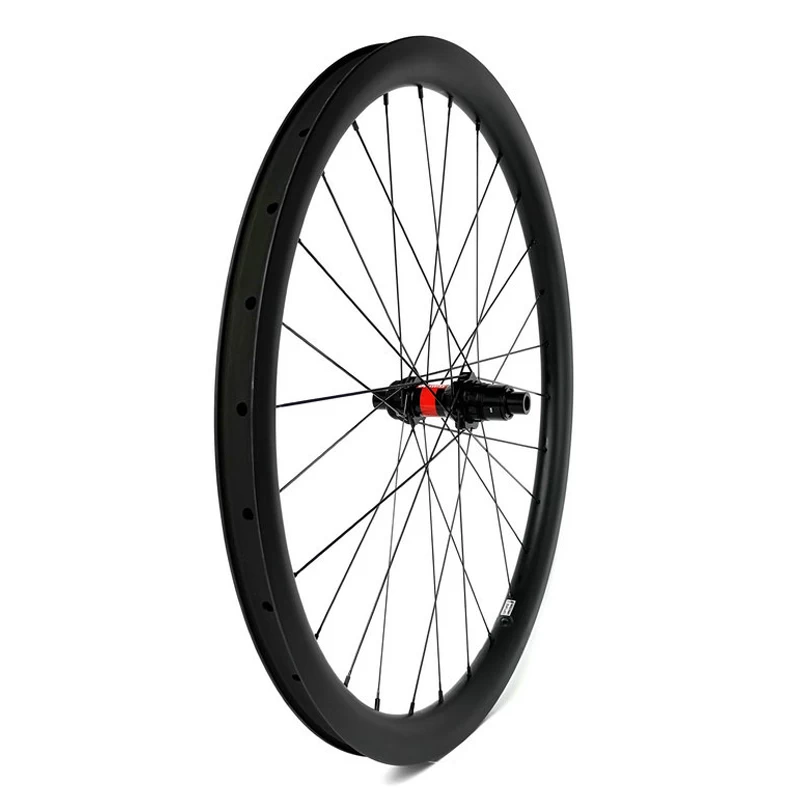

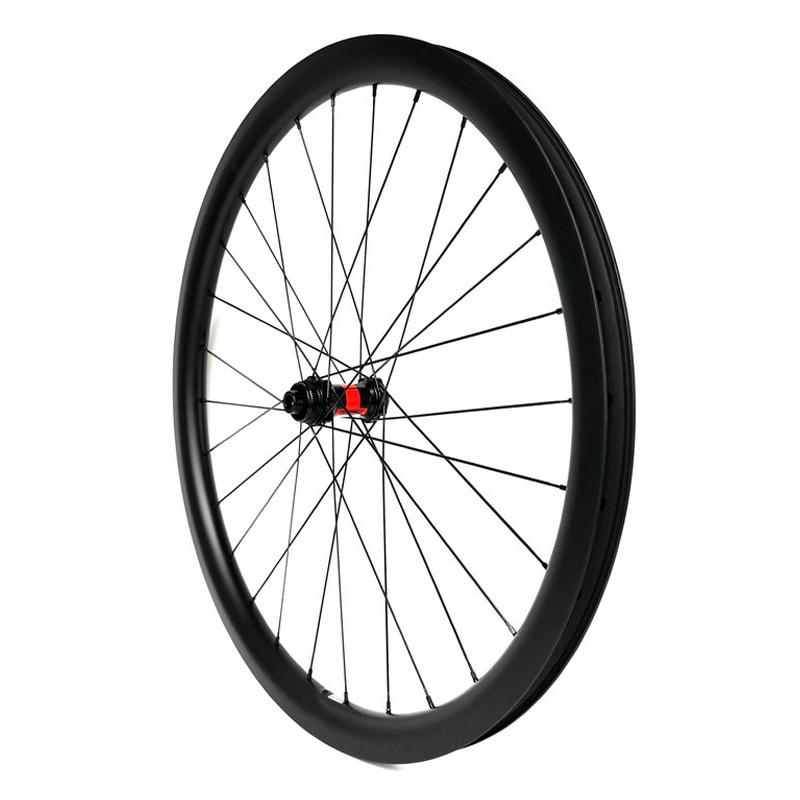

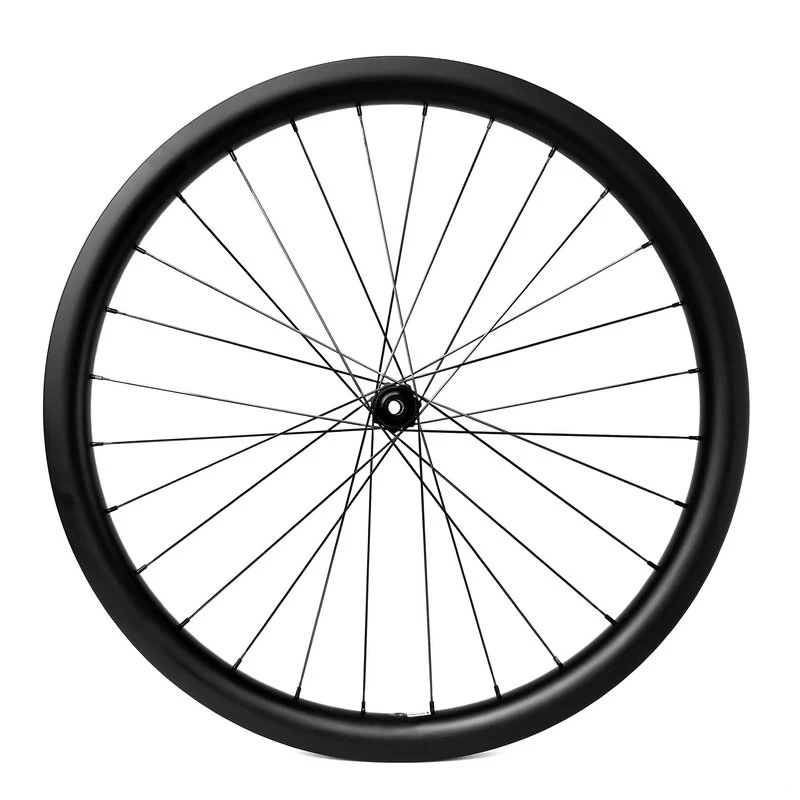

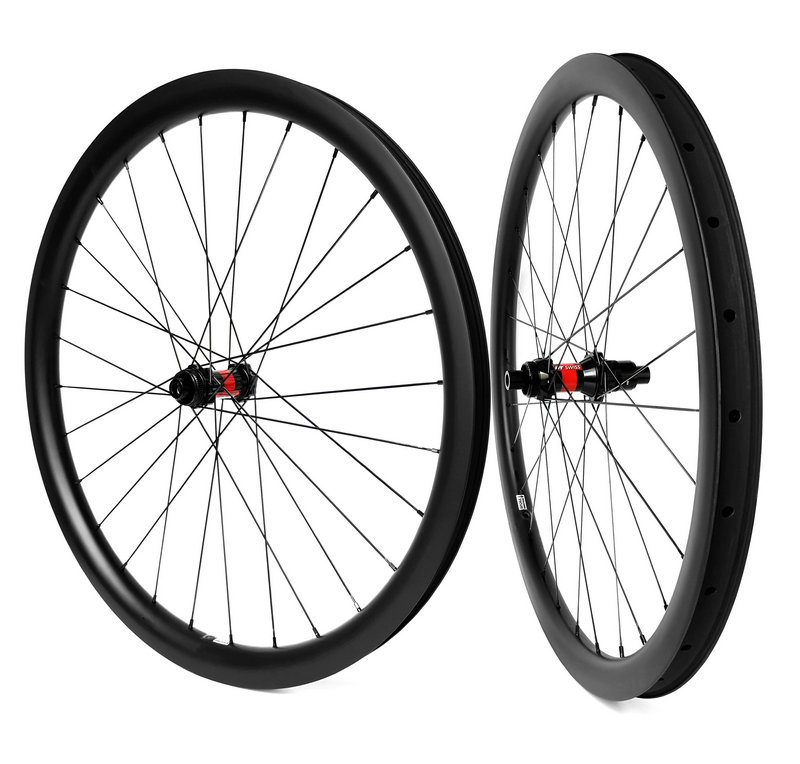

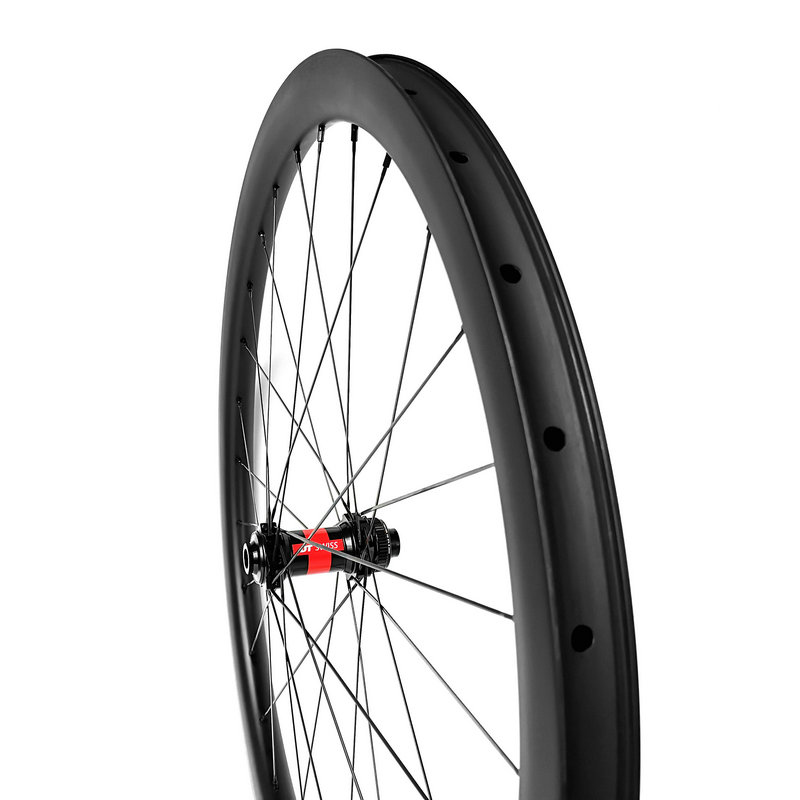

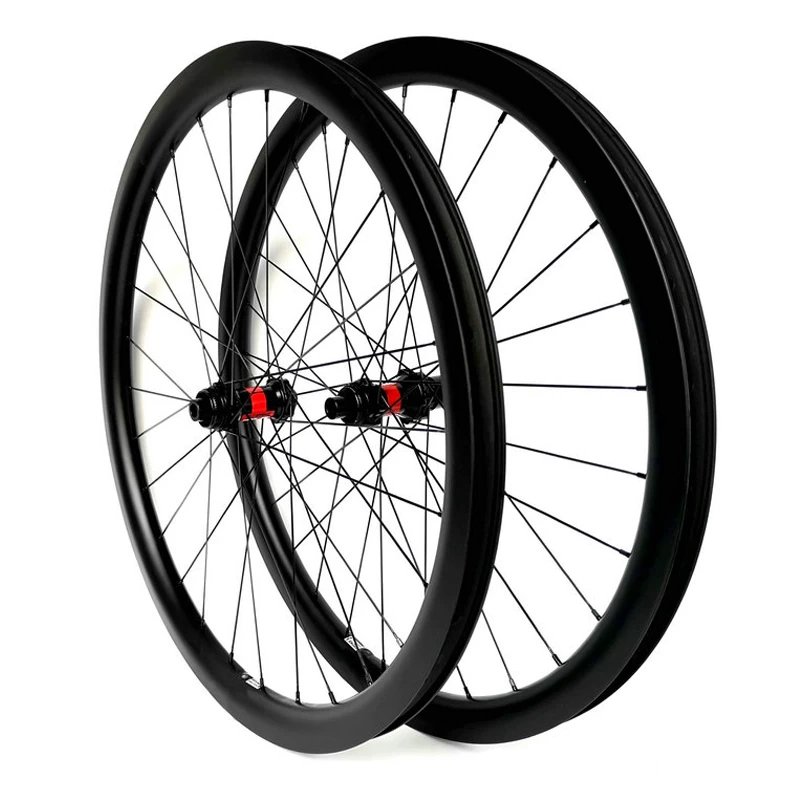

DT Swiss 240 SP hub + Sapim CX-Ray spoke custom gravel bike carbon wheels

[Disc Brake] Custom build disc brake gravel bike carbon wheel with DT Swiss 240 SP hub + Sapim CX-Ray spokes & alloy nipples. Pro Racing level, lightweight, stiff and durable, perfect for your gravel & cyclocross bike.


  • StandardEN standard
  • LevelPro Racing
  • BrakeDisc brake
  • HoleFront 28, Rear 28
  • LacingF - 2 cross, R - 2 cross
  • RimCarbonal Gravel rims
  • NippleSapim alloy
  • SpokeSapim CX-Ray spoke
  • HubDT Swiss 240, Straight pull

Product Item: DT Swiss 240 SP hub + Sapim CX-Ray spoke custom gravel bike carbon wheels



Rim:

High performance Carbonal CX & Gravel bike carbon rims, which can be ridden almost everywhere, on the road and off it.

5 years warranty.


Hub:

DT Swiss 240 SP hub, straight pull;

Axle system: Front - 12*100mm or QR*100mm, Rear - 12*142mm or QR*135mm;

Cassette body: Shimano Road 11S / Sram 11s (XD);

Brake system: Disc 6 bolts / Disc center lock;

Hole: Front 28, Rear 28;

Color: black.


Spoke:

Sapim CX-Ray spoke, straight pull, black;


Nipple:

Sapim alloy nipple, black or red.


Lacing:

Front wheel - 2 cross;

Rear wheel - 2 cross.


Gravel Rim model vs Complete wheel weight:

Model
Rim type
Rim weight / pc
Complete wheel weight (±5%) / set
Max weight limit
GCX28
29" / 700c clincher 28x29mm
380g
1,395g
120kgs
GCX35
27.5" / 650b clincher 35x32mm
360g
1,355g
120kgs
DX38L
29" / 700c clincher 28x38mm
410g
1,455g
120kgs
DX50L
29" / 700c clincher 28x50mm
460g
1,555g
125kgs


* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.

* All clincher rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.
