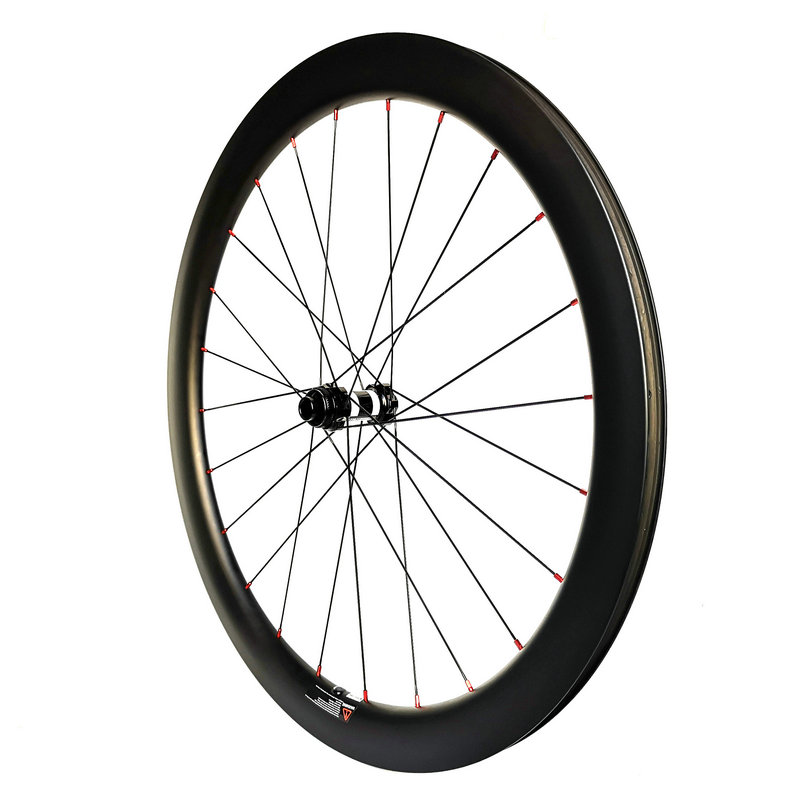

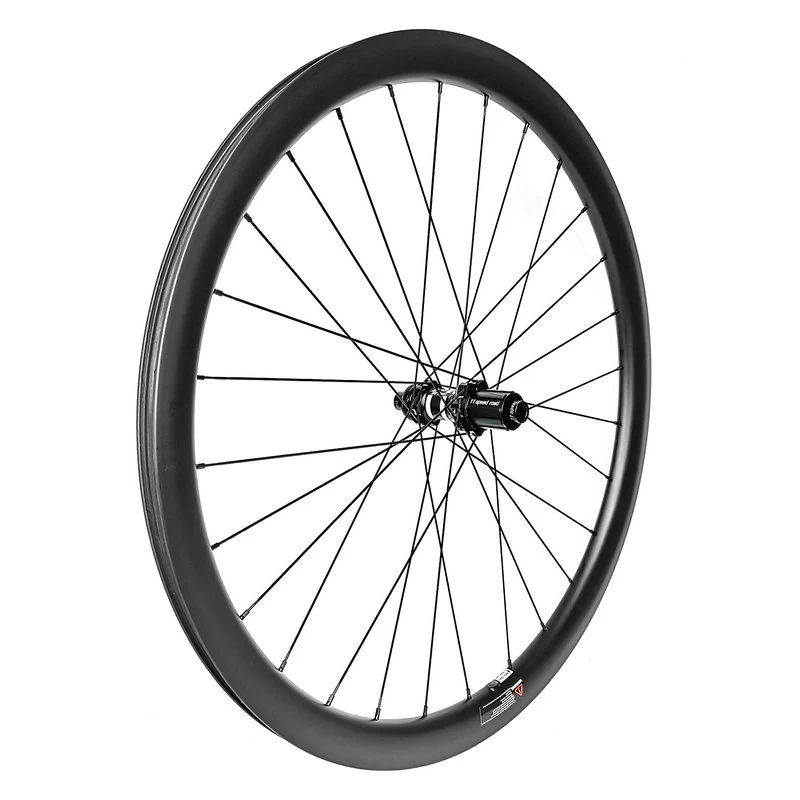

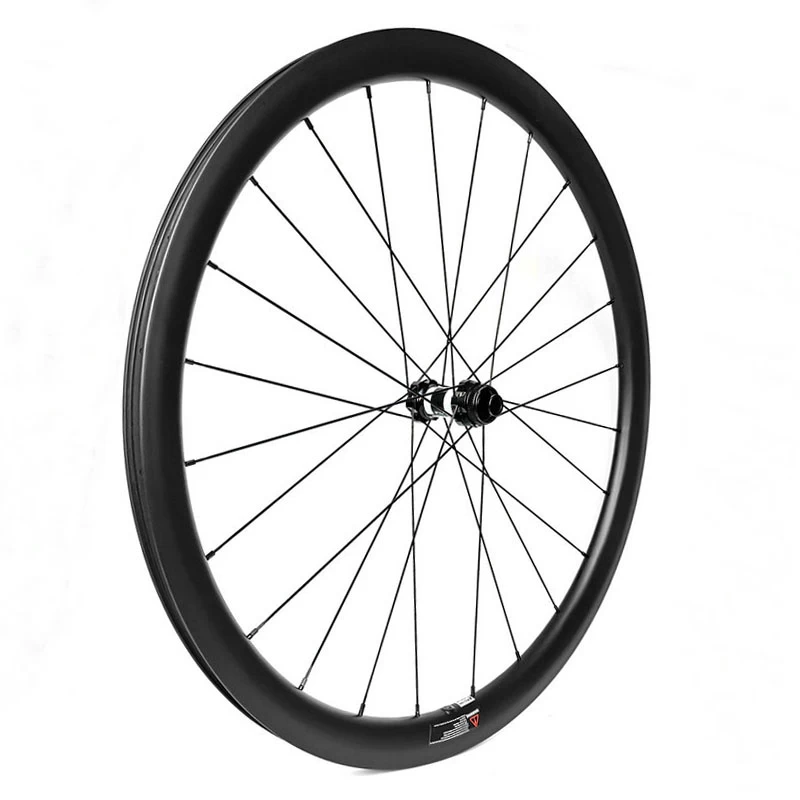

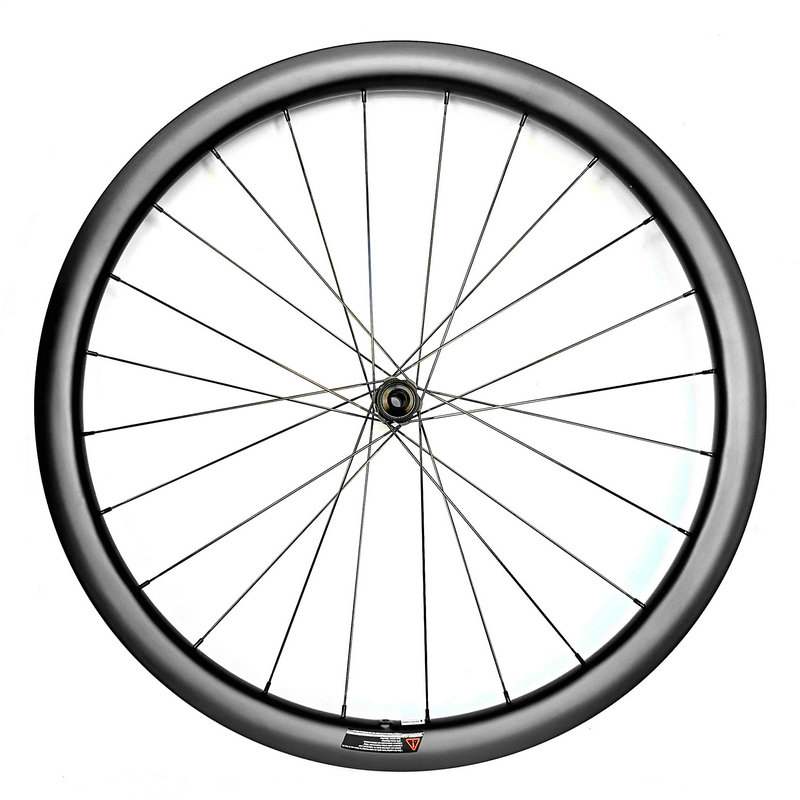

DT Swiss 350 SP hub + Sapim CX-Ray spoke custom road disc carbon wheels

[Disc Brake] Custom build disc road bike carbon wheel with DT Swiss 350 straight pull hub + Aero CX-Ray Sapim spokes & nipples. Mid Racing level, maximum durability, perfect for the your daily training, riding and racing use.


  • StandardEN standard
  • LevelMid Racing
  • BrakeDisc brake
  • Hole24 / 24
  • LacingF - 2 cross, R - 2 cross
  • RimCarbonal disc brake carbon rims
  • NippleSapim alloy, black or red
  • SpokeSapim CX-Ray, black
  • HubDT Swiss 350 hub, Straight pull

Product Item: DT Swiss 350 SP hub + Sapim CX-Ray spoke custom road disc carbon wheels

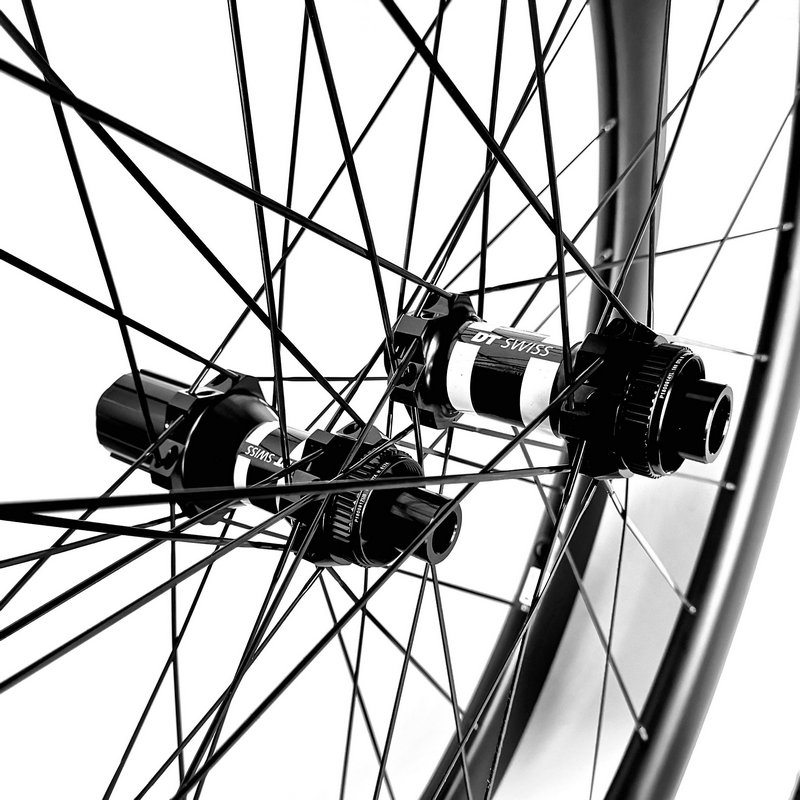

DT swiss 350 straightpull hub

DT Swiss 350 is the most affordable high performance hub available. The same performance as its even higher end cousins comes with slightly less weight optimized parts to offer the same reliability at a much lower cost. Being available in all standards and for any application, the 350 hub is for those who maybe like to ride the trails a little more than drooling over catalogs and specs.


Hub:

DT Swiss 350 hub, straight pull;

Axle system: F - 12x100mm, R - 12x142mm;

Free hub system: Ratchet System 18T (optional 36T / 54T);

Cassette body: Shimano Road 11S / Sram XDR;

Brake system: Disc center lock / Disc 6 bolts;

Hole: Front 24, Rear 24;

Color: black.


Spoke:

Sapim CX-Ray Aero spokes, blade, black;


Nipple:

Sapim alloy nipples, black or red.

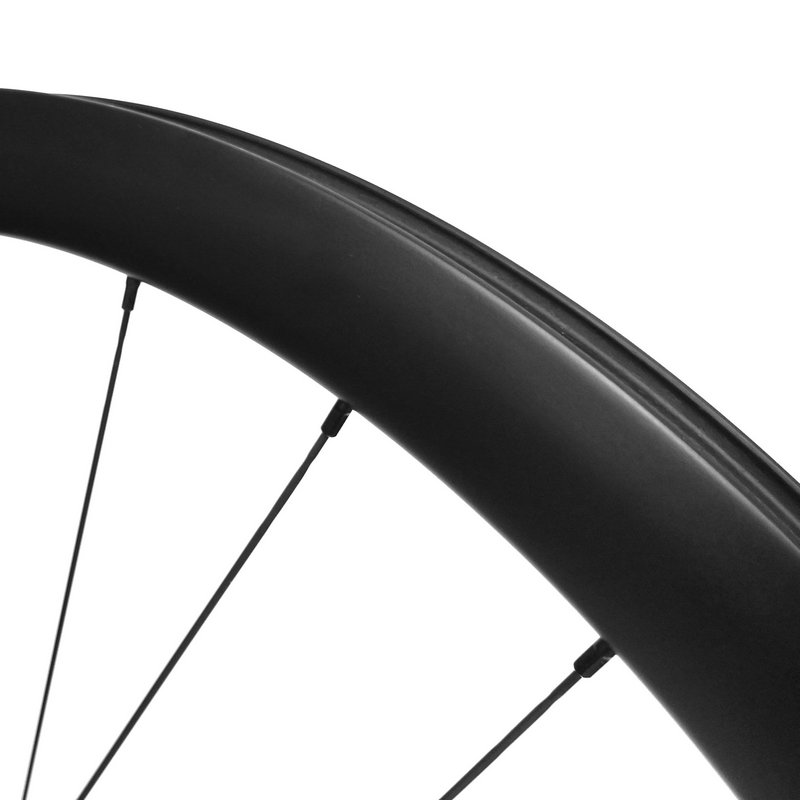

Rim:

Carbonal disc brake carbon rims tubular & clincher tubeless. With the best blend of lightweight, aerodynamic, high stiffness and great strength to deliver the highest possible efficiency.

Rim carbon weaves available in: UD, 3k, 3k twill, 6k and marble, see rims in different carbon weaves.

5 years warranty.


Lacing:

Front wheel - 2 cross;

Rear wheel - 2 cross.


Weight:

Hub: 410g/set;

Spokes + nipples: 218g;

Weight without rims: 628g.


Rim model vs Complete wheel weight:

Model
Rim type
Rim weight / pc
Complete wheel weight (±5%) / set
Max rider weight
DX30S
700c clincher 30x25mm
370g
1368g
115kgs
DX38S
700c clincher 38x25mm
400g
1428g
120kgs
DX38D
700c clincher 38x25mm- asymmetric
400g
1428g
120kgs
DX45S
700c clincher 45x25mm
430g
1488g
125kgs
DX50S
700c clincher 50x25mm
450g
1528g
125kgs
DX50D
700c clincher 50x25mm - asymmetric
450g
1528g
125kgs
DX60S
700c clincher 60x25mm
500g
1628g
130kgs
DX88S
700c clincher 88x25mm
680g
1988g
135kgs
DX38L
700c clincher 38x28mm
410g
1448g
120kgs
DX50L
700c clincher 50x28mm
460g
1548g
125kgs
DT30S
700c tubular 30x25mm
290g
1208g
115kgs
DT38S
700c tubular 38x25mm
330g
1288g
120kgs
DT38D
700c tubular 38x25mm- asymmetric
330g
1288g
120kgs
DT50S
700c tubular 50x25mm
360g
1348g
125kgs
DT50D
700c tubular 50x25mm- asymmetric
360g
1348g
125kgs
DT60S
700c tubular 60x25mm
430g
1488g
130kgs
DT88S
700c tubular 88x25mm
530g
1688g
135kgs


* Complete wheel weights are subject to a ±5% variance.

* Each wheelset will ship with: spare spokes, nipples; freehub spacer for 10 speed cassettes.

* All clincher rims are tubeless ready.

* If you can't find the specs you need, please contact us directly to see what we can do, we will do our best to help you.


Choose your favorite rim model, leave a message below with the rim model number (such as DX30S) to get a best quote for your next carbon road wheels!
