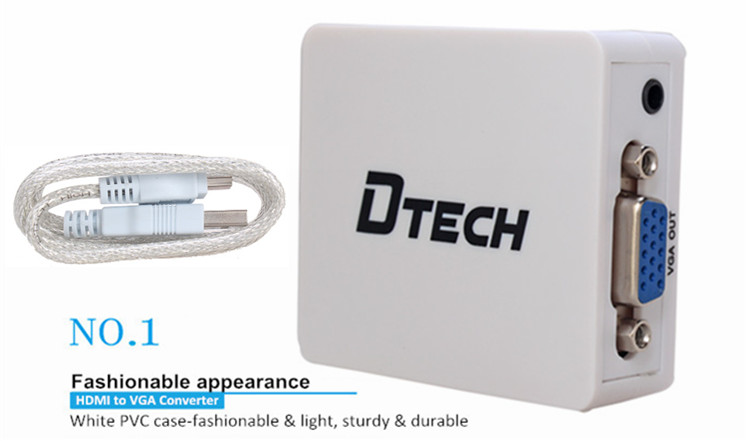

Ⅰ. Product Introduction
HDMI to VGA signal converter, can convert HDMI digital signal to VGA
analog video signal and 3.5 mm stereo audio signals, high-definition HDMI
signal is converted into analog audio and video signal available for common monitor,
projectors and others , easy connection with VGA interface display, projector,
etc.

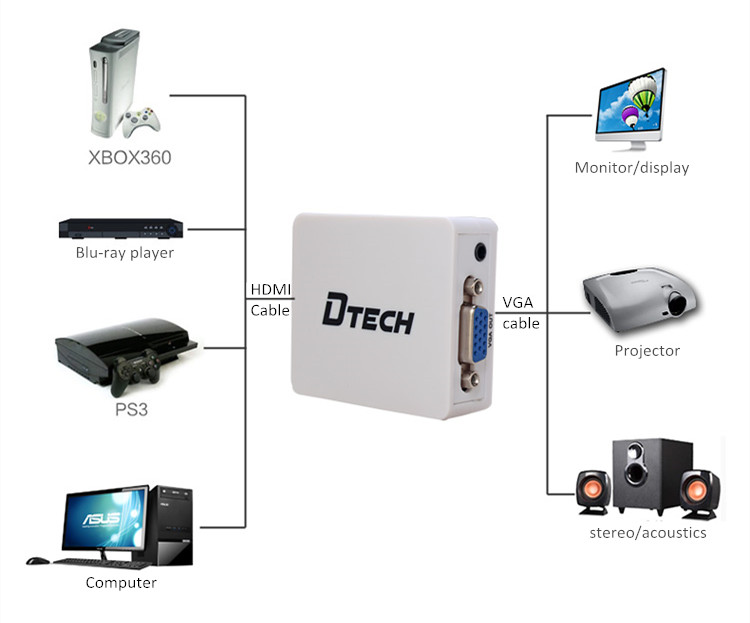

Ⅱ. Connection
instructions

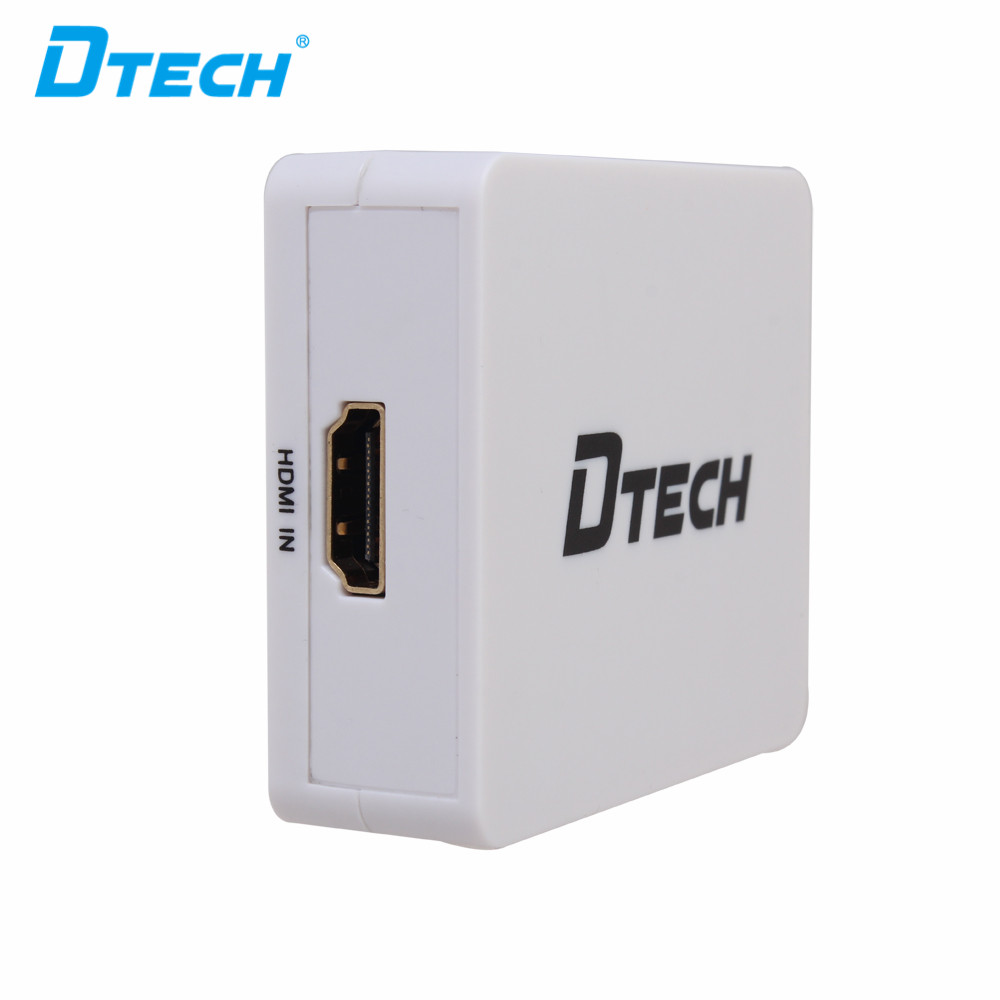

1. Connect The HDMI cable to the “HDMI IN"
HD DVD and other equipment;

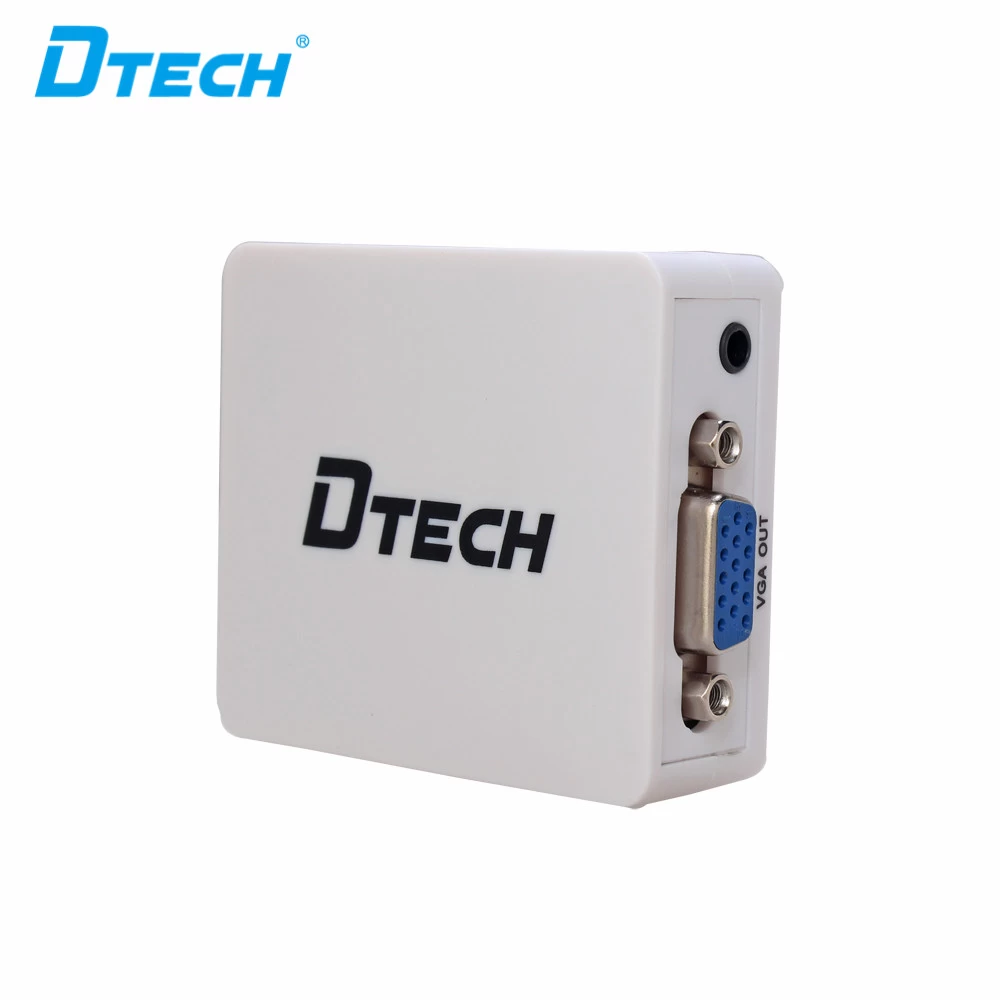

2. Connect the VGA cable and 3.5 mm audio cable to "VGA OUT"
related devices;
3. If power supply is insufficient, can be externally powered through the
Mini USB power supply interface;
