Ⅰ. Product introduction

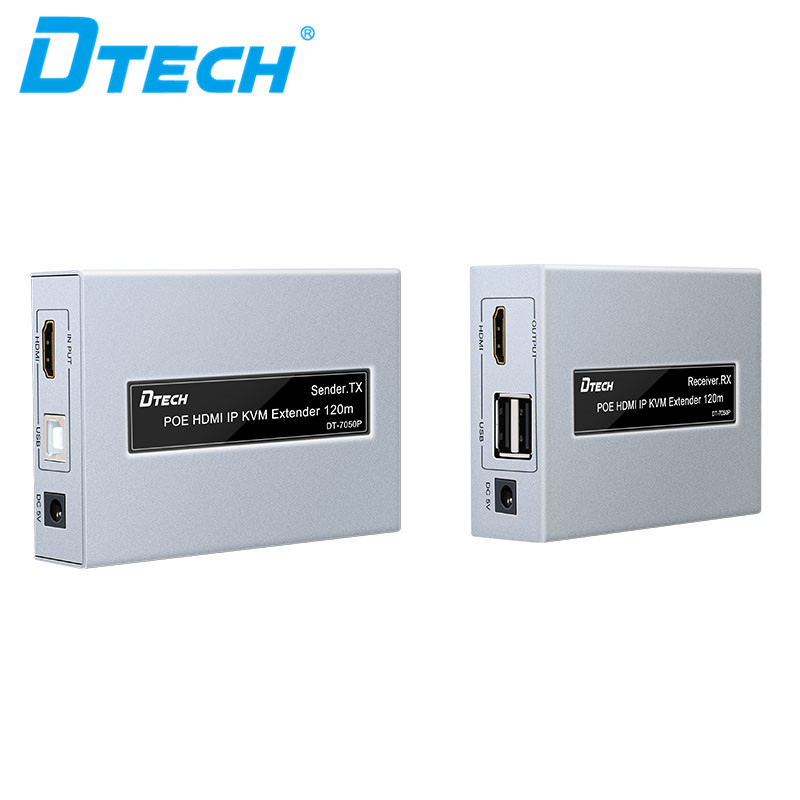

This extender consists of a transmitter and a receiver. Transmitter is for the completion of signal acquisition and compression, the receiver for the completion of signal decoding and port allocation, the middle of the transmission medium for high-quality CAT5e/6e cable, support point to point transmission, support multiple receivers with a switch, Max. 253 receivers. Widely used in computer teaching system, high-quality multimedia display, video conferencing, computer, LCD plasma high-definition display venue, digital home theater, exhibition, education, finance, research, meteorology and other fields.
Ⅱ. Specification
1. Supports Cat5e / Cat6e / single shield / unshielded twisted pair real-time point-to-point, point-to-multipoint transmission of images and audio signals;
2. DVI signal support 1920 X1080 @ 60Hz resolution, backward compatible with a variety of resolutions;
3. VGA signal support 1920 X1080 @ 60Hz resolution, backward compatible with a variety of resolutions;
4. HDMI signal support 1080P @ 60Hz resolution, backward compatible with a variety of resolutions;
5. With USB connector, support keyboard, mouse remote operation;
6. POE-enabled products that can be connected to POE-enabled switches without adapter power supply; （Support 4,5,7,8 POE switch）

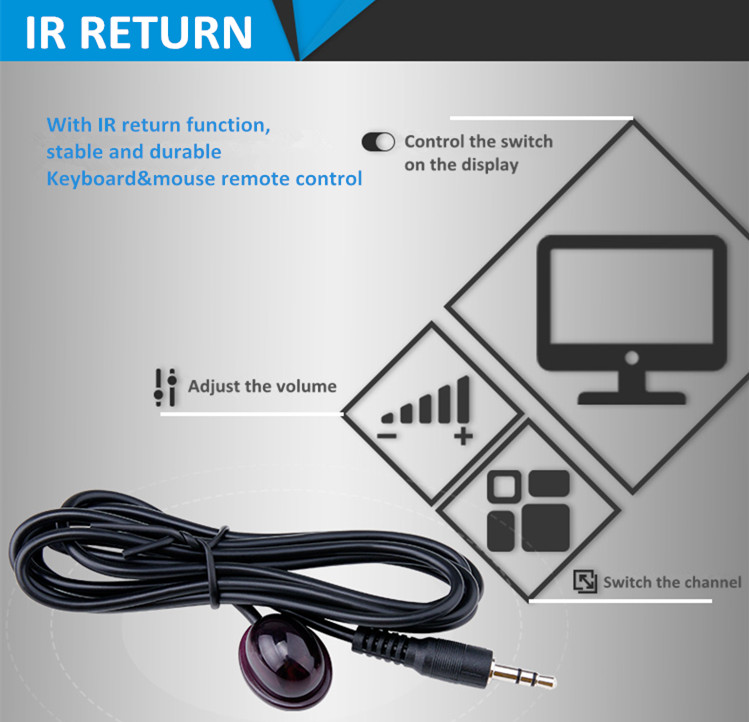

7. With IR connector, support IR return function;
8.Products with multiple Ethernet ports, the receiver can be used in series with same type receivers for cascading transmission;
9. With signal 3dB gain or pre-compensation to ensure that the signal high-definition true reduction;
10. Lightning protection, dust, anti-static, to extend the service life;
11. Can be through the switch / router and other relay equipment to achieve cascade and zoom transmission, H.264 devices can extend to 300meters and Mpeg4 devices can extend 240meters by cascade transmission,
12.The input end transmission distance can be 10m and the output end transmission can be 5m via 26AWG HDMI standard cable.
