Product Description
Home • Classroom • Commercial

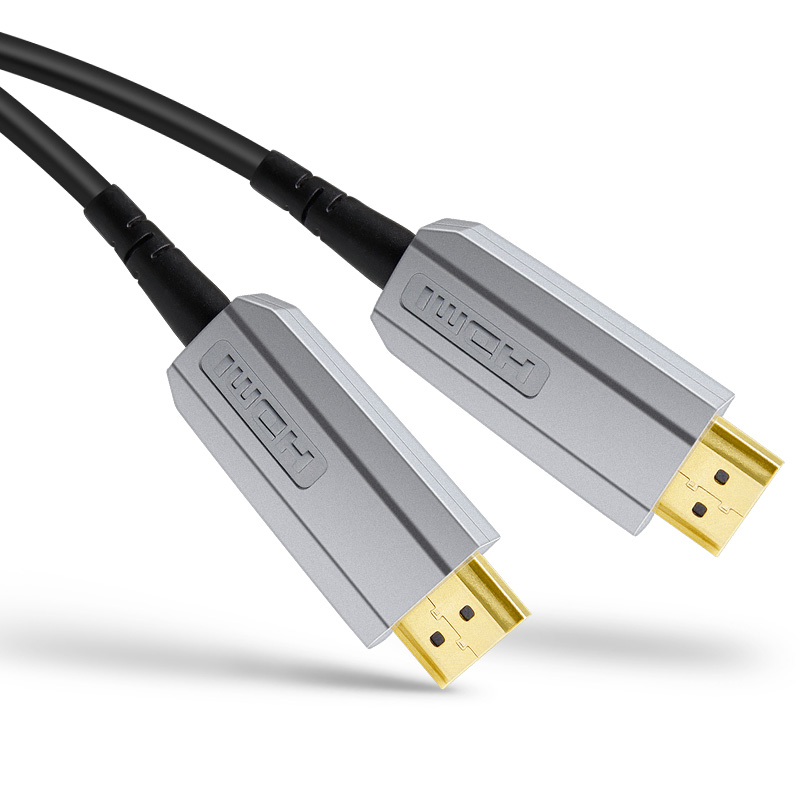

l DTECH Technology - Long Distance HDMI
l DTECH Fiber Optic HDMI cables are an easy-to-use, secure connection
for home video distribution, conference room presentation systems, classroom
projection systems, digital signage and wherever a high definition video
display is located.
l Fiber optics provides the speed and bandwidth needed for the best
picture quality for high definition video at lengths up to 300 feet; supporting
the long distances required in commercial video solutions.
l No extenders, baluns or amplifiers are needed and DTECH fiber optic
cables are EMI free allowing them to be installed with multiple cable pulls,
providing the flexibility for remote component locations.
l Supporting 18Gbps and 4K@60Hz performance up to 300 feet, DTECH
cables meets with plenum rated standard ( UL CMP ).
l Designed to solve the installer’s common problems with long distance
HDMI and concealed installations in home and business.
|
Specifications
|
|
Distance
|
up to 300 feet
|
|
Data rate
|
18 Gbps
|
|
Resolutions
|
up to 4K@60Hz/fps ( YUV 4:4:4 )
|
|
Supported features
|
HDCP 2.2, EDID, CEC
|
|
3D, HDR Deep Color
|
|
Audio
|
32 uncompressed Audio Channels; 1536 kHz
Sample Rates
|
|
Cable jacket
|
plenum rated standard ( UL CMP )
|
|
Jacket diameter
|
4.0 mm
|
|
The limit bending radius
|
15mm
|
|
Cable pull strength
|
60 pounds
|
|
Cable sustained tension
|
30 pounds
|
|
Operating Temperature
|
32°— 122°F (0°—50°C)
|
