Dual output 24V switching power supply 150W
Description:
K26H-UP150D24 model 150W dual 24v switching power supply with 90-264Vac input voltage, less than 120W free air convection and 150W with 20CFM forced air, LED indicator for power on,we can provide 2 years warranty service.
Features:
1, 150W high efficiency 24V dual output switching power supply;
2, 24V 150W dual output power supply with wide range of AC input voltage,
3, It have short circuit, over load, over voltage protection;
4, 150W 24V dual output power supply used in LED light,stage light etc.
5. This model includes filters, low output noise.
|
Parameter
|
|
Item NO.
|
K26H-UP150D±24
|
|
Output
|
Output Voltage
|
+24V
|
-24V
|
|
Rated Current
|
3.2A
|
3.2A
|
|
Current Range
|
0.1-4A
|
0-3.5A
|
|
Rated power
|
153.6W(when the output power is more than120W,there must be with cooling fan)
|
|
Ripple
|
150mVp-p
|
240mVp-p
|
|
Adjustable output range
|
±10%
|
±10%
|
|
Output Accuracy
|
±1%
|
±5%
|
|
Line Regulation
|
±0.5%
|
±1%
|
|
Load Regulation
|
±0.5%
|
±4%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage range
|
90~264V AC;110~360V DC
|
|
Input current
|
1.6A/115V;0.8A/230V
|
|
Power Factor
|
≥0.95
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
87%（AC220V）
|
|
Inrush current
|
30A@230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over load
|
105~150%,Hiccup,automatic recovery.
|
|
Short circuit
|
Hiccup,automatic recovery.
|
|
Output over-voltage
|
40~45V
|
|
Over temp.
|
------
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃，10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
GB4943,EN60950
|
|
Pressure
|
I/P-O/P，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
GB9254
|
|
Others
|
Dimension
|
115*59*38mm CASE：K826H
|
|
Weight
|
0.3Kg
|
|
Note
|
1, All parameters are measured at 230 VAC input, rated load, ambient temperature 25 ° C, humidity 70%
2,Accuracy: including setting error, line regulation, load regulation rate;
3,Ripple test: 30cm long wire with the power and load, load and 0.1u and 47u capacitance to 20MHz oscilloscope measured at the load side;
4, Line regulation: the rated load conditions, the input voltage changes from low to high measured;
5,Load regulation: The measured output is measured from 0 load to 100% load change.
|

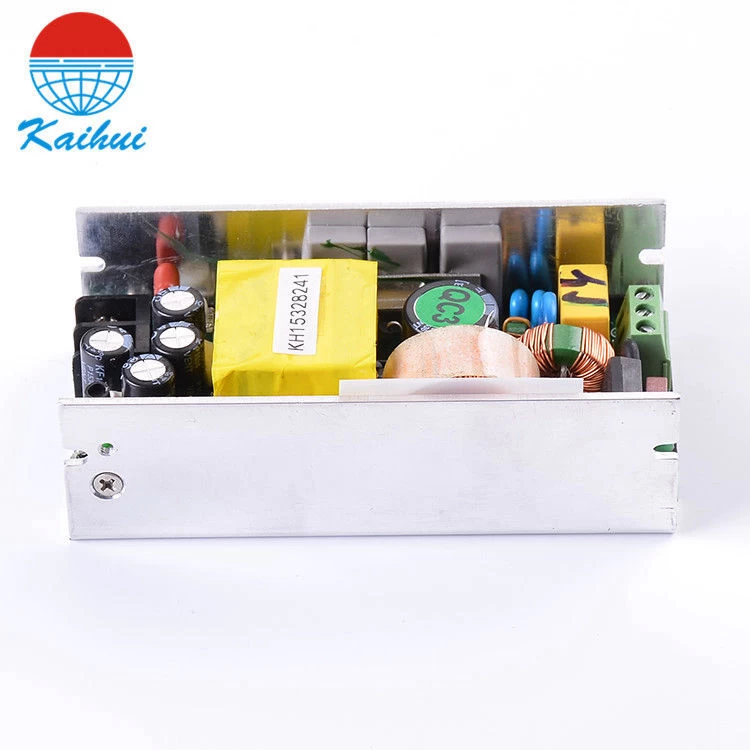

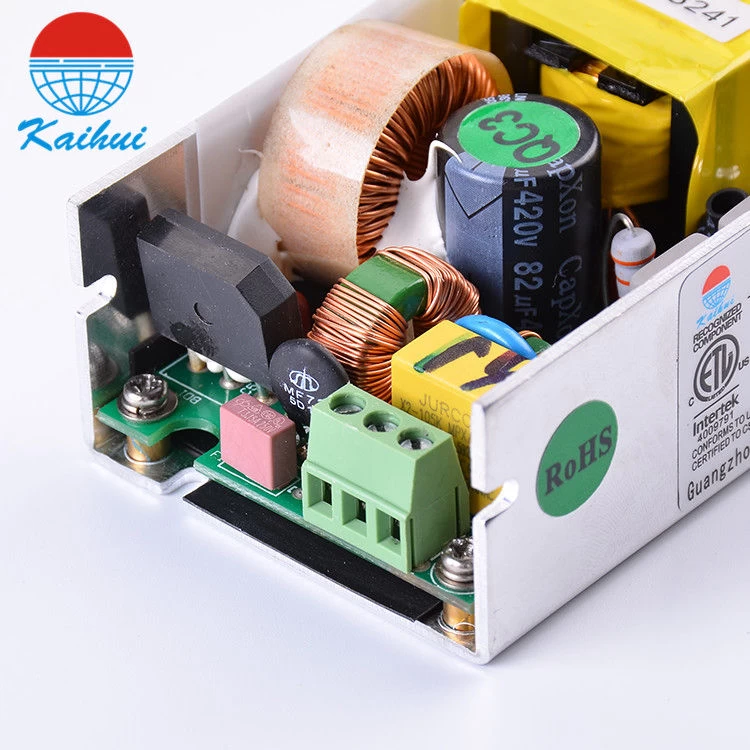

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
