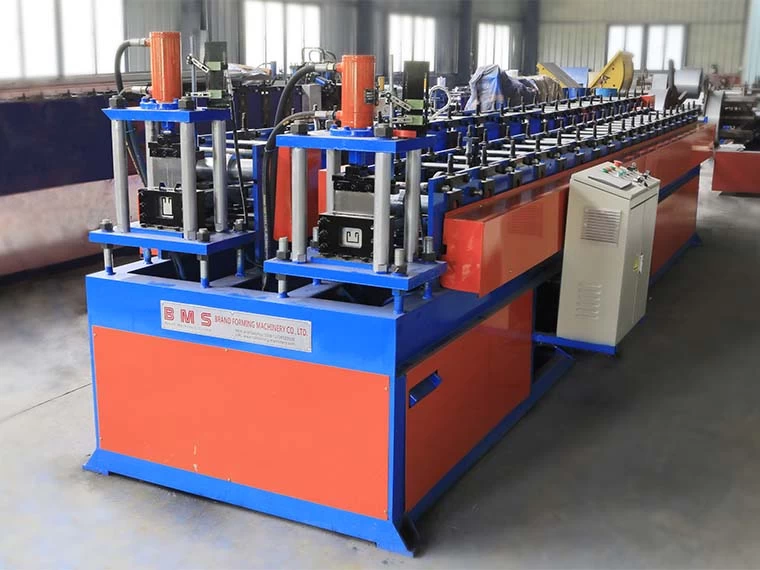

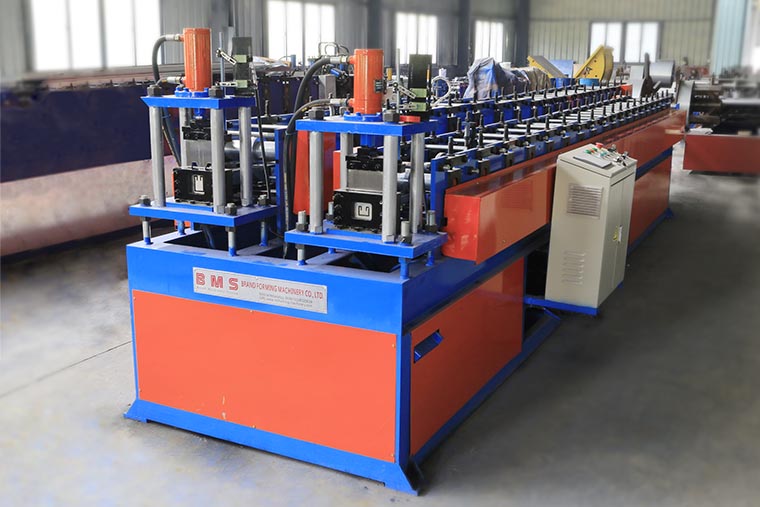

Dual Door Rail Roll Forming Machine (2-in-1)

Save cost and convenient !





              Dual Door Rail Roll Forming Machine (2-in-1)



Dual Door Rail Roll Forming Machine


Dual Door Rail Roll Forming Machine



Click here to check the video:  Dual Door Rail Roll Forming Machine (2-in-1)


1.Main features of dual door rail roll forming machine (2-in-1)



    The advantages of dual door rail roll forming machine (2-in-1) are as follows:

    1.Accuracy Profile

    2.Stable

    3.Easy operation, low maintenance cost

    4.Beautiful appearance.

    5.Customorized for any size you want



2.Detailed Images of dual door rail roll forming machine (2-in-1)


    Machine Parts

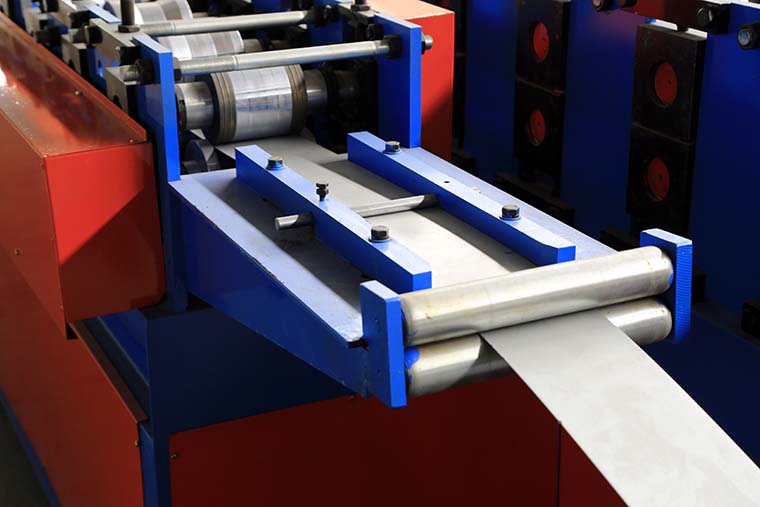

        1) Dual door rail roll forming machine (2-in-1) feeding guide

        Brand: BMS    Original: China


Dual Door Rail Roll Forming Machine

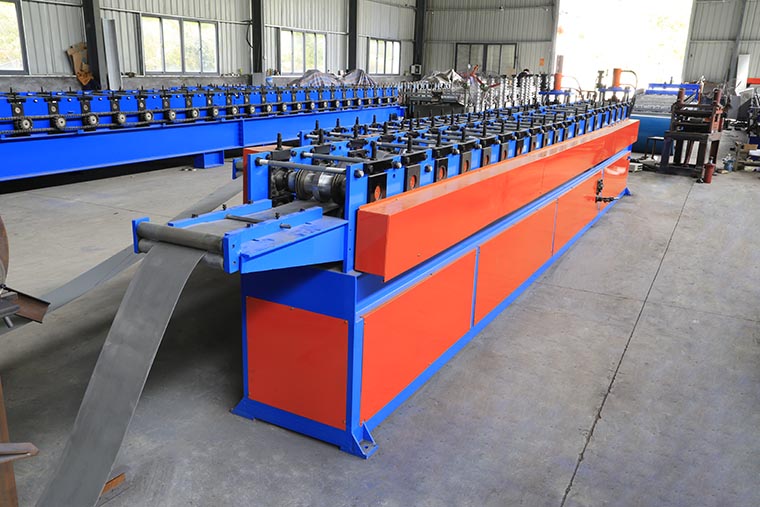

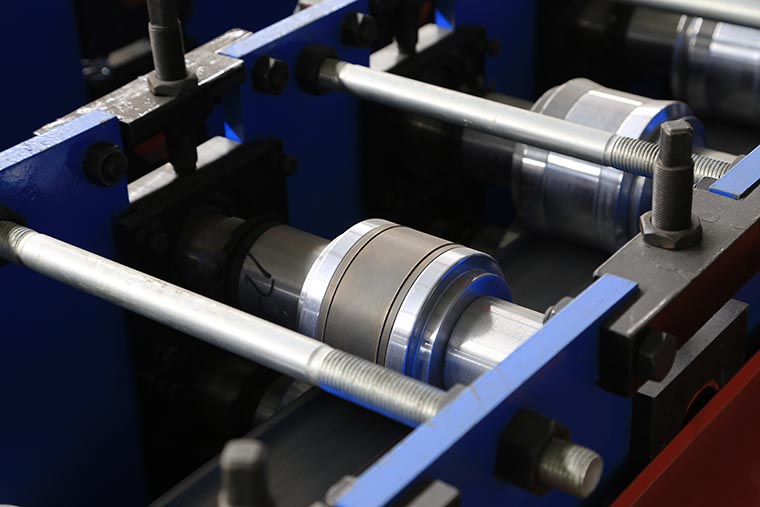

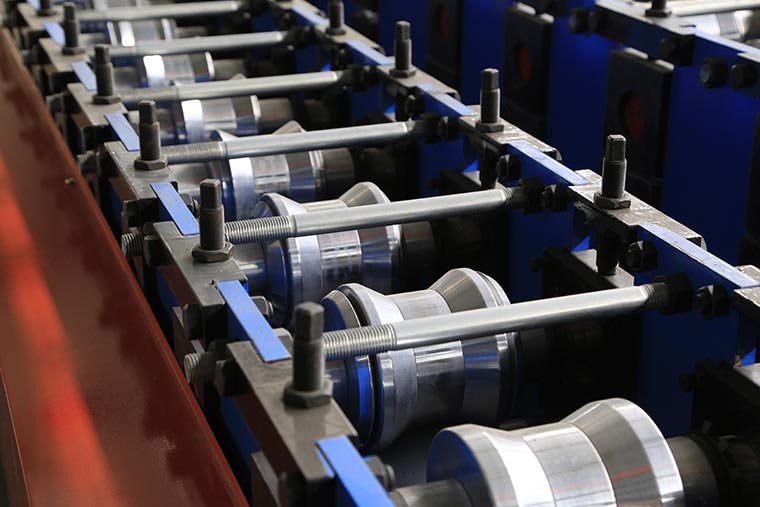

        2) Dual door rail roll forming machine (2-in-1) rollers

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 200# H type steel by welding


Dual Door Rail Roll Forming Machine


Dual Door Rail Roll Forming Machine


        3) Dual door rail roll forming machine (2-in-1) post cutter

        made by high quality mold steel Cr12 with heat treatment HRC58-62

        Cutter frame made from high quality 20mm steel plate by welding


Dual Door Rail Roll Forming Machine

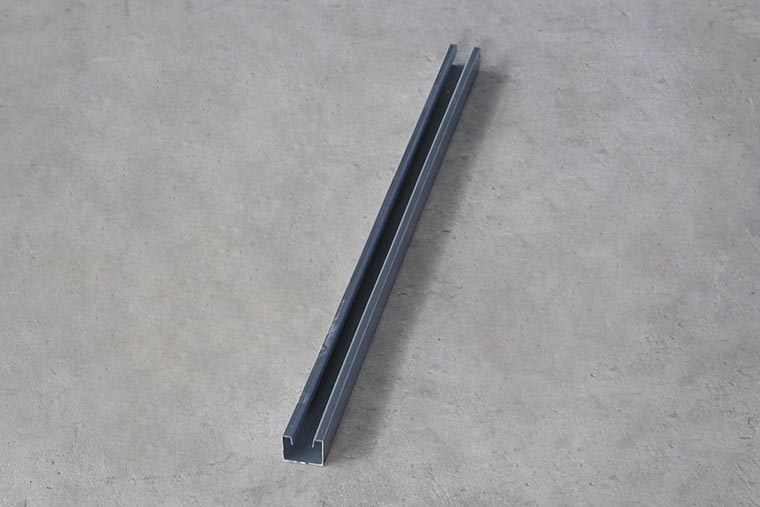

        4) Dual door rail roll forming machine (2-in-1) product show

Dual Door Rail Roll Forming Machine

        5) Dual door rail roll forming machine (2-in-1) decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton


Dual Door Rail Roll Forming Machine


        With 3 tons hydraulic decoiler for option




        6) Dual door rail roll forming machine (2-in-1) exit rack

        Un-powered,3 meters long ,four units


Dual Door Rail Roll Forming Machine



Other detailes of dual door rail roll forming machine (2-in-1)

Suitable for material with thickness 1.0-2.0 mm

Shafts manufactured from 45#,Main shaft diameter=φ56/75mm,precision machined

Motor driving,Gear chain transmission, 19 rollers to form.

Main motor=7.5KW , Frequency speed control. Forming speed approx.12-15m/min

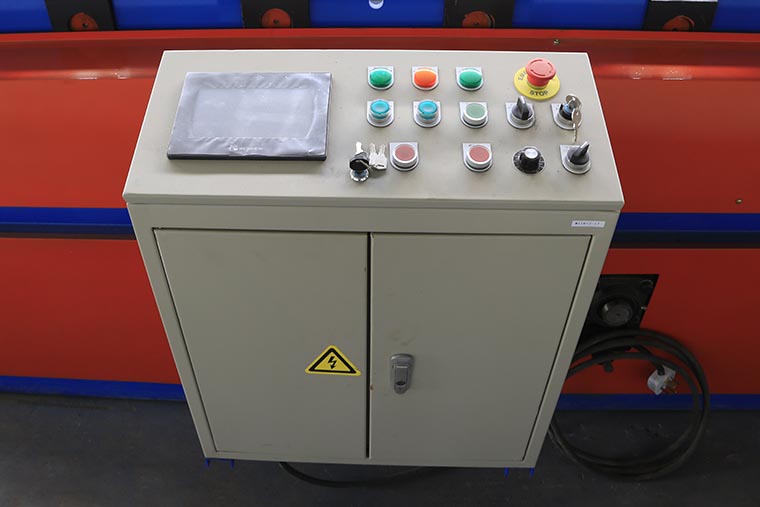

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)


Dual Door Rail Roll Forming Machine


Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of dual door rail roll forming machine (2-in-1)



1. The warranty of dual door rail roll forming machine (2-in-1)

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
