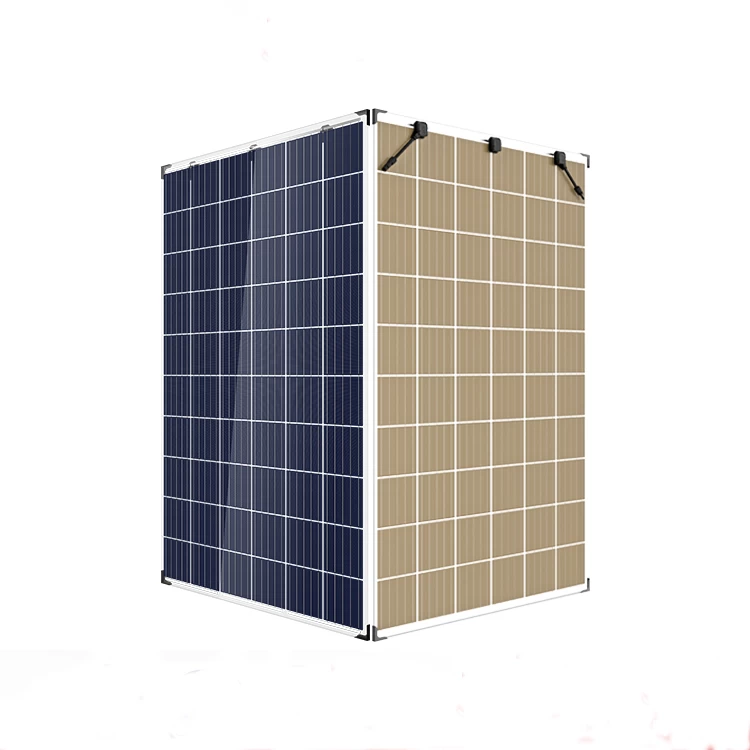

Dual glass Poly solar panel 60 cells 270W-285W
Spcifications of Dual glass Poly solar panel 60 cells 270W-285W
|
ELECTRICAL DATA (STC)
|
|
Peak Power Watts-PMAX (Wp)*
|
270
|
275
|
280
|
285
|
|
Power Output Tolerance-PMAX (W)
|
0 ~
+5
|
|
Maximum Power Voltage-VMPP (V)
|
31.1
|
31.3
|
31.6
|
32
|
|
Maximum Power Current-IMPP (A)
|
8.69
|
8.78
|
8.87
|
8.91
|
|
Open Circuit Voltage-VOC (V)
|
38
|
38.2
|
38.4
|
38.6
|
|
Short Circuit Current-ISC (A)
|
9.28
|
9.31
|
9.32
|
9.36
|
|
Module Eficiency m (%)
|
16.4
|
16.7
|
17
|
17.3
|
STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass
AM1.5.
*Measuring tolerance: ±3%.
|
|
ELECTRICAL DATA (NOCT)
|
|
Maximum Power-PMAX (Wp)
|
200
|
204
|
208
|
211
|
|
Maximum Power Voltage-VMPP (V)
|
28.8
|
29
|
29.2
|
29.6
|
|
Maximum Power Current-IMPP (A)
|
6.97
|
7.04
|
7.11
|
7.14
|
|
Open Circuit Voltage-VOC (V)
|
35.2
|
35.4
|
35.6
|
35.8
|
|
Short Circuit Current-ISC (A)
|
7.49
|
7.52
|
7.52
|
7.56
|
|
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind
Speed 1m/s.
|
|
MECHANICAL DATA
|
|
Solar
Cells
|
Multicrystalline
156.75 × 156.75 mm (6 inches)
|
|
Cell Orientation
|
60
cells (6 × 10)
|
|
|
1658
× 992 × 6 mm (65.3 × 39.1 × 0.236 inches)
|
|
Module Dimensions
|
1662 × 996 × 6 mm with edge banding (65.4 × 39.2 × 0.236 inches)
|
|
|
1664 × 998 × 7.6 mm with corner protector (65.5 × 39.3 × 0.299 inches)*
|
|
Weight
|
23.5
kg (51.8 lb)
|
|
Front Glass
|
2.5 mm (0.10 inches), High Transmission, AR Coated Heat Strengthened Glass
|
|
EVA
|
White
(PEG5, PEG5.40); Transparent (PEG5.07, PEG5.47)
|
|
Back Glass
|
2.5
mm (0.10 inches), Heat Strengthened Glass
|
|
Frame
|
Frameless
|
|
J-Box
|
IP 67
or IP 68 rated
|
|
|
Photovoltaic
Technology Cable 4.0 mm² (0.006 inches²) Portrait: 140/285 mm (5.5/11.2
inches)
|
|
Cables
|
Landscape:
1200/1200 mm (47.2/47.2 inches)
|
|
Connector
|
Trina
TS4 (1500V)
|
|
Fire Type
|
Type
13
|
|
TEMPERATURE RATINGS
|
|
NOCT(Nominal Operating Cell Temperature)
|
44°C (±2°C)
|
|
Temperature Coeficient of PMAX
|
- 0.41%/°C
|
|
Temperature Coeficient of VOC
|
- 0.32%/°C
|
|
Temperature Coeficient of ISC
|
0.05%/°C
|
|
MAXIMUM RATINGS
|
|
Operational Temperature
|
-40~+85°C
|
|
Maximum SystemVoltage
|
1500V DC (IEC)
|
|
1000V DC (UL)
|
|
Max Series Fuse Rating
|
15A
|

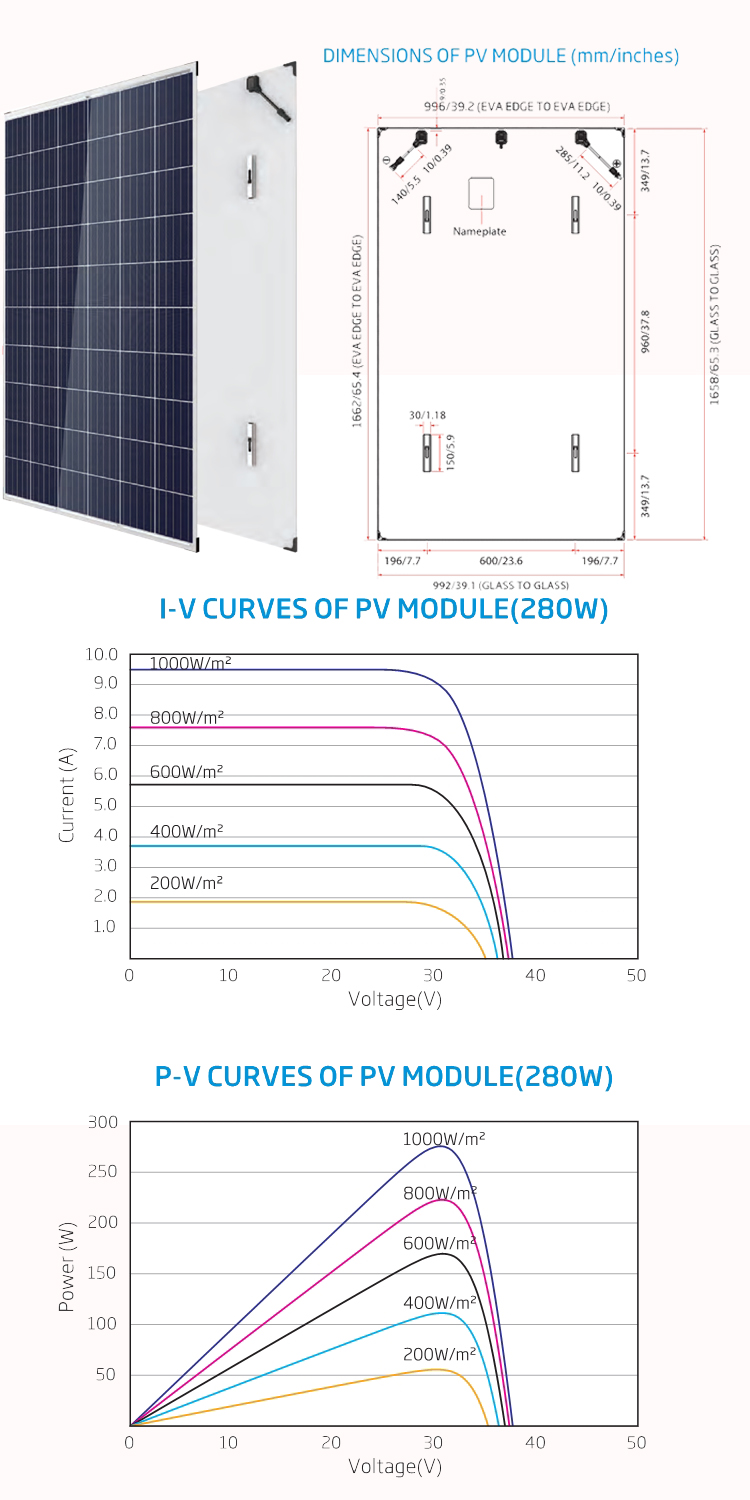

Details of Dual glass Poly solar panel 60 cells 270W-285W
Assembly of Dual glass Poly solar panel 60 cells 270W-285W
Package of Dual glass Poly solar panel 60 cells 270W-285W
Payment of Dual glass Poly solar panel 60 cells 270W-285W60 cell 280W-315W
|
|
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
FOB
|
|
CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
CIF
|
|
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
Amount lower than 5000usd
|
|
|
|
|
7~10days after receiving payment for one container
|
