Dual HD Input Modulator With ISDB-T and DVB-T Modulation

The SKD296X is a dual HD input digital modulator supports ISDB-T and DVB-T modulation.



Dual HD Input Modulator(With ISDB-T and DVB-T)

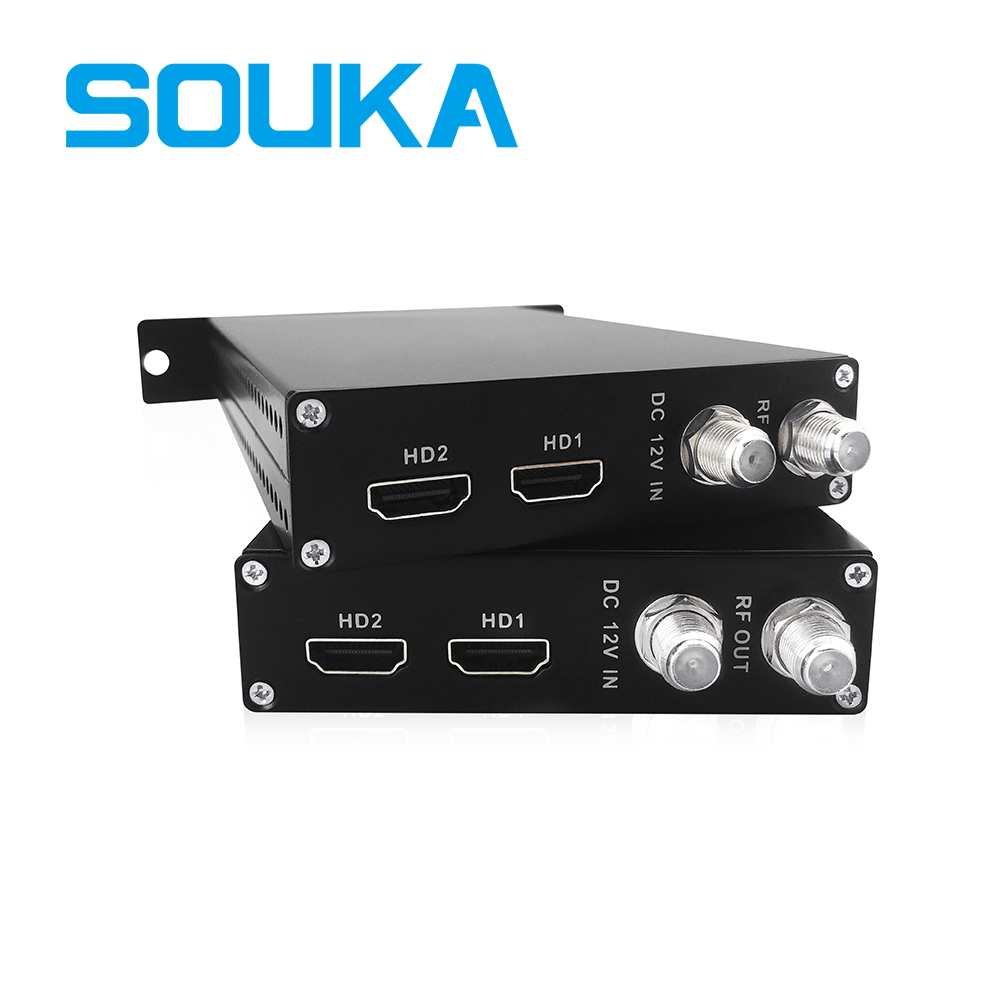

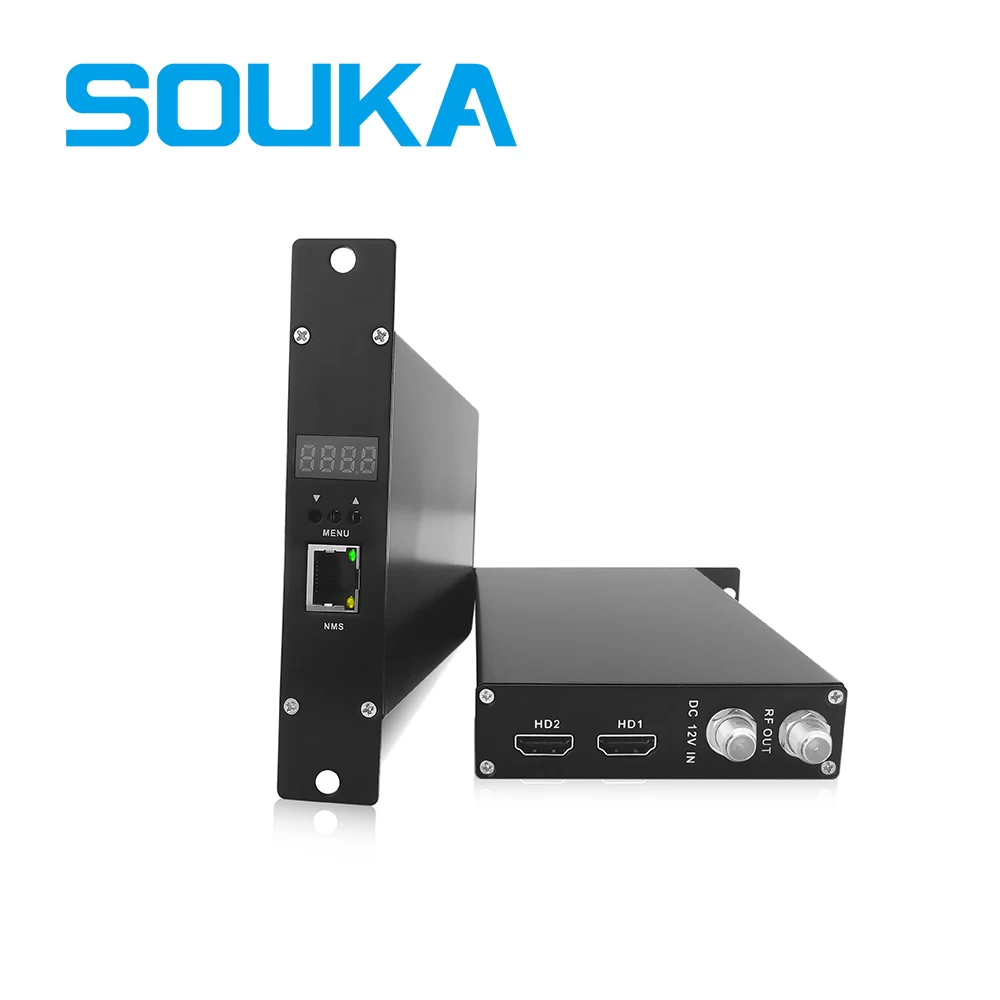

The SKD296X digital modulator is a dual HD input encoder modulator with H.264 encoding. The built-in encoder can take in 2 HD signals and outputs in 1RF after mulitplexing and modulation. It is the best choice to distribute the sport and commericals into your ISDB-T and DVB-T TV system. It is recommended to install them into our SKD-M2 chassis to constitute a small system of 16 channels with 32 TV programs for money-saving.


Dual HD Input Modulator With ISDB-T and DVB-T Modulation


1. Support HD inputs up to 1080P and output a stable quality image

2. Support remote key ID insertion

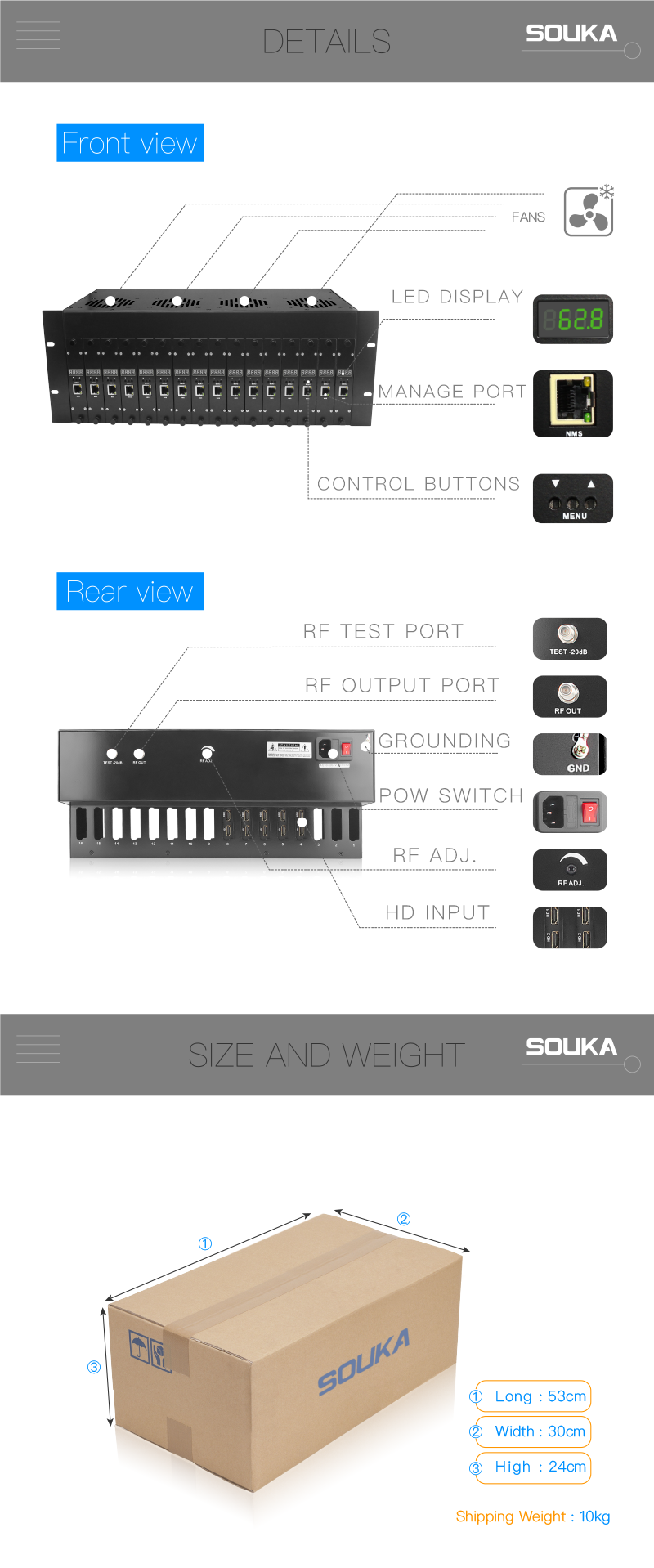

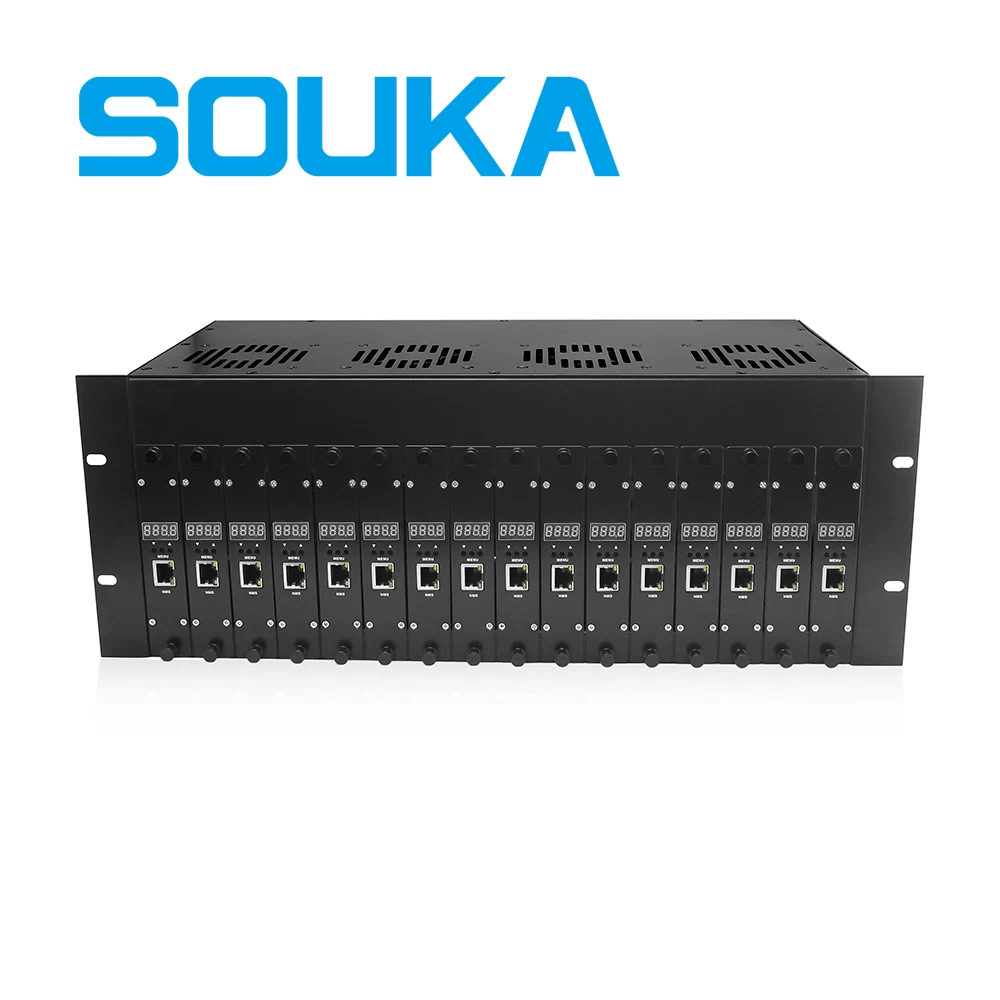

3. Support SKD-M2 combiner chassis integrated into the 16 in 1 headend system

4. Operated and control via Android / iOS APP and NMS

5. Simple step-by-step configuration by front panel buttons


Dual HD Input Modulator


ENCODING

Input Connector

HD 1.4

VIDEO

Encoding

H.264

Input Resolution

1920*1080_60P; 1920*1080_50P; 1920*1080_60i;

1920*1080_50i; 1280*720_60P; 1280*720_50P

Bitrate

2 ~ 18 Mbps

AUDIO

Encoding

MPEG 1 Layer II

Sample Rate

32 / 44.4 /48K

Bitrate

384kbps

MODULATION

DVB-T

Standard

DVB-T COFDM

Bandwidth

6 /7 /8 M

Constellation

QPSK, 16QAM, 64QAM

MER

≥ 32 dB

Transmission Mode

2K, 4K, 8K

Code rate

1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval

1/32, 1/16, 1/8, 1/4

ISDB-T

Standard

ARIB STB-B31

Bandwidth

6 M

Constellation

DQPSK,QPSK, 16QAM, 64QAM

MER

≥ 32 dB

Transmission Mode

2K, 4K, 8K

Code rate

1/2, 2/3, 3/4, 5/6, 7/8

Guard Interval

1/32, 1/16, 1/8, 1/4

OUTPUT

RF

Output Level

≥ 30dBmV

Output Frequency Range

50 ~ 999.999MHz

Out-band Rejection

≥ 60dB

SYSTEM

Management

Control Keys; NMS; APP

LCN Insertion

YES

Language

English

Upgrade

NMS

GENERAL

Power Supply

DC12V 2A

Power Consumption

< 10W

Net Weight

0.36 KG

Dimension

136*165*25 (mm)
