Dual Inlet AC 230V Drinking Bottled Water System UK Plug
Description
Whaleflo Dual Inlet Bottle Water Dispensing System Design For Home And Commercial Applicances.
Works well for Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks.It Makes Water Supply More Convenient.
Features
Auto power off.
Low light consumption
Automatic pump operating Easy bottle change
UK/US/EU Plug optional.
Connect to your filtration kit/espresso machine easy
CE/Rohs/FDA/NSF,also with 12 months warranty.
Specification
|
Model
|
GPM
|
Max
PSI
|
Outlet
|
Tubing
|
Volts
|
Amps
|
Cycle
|
Cord
|
Dimensions
(H x W x D)
|
Wt
(kgs)
|
|
BW1000A
|
1.0
|
40
|
1/4"
|
20'
|
115
|
0.5
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW2000A
|
1.0
|
40
|
1/4''
|
20'
|
220
|
0.25
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW3000A
|
1.0
|
40
|
1/4''
|
20'
|
12
|
5
|
|
6'
|
3.0" x 5.5" x 7.5"
|
3.5
|
|
BW4003A
|
1.0
|
40
|
1/4''
|
20'
|
115-240
|
0.5
|
50/60
|
6'
|
3.0" x 5.5" x 7.5"
|
3.3
|
|
BW2020A
|
1.0
|
40
|
1/4"
|
20'
|
220V/115V
|
0.25
|
50/60
|
6'
|
3.0"x5.5"x 7.5"
|
3.5
|
HOW Bottled Water Dispensing System Works
Whaleflo Bottled water pump for refrigerator Similar to Flojet Bottled Water Dispensing System was designed to pump puried waler from a commercial 5-gallon purified water bottle. The system will deliver the water under pessure to an idvidual drinking watar faucet,the water inlet of a refrigerator for the ice maker and chilled drinking water tap, and to certain commercial coffe/tea brewers.

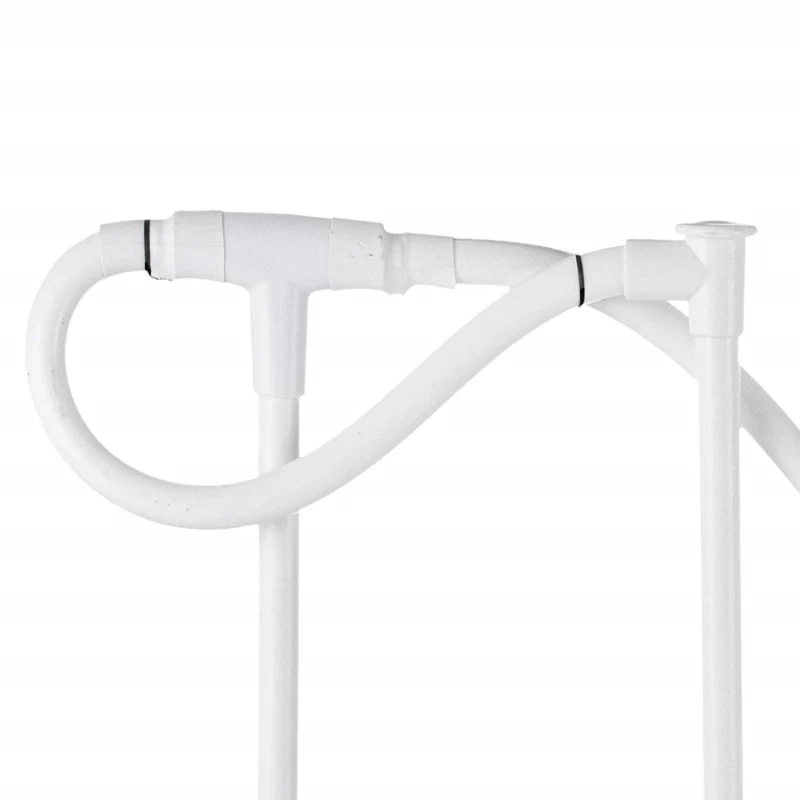

When the suction wand is inserted into the standard 5-gallon bottle, it will activate the float switch on the end of the wand and turn on the pump. This same float switch shuts off the system when the bottle is empty. The wand has a built in back-flow preventor valve that prevents water in the system from flowing back into the bottle, or spilling while changing bottles.
The heart of the system is the pump module that automatically adjusts the flow and pressure to fill an appliance or faucet, and stops automatically.
The system is equipped with an automatic thermal cut-off device for additional protection.
Application

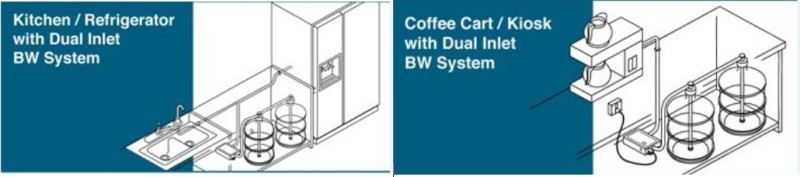

Convenient for water inlet of a refrigerator, coffee & Tea machine,sink etc
TROUBLESHOOTING
System Will Not Dispense Water
-
Check on/off switch position
-
Check power to dispensing system
-
Check location of suction wand in bottle
-
Check for empty bottle
-
Check for air in system
Discharge Tube Leaks At Fitting
-
Push tube all the way into tube stop
-
Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
-
Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.
System Gets Warm and Turns Off
-
Check the float switch
-
Check for leaks in discharge tube
System Will not Shut-Off
-
Check for leaks in tubing system
-
Check for leaks at bube fittings
-
Check for leaks at faucet,ice maker or refrigerator water valve
-
Check pressure switch by turning faucet off and on
-
Check float switch position in bottle
System Continually Turns Off and On While in Use
-
Check for restriction devise at appliance inlet.
-
Check for filter unit in line.
-
Check for internal filters in the refrigerator
