ETL CE approved 24V 12V dual output 400W switching power supplies
Description:
K18-UP400D24+12 dual output series 400W 24V 12V power supplies with the 90-264Vac input voltage，built-in active PFC function and high efficiency, free air convection for 350W and forced air convection for 400W.
Features:
1, 400W high efficiency24V 12V dual output switching power supplywith low interference;
2, Built-in active PFC function;
3, This 24V/15A, 12V/3.4A dual output power supply with wide range of AC input voltage;
4, This dual 24v 12v 400w smps have short circuit, over load, over voltage,over hearting protection;
5, 400W 24V 12V power supply used in LED driver, stage lighting and etc.
|
Parameter
|
|
Item NO.
|
K18-UP400D12+24
|
K18-UP400D12+28
|
K18-UP400D24+12
|
|
CH1
|
CH2
|
CH1
|
CH2
|
CH1
|
CH2
|
|
Output
|
Output voltage
|
+12V
|
+24V
|
+12V
|
+28V
|
+24V
|
+12V
|
|
Rated current
|
30A
|
1.7A
|
24A
|
4A
|
15A
|
3.4A
|
|
Current range
|
0-33A
|
0-5A
|
0-16A
|
0-5A
|
0-16A
|
0-5A
|
|
Rated power (natural air cooling)
|
350W
|
|
Rated power (forced air cooling)
|
400W
|
|
Ripple
|
200mVp-p
|
300mVp-p
|
200mVp-p
|
300mVp-p
|
240mVp-p
|
200mVp-p
|
|
Adjustable output range
|
CH1:±5%
|
|
Output Accuracy
|
±1%
|
±5%
|
±1%
|
±5%
|
±1%
|
±5%
|
|
Line Regulation
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
|
Load Regulation
|
±0.5%
|
±5%
|
±0.5%
|
±5%
|
±0.5%
|
±5%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,5ms
|
|
Input
|
Input voltage range
|
90-264V AC
|
|
Input Current
|
3A @ 220V AC
|
|
Frequency
|
47-63 Hz
|
|
Efficiency
|
92%
|
92%
|
92%
|
|
Power factor
|
>0.99@110V;>0.95@220V
|
|
Inrush current
|
Cold start 15A/115V，30A/230V
|
|
Leakage Current
|
<3.5mA@240V AC
|
|
Protection
|
Overload protection
|
110~200%,Hiccup protection, automatic recovery
|
|
Output overvoltage protection
|
15-18V
|
15-18V
|
28-33V
|
|
Over temperature protection
|
Theoutercase temperature＞105 ° C, the output is off, and it is automatically restored
|
|
Other Function
|
-------
|
-------
|
|
Environment
|
Working temperature, humidity
|
-20~60℃(follow the load shedding curve)，10~90% RH，No condensation
|
|
Storage temperature, humidity
|
-20~85℃，10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standard
|
GB4943,EN60950-1:2006
|
|
Withstand voltage
|
I/P-O/P:3KVAC； I/P-FG:1.5KVAC； O/P-FG:500VAC
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standards
|
EN55015 CLASS B; EN61000-3-2
|
|
Others
|
Dimension
|
127*82*39mm
|
|
Weight
|
0.6Kg
|
|
Notes
|
1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: test load output from 0% to 100% load change measured.
|

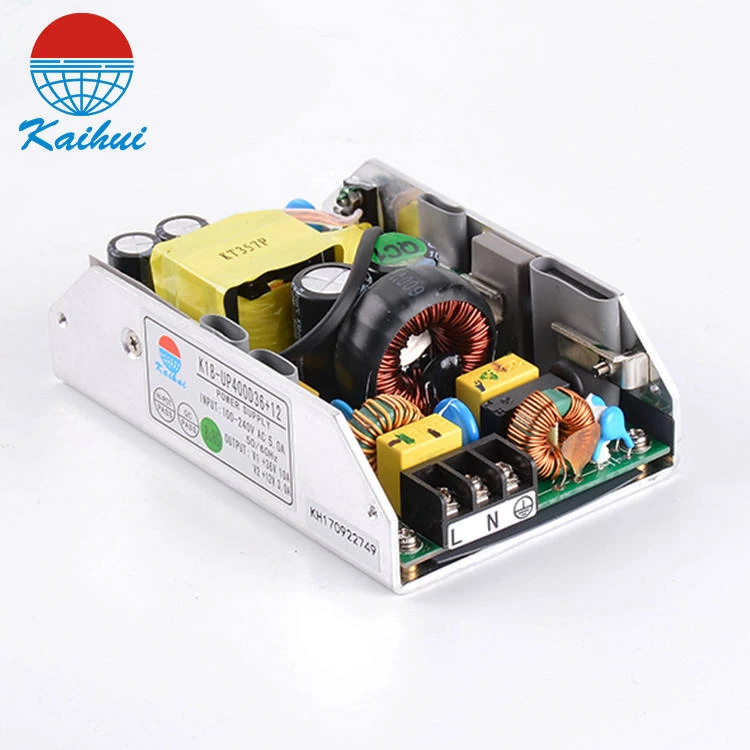

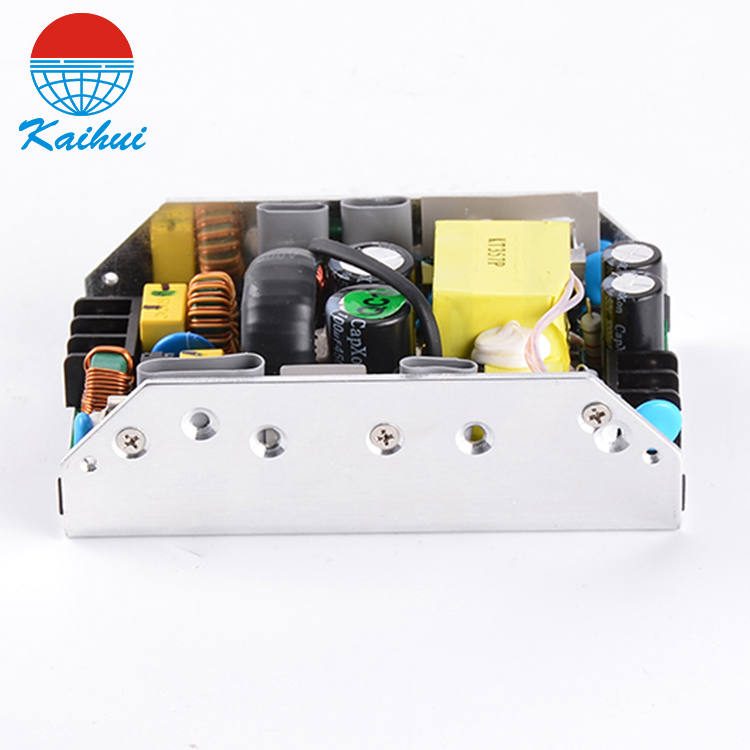

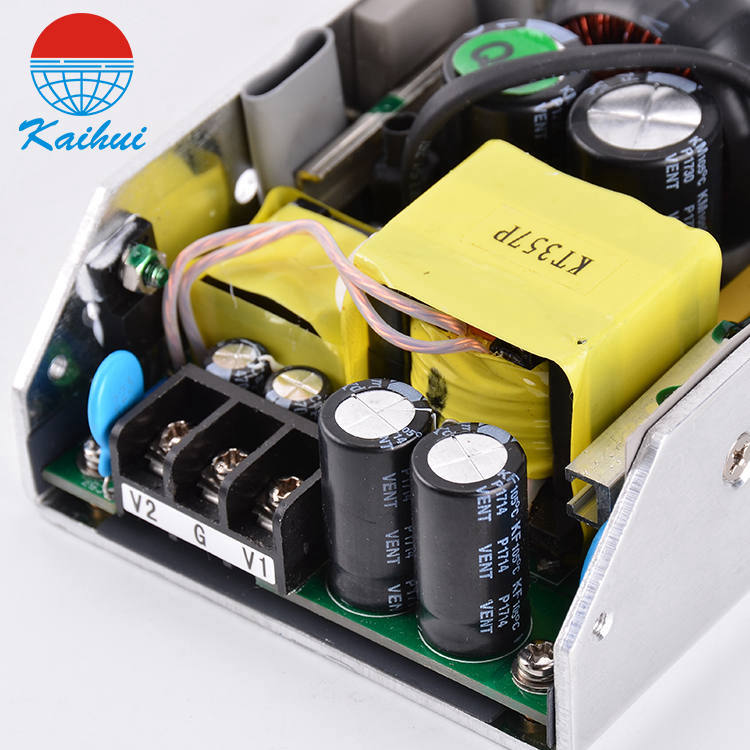

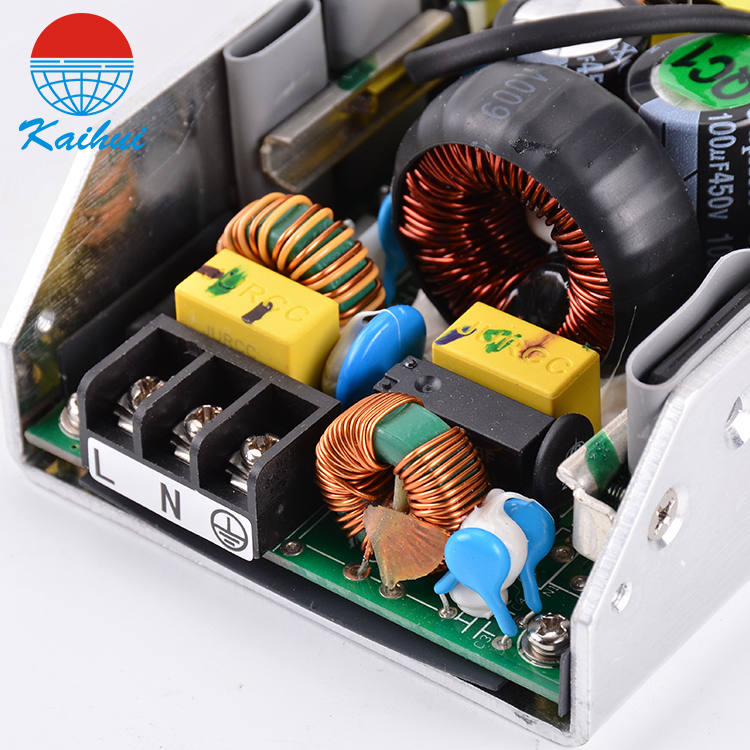

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
