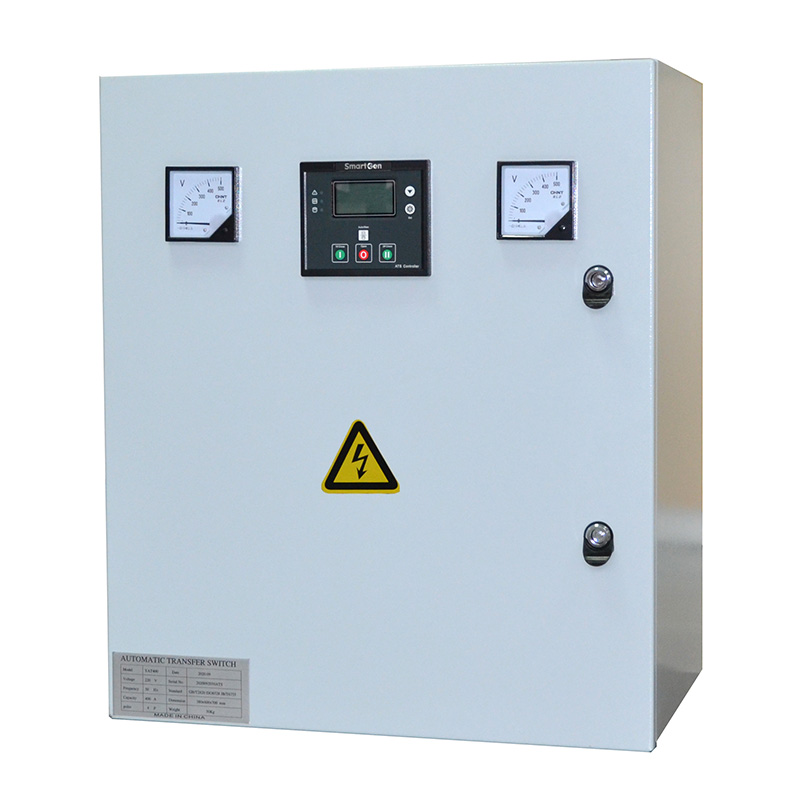

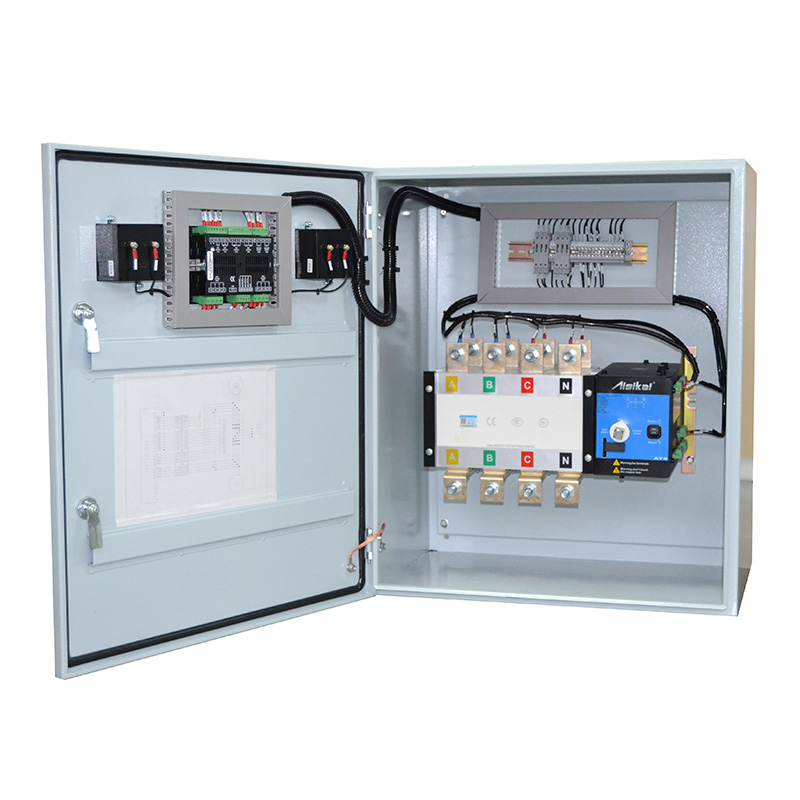

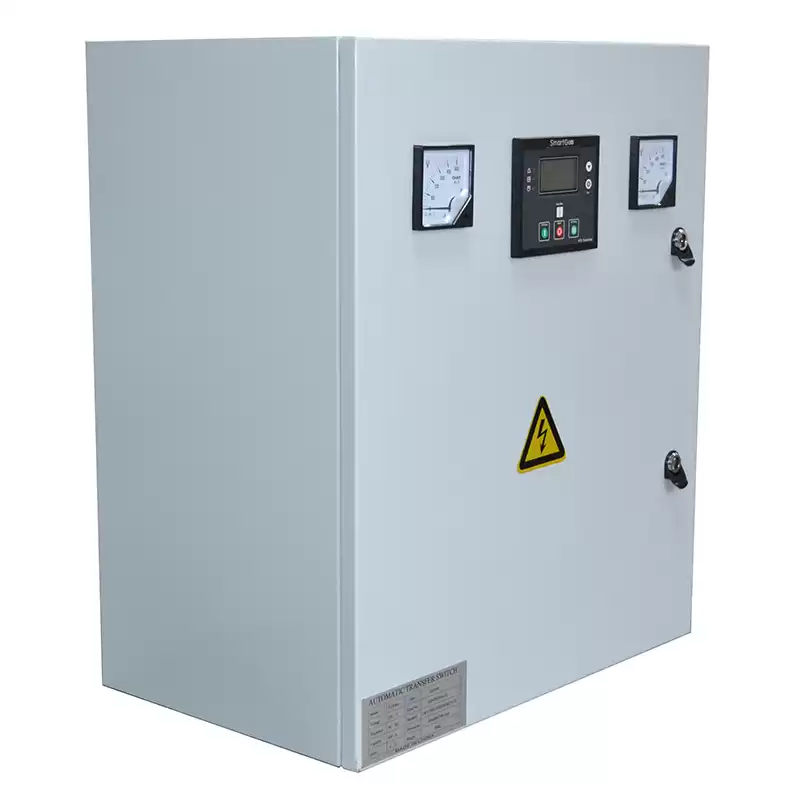

Dual Power 400A 3P 4P Automatic Power Changeover Switch Genset ATS

Dual Power Changeover Switch 40A-3200A For Diesel Generator



Dual Power 400A 3P 4P Automatic Power Changeover Switch Genset ATS

Main Advantages

The movable and static contacts are made of 99.99% high-purity T2 copper, the outer casing is made of SMC or ABS material, and the three-proof process is used. The AC-33A grade product has high reliability and long service life;

During the conversion process and after the closing, the pressure between the moving and static contacts is constant, and the equipment failure caused by the high voltage pulse generated by the bumping or shaking of the contact is minimized;

The current coverage range is 20A-4000A, which can easily meet the diversified load requirements of civil, industrial and commercial applications. It is applicable to the first, second and third-level distribution network systems in the low-voltage power distribution field.


ATS Specifications:

Manufacturer

XIAMEN AI POWER TECHNOLOGY CO., LTD.

ATS module Brand

Aisikai

ATS model

YAT400

Capacity(A)

400

Voltage(V)

127V-480V

Poles

4 poles

Type

Double Power

Type

PC




SKT series automatic transfer switch is the most advanced third generation ATS. It's of PC Class (one-piece structure). SKT standard type is able to operate the current from 20A to 3200A.

Its use category reaches the highest AC-33A, is suitable for reliable

STANDARDS IEC60947-6-1, GB/T14048.11

FEATURES

  • Voltage and Switch Working Conditions Indications Using LED

  • External Replaceable Fuses, Easy For Maintenance

  • Built-in Microprogrammed Control Unit Realise Voltage Dectection Function

  • Silver Plated High Purity Copper Bars

  • Brige Connect Structure on Load Side

  • Three-Sections Design (I – 0 – II), Zero Position For Dual Powers Off

  • Pluggable Wiring Terminals

  • Mechanical Interlock & Electrical Interlock


FAQ

1.Are you a factory or trading company?

A: We are a factory.

2.What is the material of your products?

A: Iron, Steel, plastic, etc.

3.How about quality control in your factory?

A: AI people are always paying great attentions to quality controlling from the beginning to the end.

4.How about your guarantee?

A: Our warranty period is 1 year or 1000 running hours, whichever comes first.



Product Tags 400a ats          Electrical Changeover Switch          400a automatic transfer switch          Dual Power Automatic Transfer Switch Ats          Automatic Ats Dual Power Transfer Switch          Dual Power Ats
