Description:

Often the delivery urgency of Trucks gets affected in absence or due to delay of supporting loading or unloading equipment. What if the Truck gets its own power of self-loading and unloading? That is why we called Truck Mounted Crane - The Ultimate Loading and Unloading Solution for Trucks



Areas of Application and Use:

   General Materials Lifting of various size and load with standard Hook arrangement for Construction Sites / Mines / Projects / Logistics Requirements

   Handling Concrete Block for Building / Projects through Rotary Brick Clamp

   Man Lift or Cherry Picker for Maintenance on Electricity Poles / Overhead Lines etc, thru Person Carrying Basket

   Erection of Light Post through Auger

   Handling of Wood Logs (Forestry)

   Garbage Handling with Clamshell Bucket

   Palletized Load Handling thru Pallet Fork

  Tyre Manipulator Application

  Scrap Handling through Orange Peel Clamp



Features:

  Adopt world-class ISUZU Chassis, High power and Fuel efficiency, Reliability, Uptime

  All Structural made of High Strength Steel

  Easy to mount and Minimum space required for Mounting

  Can be Mounted Behind the Cabin or Rear Part of Load Body, thus Truck Load

  Optional Chassis 4x2, 6x4,8x4 and engine power

  Optional Crane brand:  XCMG, UNIC, PALFINGER, HIAB

  Optional Crane type:  Telescopic boom crane or knuckled boom crane

  Radio Remote Control Available as an Optional Fitment

  Top Seat Control are optional  (where the Operator Seat is attached to the Main Boom)

  Crane capacity :  2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons



Main specifications:

Model

16Ton

Unit

Max Lifting Moment

40

t.m

Max Lifting Capacity

16000

kg

Recommend Power Needed At Recommend Oil Flow

37

kw

Max Oil Flow of Hydraulic System

63

L/min

Rated Pressure Of Hydraulic System

31.5

MPa

Oil Tank Capacity

250

L

Rotation Angle

(360°) All Rotation

Crane Weight

4780

kg

Installation Space

1500

mm

Choice of Chassis

ISUZU, HINO or Other Brand

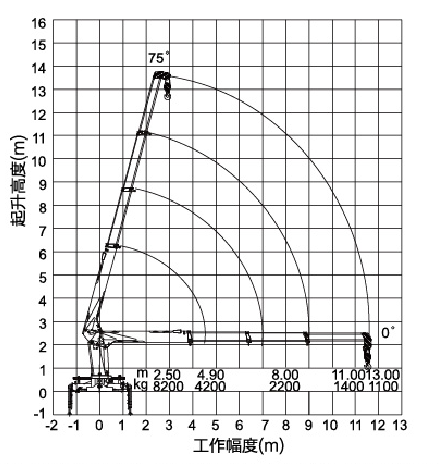

SQ16ZK4Q Lifting capability diagram

Working radius(m)

2.5

4.098

5.898

7.748

9.618

11.518

Lifting capacity(kg)

16000

9600

6600

4850

3500

2600

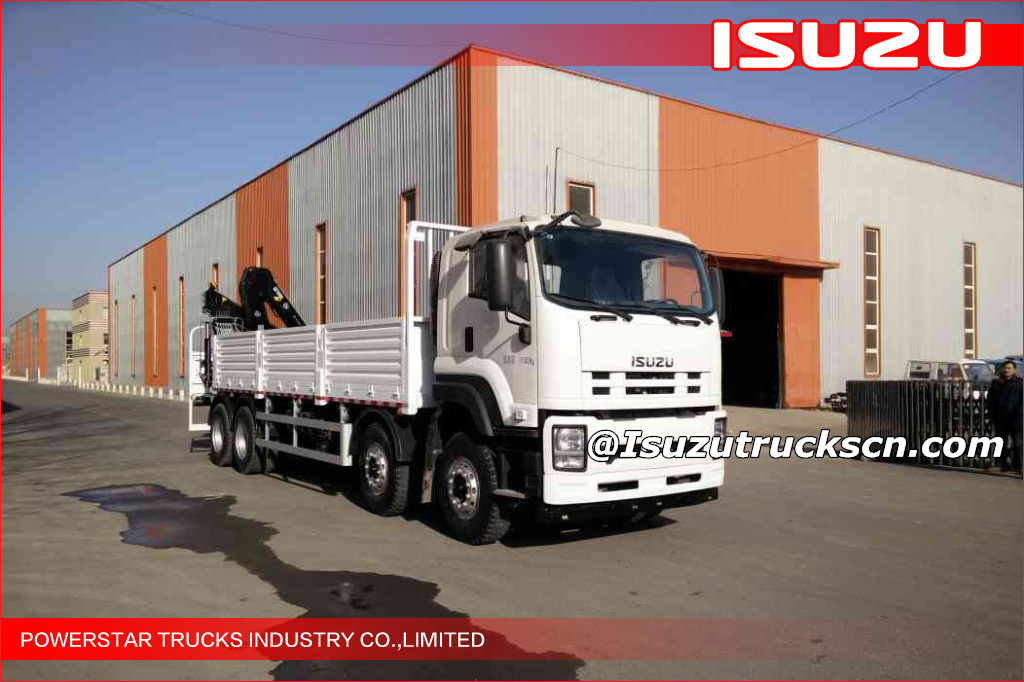

Durable Isuzu 8*4 Mobile 16T Knuckle Boom Truck Mounted Crane

Durable Isuzu 8*4 Mobile 16T Knuckle Boom Truck Mounted Crane

Recently Built Crane Trucks:

Isuzu Truck with crane Telescopic boom crane Isuzu cargo body crane lorry trucks


Isuzu Truck with crane Telescopic boom crane Isuzu cargo body crane lorry trucks


Isuzu Truck with crane Telescopic boom crane Isuzu cargo body crane lorry trucks


Isuzu Truck with crane Telescopic boom crane Isuzu cargo body crane lorry trucks


Isuzu Truck with crane Telescopic boom crane Isuzu cargo body crane lorry trucks


Isuzu Truck with crane Telescopic boom crane Isuzu cargo body crane lorry trucks


Optional parts:

1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
