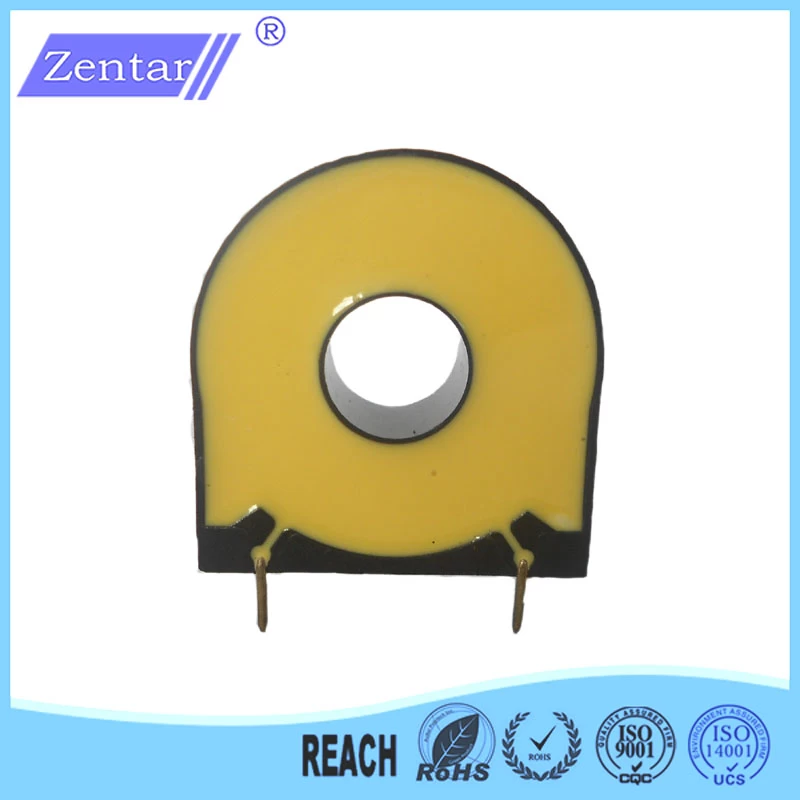

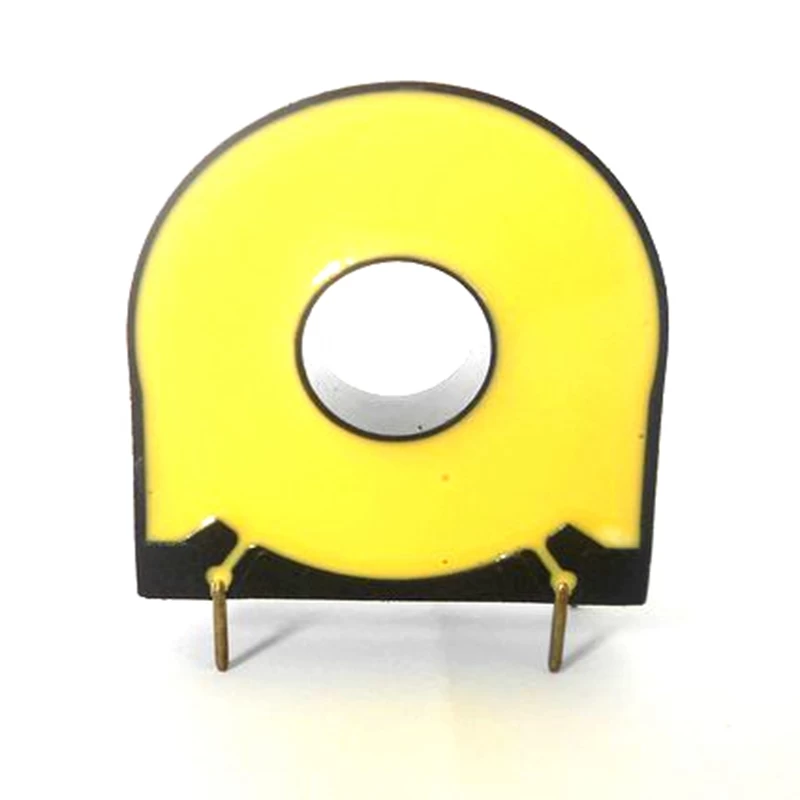

Durable PCB precision current transformer

﹡High precision,wide linearity range for output current

﹡Small size and elegant looking
﹡Mount directly to PCB
﹡A variety of configuration and output characteristics

﹡Used for electric metering



Durable PCB precision current transformer


Rated Primary Current 70A
Max Primary Current 120A
Rated Secondary Current 2mA
Accuracy 0.1~2.0
Electrical Strength 3000VAC 1mA60s
Load Resistance 20Ω
Rated Frequency 50/60HZ
Durable PCB precision current transformer


Electrical Characteristics

Model No.

Electrical Characteristics

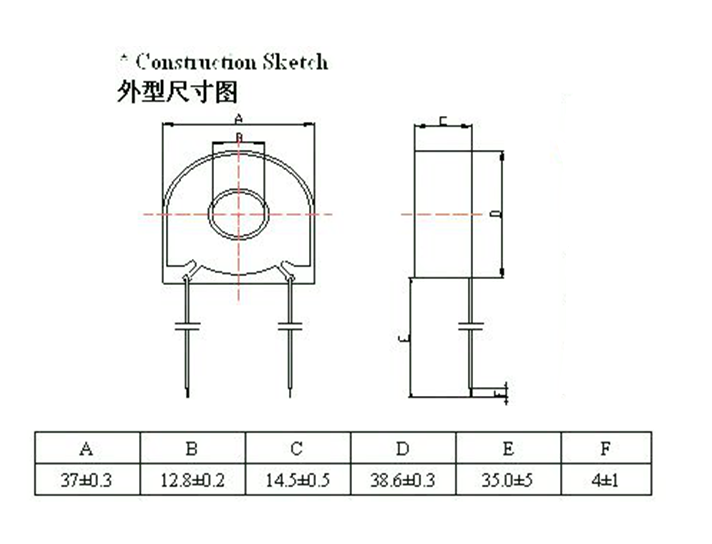

Dimension(Unit: mm/inch)

Standard PN

Current Ratio

RL(Ω)

Accuracy Class

A

B

C

D

E

F

Pin

506

10A/5mA
(max10A)

10

0.5
1

5

17

9.5

20

12.5

11.5

0.8

PCT506N200

0.197

0.669

0.374

0.787

0.492

0.453

0.031

516

5A/5mA
(max10A)

10

0.5
1

7

17

7

19

2.5

13.8

0.8

PCT516N100

0.276

0.669

0.276

0.748

0.098

0.543

0.031

701

10A/5mA
(max60A)

10

0.2
0.5

23.5

7

11

24.75

15.2

19

1.0

PCT701N200

0.925

0.276

0.433

0.974

0.598

0.748

0.039

702

20A/10mA
(max80A)

10

0.2
0.5

26

9

17

28

15

19

1.0

PCT702N200

1.024

0.354

0.669

1.102

0.591

0.748

0.039

703

20A/10mA
(max150A)

20

0.1
0.2

37.2

13

14

38.6

25

32.5

1.0

PCT703N200

1.465

0.512

0.551

1.520

0.984

1.280

0.039

704

20A/10mA
(max60A)

20

0.1
0.2

8

24.2

11.8

25.4

15.2

-

0.8

PCT701N200

0.315

0.953

0.465

1.000

0.598

-

0.031

710

5A/2.5mA
(max25A)

10

0.1
0.2

24

8

11.8

25

15.25

10

0.8

PCT710N200

0.945

0.315

0.465

0.984

0.600

0.394

0.031

713

20A/10mA
(max180A)

10

0.5%
1%

9.5

24.8

7.5

26.8

15.25

12.4

□0.64

PCT713S200

0.374

0.976

0.295

1.055

0.600

0.488

0.025


Characteristics Curve



Testing


Packing and Shipping
