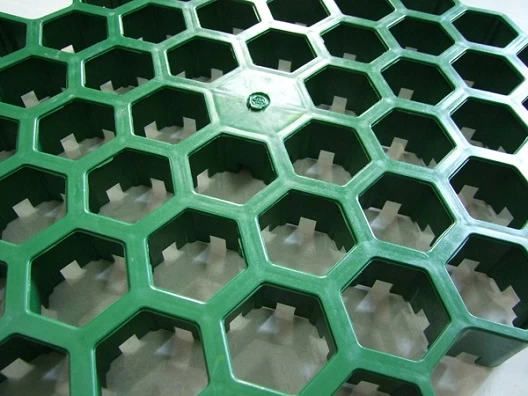

Durable Plastic Grass Paving System Specification:
| Item Code |
MZ-438A3 |
| Certificate |
CE Certificate, ISO Certificate |
| Material |
HDPE |
| Size(L x W x H) |
465x535x38mm |
| Color |
Green |
| Working Temperature |
Dimensionally stable for -40℃ to 90℃ |
| Afforests Rate |
95%~100% |
| Porosity |
90% |
| Moisture Absorption |
0.1% |
| Environmental Compatibility |
No toxic, harmless to plants, animals, microorganisms, inert material, groundwater neutral |
| Anti HCL |
According to GB4218-1984, 30%x24h, no visible change |
| Anti NaOH |
According to GB4218-1984, 40%x24h, no visible change |
| Thermal Aging |
According to GB/T 7141-1999, 70ICx24h, no visible change |
| Anti UV |
According to GB/T18830, UPE>30 T(UVA)AV<5%, qualified |
| Packing |
Bundle or Carton (or at your request), 8pcs=2sqm=1bundle |
| MOQ |
100sqm |
| Loading Capacity |
940sqm=1x20ft container; 1910sqm=1x40ft container; 2300sqm=1x40HC container |
| Shipping |
About 20 days after receipt the deposit.
FOB Xiamen, appointed shipping-terms and port accept.
|
| Installation Guide |
 |
Feature and Benefits:
- Manufactured from 100% recycled plastics, eco-friendly grass grids
- Flag plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change
- Perfect greening, provides more than 95% grass area
- High compressive strength and durable, the plastic grass grids is permanent and long lasting
- Fast and easy to install, maintenance with low cost
- Permeability drainage performance, high water culvert
- Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure
- Grass grids has an open cell structure allowing unrestricted healthy grass root growth
- Allows grass grid to grow with easy and binds firmly
Manufactured from 100% recycled HDPE material, Leiyuan Grass Paving System are an interlocking celluar paving grid system for grass and ground reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.
Plastic Grass Paving System can appear to be indistinguishable from non-porous pavers, this is one of its advantages. They are a very attractive option for use on paths, driveways, terraces, parking areas or low-speed low-volume roadways.

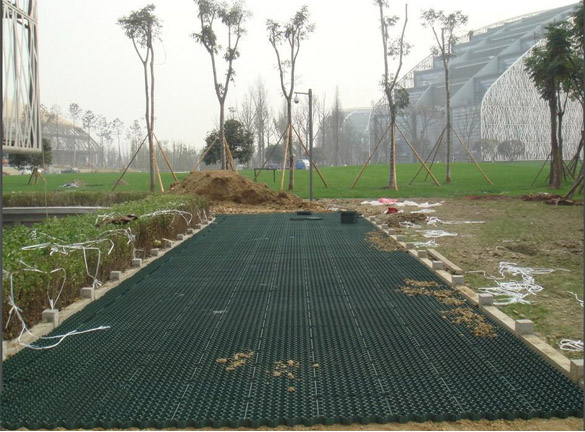

Paving System Construction:
Leiyuan Plastic Paing System Grass Grid: High Strength, Long Life Service !
