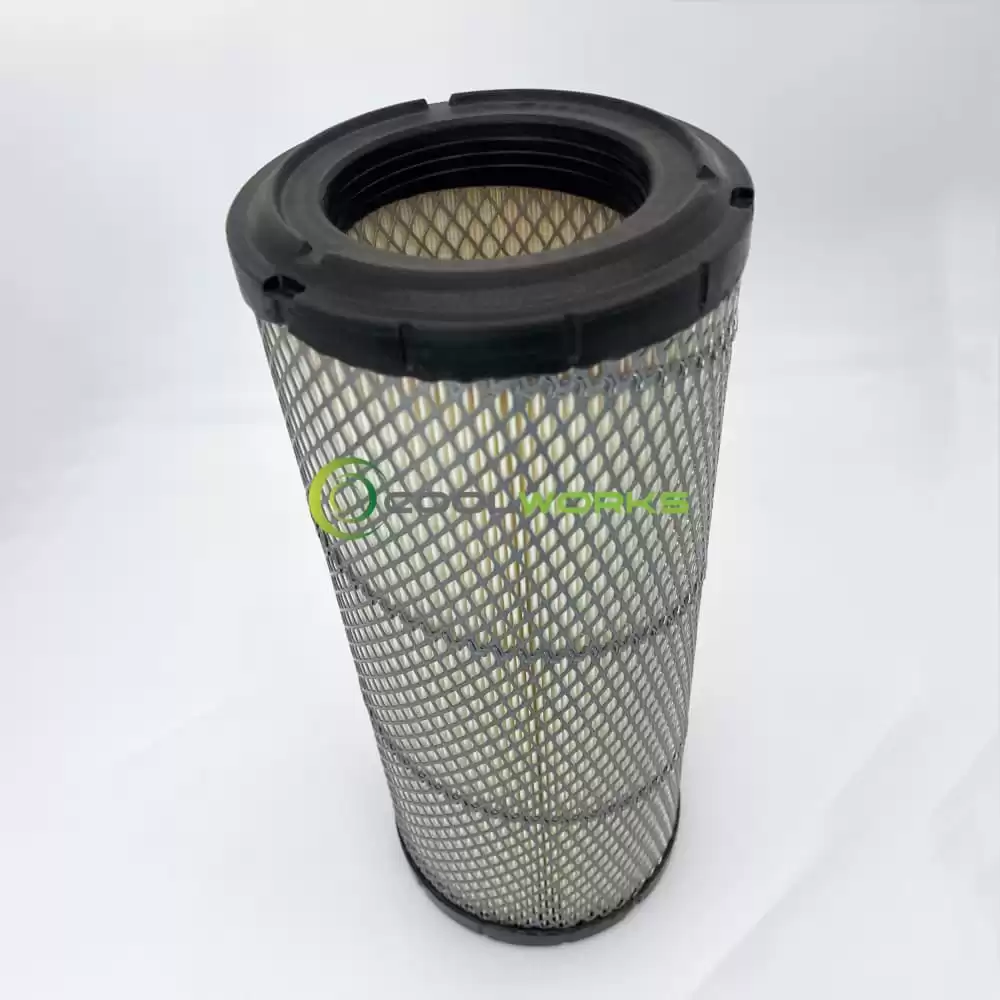

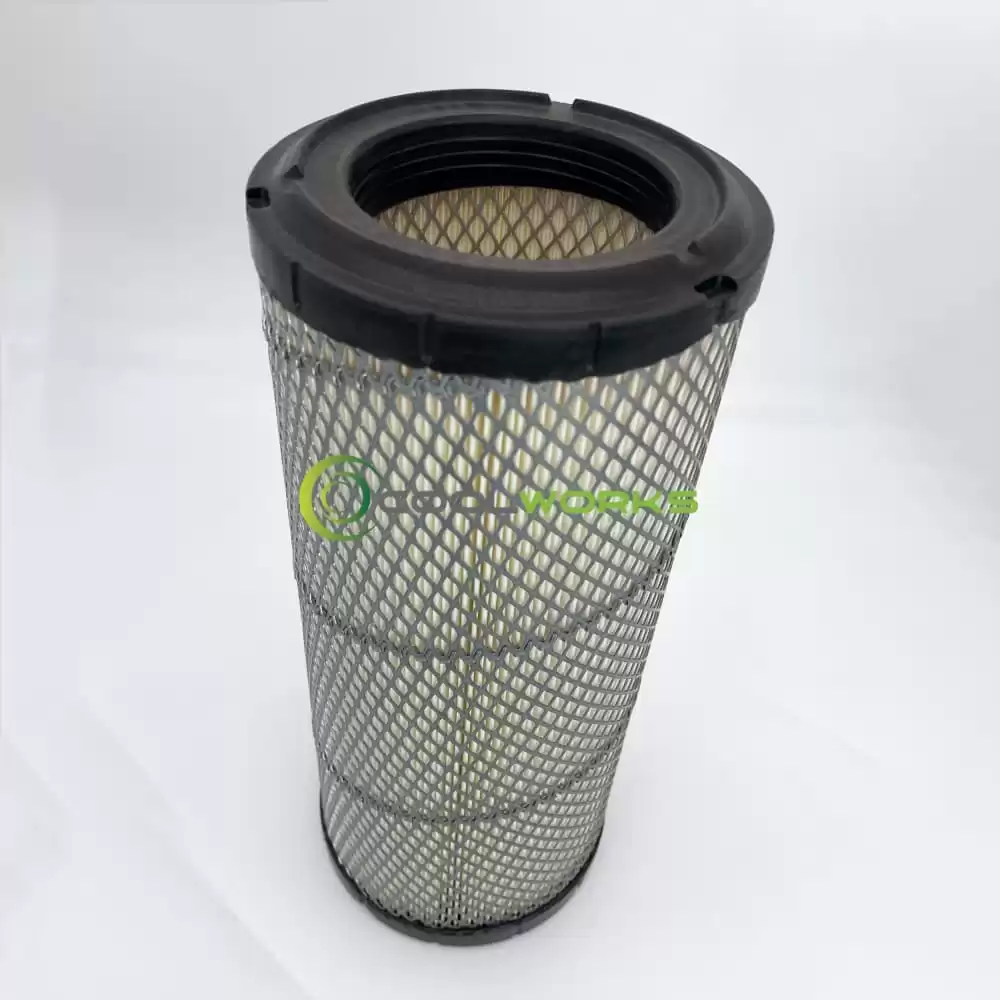

Dust Collector Element Polyester Fiber Air Filter Filter Cartridges 1310033926

Hot selling high quality air filter 1310033926
Coolworks filters can customize air compressor fittings to your needs.
Trust in Coolworks reliable products to keep your air compressor running smoothly.

Air filter standard specification
Air flow(m³/min)	OD d1(mm)	Flange d2(mm)	ID d3(mm)	Height h(mm)
3.5	135	170	75	160
4.5	135	170	75	200
6.8	135	170	75	305
5.0	170	200	109	180
6.5	170	200	109	230
9.0	170	200	109	305
12	170	200	109	400
9.0	220	273	157	230
12	220	272	157	305
16	220	288	157	400
25	220	272	157	612
15	275	328	209	305
20	275	328	209	400
25.5	275	328	209	500
16	300	355	220	305
22	300	355	220	400
28	300	355	220	500
32	300	355	220	540
34	300	355	220	600
40	300	355	220	700
40	350	430	265	550
39	400	434	314	520
43	400	439	314	600
46.5	400	434	314	620

The above is a general parameter table for Coolworks air filters.
If you need special air filters, Coolworks supports customization, please contact us for details.
Xinxiang Coolworks air compressor filter, each product has undergone strict quality testing.

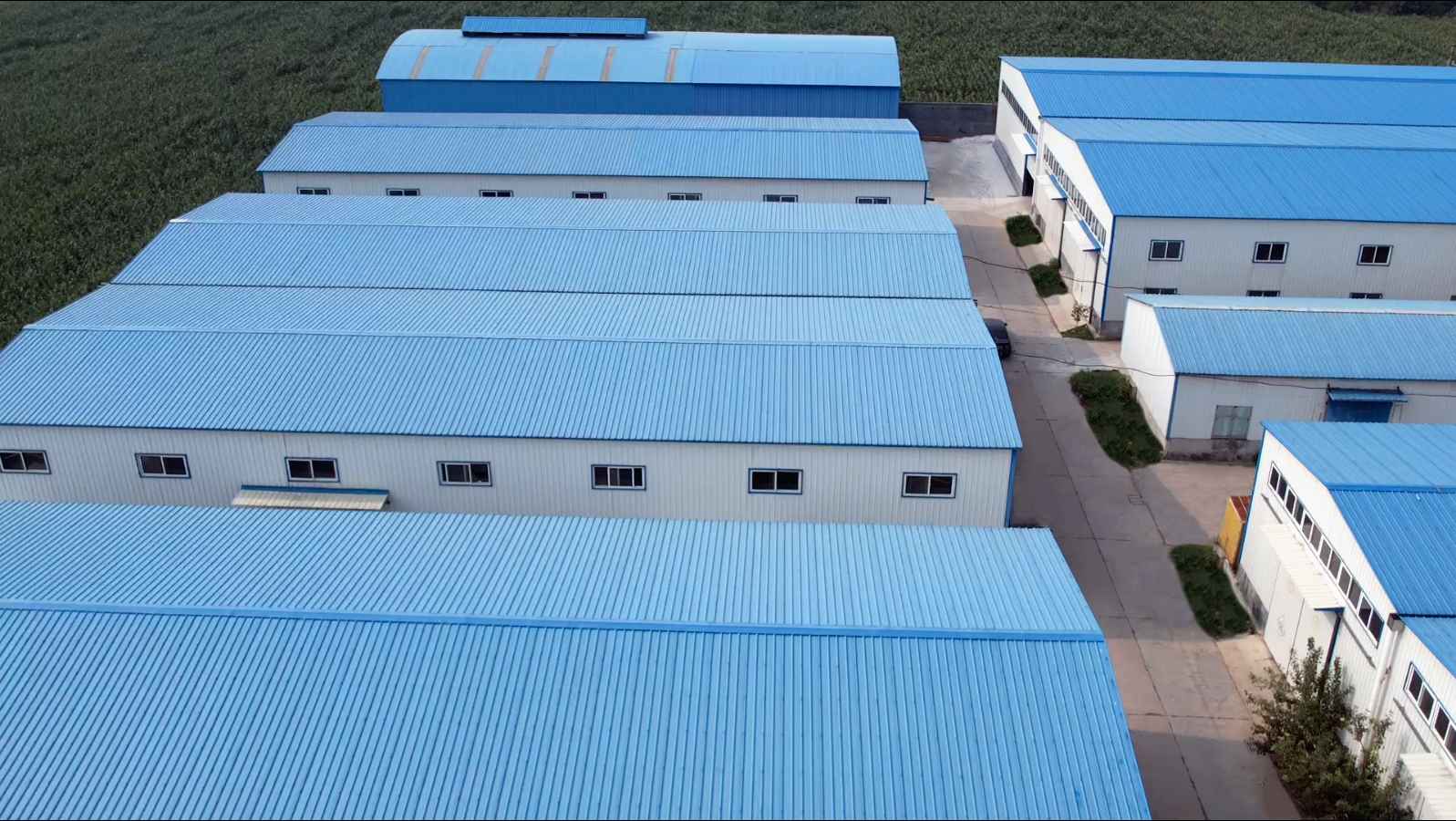

Air Compressor Oil Separator Manufacturer
