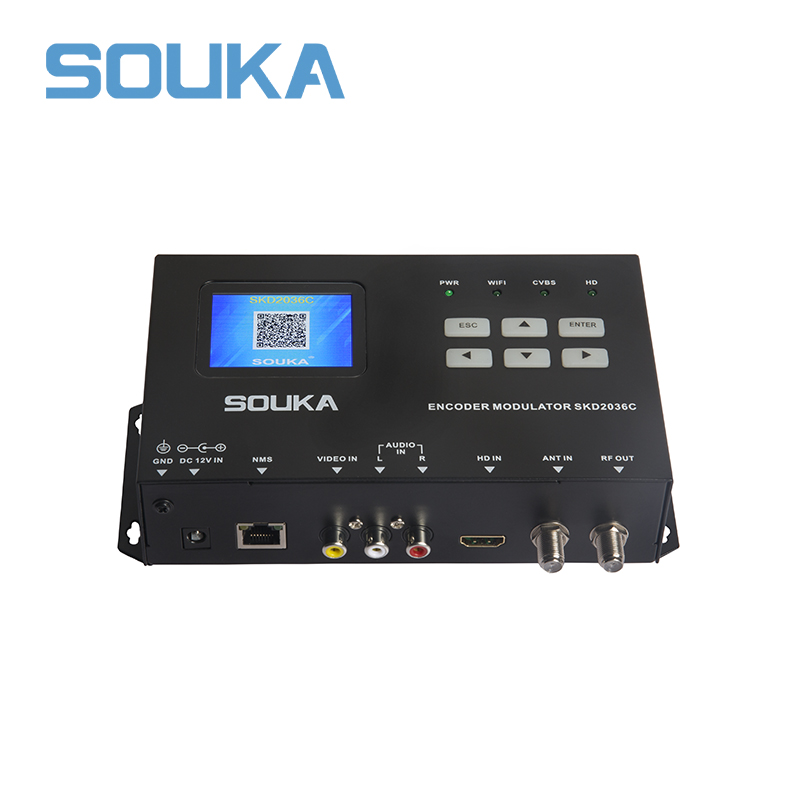

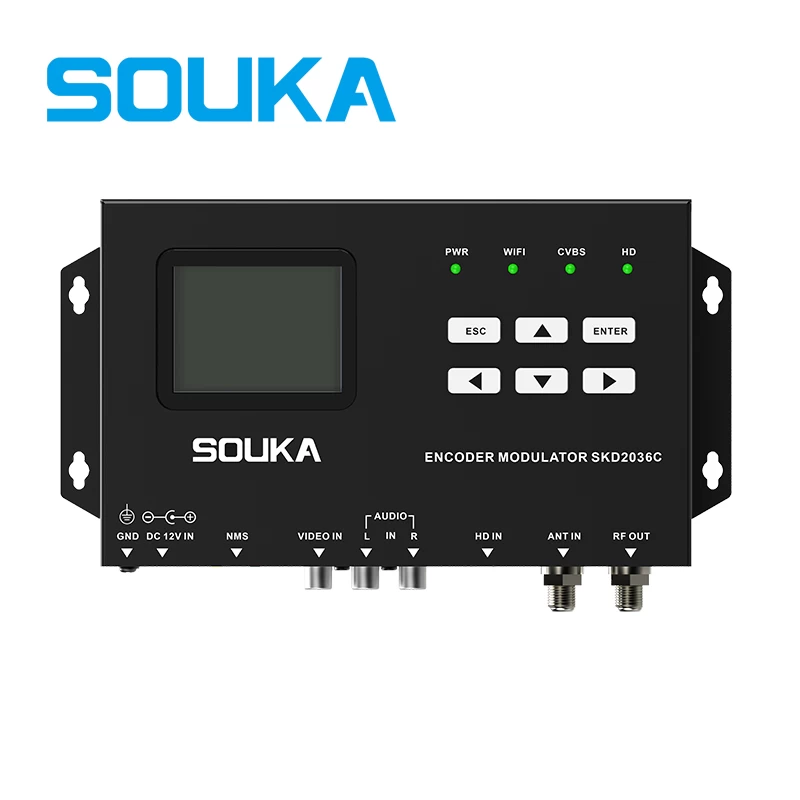

The SKD2036C is a wall mounted digital modulator, which works by offering the incoming HD signal or CVBS signal into the H.264 encoder and output as a standard DVB-T or ISDB-T RF signal. With the easy front panel control you can set up the system in minutes, which we also provide setting up by our Android and iOS APP.
1. Support H.264 FHD video encoding
2. Support DVB-T OR ISDB-T modulation
3. Support RF loopthrough
4. Support LCN mode selection
5. Upgrade by NMS
|
ENCODING
|
|
Input Connector
|
HD
1.4
|
|
VIDEO
|
Encoding
|
H.264
|
|
Input
Resolution
|
1920*1080_60P;
1920*1080_50P; 1920*1080_60i;
|
|
1920*1080_50i;
1280*720_60P; 1280*720_50P
|
|
Bitrate
|
2
~ 18 Mbps
|
|
AUDIO
|
Encoding
|
MPEG
1 Layer II
|
|
Sample
Rate
|
48KHz
|
|
Bitrate
|
384kbps
|
|
Input Connector
|
CVBS
|
|
VIDEO
|
Encoding
|
MPEG
1 Layer II
|
|
Input
Resolution
|
720*480_60i;
720*576_50i
|
|
Bitrate
|
|
|
AUDIO
|
Encoding
|
MPEG
1 Layer II
|
|
Sample
Rate
|
48KHz
|
|
Bitrate
|
384kbps
|
|
MODULATION
|
|
DVB-T
|
Standard
|
DVB-T
COFDM
|
|
Bandwidth
|
6/7/8
M
|
|
Constellation
|
QPSK,16QAM,64
QAM
|
|
MER
|
≥ 32 dB
|
|
Code
Rate
|
1/2,
2/3, 3/4, 5/6, 7/8
|
|
Guard
Interval
|
1/32,
1/16, 1/8, 1/4
|
|
Transmission
Mode
|
2K,4K,8K
|
|
ISDB-T
|
Standard
|
ARIB
STB-B31
|
|
Bandwidth
|
6M
|
|
Constellation
|
DQPSK,QPSK,
16QAM, 64QAM
|
|
MER
|
≥ 32dB
|
|
Code
Rate
|
1/2,
2/3, 3/4, 5/6, 7/8
|
|
Guard
Interval
|
1/32,
1/16, 1/8, 1/4
|
|
Transmission
Mode
|
2K,4K,8K
|
|
RF
|
Output
Level
|
≥ 30dBmV
|
|
Output
Frequency Range
|
100
~ 999.999MHz
|
|
Out-band
Rejection
|
≥ 60dB
|
|
SYSTEM
|
|
Management
|
TFT
+Control Keys; NMS; APP
|
LCN
Insertion
|
YES
|
|
Language
|
English
|
Upgrade
|
NMS
|
|
GENERAL
|
|
Power
Supply
|
DC12V
1A
|
Power
Consumption
|
<10W
|
|
Weight
|
1.5KG
|
Dimension
|
199*109*61.7
(mm)
|
