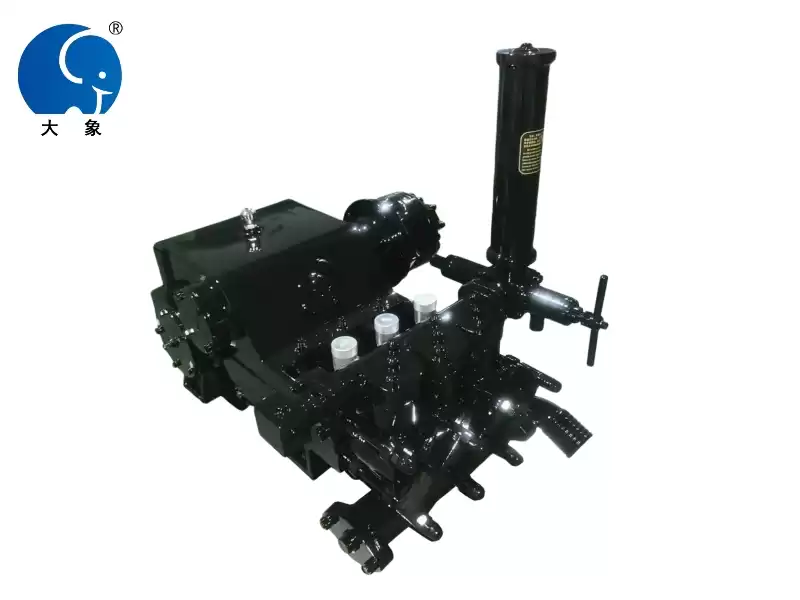

DXB-300 Plunger Mud Pump For 30ton HDD

DXB-300 Reciprocating mud pump mainly works with the drilling rig about 30ton.

DXB-300 Drilling mud pump is a kind of multi-purpose horizontal triplex reciprocating single-acting plunger pump, adopting double displacement hydraulic motor to drive.


It mainly works with the trenchless drilling rig about 30T. It can also be used for other purposes, such as grouting, mine drainage and long-distance water delivery.


Technical Parameters and Specifications:

Type Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump
Stroke (mm) 80
Cyclinder Diameter (mm) 85
Flow ( L/min) 300
Pressure (Mpa) 8
Input Speed (r/min) 460
Input Power (KW) 48
Dimensions (mm) 1041*938*1048
Weight (kg) 585
Hydraulic Motor Model 2-350
Hydraulic Motor Pressure (Mpa) 21
Maximum Motor Flow (L/min) 177

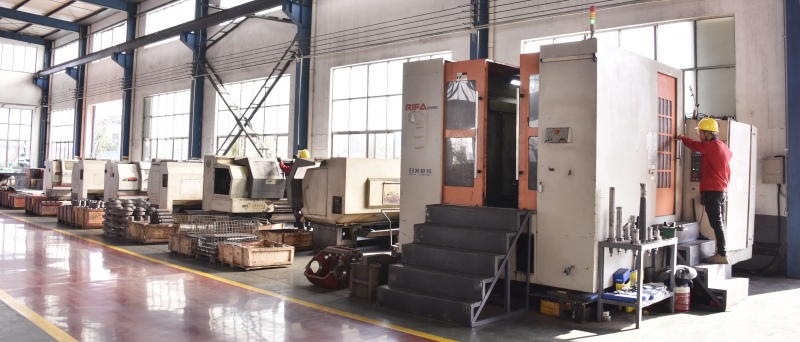

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.

    *  Professional Design Team:customizing the mud pump as per your requirements,such as the shape, color,etc.

    *  Production Team:guaranting the production time and the quality, never late for shipment.

    *  Sales and after-sales Team:1 Year Warranty; 24 Hours Online Service; Video Technical Support.

3 - Adopting advanced structure and new materials.

With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.

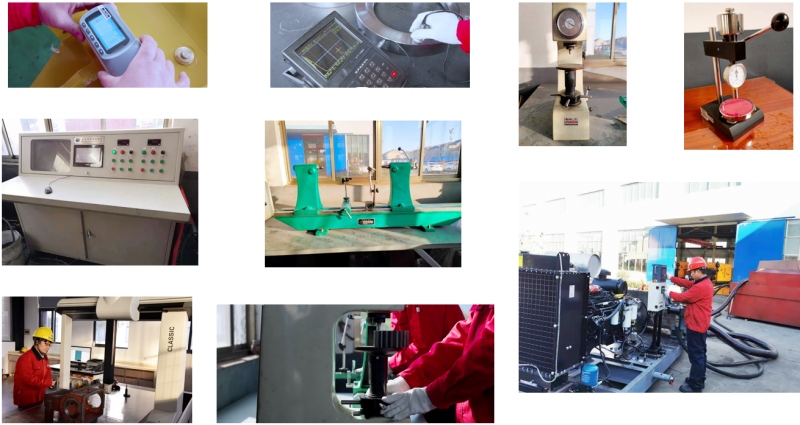

4- Advanced and professional testing and inspection equipment.

Product Tags 300lpm Mud Pump          Mud Pump 300lpm          HDD Pumps          Plunger Mud Pump          Hydraulic Mud Pump          Triplex Mud Pump
