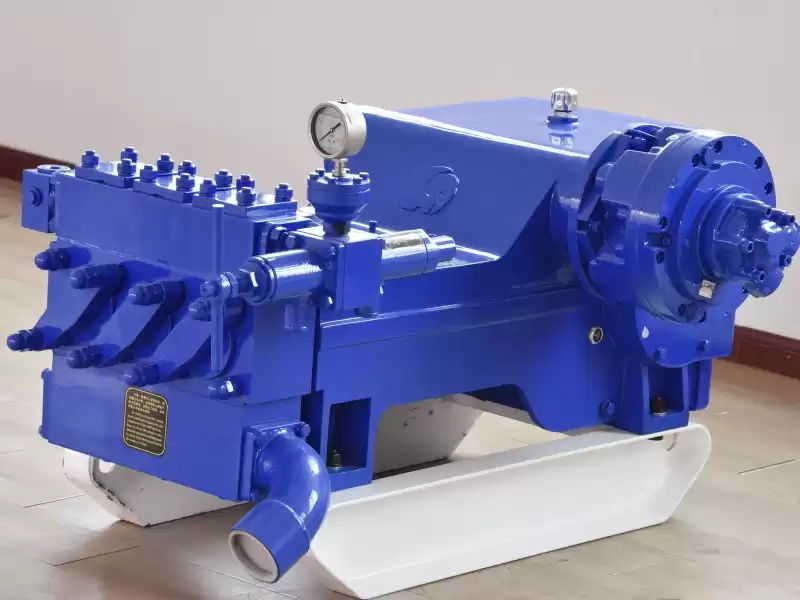

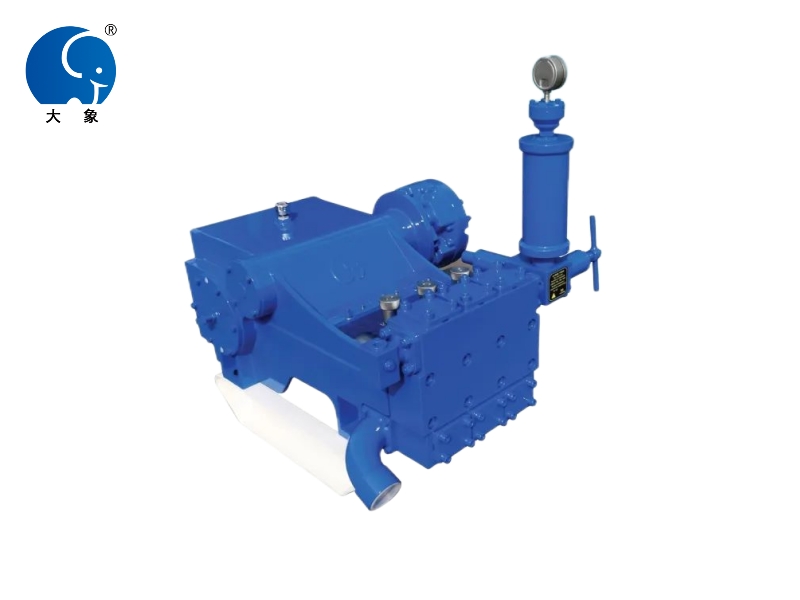

DXB-600 Pump mud system For 70ton HDD

DXB-600 wholesale mud pump mainly works with the drilling rig around 70ton.



DXB-600 mud pump unit is a kind of multi-purpose horizontal triplex reciprocating single-acting plunger pump, adopting double displacement hydraulic motor to drive.



It mainly works with the trenchless drilling rig about 70T. It can also be used for other purposes, such as grouting, mine drainage and long-distance water delivery.



This kind of mud pump has two flows and pressures, by remotely adjusting hydraulic motor flow.



Technical Parameters and Specifications:

Type Horizontal Triplex Reciprocating Single Acting Plunger Mud Pump
Stroke (mm) 110
Cyclinder Diameter (mm) 95
Flow ( L/min) 600-300
Pressure (Mpa) 3.5 - 7
Input Speed (r/min) 900-451
Input Power (KW) 45
Dimensions (mm) 1353*940*582
Weight (kg) 710
Hydraulic Motor Model SA12-350-170
Hydraulic Motor Pressure (Mpa) 20
Maximum Motor Flow (L/min) 175



Check this video to get more information regarding our DXB-600 plunger mud pump.



Advantages:

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.

  • *  Professional Design Team:customizing the mud pump as per your requirements,such as the shape, color,etc.
  • *  Production Team:guaranting the production time and the quality, never late for shipment.
  • *  Sales and after-sales Team:1 Year Warranty; 24 Hours Online Service; Video Technical Support.
  • 2 - The Partners we cooperate.

3 - Adopting advanced structure and new materials.

With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.



4- Advanced and professional testing and inspection equipment.


Product Tags Jiangsu elephant Mud Pump          Pump Mud Drill          Pump Mud Drilling          Mud Pump for mining          Mud Pump for drill          Hydraulic Mud Pump Drilling Rig
