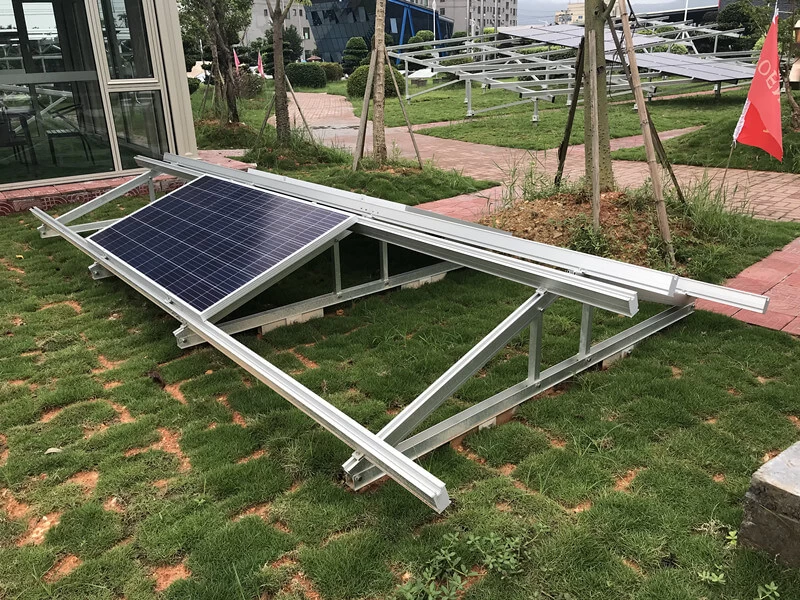

East And West Bracket Solution

East and  west bracket solution adapts to concrete flat rooftop and is applicable to ballasted system, concrete block, and expansion bolt base.

  • HS Code76109000
  • Panel TypeFramed & Frameless
  • FoundationClamp/Hook
  • Tilt Angle0°~60°
  • Installation SiteMetal Roof
Facebook Twitter Pinterest LinkedIn 分享

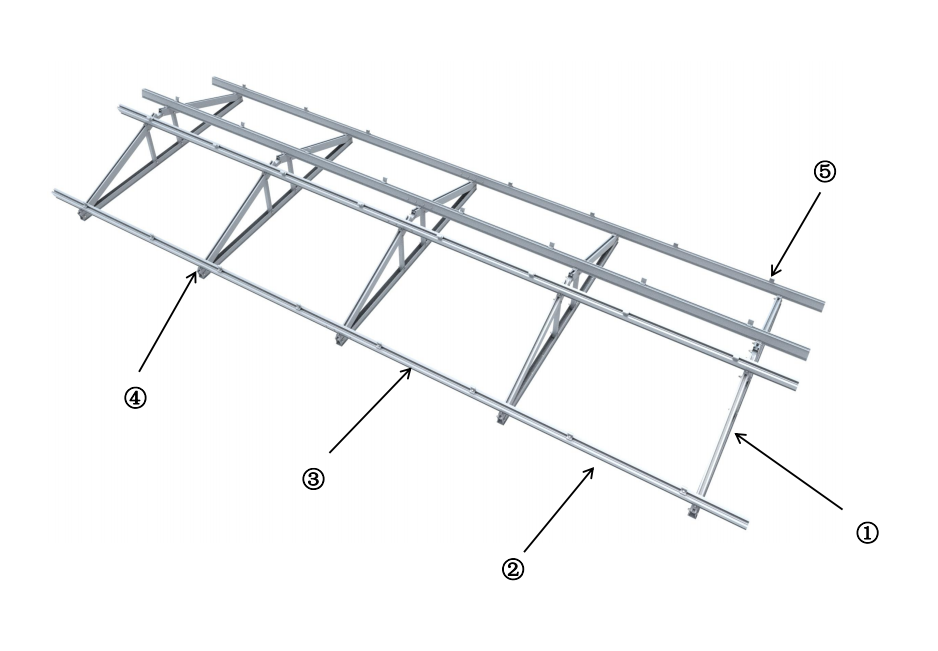

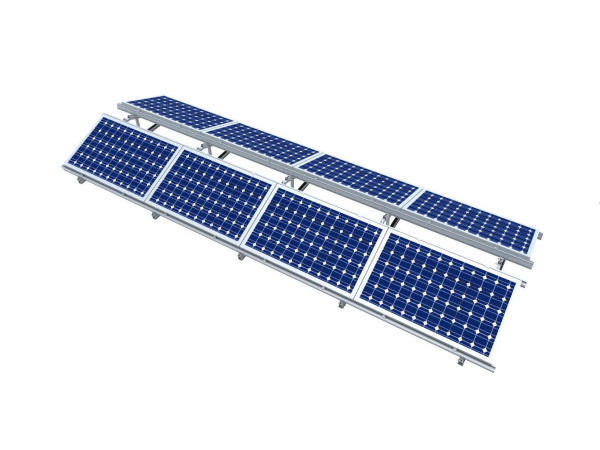

“人” Type Bracket Solution

“人” type bracket solution adapts to concrete flat rooftop and is applicable to ballasted system, concrete block, and expansion bolt base. The dual-face downwind bracket has great advantages against flat roofs under strong wind. Its simple structure reduce difficulties for on-site work, so as to reducing cost.

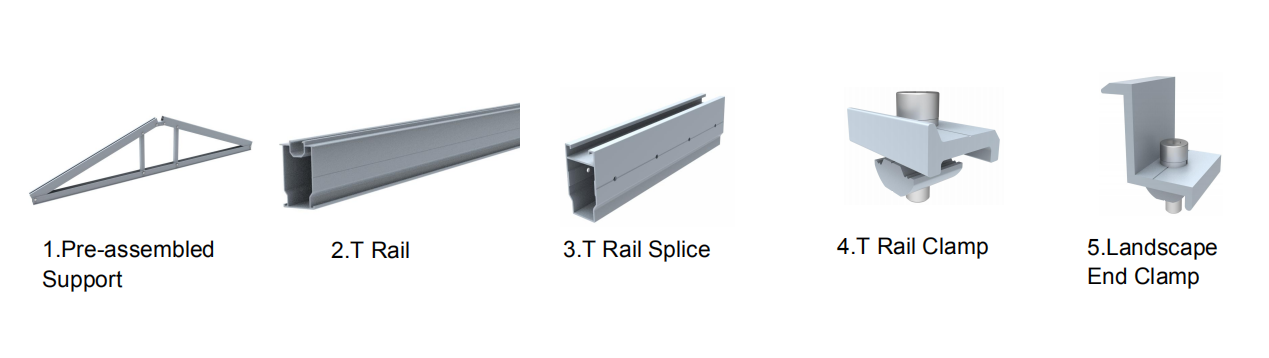

Material
    AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

Panel Type
    Framed & Frameless
Wind Load
    ≤60m/s
Snow Load
    1.4KN/m2
 Panel Orientation
    Landscape/Portrait
 Tilt Angle
    0°~60°
Seismic Load
    Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty

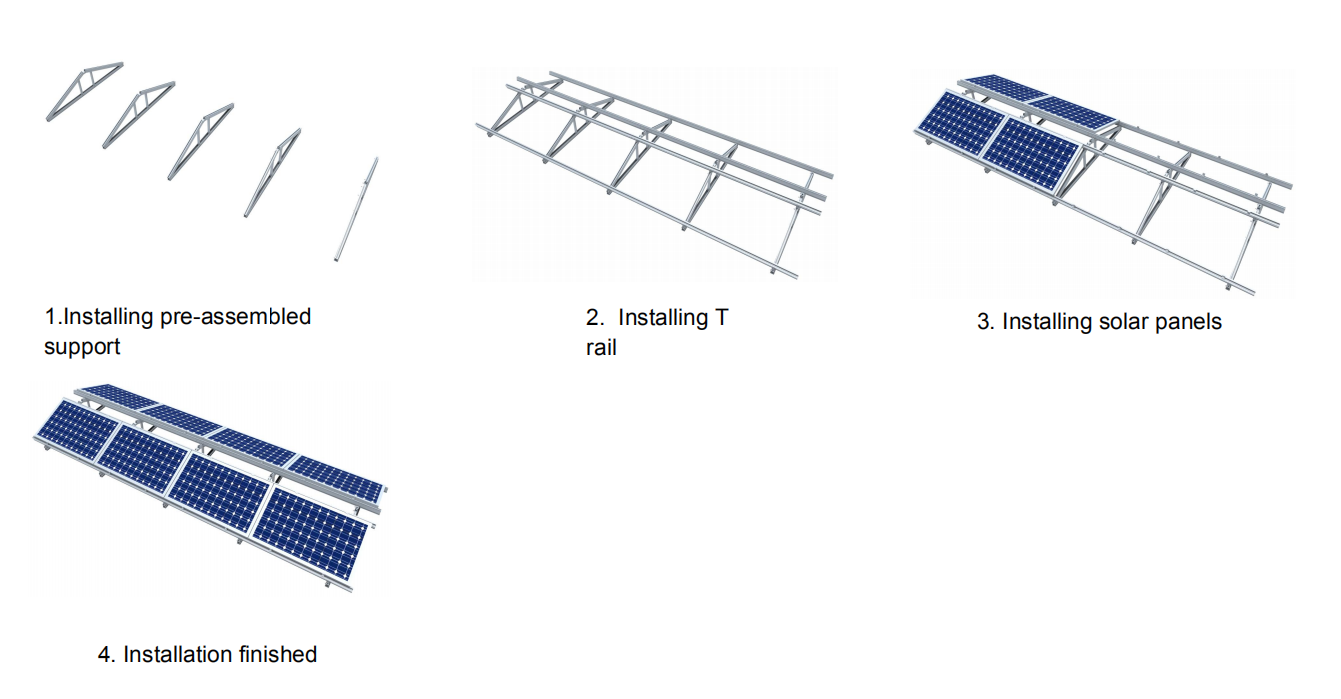

Highly pre-assembled before shipment ensure an quicker installation work


Check and test Structure strictly for the use in extreme weather condition


Simpler design and less components make the solution more competitive


15 years' warranty, 25 years' life span
